KHEY
HANCHEY AHP (FORT NOVOSEL)
PrivatePVT

4 miles SE of FORT NOVOSEL (OZARK), AL
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
31° 21' 21"N 85° 39' 07"W
318' MSL
901' MSL
03W
None Listed
ANNISTON (ANB)
NEW ORLEANS
JACKSONVILLE (ZJX)
10/31/24-11/28/24
KHEY VFR
5:55 AM CST
Broken 6,000'
10sm
71°F
70°F
30.00"Hg
070° 4kts
AO2 SLP158 T02170212 10228 20217 53006
KHEY 091155Z AUTO 07004KT 10SM BKN060 22/21 A3000 RMK AO2 SLP158 T02170212 10228 20217 53006

KHEY FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

ATIS
141.375

Emergency

EMERG
121.5

Ground

GND/P
142.55

Tower

LCL/P
140.5

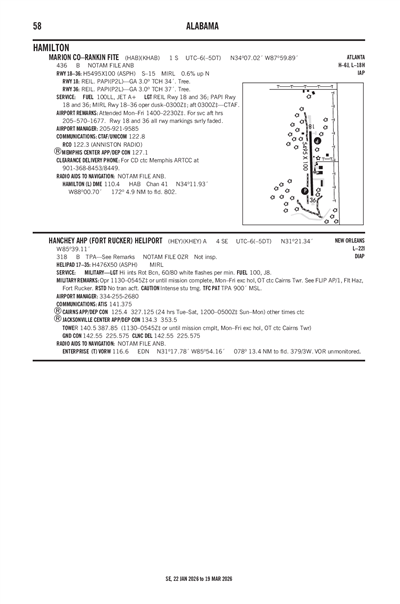

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KOZR (6nm)
Fri, 11/8 8:00 PM CST
Fri, 11/8 8:00 PM CST - Sun, 11/10 2:00 AM CST
VFR
8:00 PM CST - 2:00 AM CST
Broken 15,000'
Broken 6,000'
Scattered 3,500'
6sm
30.00"Hg
030° 4kts
IFR
Temporary 12:00 AM CST - 2:00 AM CST
Overcast 1,500'
Broken 700'
N/A
Calm
IFR
Becoming 2:00 AM CST - 9:00 AM CST
Overcast 700'
6sm
30.03"Hg
060° 4kts
MVFR
Becoming 9:00 AM CST - 11:00 AM CST
Broken 1,500'
6sm
30.06"Hg
110° 10kts
Gusts 15kts
VFR
Becoming 11:00 AM CST - 6:00 PM CST
Broken 4,000'
6sm
30.06"Hg
120° 12kts
Gusts 18kts
MVFR
Becoming 6:00 PM CST - 2:00 AM CST
Broken 2,000'
6sm
30.06"Hg
100° 7kts
TAF KOZR 090200Z 0902/1008 03004KT 9999 SCT035 BKN060 BKN150 QNH3000INS
   TEMPO 0906/0908 BKN007 OVC015
   BECMG 0908/0909 06004KT 9999 OVC007 QNH3003INS
   BECMG 0915/0916 11010G15KT 9999 BKN015 QNH3005INS
   BECMG 0917/0918 12012G18KT 9999 BKN040 QNH3005INS
   BECMG 1000/1001 10007KT 9999 BKN020 QNH3007INS TX27/0920Z TN22/0910Z LAST NO AMDS AFT 0906 NEXT 1210
KHEY
Military
11/5/241716Z M1340/24 NOTAMN
Q) ZJX/QFAXX/IV/NBO/A/000/999/3116N08542W005 A) KOZR KLOR KSXS KFHK KHEY B) 2411051716 C) 2411080630
E) SINGLE MH-60 UTILIZING AEROMED HELIPAD 7 NOV 1230-1530 (L).
11/4/242230Z M1339/24 NOTAMN
Q) ZJX/QFAXX/IV/NBO/A/000/999/3116N08542W005 A) KOZR KLOR KSXS KFHK KHEY B) 2411042230 C) 2412010630
E) BROWN TOWER - ADVISORY SERVICES FOR N1 FLIGHT PERIODS 0030Z -
0530Z. CTAF ON 357.00. PERSONNEL WILL BE IN TOWER TO PROVIDE CRASH
SERVICES
11/4/241633Z M1337/24 NOTAMN
Q) ZJX/QFAXX/IV/NBO/A/000/999/3116N08542W005 A) KOZR KLOR KSXS KFHK KHEY B) 2411041633 C) 2411090630
E) GOLDBERG STAGEFIELD ADIVSORY SERVICES FOR AM AND PM FLIGHT
PERIODS FROM 04 NOV 24 - 08 NOV 24. CTAF ON 316.000. PERSONNEL WILL
BE PROVIDING ADVISORY SERVICES AND MANNING THE CRASH BELL.
11/4/241307Z M1335/24 NOTAMN
Q) ZJX/QFAXX/IV/NBO/A/000/999/3116N08542W005 A) KOZR KLOR KSXS KFHK KHEY B) 2411041307 C) 2412210630
E) ALLEN STAGEFIELD - RUN-ON LANDINGS ON EASTERN HALF OF LANE 2
ONLY, (5 AND 6 FROM PERM NOTAMS) CRACKS NEAR PANEL 3 ON ALL LANES.
11/1/241932Z M1331/24 NOTAMN
Q) ZJX/QFAXX/IV/NBO/A/000/999/3116N08542W005 A) KOZR KTOI KSXS KFHK KHEY KLOR B) 2411011932 C) 2411160630
E) KTOI - TWY A4 AND TWY A EAST OF RWY 14/32 CLOSED
2411041200-2411152200
11/1/241931Z M1330/24 NOTAMN
Q) ZJX/QFAXX/IV/NBO/A/000/999/3116N08542W005 A) KOZR KTOI KSXS KFHK KHEY KLOR B) 2411011931 C) 2411160630
E) KTOI - TWY B SOUTH OF RWY 07/25 CLOSED 2411041200-2411152200
11/1/241930Z M1329/24 NOTAMN
Q) ZJX/QFAXX/IV/NBO/A/000/999/3116N08542W005 A) KOZR KTOI KSXS KFHK KHEY KLOR B) 2411011930 C) 2411160630
E) KTOI - ILS U/S 2411041200-2411152200
11/1/241930Z M1328/24 NOTAMN
Q) ZJX/QFAXX/IV/NBO/A/000/999/3116N08542W005 A) KOZR KTOI KSXS KFHK KHEY KLOR B) 2411011930 C) 2411160630
E) KTOI - RWY 07/25 CLOSED 2411041200-2411152200
10/31/241527Z M1320/24 NOTAMN
Q) ZJX/QFAXX/IV/NBO/A/000/999/3116N08542W005 A) KOZR KLOR KSXS KFHK KHEY B) 2410311527 C) 2412010630
E) HIGHBLUFF STAGEFIELD ADIVSORY SERVICES FOR N1 FLIGHT PERIOD FROM
01 NOV TO 30 NOV ON CTAF 357.050. PERSONNEL WILL BE PROVIDING
ADVISORY SERVICES AND MANNING THE CRASH BELL
10/30/241910Z M1312/24 NOTAMN
Q) ZJX/QFAXX/IV/NBO/A/000/999/3116N08542W005 A) KOZR KLOR KSXS KFHK KHEY B) 2410301910 C) 2412210630
E) CAUTION - CRANE OPERATIONS VICINITY OF 16R FV 215 635 MAX BOOM
HEIGHT 120', THERE WILL BE A CHECKERED FLAG AND LIGHT ON TOP OF THE
CRANE.
10/28/241916Z M1306/24 NOTAMN
Q) ZJX/QFAXX/IV/NBO/A/000/999/3116N08542W005 A) KOZR KLOR KSXS KHEY KFHK B) 2410281916 C) 2411292359
E) VERIFIED HAZARD VH0549 - AO VANGUARD 16R EA 90610 01780 - TOWER -
260 AGL, 601' MSL.
10/24/241802Z M1300/24 NOTAMN
Q) ZJX/QFAXX/IV/NBO/A/000/999/3116N08542W005 A) KOZR KLOR KSXS KHEY KFHK B) 2410241802 C) 2411082359
E) CAUTION - LOW FLYING NON-MILITARY MD-500 FLYING LOW LEVEL 500'
AGL AND BELOW IVO LOWE AND SHELL CORRIDORS
10/22/241508Z M1288/24 NOTAMN
Q) ZJX/QFAXX/IV/NBO/A/000/999/3116N08542W005 A) KOZR KLOR KSXS KFHK KHEY B) 2410221508 C) 2412210630
E) STINSON STAGEFIELD - LANE 1 CLOSED DUE TO CONSTRUCTION, AM & PM
FLIGHT PERIODS LANDING WEST TO LANES 2 & 3 CROSS LANDING THRESHOLD
NO LOWER THAN 500' AGL. DEPARTING TO THE EAST ON LANES 2 & 3 CROSS
DEPARTURE END NO LOWER THAN 500' AGL. IERW TRAINING IS LIMITED TO
N1 PERIODS ONLY. NO FLIGHT RESTRICTIONS TO LANE 2 & 3 FOR N1 FLIGHT
PERIOD. NORTH TRAFFIC PATTERN WILL BE USED FOR ALL LANES ON
FREQUENCY 387.5. 21 OCT 06:30 2024 UNTIL 21 DEC 06:30 2024.
10/17/241625Z M1267/24 NOTAMN
Q) ZJX/QFAXX/IV/NBO/A/000/999/3116N08542W005 A) KOZR KLOR KSXS KHEY KFHK B) 2410171625 C) 2411292359
E) GENEVA MUNI (33J) - INTO-PLANE CONTRACT FUEL AVAILABLE MON-FRI,
0800-2100 LOCAL DAILY
10/16/241453Z M1261/24 NOTAMN
Q) ZJX/QFAXX/IV/NBO/A/000/999/3116N08542W005 A) KOZR KLOR KSXS KFHK KHEY B) 2410161453 C) 2501110630
E) KOZR PAR GCA OPEN 0900-1700 (LOCAL) M-F FOR FT. NOVOSEL ASSIGNED
AIRCRAFT ONLY. EXPECT FREQUENCY 123.500 TO BE ISSUED BY CAIRNS
APPROACH.
10/16/241330Z M1260/24 NOTAMN
Q) ZJX/QFAXX/IV/NBO/A/000/999/3116N08542W005 A) KOZR KLOR KSXS KFHK KHEY B) 2410161330 C) 2501110630
E) KOZR APPROACH (WEST) 133.45 U/S, UTILIZE 118.125.
9/30/241614Z M1214/24 NOTAMN
Q) ZJX/QFAXX/IV/NBO/A/000/999/3116N08542W005 A) KOZR KLOR KSXS KFHK KHEY B) 2409301614 C) 2412210630
E) TAC X (16R FV 97466 43407) CLOSED TO ALL A/C, 2SM NO VFR
OVERFLIGHT OF TAC X
9/16/241626Z M1166/24 NOTAMN
Q) ZJX/QFAXX/IV/NBO/A/000/999/3116N08542W005 A) KOZR KLOR KSXS KFHK KHEY B) 2409161626 C) 2411080630
E) RT-117 - ACTIVATED 11 SEP 24 - AO VANGUARD NORTH - 16R EV 77896
87405. ASSIGNED FREQ 41.55, LANDING/TAKEOFF IS 18/36 SEE QITA FOR
ADDITIONAL INFORMATION.
9/9/241647Z M1142/24 NOTAMN
Q) ZJX/QFAXX/IV/NBO/A/000/999/3116N08542W005 A) KOZR KLOR KSXS KFHK KHEY B) 2409091647 C) 2412060630
E) KOZR - VOR U/S
9/3/241704Z M1120/24 NOTAMN
Q) ZJX/QFAXX/IV/NBO/A/000/999/3116N08542W005 A) KOZR KHEY B) 2409031704 C) 2411292359
E) HATCH STAGEFIELD - TEMP DURING CONSTRUCTION ON LANES 5 AND 6 -
SEF AT AN OGE HOVER IS AUTHORIZED TO LANE 3 USING ABBREVIATED WEST
TRAFFIC (AIRCRAFT WILL REMAIN WEST OF LANE 6 OVER TREE LINE WHILE
ON DOWNWIND) . LANE 2 IS RESTRICTED FROM AUTOROTATIONS WHEN LANE 3
IS BEING USED FOR SEF AT AN OGE HOVER.
9/3/241649Z M1119/24 NOTAMN
Q) ZJX/QFAXX/IV/NBO/A/000/999/3116N08542W005 A) KOZR KHEY KFHK B) 2409031649 C) 2411292359
E) CAIRNS TO HANCHEY TRANSITION VIA ACP 5PTS - USAACE REG 95-2, PAGE
310, BELOW (F) (6): DEPART CAIRNS AAF CLIMBING TO 1,500 MSL, DIRECT
TO ACP FIVE POINTS [5PTS], CONTACTING HANCHEY ATCT PRIOR TO
REACHING ACP FIVE POINTS [5PTS], THEN AS DIRECTED BY HANCHEY ATCT.
(TRANSITION IS VFR ONLY - NO SVFR
8/22/241904Z M1076/24 NOTAMN
Q) ZJX/QFAXX/IV/NBO/A/000/999/3116N08542W005 A) KOZR KLOR KSXS KFHK KHEY B) 2408221904 C) 2411160630
E) NOE ROUTE 194 CLOSED
8/15/241544Z M1042/24 NOTAMN
Q) ZJX/QFAXX/IV/NBO/A/000/999/3116N08542W005 A) KOZR KLOR KSXS KFHK KHEY B) 2408151544 C) 2411090630
E) HATCH STAGEFIELD LANES 4-6 CLOSED DUE TO CONSTRUCTION STARTING 19
AUG. USAGE OF LANE 3 IN ACCORDANCE WITH USAACE 95-2 PARA 4-11 (B).
Yes
MON-FRI 0600-0030
EXCP HOL
US ARMY HANCHEY ARMY HELIPAD
9325 GUNSTON ROAD
FT BELVOIR, VA 22060
PAUL MEISSNER


Phone: 334-255-2680
ANNISTON FSS (ANB)
Toll Free: 1-800-WX-BRIEF
OZR
Sunset to Sunrise
--
N/A
N/A
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 17/35

476 ft. x 50 ft.
ASPH
Fair
NONE
MED

--
--
--
--
  Runway 17 Runway 35
True Heading 177°357°
Traffic Pattern
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 31° 21' 23"N 31° 21' 18"N
Longitude 85° 39' 07"W 85° 39' 07"W
Elevation 318' 318'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FUEL: 100, J8
A110-2LGT: HI INTS ROT BCN, 60/80 WHITE FLASHES PER MIN.
A110-3OPR 1130-0545Z++OR UNTIL MISSION COMPLETE, MON-FRI EXC HOL, OT CTC CAIRNS TWR. SEE FLIP AP/1, FLT HAZ, FORT NOVOSEL.
A110-4RSTD: NO TRAN ACFT.
A110-5CAUTION: INTS STU TRNG.
A110-6(RWY LENGTH SOURCE DATE, RWY 17/35) HELICOPTER RWY
HANCHEY AHP (FORT NOVOSEL) (ICAO: KHEY, IATA: HEY) is a private heliport located in FORT NOVOSEL (OZARK), AL.
