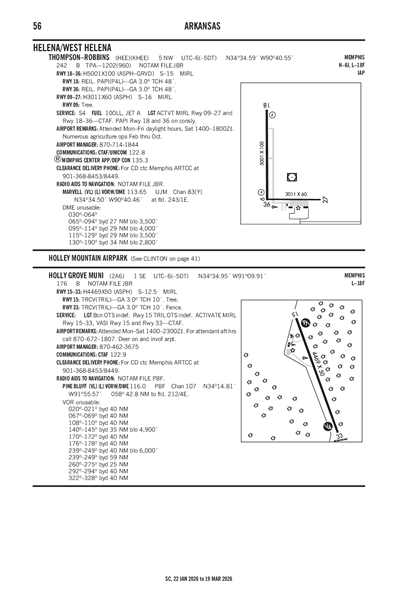

THOMPSON-ROBBINS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHEE
ICAO KHEEIATA HEELocal HEE
THOMPSON-ROBBINS
PublicPUB

5 miles NW of HELENA/WEST HELENA, AR, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
34° 34' 35"N 90° 40' 33"W
Elevation
242' MSL
Pattern Alt
1202' MSL
Mag Variation
1°W
Declination
1°E
Fuel
JET A, 100LL
FSS
JONESBORO (JBR)
Sectional
MEMPHIS
ARTCC
MEMPHIS (ZME)
Data Effective
2/19/26-3/19/26
KUTA (18nm) VFR
7:55 PM CST
Clear
10sm
66°F
56°F
30.08"Hg
190° 5kts
AO2 T01910135 $
METAR KUTA 040155Z AUTO 19005KT 10SM CLR 19/14 A3008 RMK AO2 T01910135 $
+ Add Your Business

KHEE FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
ACTVT MIRL RWY 09/27 & 18/36 - CTAF. PAPI RWY 18 & 36 ON CONSLY.
UNICOM 122.8

Center

MEMPHIS CENTER 135.3
LOW, APCH/DEP SVC PRVDD BY MEMPHIS ARTCC ON FREQS 135.3/335.8(BRINKLEY RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KMEM (45nm)
Tue, 3/3 5:28 PM CST
Tue, 3/3 6:00 PM CST - Thu, 3/5 12:00 AM CST
VFR
6:00 PM CST - 7:00 PM CST
Scattered 25,000'
Scattered 4,500'
6sm
180° 13kts
Gusts 19kts
VFR
7:00 PM CST - 6:00 AM CST
Scattered 25,000'
Scattered 2,500'
6sm
170° 8kts
MVFR
6:00 AM CST - 12:00 PM CST
Broken 25,000'
Broken 1,500'
6sm
190° 11kts
Gusts 18kts
VFR
12:00 PM CST - 6:00 PM CST
Broken 25,000'
Scattered 1,500'
6sm
200° 12kts
Gusts 20kts
VFR
6:00 PM CST - 12:00 AM CST
Broken 25,000'
6sm
180° 8kts
TAF KMEM 032328Z 0400/0506 18013G19KT P6SM SCT045 SCT250
   FM040100 17008KT P6SM SCT025 SCT250
   FM041200 19011G18KT P6SM BKN015 BKN250
   FM041800 20012G20KT P6SM SCT015 BKN250
   FM050000 18008KT P6SM BKN250
KHEE
EffectiveExpiresCategoryNOTAM
Domestic
2/7/26
0139Z
8/7/26
2359Z
!JBR 02/066 HEE OBST TOWER LGT (ASR 1038828) 343402.00N0903737.00W (2.5NM ESE HEE) 620.7FT (237.9FT AGL) U/S 2602070139-2608072359
No
MON-FRI DALGT
SAT 0800-1200
HELENA WEST HELENA
CITY OF HELENA / WEST HELENA 226 PERRY STR
HELENA, AR 72342
Phone: (870) 817-7400
BILL BROTHERS
PO BOX 2948
WEST HELENA, AR 72390
Phone: 870-714-1844
JONESBORO FSS (JBR)
Toll Free: 1-800-WX-BRIEF
JBR
--
ACTVT MIRL RWY 09/27 & 18/36 - CTAF. PAPI RWY 18 & 36 ON CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Crop Dusting
Pilot Instruction
Aircraft Sales

Runway 09/27

3011 ft. x 60 ft.
ASPH
Fair
NONE
MED

16,000lbs
--
--
--
  Runway 09 Runway 27
True Heading 90°270°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 34° 34' 20"N 34° 34' 20"N
Longitude 90° 40' 40"W 90° 40' 04"W
Elevation 237' 242'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18/36

5001 ft. x 100 ft.
ASPH
Good
GRVD
MED

15,000lbs
--
--
--
  Runway 18 Runway 36
True Heading 180°0°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 34° 35' 09"N 34° 34' 20"N
Longitude 90° 40' 39"W 90° 40' 40"W
Elevation 241' 238'
Threshold Crossing Height 48 ft. AGL 48 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-2(E81) TWY EXIT & GUIDANCE SIGNS.
A110-3NUMEROUS AGRICULTURE OPS FEB THRU OCT.
A110-4FOR CD CTC MEMPHIS ARTCC AT 901-368-8453/8449.
A81-APTACTVT MIRL RWY 09/27 & 18/36 - CTAF. PAPI RWY 18 & 36 ON CONSLY.
THOMPSON-ROBBINS (ICAO: KHEE, IATA: HEE) is a public airport located in HELENA/WEST HELENA, AR, US.
