KHDN
YAMPA VALLEY
PublicPUB

2 miles SE of HAYDEN, CO
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 28' 52"N 107° 13' 04"W
6606' MSL
7606' MSL
10E
JET A, 100LL
DENVER (DEN)
CHEYENNE
DENVER (ZDV)
10/31/24-11/28/24
KHDN IFR
4:56 AM MST
Light Snow and Mist
Overcast 1,200'
1.25sm
29°F
29°F
30.01"Hg
Calm
AO2 SLP181 P0002 60009 70009 T10171017 11017 21022 56004 FZRANO
KHDN 091156Z AUTO 00000KT 1 1/4SM -SN BR OVC012 M02/M02 A3001 RMK AO2 SLP181 P0002 60009 70009 T10171017 11017 21022 56004 FZRANO
Add Your Business

KHDN FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

AWOS-3PT

AWOS-3PT
970-276-3690
 119.275

FAA A/FD Pages

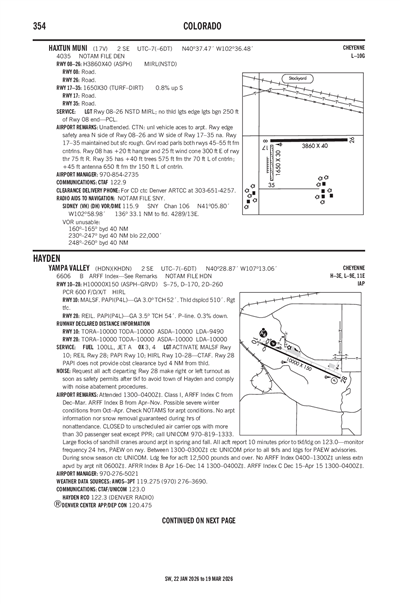

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KHDN
Sat, 11/9 4:37 AM MST
Sat, 11/9 5:00 AM MST - Sun, 11/10 5:00 AM MST
IFR
5:00 AM MST - 9:00 AM MST
Light Showers and Snow and Mist
Overcast 1,000'
1.5sm
VRB° 3kts
MVFR
Temporary 5:00 AM MST - 9:00 AM MST
Light Showers and Snow and Mist
Overcast 3,000'
Scattered 1,000'
3sm
Calm
VFR
9:00 AM MST - 12:00 PM MST
Showers in vicinity
Broken 3,500'
Few 1,000'
6sm
VRB° 4kts
VFR
12:00 PM MST - 7:00 PM MST
Showers in vicinity
Overcast 4,500'
6sm
VRB° 4kts
VFR
7:00 PM MST - 11:00 PM MST
Scattered 5,000'
6sm
VRB° 4kts
VFR
11:00 PM MST - 5:00 AM MST
Few 25,000'
6sm
100° 9kts
KHDN 091137Z 0912/1012 VRB03KT 1 1/2SM -SHSN BR OVC010
   TEMPO 0912/0916 3SM -SHSN BR SCT010 OVC030
   FM091600 VRB04KT P6SM VCSH FEW010 BKN035
   FM091900 VRB04KT P6SM VCSH OVC045
   FM100200 VRB04KT P6SM SCT050
   FM100600 10009KT P6SM FEW250
KHDN
Domestic
11/6/241430Z !HDN 11/020 HDN RWY 10 ALS U/S 2411061430-2411061800
11/6/240559Z !HDN 11/033 HDN APRON ALL FICON 1/8IN DRY SN OVER PATCHY ICE BA POOR OBS AT 2411060559. COND NOT MNT 2411060600-2411061400. 2411060559-2411061400
11/6/240558Z !HDN 11/032 HDN TWY ALL FICON 1/8IN DRY SN OVER PATCHY ICE BA POOR OBS AT 2411060558. COND NOT MNT 2411060600-2411061400. 2411060558-2411061400
11/6/240557Z !HDN 11/031 HDN RWY 10 FICON 4/4/4 100 PCT 1/8IN WET SN OBS AT 2411060557. COND NOT MNT 2411060600-2411061400. 2411060557-2411061400
10/29/242102Z !HDN 10/066 HDN APRON TXL B N 20FT WIP CONST ADJ N EDGE EQPT
LGTD AND BARRICADED 2410292102-2411302359
FDC
2/23/241803Z !FDC 4/9078 HDN IAP YAMPA VALLEY, HAYDEN, CO.
RNAV (GPS) RWY 28, AMDT 3A...
RNAV (GPS) Y RWY 10, AMDT 4...
CIRCLING CAT C MDA 7840/HAA 1234, VISIBILITY CAT C 3.
2402231803-2602231803EST
No
0600-2100
ROUTT COUNTY
PO BOX 773598
STEAMBOAT SPRNGS 80477
Phone: 970-879-0108
KEVIN BOOTH
11005 RCR 51A, PO BOX 1060
HAYDEN, CO 81639
Phone: 970-276-5004
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
HDN
--
ACTVT MALSF RWY 10; REIL RWY 28; PAPI RWY 10; HIRL RWY 10/28 - CTAF.
N/A
Yes - Lighted
Yes
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
High & Low Pressure
None
Air Freight
Air Ambulance

Runway 10/28

10000 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

75,000lbs
170,000lbs
260,000lbs
--
  Runway 10 Runway 28
True Heading 114°294°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 29' 12"N 40° 28' 32"N
Longitude 107° 14' 03"W 107° 12' 04"W
Elevation 6,580' 6,606'
Threshold Crossing Height 52 ft. AGL 54 ft. AGL
Visual Glide Path Angle 3° 3.5°
Visual Slope Indicator P4L P4L
Approach Lights MALSF
Centerline Lights
Runway End Identifier Lights Yes
A110-1REQ ALL ACFT DEPG RWY 28 MAKE RGT OR LEFT TURNOUT AS SOON AS SAFETY PERMITS AFTER TAKEOFF TO AVOID TOWN OF HAYDEN & COMPLY WITH NOISE ABATEMENT PROCS.
A110-10NO ARFF INDEX 2100-0600 UNLESS EXTN APVD BY ARPT NLT 2300.
A110-11ARFF INDEX B APR 16-DEC 14 0600-2100. ARFF INDEX C DEC 15-APR 15 0600-2100.
A110-5LARGE FLOCKS OF SANDHILL CRANES AROUND ARPT IN SPRING AND FALL.
A110-6ALL ACFT REPORT 10 MINUTES PRIOR TO TKOF/LNDG ON 123.0 - MONITOR FREQ 24 HRS, PAEW ON RWY.
A110-7POSSIBLE SEVERE WINTER CONDITIONS FROM OCT-APR. CHECK NOTAMS FOR ARPT CONDITIONS. NO ARPT INFORMATION NOR SNOW REMOVAL GUARANTEED DURING HOURS OF NONATTENDANCE.
A110-9RWY 28 PAPI DOES NOT PROVIDE OBST CLEARANCE BEYOND 4.0 NM FROM THRESHOLD.
YAMPA VALLEY (ICAO: KHDN, IATA: HDN) is a public airport located in HAYDEN, CO.
