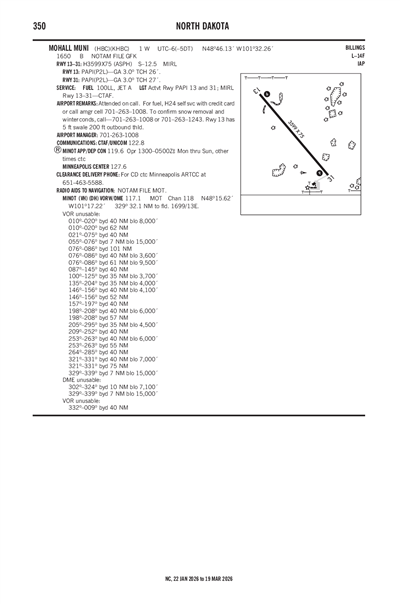

MOHALL MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KHBC
ICAO KHBCLocal HBC
MOHALL MUNI
PublicPUB

1 miles W of MOHALL, ND, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
48° 46' 08"N 101° 32' 16"W
Elevation
1650' MSL
Pattern Alt
2650' MSL
Mag Variation
6°E
Declination
9°E
Fuel
JET A, 100LL
FSS
GRAND FORKS (GFK)
Sectional
BILLINGS
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
2/19/26-3/19/26
K1ON (11nm) LIFR
9:55 PM CST
Mist
Broken 300'
4sm
23°F
22°F
N/A
140° 7kts
AO2 SLPNO T10501057 $
METAR K1ON 040355Z AUTO 14007KT 4SM BR BKN003 M05/M06 M RMK AO2 SLPNO T10501057 $
+ Add Your Business

KHBC FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
ACTVT PAPI RWY 13 & 31; MIRL RWY 13/31 - CTAF.
UNICOM 122.8

Approach

MINOT APPROACH 119.6

Departure

MINOT DEPARTURE 119.6

Center

MINOT CENTER 127.6
LOW/HIGH, APCH/DEP SVC PRVDD BY MINNEAPOLIS ARTCC ON FREQS 127.6/279.6 (MINOT RCAG) WHEN MINOT APCH CTL CLSD.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KMIB (23nm)
Tue, 3/3 7:30 PM CST
Tue, 3/3 7:00 PM CST - Thu, 3/5 1:00 AM CST
VFR
7:00 PM CST - 1:00 AM CST
Mist
Scattered 10,000'
Few 500'
5.59sm
29.91"Hg
VRB° 6kts
IFR
Becoming 1:00 AM CST - 5:00 AM CST
Mist
Overcast 500'
2.98sm
29.88"Hg
VRB° 6kts
LIFR
Temporary 2:00 AM CST - 6:00 AM CST
Mist
Overcast 300'
0.99sm
Calm
LIFR
Becoming 5:00 AM CST - 9:00 AM CST
Mist
Overcast 300'
0.99sm
29.91"Hg
030° 6kts
LIFR
Temporary 6:00 AM CST - 10:00 AM CST
Mist
No Clouds
0.75sm
Calm
LIFR
Becoming 9:00 AM CST - 11:00 AM CST
Mist
Overcast 400'
3.73sm
29.94"Hg
030° 9kts
IFR
Becoming 11:00 AM CST - 11:00 PM CST
Overcast 500'
6sm
29.94"Hg
060° 12kts
Gusts 18kts
IFR
Becoming 11:00 PM CST - 1:00 AM CST
Overcast 700'
6sm
29.91"Hg
090° 10kts
Gusts 20kts
TAF AMD KMIB 040130Z 0401/0507 VRB06KT 9000 BR FEW005 SCT100 QNH2990INS
   BECMG 0407/0408 VRB06KT 4800 BR OVC005 620052 QNH2989INS
   TEMPO 0408/0412 1600 BR OVC003 620032
   BECMG 0411/0412 03006KT 1600 BR OVC003 620032 QNH2990INS
   TEMPO 0412/0416 1200 BR
   BECMG 0415/0416 03009KT 6000 BR OVC004 620042 QNH2994INS
   BECMG 0417/0418 06012G18KT 9999 NSW OVC005 620052 QNH2995INS
   BECMG 0505/0506 09010G20KT 9999 OVC007 620073 QNH2992INS TX01/0418Z TNM05/0501Z
KHBC
EffectiveExpiresCategoryNOTAM
Domestic
1/15/26
0008Z
3/1/26
0007Z
!GFK 01/365 HBC OBST TOWER LGT (ASN 2019-AGL-4142-OE) 485616N1013827W (11.0NM NNW HBC) 2052FT (404FT AGL) U/S 2601150008-2603010007
No
ON CALL
CITY OF MOHALL
P.O. BOX 476
MOHALL, ND 58761
Phone: 701-756-6464
MIKE NEHRING
PO BOX 241
MOHALL, ND 58761
Phone: 701-263-1008
GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF
GFK
--
ACTVT PAPI RWY 13 & 31; MIRL RWY 13/31 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting
Pilot Instruction

Runway 13/31

3599 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 140°320°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 48° 46' 22"N 48° 45' 54"N
Longitude 101° 32' 33"W 101° 31' 58"W
Elevation 1,648' 1,649'
Threshold Crossing Height 26 ft. AGL 27 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1+185' TV TWR 5000' FM ARPT LCTD ON SOUTH EDGE OF TOWN.
A110-2TO CONFIRM SNOW REMOVAL & WINTER CONDS, CALL - 701-263-1008 OR 701-263-1243.
A110-3RWY 13 5 FT SWALE 200 FT OUTBOUND THLD.
A110-4FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A14ADDTL CTC GARY ALBRIGHT 701-240-5536.
A16AMGR ADDTL PHONE 701-756-6364 OR 701-756-7258.
A52-1350 FT PLINE 2550 FT FM THLD ON CNTRLN EXTDD; APCH RATIO 34:1.
A70-100LLH24 SELF SVC WITH CREDIT CARD OR CALL AMGR CELL 701-263-1008.
A70-AH24 SELF SVC WITH CREDIT CARD OR CALL AMGR CELL 701-263-1008.
A81-APTACTVT PAPI RWY 13 & 31; MIRL RWY 13/31 - CTAF.
MOHALL MUNI (ICAO: KHBC, IATA: HBC) is a public airport located in MOHALL, ND, US.
