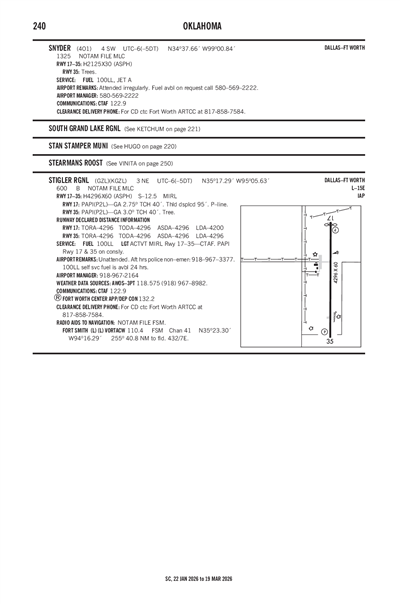

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGZL
STIGLER RGNL
PublicPUB

3 miles NE of STIGLER, OK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 17' 17"N 95° 05' 38"W
600' MSL
1600' MSL
03E
100LL
MC ALESTER (MLC)
DALLAS-FT WORTH
FORT WORTH (ZFW)
7/11/24-8/8/24
KGZL VFR
5:35 AM CDT
Clear
10sm
72°F
70°F
30.00"Hg
100° 7kts
AO2
KGZL 191035Z AUTO 10007KT 10SM CLR 22/21 A3000 RMK AO2
Add Your Business

KGZL FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

AWOS-3PT

AWOS-3PT
918-967-8982
 118.575

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KFSM (36nm)
Thu, 9/19 12:35 AM CDT
Thu, 9/19 1:00 AM CDT - Fri, 9/20 1:00 AM CDT
VFR
1:00 AM CDT - 11:00 AM CDT
Scattered 15,000'
6sm
070° 4kts
VFR
11:00 AM CDT - 8:00 PM CDT
Scattered 12,000'
Scattered 5,000'
6sm
170° 7kts
VFR
8:00 PM CDT - 1:00 AM CDT
Broken 25,000'
Scattered 12,000'
6sm
100° 5kts
KFSM 190535Z 1906/2006 07004KT P6SM SCT150
   FM191600 17007KT P6SM SCT050 SCT120
   FM200100 10005KT P6SM SCT120 BKN250
KGZL
Domestic
9/6/240131Z !MLC 09/048 GZL OBST TOWER LGT (ASN 2018-ASW-18543-OE) 350651N0950601W (10.4NM S GZL) 949FT (320FT AGL) U/S 2409060131-2410210131
9/3/242018Z !MLC 09/025 GZL OBST TOWER LGT (ASR 1010196) 351106.00N0951433.00W (9.6NM SW GZL) 1099.7FT (280.8FT AGL) U/S 2409032018-2410182017
8/13/241609Z !MLC 08/182 GZL OBST TOWER LGT (ASR 1250046) 350704.90N0950524.60W (10.2NM S GZL) 1006.2FT (317.9FT AGL) U/S 2408131609-2411132359
8/7/241934Z !MLC 08/085 GZL OBST TOWER LGT (ASR 1278582) 351505.20N0945448.60W (9.1NM ESE GZL) 760.8FT (268.0FT AGL) U/S 2408071934-2411072359
8/7/240046Z !MLC 08/069 GZL OBST TOWER LGT (ASR 1241025) 351448.80N0950722.70W (2.9NM SSW GZL) 876.6FT (319.9FT AGL) U/S 2408070046-2411060400
7/9/241632Z !MLC 07/172 GZL OBST TOWER LGT (ASR 1235371) 351458.00N0950607.50W (2.4NM S GZL) 912.7FT (295.9FT AGL) U/S 2407091632-2501092359
No
UNATNDD
CITY OF STIGLER
115 S. BROADWAY, 115 S. BDWY
STIGLER, OK 74462
Phone: 918-967-2164
BOBBY MOUSER
CITY HALL, 115 S. BDWY
STIGLER, OK 74462
Phone: 918-967-2164
MC ALESTER FSS (MLC)
Toll Free: 1-800-WX-BRIEF
MLC
--
ACTVT LIRL RWY 17/35 - CTAF. PAPI RWY 17 & 35 ON CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
5
1
1
2
0
0
None
None
None
None
None

Runway 17/35

4296 ft. x 60 ft.
ASPH
Good
NONE
LOW

12,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 180°0°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 17' 39"N 35° 16' 56"N
Longitude 95° 05' 38"W 95° 05' 38"W
Elevation 600' 600'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 2.75° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
STIGLER RGNL (ICAO: KGZL, IATA: GZL) is a public airport located in STIGLER, OK.
