iFlightPlanner



...

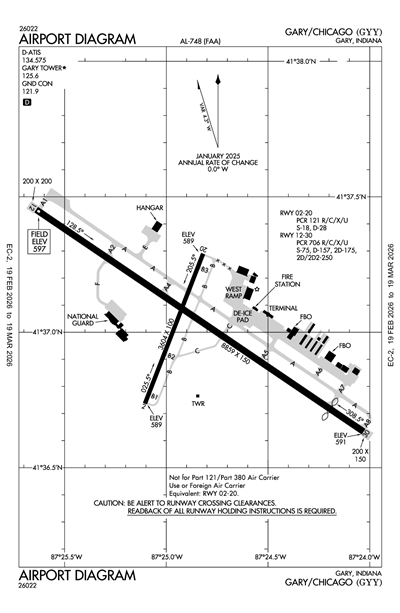

GARY/CHICAGO INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGYY
GARY/CHICAGO INTL
PublicPUB

3 miles NW of GARY/CHICAGO, IN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 37' 02"N 87° 24' 52"W
597' MSL
1597' MSL
04W
JET A, 100LL
TERRE HAUTE (HUF)
CHICAGO
CHICAGO (ZAU)
4/17/25-5/15/25
KGYY VFR
4:50 PM CST
Light Rain
Few 3,000'
8sm
55°F
55°F
29.63"Hg
180° 11kts
Gusts 19kts
METAR KGYY 082250Z 18011G19KT 8SM -RA FEW030 13/13 A2963
+ Add Your Business

KGYY FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 134.575
AWOS-3PT 134.575
219-944-0010

Ground

GND/P 121.9

Tower

LCL/P 125.6

Other

ARNG OPS 38.3
ARNG OPS 139.6

Terminal Area Forecast

KGYY
Thu, 1/8 2:48 PM CST
Thu, 1/8 3:00 PM CST - Fri, 1/9 12:00 PM CST
VFR
3:00 PM CST - 5:00 PM CST
Light Showers and Rain and Mist
Broken 5,000'
Scattered 2,500'
6sm
160° 15kts
Gusts 25kts
IFR
5:00 PM CST - 9:00 PM CST
Light Showers and Rain and Mist
Overcast 1,000'
Broken 800'
4sm
150° 15kts
Gusts 25kts
IFR
Temporary 7:00 PM CST - 9:00 PM CST
Thunderstorm and Rain and Mist
Overcast 800'
Scattered 500'
1sm
150° 20kts
Gusts 35kts
IFR
9:00 PM CST - 11:00 PM CST
Mist and Showers in vicinity
Overcast 1,200'
Broken 800'
5sm
200° 14kts
Gusts 24kts
IFR
Temporary 9:00 PM CST - 11:00 PM CST
Thunderstorm and Rain and Mist
Overcast 800'
Scattered 500'
1sm
150° 20kts
Gusts 35kts
MVFR
11:00 PM CST - 4:00 AM CST
Broken 1,500'
6sm
240° 25kts
Gusts 28kts
MVFR
4:00 AM CST - 11:00 AM CST
Broken 1,500'
6sm
240° 25kts
Gusts 35kts
MVFR
5:00 AM CST - 8:00 AM CST
Light Showers and Rain
No Clouds
3sm
240° 30kts
Gusts 40kts
MVFR
11:00 AM CST - 12:00 PM CST
Broken 2,500'
6sm
300° 14kts
Gusts 24kts
TAF KGYY 082048Z 0821/0918 16015G25KT 6SM -SHRA BR SCT025 BKN050
   FM082300 15015G25KT 4SM -SHRA BR BKN008 OVC010 WS020/18055KT
   TEMPO 0901/0903 15020G35KT 1SM TSRA BR SCT005 OVC008CB
   FM090300 20014G24KT 5SM BR VCSH BKN008 OVC012 WS020/18050KT
   TEMPO 0903/0905 15020G35KT 1SM TSRA BR SCT005 OVC008CB
   FM090500 24025G28KT P6SM BKN015
   FM091000 24025G35KT P6SM BKN015
   PROB30 0911/0914 24030G40KT 3SM -SHRA
   FM091700 30014G24KT P6SM BKN025
KGYY
EffectiveExpiresCategoryNOTAM
Domestic
1/7/26
0419Z
1/8/26
0419Z
Runway!GYY 01/037 GYY RWY 30 FICON 5/5/5 100 PCT WET OBS AT 2601070419. 2601070419-2601080419
1/7/26
0418Z
1/8/26
0418Z
Runway!GYY 01/036 GYY RWY 02 FICON 5/5/5 100 PCT WET OBS AT 2601070418. 2601070418-2601080418
1/7/26
0418Z
1/8/26
0418Z
!GYY 01/035 GYY TWY ALL FICON WET OBS AT 2601070418. 2601070418-2601080418
1/7/26
0417Z
1/8/26
0417Z
!GYY 01/034 GYY APRON ALL FICON WET OBS AT 2601070417. 2601070417-2601080417
1/4/26
0427Z
1/30/26
2359Z
!GYY 01/033 GYY OBST STACK (ASN UNKNOWN) 414004N0872831W (3.8NM NW GYY) UNKNOWN (350FT AGL) NOT LGTD 2601040427-2601302359
12/31/25
1638Z
1/7/26
2359Z
!GYY 12/277 GYY TWY A BTN TWY A7 AND TWY A8 WIP IRREGULAR SFC ADJ NORTH SAFETY AREA 2512311638-2601072359
12/26/25
0850Z
2/9/26
0850Z
!GYY 12/222 GYY OBST POWER LINE LGT (ASN 2016-AGL-4784-OE) 414134N0873127W (6.7NM NW GYY) 815FT (230FT AGL) U/S 2512260850-2602090850
12/21/25
0624Z
2/4/26
0602Z
!GYY 12/211 GYY OBST POWER LINE LGT (ASN 2016-AGL-4783-OE) 414127N0873127W (6.6NM NW GYY) 795FT (209FT AGL) U/S 2512210624-2602040602
12/18/25
1219Z
1/19/26
2359Z
!GYY 12/198 GYY OBST TOWER LGT (ASR 1031697) 413549.00N0872845.00W (3.1NM WSW GYY) 1004.9FT (406.8FT AGL) U/S 2512181219-2601192359
12/5/25
0946Z
1/19/26
0505Z
!GYY 12/101 GYY OBST POWER LINE LGT (ASN 2016-AGL-4785-OE) 414134N0873117W (6.6NM NW GYY) 790FT (203FT AGL) U/S 2512050946-2601190505
12/2/25
0700Z
1/16/26
0522Z
!GYY 12/028 GYY OBST POWER LINE LGT (ASN 2016-AGL-8927-OE) 414314N0873237W (8.5NM NW GYY) 870FT (260FT AGL) U/S 2512020700-2601160522
10/31/25
1340Z
!GYY 10/082 GYY TWY A CL MARKINGS NOT STD 2510311340-2606302359EST
10/31/25
1339Z
!GYY 10/081 GYY TWY B SFC PAINTED HLDG PSN SIGNS FOR RWY 12/30 NOT STD 2510311339-2606302359EST
10/31/25
1338Z
!GYY 10/080 GYY TWY A7 SFC PAINTED HLDG PSN SIGNS NOT STD 2510311338-2606302359EST
10/31/25
1337Z
!GYY 10/079 GYY TWY A5 SFC PAINTED HLDG PSN SIGNS NOT STD 2510311337-2606302359EST
7/31/25
0043Z
1/30/26
2359Z
!GYY 07/119 GYY OBST STRUCTURE LGT (ASR UNKNOWN) 413950.00N0872827.00W (3NM NW GYY) UNKNOWN (213FT AGL) U/S 2507310043-2601302359
7/31/25
0042Z
1/30/26
2359Z
!GYY 07/118 GYY OBST TOWER LGT (ASR UNKNOWN) 413955.00N0872855.00W (3NM NW GYY) UNKNOWN (226FT AGL) U/S 2507310042-2601302359
7/31/25
0041Z
1/30/26
2359Z
!GYY 07/117 GYY OBST STACK LGT (ASN 2009-AGL-779-OE) 414027N0872908W (4.8NM NW GYY) 907FT (315FT AGL) U/S 2507310041-2601302359
FDC
8/20/25
1647Z
!FDC 5/0583 GYY SID GARY/CHICAGO INTL, GARY/CHICAGO, IN.
ADELL SEVEN DEPARTURE (RNAV)...
BLOKR SEVEN DEPARTURE (RNAV)...
CARYN SEVEN DEPARTURE (RNAV)...
DARCY SEVEN DEPARTURE (RNAV)...
ELANR EIGHT DEPARTURE (RNAV)...
TAKEOFF MINIMUMS: RWY 2, 300-1 1/2 OR STANDARD WITH MINIMUM CLIMB OF 435 FT PER NM TO 1000. STACK 791 MSL 5119FT N/NE OF RWY 20. ERECO TRANSITION FROM GARY/CHICAGO (GYY); ELANR TO EMILY MOCA 2400, EMMLY TO ERECO MOCA 2300. ALL OTHER DATA REMAINS AS PUBLISHED. 2508201647-2708201647EST
8/18/25
1907Z
!FDC 5/9636 GYY ODP GARY/CHICAGO INTL, GARY/CHICAGO, IN.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 8A...
TAKE-OFF MINIMUMS RWY 02: 300-1 1/2 OR STANDARD WITH MINIMUM CLIMB OF 435 FT PER NM TO 1000.
ALL OTHER DATA REMAINS AS PUBLISHED. 2508181907-2708181907EST
6/18/25
1823Z
!FDC 5/6235 GYY IAP GARY/CHICAGO INTL, GARY/CHICAGO, IN.
RNAV (GPS) RWY 20, ORIG-B...
LNAV CAT C VISIBILITY 1 3/8.
NOTE: RWY 20 HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED.
2506181823-2601281823EST
Yes
ALL
GARY/CHICAGO ARPT AUTH DIST
6001 INDUSTRIAL HWY
GARY, IN 46406
Phone: 219-949-9722
DANIEL VICARI
6001-C AIRPORT RD
GARY, IN 46406
Phone: 219-949-4925
TERRE HAUTE FSS (HUF)
Toll Free: 1-800-WX-BRIEF
GYY
--
WHEN ATCT CLSD ACTVT MALSR RWY 30; REIL RWY 02, 12 & 20; MIRL RWY 02/20; HIRL RWY 12/30 - CTAF.
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
High Pressure
None
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental

Runway 02/20

3604 ft. x 100 ft.
ASPH
Fair
NONE
MED

18,000lbs
28,000lbs
--
--
  Runway 02 Runway 20
True Heading 21°201°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 36' 44"N 41° 37' 17"N
Longitude 87° 25' 06"W 87° 24' 49"W
Elevation 589' 589'
Threshold Crossing Height 40 ft. AGL 42 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 12/30

8859 ft. x 150 ft.
CONC
Good
GRVD
HIGH

75,000lbs
157,000lbs
175,000lbs
250,000lbs
  Runway 12 Runway 30
True Heading 124°304°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 37' 27"N 41° 36' 38"N
Longitude 87° 25' 38"W 87° 24' 02"W
Elevation 597' 591'
Threshold Crossing Height 50 ft. AGL 57 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights Yes No
A110-1BIRDS & WILDLIFE ON & INVOF ARPT.
A110-2UNCTLD VEHICLES N SIDE RAMPS.
A110-3TWY A, A1-A8 & C NORTH OF RWY 12/30 AVBL TO ACR MORE THAN 9 PAX SEATS.
A110-4TWY F MIL USE ONLY.
A110-5LINE OF SIGHT NA BTN INTERSECTING RWY ENDS.
A110-6ARNG: OPS 1230Z-2330Z++ TUES-FRI. MIL F/W OR R/W PRKG OR SVC ON ARNG RAMP 24 HR PPR - 219-977-2017.
A110-9FOR CD WHEN ATCT IS CLSD CTC CHICAGO APCH AT 847-289-0926.
A26CLSD TO SKED ACR OPS GTR THAN 9 PAX SEATS; UNSKED ACR OPS GTR THAN 30 PAX SEATS 1 HR PPR; INDEX B ARFF 1 HR PPR; INDEX C ARFF 4 HR PPR - 219-949-4910.
A30-02/20NA FOR UNSKED ACR WITH AT LEAST 31 PAX SEATS EXC FOR TAX BTN RWY 12/30 & TWY A.
A39-02/20PCR VALUE: 121/R/C/X/U
A39-12/30PCR VALUE: 706/R/C/X/U
A81-APTWHEN ATCT CLSD ACTVT MALSR RWY 30; REIL RWY 02, 12 & 20; MIRL RWY 02/20; HIRL RWY 12/30 - CTAF.
GARY/CHICAGO INTL (ICAO: KGYY, IATA: GYY) is a public airport located in GARY/CHICAGO, IN.
