KGYH
DONALDSON FLD
PublicPUB

6 miles S of GREENVILLE, SC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 45' 30"N 82° 22' 35"W
956' MSL
2756' MSL
07W
JET A, 100LL
ANDERSON (AND)
ATLANTA
ATLANTA (ZTL)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

KGYH FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.7 133.325

AWOS-3

AWOS-3
864-277-5674
 127.325

Clearance Delivery

CD/P
 121.4

Ground

GND/P
 121.4

Tower

LCL/P
 133.325

FAA A/FD Pages

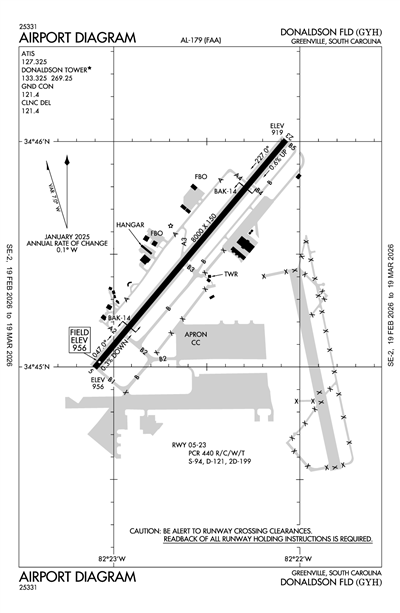

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
KGYH
Domestic
1/14/251317Z !GYH 01/008 GYH OBST TOWER LGT (ASR 1219200) 344758.10N0823101.00W (7.3NM WNW GYH) 1130.9FT (253.0FT AGL) U/S 2501141317-2505141317
1/9/250554Z !GYH 01/006 GYH OBST TOWER LGT (ASR 1044332) 343036.90N0821750.60W (15.3NM SSE GYH) 1176.5FT (406.8FT AGL) U/S 2501090554-2504090500
1/1/252240Z !GYH 01/002 GYH RWY 23 BAK-14 ARST SYSTEM U/S 2501012240-2503012359
1/1/252239Z !GYH 01/001 GYH RWY 05 BAK-14 ARST SYSTEM U/S 2501012239-2503012359
12/31/240743Z !GYH 12/013 GYH OBST TOWER LGT (ASR 1059518) 344218.40N0823009.90W (7.1NM WSW GYH) 1174.9FT (273.0FT AGL) U/S 2412310743-2503310500
12/29/240407Z !GYH 12/011 GYH OBST TOWER LGT (ASR 1309748) 343545.80N0822618.20W (10.17NM SSW GYH) 1069FT (315FT AGL) U/S 2412290407-2502282359
10/28/241607Z !GYH 10/022 GYH NAV ILS RWY 05 DME NOT MNT 2410281607-2512192000EST
FDC
9/18/231507Z !FDC 3/1433 GYH ODP DONALDSON FLD, GREENVILLE, SC.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG-A...
TAKE-OFF MINIMUMS: RWY 05, 300-1 3/4 OR STANDARD WITH MINIMUM CLIMB OF 223 FT/NM TO 1300, OR ALTERNATIVELY, WITH STANDARD TAKEOFF MINIMUMS AND A NORMAL 200 FT/NM CLIMB GRADIENT, TAKEOFF MUST OCCUR NO LATER THAN 1900 FT PRIOR TO DER.
CHANGE TAKEOFF OBSTACLE NOTES TO READ: NOTE: RWY 5, FENCE 62 FT FROM DER, 457 FT RIGHT OF CENTERLINE, 921 FT MSL.
TREES BEGINNING 874 FT FROM DER, 723 FT LEFT OF CENTERLINE, UP TO 976 FT MSL.
TREES BEGINNING 1087 FT FROM DER, 129 FT RIGHT OF CENTERLINE, UP TO 978 FT MSL.
TREES BEGINNING 1489 FT FROM DER, 406 FT RIGHT OF CENTERLINE, UP TO 986 FT MSL.
TREE 2055 FT FROM DER, 781 FT RIGHT OF CENTERLINE, 991 FT MSL.
TREES BEGINNING 2095 FT FROM DER, 219 FT RIGHT OF CENTERLINE, UP TO 998 FT MSL.
TOWER 1.4 NM FROM DER, 2225 FT LEFT OF CENTERLINE, 250 FT AGL/1167 FT MSL.
NOTE: RWY 23, SMOKESTACK 2759 FT FROM DER, 1150 FT LEFT OF CENTERLINE, 88 FT AGL/1026 FT MSL.. 2309181507-2509181507EST
Yes
0600-1900
GREENVILLE CITY/COUNTY
2 EXCHANGE ST
GREENVILLE, SC 29605
Phone: (864) 918-8835
DANNY MOYD
2 EXCHANGE ST
GREENVILLE, SC 29605
Phone: 864-277-3152
ANDERSON FSS (AND)
Toll Free: 1-800-WX-BRIEF
GYH
--
ACTVT MALSR RWY 05; HIRL RWY 05/23 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
High Pressure
Cargo Handling
Charter Service

Runway 05/23

8000 ft. x 150 ft.
CONC
Good
GRVD
HIGH
36 /R/C/W/T
94,000lbs
121,000lbs
199,000lbs
--
  Runway 05 Runway 23
True Heading 40°220°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 34° 44' 60"N 34° 46' 00"N
Longitude 82° 23' 06"W 82° 22' 04"W
Elevation 956' 919'
Threshold Crossing Height 56 ft. AGL 95 ft. AGL
Visual Glide Path Angle 3.22° 4.14°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights No
A110-1LTD PRK, RAMP CLSD TO ALL TFC EXC MIL R/W ACFT WITH 24HR PPR. CTC ARNG OPS C803-299-5214. OPR 1230-2200Z++ MON-FRI, EXC HOL. LTD TRAN MAINT FOR CH47 AND UH72 ACFT ONLY.
A110-2ARNG OPS PTD - 41.3 308.7 REMARKS: ARNG OPS C803-299-5214 (GREENVILLE OPS).
A110-3TWY A CLSD TO WINGSPANS GTR THAN 79 FT WO PRIOR CDN WITH ARPT MGMT.
A110-4SFC CONDS NOT RPRTD DAILY 9PM TO 7AM LOCAL.
DONALDSON FLD (ICAO: KGYH, IATA: GYH) is a public airport located in GREENVILLE, SC.
