No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGXF
GILA BEND AF AUX
PrivatePVT

3 miles S of GILA BEND, AZ
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 53' 16"N 112° 43' 11"W
883' MSL
1883' MSL
13E
JET A+, CILI
PRESCOTT (PRC)
PHOENIX
ALBUQUERQUE (ZAB)
4/17/25-5/15/25
KGXF VFR
4:55 AM MST
Few 17,000'
10sm
90°F
64°F
29.84"Hg
170° 5kts
AO2 SLP088 T03210179 10361 20321 53005 FZRANO $
KGXF 241155Z AUTO 17005KT 10SM FEW170 32/18 A2984 RMK AO2 SLP088 T03210179 10361 20321 53005 FZRANO $
+ Add Your Business

KGXF FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

Emergency

EMERG
 121.5

Tower

LCL/P
 127.75

Other

RANGE CTL
CALL: SNAKE EYE
 122.775

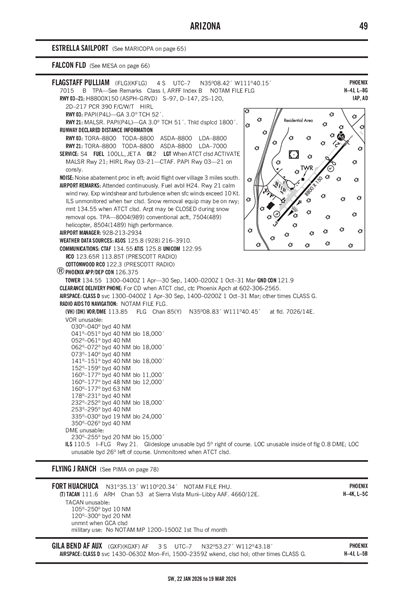

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KPHX (49nm)
Sun, 8/24 4:37 AM MST
Sun, 8/24 5:00 AM MST - Mon, 8/25 11:00 AM MST
VFR
5:00 AM MST - 10:00 AM MST
Scattered 20,000'
Few 15,000'
6sm
110° 4kts
VFR
10:00 AM MST - 2:00 PM MST
Few 12,000'
6sm
VRB° 5kts
VFR
2:00 PM MST - 6:00 PM MST
Few 12,000'
6sm
260° 7kts
VFR
6:00 PM MST - 9:00 PM MST
Scattered 25,000'
Scattered 12,000'
6sm
300° 18kts
Gusts 30kts
VFR
6:00 PM MST - 8:00 PM MST
Rain
No Clouds
N/A
Calm
VFR
9:00 PM MST - 3:00 AM MST
Scattered 20,000'
Scattered 12,000'
6sm
320° 10kts
VFR
3:00 AM MST - 11:00 AM MST
Scattered 20,000'
Scattered 15,000'
6sm
VRB° 4kts
KPHX 241137Z 2412/2518 11004KT P6SM FEW150 SCT200
   FM241700 VRB05KT P6SM FEW120
   FM242100 26007KT P6SM FEW120
   FM250100 30018G30KT P6SM SCT120 SCT250
   PROB30 2501/2503 RA
   FM250400 32010KT P6SM SCT120 SCT200
   FM251000 VRB04KT P6SM SCT150 SCT200
KGXF
Military
5/21/251400Z AERODROME CLASS D SVC AVBL
5/21/251400Z AERODROME AND ATCT HRS OF SVC ARE
5/14/250432Z !KGXF M0402/25 GXF RWY 17/35 CLSD EXC EMERG ACFT MON-FRI FROM 2330Z TO SUNSET. LANDINGS WILL BE AT PILOT'S OWN RISK. 2505140432-2506140630
5/1/252328Z AERODROME BEACON UNUSABLE
5/1/252328Z RWY 17/35 OPEN EXCAVATION ALONG EAST AND WEST SHOULDERS. TRENCHES ARE MARKED AND LIT.
5/1/252328Z ALL AIRFIELD LIGHTS ARE OUT OF SERVICE
5/1/252327Z !KGXF M0380/25 GXF TWY A CONST AREA WORK IN PROGRESS, CONST ADJACENT TO THE SHOULDERS. USE CAUTION: MEN AND EQUIPMENT ACCOMPANYING ALL CONST 2505012327-2506300630
5/1/252327Z !KGXF M0379/25 GXF TWY A CLSD EXC EMERG ACFT 2505012327-2506300630
5/1/252325Z !KGXF M0378/25 GXF APRON SOUTH TURNAROUND CLSD 2505012325-2506300630
5/1/252324Z !KGXF M0376/25 GXF RWY 17/35 CLSD 2505012324-2506300630
5/1/252324Z !KGXF M0375/25 GXF RWY 17 E-5 ARRESTING SYSTEM U/S 2505012324-2506300630
5/1/252324Z !KGXF M0374/25 GXF RWY 35 E-5 ARRESTING SYSTEM U/S 2505012324-2506300630
5/1/252323Z RWY 35 RWY 35 APCH END BAK-12 ARRESTING SYSTEM UNSERVICEABLE
5/1/252323Z RWY 17/35 WORK IN PROGRESS, CONST ADJACENT TO THE SHOULDERS. USE CAUTION: MEN AND EQUIPMENT ACCOMPANYING ALL CONST
4/22/250129Z CAUTION POSSIBLE AFTER HOUR ROTARY WING OPERATIONS
Yes
DURG SKED RNG PERIODS ONLY
CLSD HOL.
USAF
LUKE AFB
GLENDALE, AZ 85301
CHUCK FOWLER BASE OPS
LUKE AFB
GLENDALE, AZ 85301
Phone: 623-856-5264
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
GXF
--
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 17/35

8502 ft. x 150 ft.

ASPH
NONE
MED
43 /F/B/W/T
--
--
--
--
  Runway 17 Runway 35
True Heading 180°360°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 32° 53' 58"N 32° 52' 34"N
Longitude 112° 43' 10"W 112° 43' 11"W
Elevation 826' 883'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator P2R P2R
Approach Lights
Centerline Lights
Runway End Identifier Lights No No
A110-10RSTD: 24 HR PPR FOR LNDG - 56 RMO/QAE D896-5261; EXC EMERG, DIVERT OR SKED RANGE OPS.
A110-12CTN: TWY A 50 FT WIDE 25 FT SHOULDERS; C-130 IDLE OUTBOARD ENG.
A110-14CTN: OUTSIDE TXLS ON N & S TURN AROUND & PRKG RAMP NONSTD - 20 FT TO EDGE.
A110-15SVC LGT: NONSTD TWO LGT PAPI IN USE. NON STD/COINCIDENT NGT VISION INFRA RED LGT 1000-7000 FT FM THR. NGT VISION PPR..
A110-17MISC: NSTD LGT BOTH OVRNS: FIVE RED PRE THR LGTS EACH SIDE 100 FT FM THR; 3 RED, 5 WHITE & 3 RED LGT TRMTG BAR N & S END ON CNTRLN 200 FT FM THR.
A110-18CTN: NMRS UNLGT OBST ON FLD.
A110-22NSTD RWY ELEV SIGN AT TWY A.
A110-25MISC: NO HAZ CARGO PAD AVBL.
A110-27CLASS D SVC OPR 1430-0630Z MON-FRI; 1500-2359Z WKEND; CLSD HOL; OTR TIME CLASS G.
A110-29CTN: 3 RAMP LGT POLES 100 FT FM EDGE OF PRK RAMP.
A110-30FOR CD CTC LUKE APCH AT 623-856-7361. IF UNA, CTC PHOENIX APCH AT 602-306-2565.
A110-32SVC: A-GEAR RWY 17/35 APCH & DEP END BAK-12B(B) IN RAISED POSN WITH 8 PT TIE-DOWNS; S BAK-12B(B) (1201 FT), N BAK-12B(B) (1238 FT), DEP END E-5 (IN OVRN) IN RAISED POSN.
A110-33CTN: RWY EDGE LGTS NOT ALIGND WITH OUTBOARD EDGE OF RWY END LGTS.
A110-34CTN: E-5 A-G CABLE 1 FT FM THR.
A110-8RSTD: UNLGT HELIS LTD UH-60 OR SMALLER; DAY VFR USE WO AMGR APVL.
GILA BEND AF AUX (ICAO: KGXF, IATA: GXF) is a private airport located in GILA BEND, AZ.
