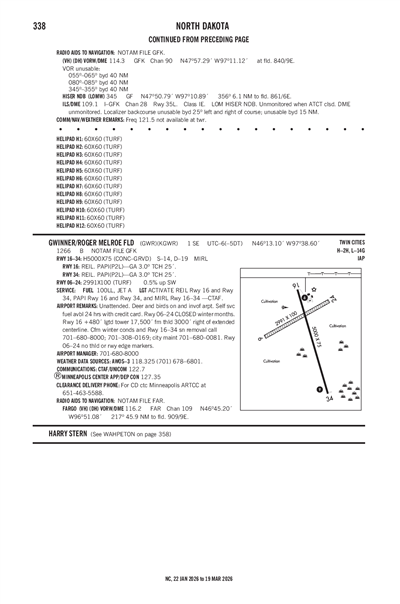

GWINNER/ROGER MELROE FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGWR
ICAO KGWRIATA GWRLocal GWR
GWINNER/ROGER MELROE FLD
PublicPUB

1 miles SE of GWINNER, ND, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
46° 13' 06"N 97° 38' 36"W
Elevation
1266' MSL
Pattern Alt
2266' MSL
Mag Variation
3°E
Declination
4°E
Fuel
JET A, 100LL
FSS
GRAND FORKS (GFK)
Sectional
TWIN CITIES
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
2/19/26-3/19/26
KGWR MVFR
3:55 AM CST
Mist
Clear
5sm
34°F
34°F
30.02"Hg
220° 14kts
A01
METAR KGWR 040955Z AUTO 22014KT 5SM BR CLR 01/01 A3002 RMK A01
+ Add Your Business

KGWR FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 118.325
(701) 678-6801

Common

CTAF 122.7
ACTVT REIL RY 16/34; PAPI RY 16/34 AND MIRL RY 16/34 - CTAF.
UNICOM 122.7

Center

MINNEAPOLIS CENTER 127.35
HIGH, APCH/DEP SVC PRVDD BY MINNEAPOLIS ARTCC ON FREQS 127.35/278.3 (FARGO RCAG).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KFAR (55nm)
Wed, 3/4 3:01 AM CST
Wed, 3/4 3:00 AM CST - Thu, 3/5 12:00 AM CST
LIFR
3:00 AM CST - 6:00 AM CST
Freezing Fog
Overcast 300'
0.25sm
VRB° 5kts
LIFR
6:00 AM CST - 8:00 AM CST
Mist
Broken 200'
0.75sm
180° 9kts
IFR
8:00 AM CST - 12:00 PM CST
Mist
Broken 700'
5sm
200° 10kts
Gusts 15kts
VFR
12:00 PM CST - 12:00 AM CST
Scattered 4,500'
6sm
200° 13kts
TAF KFAR 040901Z 0409/0506 VRB05KT 1/4SM FZFG OVC003
   FM041200 18009KT 3/4SM BR BKN002
   FM041400 20010G15KT 5SM BR BKN007
   FM041800 20013KT P6SM SCT045
KGWR
No NOTAM Available
No
UNATNDD
GWINNER ARPT AUTH
400 4TH AVE SE
GWINNER, ND 58040
Phone: 701-680-8000
RICK HOISTAD
BOX 221
FORMAN, ND 58032
Phone: 701-680-8000
GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF
GFK
--
ACTVT REIL RY 16/34; PAPI RY 16/34 AND MIRL RY 16/34 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Crop Dusting
Pilot Instruction

Runway 06/24

2991 ft. x 100 ft.
TURF
Good
NONE


--
--
--
--
  Runway 06 Runway 24
True Heading 61°241°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 46° 13' 07"N 46° 13' 21"N
Longitude 97° 39' 02"W 97° 38' 25"W
Elevation 1,265' 1,249'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 16/34

5000 ft. x 75 ft.
CONC
Good
GRVD
MED

14,000lbs
19,000lbs
--
--
  Runway 16 Runway 34
True Heading 164°344°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 46° 13' 25"N 46° 12' 37"N
Longitude 97° 38' 41"W 97° 38' 22"W
Elevation 1,255' 1,255'
Threshold Crossing Height 25 ft. AGL 25 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A11ADDITIONAL CONTACT GROVER RIEBE 701-680-0605
A110-1RY 06/24 CLSD WINTER MONTHS.
A110-5CFM WINTER CONDS & RWY 16/34 SN REMOVAL CALL 701-680-8000; 701-308-0169;CITY MAINT 701-680-0081.
A110-6RY 16 +480 FT LGTD TOWER 17500 FT FM THLD 3000 FT R OF EXTDD CNTRLN.
A110-7DEER & BIRDS ON & INVOF ARPT.
A110-8FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A13APT AUTHORITY CHRMN RICK HOISTAD
A42-06_MARKRWY 06/24 NO EDGE MKRS.
A52-16+42 FT PLINE 2680 FT FM THLD ON CNTRLN APCH RATIO 50:1.
A70-100LLSELF SERVICE FUEL AVAILABLE 24 HRS WITH CREDIT CARD.
A76-AGRIFOR AGRI SVC CTC 701-308-0169.
A81-APTACTVT REIL RY 16/34; PAPI RY 16/34 AND MIRL RY 16/34 - CTAF.
GWINNER/ROGER MELROE FLD (ICAO: KGWR, IATA: GWR) is a public airport located in GWINNER, ND, US.
