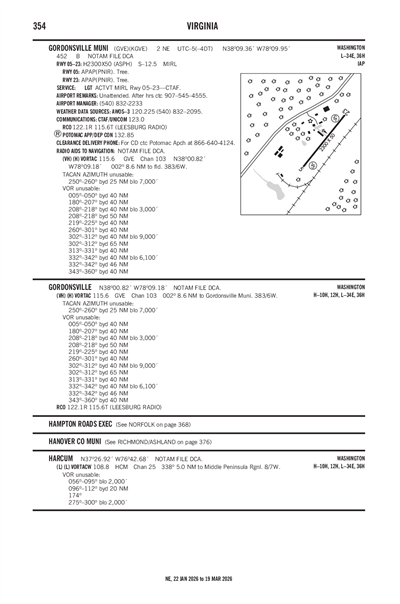

GORDONSVILLE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGVE
ICAO KGVEIATA GVELocal GVE
GORDONSVILLE MUNI
PublicPUB

2 miles NE of GORDONSVILLE, VA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
38° 09' 22"N 78° 09' 57"W
Elevation
452' MSL
Pattern Alt
1452' MSL
Mag Variation
10°W
Declination
10°W
Fuel
None Listed
FSS
LEESBURG (DCA)
Sectional
WASHINGTON
ARTCC
WASHINGTON (ZDC)
Data Effective
2/19/26-3/19/26
KGVE IFR
11:55 PM EST
Overcast 700'
10sm
45°F
44°F
30.24"Hg
220° 8kts
Gusts 16kts
AO1 T00700066 400700000
METAR KGVE 040455Z AUTO 22008G16KT 10SM OVC007 07/07 A3024 RMK AO1 T00700066 400700000
+ Add Your Business

KGVE FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 120.225
(540) 832-2095

Common

CTAF 123.0
ACTVT MIRL RWY 05/23 - CTAF.
UNICOM 123.0

Approach

POTOMAC APPROACH 132.85

Departure

POTOMAC DEPARTURE 132.85

Flight Service

Flight Service 122.1
(DCA), COMMUNICATIONS PRVDD BY LEESBURG RADIO ON FREQ 122.1R/115.6T (GORDONSVILLE RCO).

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KCHO (14nm)
Tue, 3/3 9:19 PM EST
Tue, 3/3 9:00 PM EST - Wed, 3/4 7:00 PM EST
IFR
Temporary 9:00 PM EST - 1:00 AM EST
Broken 500'
N/A
Calm
MVFR
9:00 PM EST - 6:00 AM EST
Light Rain and Mist
Overcast 2,500'
Scattered 1,500'
6sm
190° 5kts
MVFR
6:00 AM EST - 1:00 PM EST
Overcast 3,500'
Broken 2,500'
6sm
050° 3kts
MVFR
7:00 AM EST - 1:00 PM EST
Light Showers and Rain
Broken 2,500'
6sm
Calm
MVFR
1:00 PM EST - 7:00 PM EST
Broken 1,200'
Scattered 600'
6sm
050° 3kts
IFR
1:00 PM EST - 7:00 PM EST
Light Showers and Rain
Overcast 600'
6sm
Calm
TAF KCHO 040219Z 0402/0424 19005KT 6SM -RA BR SCT015 OVC025
   TEMPO 0402/0406 BKN005
   FM041100 05003KT P6SM BKN025 OVC035
   PROB30 0412/0418 6SM -SHRA BKN025
   FM041800 05003KT P6SM SCT006 BKN012
   PROB30 0418/0424 6SM -SHRA OVC006
KGVE
EffectiveExpiresCategoryNOTAM
Domestic
2/19/26
0937Z
4/5/26
0937Z
!DCA 02/478 GVE OBST TOWER LGT (ASN 2018-AEA-4852-OE) 380930N0781037W (0.5NM WNW GVE) 632FT (113FT AGL) U/S 2602190937-2604050937
2/19/26
0937Z
4/5/26
0937Z
!DCA 02/477 GVE OBST TOWER LGT (ASN 2018-AEA-4851-OE) 380935N0781030W (0.5NM WNW GVE) 632FT (118FT AGL) U/S 2602190937-2604050937
2/13/26
0621Z
3/30/26
0641Z
!DCA 02/341 GVE OBST POWER LINE LGT (ASN 2018-AEA-4842-OE) 381021N0780938W (1.0NM NNE GVE) 639FT (108FT AGL) U/S 2602130621-2603300641
1/25/26
2354Z
3/11/26
2359Z
!DCA 01/469 GVE OBST POWER LINE LGT (ASN 2018-AEA-4857-OE) 380906N0781111W (1.0NM WSW GVE) 637FT (118FT AGL) U/S 2601252354-2603112359
1/24/26
1336Z
3/10/26
1334Z
!DCA 01/399 GVE OBST TOWER LGT (ASN 2018-AEA-4853-OE) 380923N0781047W (0.7NM W GVE) 638FT (118FT AGL) U/S 2601241336-2603101334
1/19/26
0634Z
3/5/26
0601Z
!DCA 01/304 GVE OBST POWER LINE LGT (ASN 2018-AEA-4854-OE) 380919N0781053W (0.7NM W GVE) 615FT (108FT AGL) U/S 2601190634-2603050601
1/19/26
0432Z
3/4/26
0432Z
!DCA 01/303 GVE OBST POWER LINE LGT (ASN 2018-AEA-4850-OE) 380942N0781021W (0.5NM NW GVE) 652FT (118FT AGL) U/S 2601190432-2603040432
1/19/26
0431Z
3/4/26
0430Z
!DCA 01/302 GVE OBST POWER LINE LGT (ASN 2018-AEA-4856-OE) 380912N0781103W (0.9NM W GVE) 642FT (108FT AGL) U/S 2601190431-2603040430
1/16/26
1326Z
3/3/26
2359Z
!DCA 01/239 GVE OBST TOWER LGT (ASN 2018-AEA-4855-OE) 380914N0781060W (0.8NM W GVE) 629FT (108FT AGL) U/S 2601161326-2603032359
No
UNATNDD
TOWN OF GORDONSVILLE
P.O. BOX 276
GORDONSVILLE, VA 22942
Phone: 540-832-2233
DEBORAH S. KENDALL, TOWN MGR
PO BOX 276
GORDONSVILLE, VA 22942
Phone: (540) 832-2233
LEESBURG FSS (DCA)
Toll Free: 1-800-WX-BRIEF
DCA
--
ACTVT MIRL RWY 05/23 - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
No
None
None
None
None
None

Runway 05/23

2300 ft. x 50 ft.
ASPH
Excellent
NONE
MED

12,000lbs
--
--
--
  Runway 05 Runway 23
True Heading 38°218°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 38° 09' 13"N 38° 09' 31"N
Longitude 78° 10' 06"W 78° 09' 48"W
Elevation 452' 446'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator PNIR PNIR
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC POTOMAC APCH AT 866-640-4124.
A58-23LINE OF TREES 120 FT S OF RWY CNTRLN.
A81-APTACTVT MIRL RWY 05/23 - CTAF.
GORDONSVILLE MUNI (ICAO: KGVE, IATA: GVE) is a public airport located in GORDONSVILLE, VA, US.
