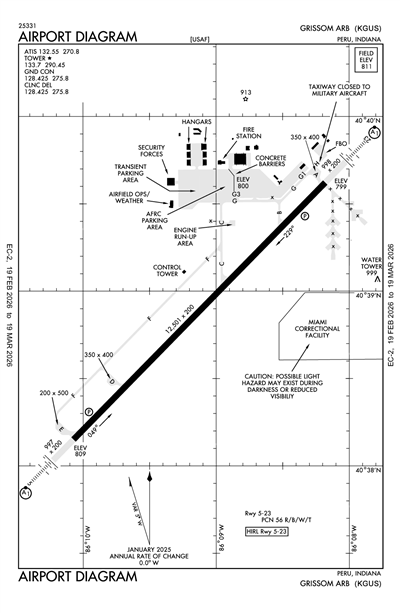

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGUS
GRISSOM ARB
PublicPUB

5 miles S of PERU, IN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 38' 53"N 86° 09' 08"W
811' MSL
1811' MSL
02W
100
TERRE HAUTE (HUF)
CHICAGO
CHICAGO (ZAU)
7/11/24-8/8/24
KGUS VFR
5:55 AM EDT
Clear
10sm
59°F
56°F
29.94"Hg
Calm
AO2 SLP137 T01480132 $
KGUS 190955Z AUTO 00000KT 10SM CLR 15/13 A2994 RMK AO2 SLP137 T01480132 $
Add Your Business

KGUS FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

ATIS
DSN 338-2293
 108.45

Approach/Departure

APCH/P DEP/P IC
EAST
 121.05
APCH/P DEP/P IC
WEST
 123.85
APCH/S DEP/S
 135.25

Clearance Delivery

CD/P
 128.425

Ground

GND/P
 128.425

Tower

LCL/P
 133.7

FAA A/FD Pages

Airport Diagrams

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KGUS
Wed, 9/18 5:00 PM EDT
Wed, 9/18 5:00 PM EDT - Thu, 9/19 11:00 PM EDT
VFR
5:00 PM EDT - 11:00 PM EDT
Few 25,000'
6sm
29.88"Hg
VRB° 6kts
TAF KGUS 182100Z 1821/2003 VRB06KT 9999 FEW250 QNH2989INS TX31/1921Z TN14/1911Z LAST NO AMDS AFT 1903 NEXT 1913
KGUS
Military
9/17/241429Z M0485/24 NOTAMC M0484/24
9/13/241920Z !KGUS M0482/24 GUS RWY 05 PAPI U/S 2409131920-2410050300
9/13/241905Z TWY G3 DIRECTION SIGN NOT LGTD
8/9/241650Z ALL AIRCRAFT DEPARTING FROM MILITARY APRONS MUST CONTACT DISPATCH AT 372.2 FIFTEEN MINUTES PRIOR TO TAXI
8/5/241537Z MILITARY APRONS RESTRICTED TO BASE ASSIGNED AICRAFT ONLY
8/2/241908Z MEN AND EQUIPMENT OPERATING IN THE VICINITY OF THE MPA
8/2/241906Z !KGUS M0407/24 GUS TWY G BTN TWY C AND 600 RAMP CLSD 2408021906-2410300300
8/2/241854Z TWY G2 CLSD
8/2/241847Z TWY C CLSD FROM TWY F TO TWY G
7/31/242010Z MPA RAMP PARKING SPOTS C3-4, D3-4, E3-4 AND F3-4 CLSD
7/24/242338Z !KGUS M0385/24 GUS SVC ATIS108.45 U/S 2407242338-2410180300
7/23/241351Z !KGUS M0381/24 GUS NAV VOR U/S 2407231351-2410180300
6/27/241250Z !KGUS M0341/24 GUS AERODROME OFFICIAL BUSINESS ONLY 2406271250-2409250300
Yes
Unknown
USAF-RESERVE
434 AERIAL REFUELING WING, 7207 GRISSOM AVE
GRISSOM ARB, IN 46971
Phone: 765-688-4340
434 ARW WING COMMANDER
434 AERIAL REFUELING WING, 7207 GRISSOM AVE
GRISSOM ARB, IN 46971
Phone: 765-688-2613
TERRE HAUTE FSS (HUF)
Toll Free: 1-800-WX-BRIEF
GUS
--
--
N/A
Yes
No
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
2
1
1
1
16
0
Major
Major
None
High & Low Pressure
Cargo Handling

Runway 05/23

12501 ft. x 200 ft.

ASPH
NONE
HIGH
56 /R/B/W/T
--
--
--
--
  Runway 05 Runway 23
True Heading 44°224°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 40° 38' 09"N 40° 39' 37"N
Longitude 86° 10' 04"W 86° 08' 11"W
Elevation 809' 799'
Threshold Crossing Height 58 ft. AGL 48 ft. AGL
Visual Glide Path Angle 2.5° 2.5°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights No No
Runway End Identifier Lights No No
A110-1JASU; A/M32A-86, MD-3, AM32-95 & MA-1A.
A110-11RSTD: PAX/CARGO ACFT CTC COMMAND POST NLT 30 MIN PRIOR TO LNDG.
A110-12BIRD WATCH COND: MNT ATIS; PHASE I NOV-APR & JUN LGT; PHASE II MAY, JUL-OCT HVY.
A110-13CTN: UNCTLD VEHICLE ON MOVEMENT AREAS.
A110-15SVC LGT - FLOODS.
A110-16FLUID: SP PRESAIR LHOX.
A110-17OIL: O-133-148-156 JOAP.
A110-18TRANS ALERT: AVBL DURG OPS HRS; NO PRIORITY BASIS; SVC AVBL PRIOR ARNG; FLEET SVC NA.
A110-22MISC: WX SVC AVBL DURG OPS HR - D388-2203/2204; C765-688-2203/2204.
A110-26CTN: DURG RAIN EXP STANDING WATER ON RWY.
A110-28GA PRAC APCH NA, ALFD IS OFFL BUS ONLY DUR HOTPIT REFUELING.
A110-32FBO E END; PRIOR PMSN NOT RQR FOR ACFT LDG CIV FBO; CTC TWR; EXP TAXI INSTR; 100LL & JET A AVBL.
A110-36CIV TRNG NA PER JOINT USE AGREEMENT.
A110-41PPR FOR CIV ACFT ON MIL RAMP.
A110-43SUA OVHD & NW; HVY & FIGHTER JET TRNG RMN NW WI 10 NM.
A110-44EXP DELAY WHEN TACTICAL ARR & DEP TRNG IN PROG & DURG SNOW REMOVAL OPS.
A110-50FOR RAPCON SVC - 121.05 OR 379.3
A110-53CTN: RWY LGTS 28 FT FM EDGE.
A110-54FUEL: MIL 1200-0400Z++; CLSD FEDERAL HOL.
A110-56OPR 1230-0400Z++; CLSD FEDERAL HOL; FBO CLSD FRI 2200Z THRU MON 1230Z; PPR - AFLD OPS D388-2254/C765-688-2254.
A110-57RWY COND CODES UNAVBL.
A110-58RSTD: AFRC ACFT EXP RSTRN WHEN MOD OR HIGHER; NO LCL IFR/VFR TFC; OPS NA WO OG/CC APVL.
GRISSOM ARB (ICAO: KGUS, IATA: GUS) is a public airport located in PERU, IN.
