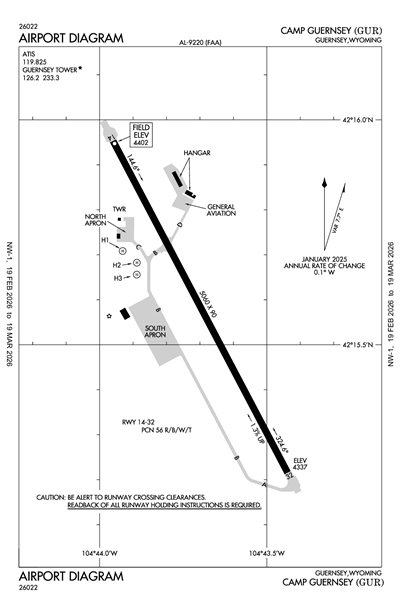

CAMP GUERNSEY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGUR
ICAO KGURLocal GUR
CAMP GUERNSEY
PublicPUB

1 miles SE of GUERNSEY, WY, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
42° 15' 35"N 104° 43' 42"W
Elevation
4402' MSL
Pattern Alt
5402' MSL
Mag Variation
8°E
Declination
11°E
Fuel
JET A
FSS
CASPER (CPR)
Sectional
CHEYENNE
ARTCC
DENVER (ZDV)
Data Effective
2/19/26-3/19/26
KGUR VFR
7:55 PM MST
Clear
10sm
45°F
28°F
30.14"Hg
Calm
AO2 SLP227 T00741023 52012
METAR KGUR 040255Z AUTO 00000KT 10SM CLR 07/M02 A3014 RMK AO2 SLP227 T00741023 52012
+ Add Your Business

KGUR FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 119.825
(307) 836-7862, Hours: 24 HR.

Common

CTAF 126.2
ACTVT PAPI RWY 14 & 32; MIRL RWY 14/32 - CTAF.

Tower

GUERNSEY TOWER 126.2
1500-0600Z++ 01 JAN- 31 DEC MON-FRI; CLSD HOL.

Operations

Operations 122.7
COWBOY RDO, R-7001/R-7002, REQUIRED CALL TO GUERNSEY ATCT PRIOR TO ENTERING R-7001/R-7002.

Center

DENVER CENTER 135.6
LOW/HIGH, APCH/DEP CTL SVC PRVDD BY DENVER ARTCC (ZDV) ON FREQS 135.6/363.025 (LUSK RCAG).

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Instrument Approach

Terminal Area Forecast

KGUR
Tue, 3/3 2:00 PM MST
Tue, 3/3 2:00 PM MST - Wed, 3/4 8:00 PM MST
VFR
2:00 PM MST - 8:00 PM MST
Scattered 15,000'
6sm
29.97"Hg
VRB° 6kts
VFR
Becoming 8:00 PM MST - 8:00 PM MST
Sky Clear
6sm
29.65"Hg
VRB° 6kts
TAF KGUR 032100Z 0321/0503 VRB06KT 9999 SCT150 QNH2998INS
   BECMG 0403/0404 VRB06KT 9999 SKC QNH2966INS TX16/0421Z TNM01/0413Z
KGUR
EffectiveExpiresCategoryNOTAM
Domestic
2/26/26
1600Z
2/26/26
2359Z
!GUR 02/002 GUR AIRSPACE FLTCK ACFT OPS WI AN AREA DEFINED AS 5NM
RADIUS OF GUR SFC-3500FT AGL ACFT CS FLC69 2602261600-2602262359
Military
2/28/26
2000Z
2/28/26
2100Z
AerodromeAERODROME AIRSPACE KNIFE RIVER QUARRY UAS OPERATIONS WI AN AREA DEFINED AS 0.1 NM RADIUS OF 42644N/1044714W SFC-400FT AGL. 1.2 NM W OF KGUR.
2/11/26
1859Z
5/10/26
1900Z
Taxiway!KGUR M0080/26 GUR TWY B TWY DIRECTION SIGN NOT LGTD 2602111859-2605101900
2/11/26
1855Z
5/10/26
1900Z
Taxiway!KGUR M0079/26 GUR TWY B LOCATION SIGN NOT LGTD 2602111855-2605101900
2/11/26
1848Z
5/10/26
1900Z
Taxiway!KGUR M0078/26 GUR TWY A LOCATION SIGN NOT LGTD 2602111848-2605101900
2/11/26
1844Z
5/10/26
1900Z
Taxiway!KGUR M0077/26 GUR TWY C LOCATION SIGN NOT LGTD 2602111844-2605101900
2/11/26
1841Z
5/10/26
1900Z
SOUTH APRON FLOOD LAMP OBSTRUCTION LIGHTS UNLIGHTED
1/6/26
1811Z
4/6/26
1400Z
Apron!KGUR M0006/26 GUR APRON SOUTH APRON CLSD 140 FT CLOSED AND BARRICADED AREA DUE TO TEMP 6FT CON FENCE NON STD PARKING FOR FIX WING AFCT CONTACT BASE OPS 3078367884 FOR INST 2601061811-2604061400
Yes
APR-SEP MON-FRI 1400-0500Z++
OCT-MAR MON-FRI 1500-0600Z++
EXC HOL.
EXC HOL.
STATE OF WYO MIL DEPT
5500 BISHOP BLVD.
CHEYENNE, WY 82009
Phone: 307-772-5235
MAJ. JASON MILLER
PO BOX 399, BLDG 107
GUERNSEY, WY 82214
Phone: 307-836-7878
CASPER FSS (CPR)
Toll Free: 1-800-WX-BRIEF
GUR
--
ACTVT PAPI RWY 14 & 32; MIRL RWY 14/32 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 14/32

5060 ft. x 90 ft.
ASPH
Fair
PFC
MED
56/R/B/W/T
--
--
--
--
  Runway 14 Runway 32
True Heading 152°332°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 42° 15' 57"N 42° 15' 13"N
Longitude 104° 43' 58"W 104° 43' 26"W
Elevation 4,402' 4,337'
Threshold Crossing Height 38 ft. AGL 38 ft. AGL
Visual Glide Path Angle 3.3° 3.3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H1

80 ft. x 80 ft.
CONC
Good
NONE


--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 42° 15' 42"N N/A
Longitude 104° 43' 56"W N/A
Elevation 4,386' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H2

80 ft. x 80 ft.
CONC
Good
NONE


--
--
--
--
  Runway H2 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 42° 15' 41"N N/A
Longitude 104° 43' 53"W N/A
Elevation 4,386' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H3

80 ft. x 80 ft.
CONC
Good
NONE


--
--
--
--
  Runway H3 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 42° 15' 39"N N/A
Longitude 104° 43' 53"W N/A
Elevation 4,386' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1CFR AVBL ONLY ON APVD PPR AT ETA/ETD.
A110-10MISC SMALL ARMS RANGE WITHIN 3NM RADIUS OF GUR, SFC-4000 FT AGL. R7001 A, B, C, D AND R7002 A, B, C 6NM NW, AIRCREWS MUST OBTAIN APVL FM GUERNSEY TWR PRIOR TO ENTERING R7001 AND R7002 WHEN ACTIVE.
A110-11ARNG: NO TRAN MIL MAINT AVBL.
A110-12SERVICE: PPR RQRD FOR ANY ACFT REQUIRING SVCS AND/OR PARKING ON MIL RAMP. CREWS MUST ACT AS THEIR OWN SVCG SUPERVISORS.
A110-14FUEL: JET A AVBL BY PPR.
A110-15MIGRATORY WATER FOWL, BIRDS, AND DEER ON AND INVOF RWY.
A110-16RWY 14: 48 FT DROP OFF ON AER.
A110-17RWY 32: 12 FT DROP OFF ON AER.
A110-18BLDG 13 FT BLW SFC ELEV LCTD 366 FT NW FR RWY 32 DEP ZONE WI CLEAR ZONE.
A110-19NOISE ABATEMENT AREAS BORDER W OF AFLD.
A110-20RSTD: AIR/GND EQPT AND CRASH RESCUE AVBL AT ETA/ETD IF RQRD WITH PPR.
A110-21TWY D EDGE LGTS OTS INDEF.
A110-22AN/FMQ-23 AUTOMATED OBS SYS IN USE: BRIEFING SVC AVBL FM 25 OWS DSN 228-6598/6599/6588 C520-228-6598.
A110-23SERVICE: FUEL 100LL-NOT AVBL.
A110-3RSTD: EXTV MIL R/W AND C-130/C17 F/W OPR YR ROUND. ACFT WEIGHING MORE THAN 12,500 LBS MUST USE CONC TURN AROUNDS AT EACH THLD INT. ALL C130/C17 ACFT PPR.
A110-7RSTD: ALL TRANS MIL ACFT PPR DSN 344-7884/2378; C307-836-7884/2378.
A110-8RSTD: NORTH APN RSTD TO ROTOR WING/FIXED WING UH-60/C-12 OR SMALLER ACFT.
A110-9TFC PAT: F/W 5900 FT R/W 5100 FT, LEFT TFC RY 14, RGT TFC RY 32.
A17-D1EXC HOL.
A17-D2EXC HOL.
A18CITY HAS LEASE AGREEMENT WITH MILITARY FOR PUBLIC USE.
A33-14/32_CONDRWY 14/32 10 FT ASPH NON-WEIGHT BEARING SHOULDERS.
A36-14/322S-175 SINGLE TANDEM WHEEL RATING.
A81-APTACTVT PAPI RWY 14 & 32; MIRL RWY 14/32 - CTAF.
E111ESTAB PRIOR TO 1959.
CAMP GUERNSEY (ICAO: KGUR, IATA: GUR) is a public airport located in GUERNSEY, WY, US.
