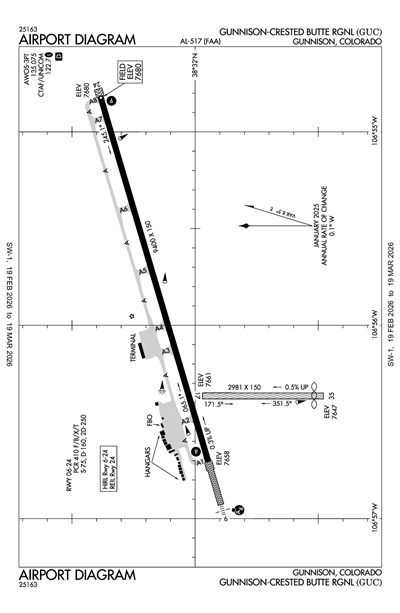

GUNNISON-CRESTED BUTTE RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGUC
ICAO KGUCIATA GUCLocal GUC
GUNNISON-CRESTED BUTTE RGNL
PublicPUB

1 miles SW of GUNNISON, CO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
38° 32' 04"N 106° 55' 54"W
Elevation
7680' MSL
Pattern Alt
8680' MSL
Mag Variation
9°E
Declination
12°E
Fuel
JET A (FSII), 100LL
FSS
DENVER (DEN)
Sectional
DENVER
ARTCC
DENVER (ZDV)
Data Effective
2/19/26-3/19/26
KGUC VFR
7:56 PM MST
Overcast 7,000'
10sm
41°F
21°F
30.20"Hg
350° 5kts
AO2 SLP208 T00501061 51023 $
METAR KGUC 040256Z AUTO 35005KT 10SM OVC070 05/M06 A3020 RMK AO2 SLP208 T00501061 51023 $
+ Add Your Business

KGUC FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 135.075
(970) 641-3240

Common

CTAF 122.7
ACTVT MALSF RWY 06; PAPI RWY 06 & 24 - CTAF. REIL RWY 24; HIRL RWY 06/24 OPER 0600-2230.
UNICOM 122.7

Center

DENVER CENTER 124.5
LOW, APCH/DEP CTL SVC PRVDD BY DENVER ARTCC (ZDV) ON FREQ 124.5/350.25 (GUNNISON RCAG RCAG).

Terminal Area Forecast

KGUC
Tue, 3/3 5:07 PM MST
Tue, 3/3 5:00 PM MST - Wed, 3/4 5:00 PM MST
VFR
5:00 PM MST - 7:00 PM MST
Overcast 10,000'
6sm
230° 10kts
VFR
7:00 PM MST - 9:00 PM MST
Few 13,000'
Few 6,000'
6sm
320° 6kts
VFR
9:00 PM MST - 3:00 PM MST
Few 25,000'
6sm
VRB° 4kts
VFR
3:00 PM MST - 5:00 PM MST
Sky Clear
6sm
240° 7kts
TAF KGUC 040007Z 0400/0424 23010KT P6SM OVC100
   FM040200 32006KT P6SM FEW060 FEW130
   FM040400 VRB04KT P6SM FEW250
   FM042200 24007KT P6SM SKC
KGUC
EffectiveExpiresCategoryNOTAM
Domestic
2/25/26
1700Z
2/25/26
2000Z
Runway!GUC 02/165 GUC RWY 06 PAPI U/S 2602251700-2602252000
2/25/26
1700Z
2/25/26
2000Z
Runway!GUC 02/163 GUC RWY 24 PAPI U/S 2602251700-2602252000
2/25/26
1500Z
2/25/26
1800Z
!GUC 02/164 GUC SVC AUTOMATED WX BCST SYSTEM U/S 2602251500-2602251800
2/18/26
2234Z
!GUC 02/096 GUC AD AP WINDCONE SEGMENTED CIRCLE U/S 2602182234-2603111900EST
2/17/26
1439Z
2/27/26
2300Z
!GUC 02/058 GUC SVC AUTOMATED WX BCST SYSTEM WIND NOT AVBL 2602171439-2602272300
10/24/25
2106Z
7/30/26
2300Z
Runway!GUC 10/083 GUC RWY 06/24 SFC MARKINGS NOT STD 2510242106-2607302300
10/24/25
2102Z
7/30/26
2300Z
Runway!GUC 10/084 GUC RWY 06/24 NOW RWY 07/25 2510242102-2607302300
FDC
2/25/26
1500Z
!FDC 6/9815 GUC IAP GUNNISON-CRESTED BUTTE RGNL, GUNNISON, CO.
VOR OR GPS-A, AMDT 7E...
OBTAIN LOCAL ALTIMETER SETTING ON CTAF; WHEN NOT RECIEVED, PROCEDURE NA. AWOS OUT OF SERVICE..
2602251500-2603040101EST
2/25/26
1500Z
!FDC 6/9814 GUC IAP GUNNISON-CRESTED BUTTE RGNL, GUNNISON, CO.
ILS OR LOC RWY 6, AMDT 5D...
WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, PROCEDURE NA. AWOS OUT OF SERVICE.
2602251500-2603040101EST
12/2/25
1335Z
!FDC 5/3124 GUC IAP GUNNISON-CRESTED BUTTE RGNL, GUNNISON, CO.
GPS-B, ORIG-C...
ILS OR LOC RWY 6, AMDT 5D...
RNAV (RNP) RWY 24, ORIG-B...
RNAV (RNP) RWY 6, ORIG-A...
VOR OR GPS-A, AMDT 7E...
CHANGE ALL REFERENCES FROM RWY 06/24 TO RWY 07/25.
2512021335-2712021334EST
12/2/25
1334Z
!FDC 5/3122 GUC SPECIAL GUNNISON-CRESTED BUTTE RGNL, GUNNISON, CO.
ILS/DME (FMS) RWY 6, ORIG...
CHANGE ALL REFERENCES FROM RWY 06/24 TO RWY 07/25.
2512021334-2712021334EST
11/21/25
1613Z
!FDC 5/0506 GUC SPECIAL GUNNISON-CRESTED BUTTE RGNL, GUNNISON, CO.
ILS/DME (FMS) RWY 6, ORIG...
ALTERNATE MINIMUMS: ILS: STANDARD. LOC: CAT A, B, C 900-2 1/2.
RWY 6 HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED.
KEEZR I-GUC 16.11 DME. PLATO I-GUC 7.89 DME.
TERMINAL ROUTE FROM I-GUC 20.9 DME (F242T) TO KEEZR MINIMUM ALTITUDE 11400.
TERMINAL ROUTE FROM KEEZR TO GS INCPT: MINIMUM ALTITUDE 10300.
MIN GS INCPT 10300.
TCH 49 FT.
2511211613-2711271612EST
10/24/25
2007Z
!FDC 5/6339 GUC ODP GUNNISON-CRESTED BUTTE RGNL, GUNNISON, CO.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 8...
CHANGE ALL REFERENCES FROM RWY 06/24 TO RWY 07/25. 2510242007-2610312007EST
10/15/25
2100Z
5/27/26
2100Z
!FDC 5/1360 GUC SPECIAL IAP GUNNISON-CRESTED BUTTE RGNL, GUNNISON,
CO.
RNAV (GPS) M RWY 06 ORIG
RNAV (RNP) M RWY 24 ORIG
CHANGE ALL REFERENCES FROM RWY 06/24 TO RWY 07/25.


2510152100-2605272100
No
0600-2100
ARPT CONDS UNMON AT NGT FM LAST ACR ARR/DEP TIL 0530 LCL. SEE NOTAMS FOR MOST UP-TO-DATE CONDS.
COUNTY OF GUNNISON
519 RIO GRANDE
GUNNISON, CO 81230
Phone: 970-641-2304
RICHARD LAMPORT
519 RIO GRANDE
GUNNISON, CO 81230
Phone: (970) 642-7388
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
GUC
--
ACTVT MALSF RWY 06; PAPI RWY 06 & 24 - CTAF. REIL RWY 24; HIRL RWY 06/24 OPER 0600-2230.
ROTG BCN OPERS SS-2230 & 0600-SR.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
High & Low Pressure
Air Freight
Air Ambulance
Pilot Instruction
Annual Surveying

Runway 06/24

9400 ft. x 150 ft.
ASPH
Excellent
GRVD
HIGH

75,000lbs
160,000lbs
250,000lbs
--
  Runway 06 Runway 24
True Heading 74°254°
Traffic Pattern Right Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 38° 31' 57"N 38° 32' 23"N
Longitude 106° 56' 42"W 106° 54' 49"W
Elevation 7,658' 7,680'
Threshold Crossing Height 49 ft. AGL 71 ft. AGL
Visual Glide Path Angle 3.2° 3.6°
Visual Slope Indicator P4L P4L
Approach Lights MALSF
Centerline Lights
Runway End Identifier Lights Yes

Runway 17/35

2981 ft. x 150 ft.
TURF GRVL
Fair
NONE


--
--
--
--
  Runway 17 Runway 35
True Heading 180°0°
Traffic Pattern Right Left
Markings NONE NONE
Markings Condition FAIR FAIR
Latitude 38° 31' 58"N 38° 31' 29"N
Longitude 106° 56' 22"W 106° 56' 22"W
Elevation 7,661' 7,647'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1HIGH TRRN ALL QUADS.
A110-5RWY 17/35 CLSD 1 DEC - 1 MAY.
A110-6COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -25C.
A110-8MIGRATORY BIRD ACT 1 JAN -THRU- 1 JUN.
A17-H1ARPT CONDS UNMON AT NGT FM LAST ACR ARR/DEP TIL 0530 LCL. SEE NOTAMS FOR MOST UP-TO-DATE CONDS.
A26CLSD TO UNSKED ACR OPS WITH MORE THAN 30 PAX SEATS EXCP PPR. CALL AMGR 970-641-2304.
A39-06/24PCR VALUE: 410/F/B/X/T
A43-24PAPI UNUSBL BYD 2.5 NM; DOES NOT PRVD OBST CLNC BYD 2.5 NM FROM THR.
A81-APTACTVT MALSF RWY 06; PAPI RWY 06 & 24 - CTAF. REIL RWY 24; HIRL RWY 06/24 OPER 0600-2230.
A81-BCNROTG BCN OPERS SS-2230 & 0600-SR.
GUNNISON-CRESTED BUTTE RGNL (ICAO: KGUC, IATA: GUC) is a public airport located in GUNNISON, CO, US.
