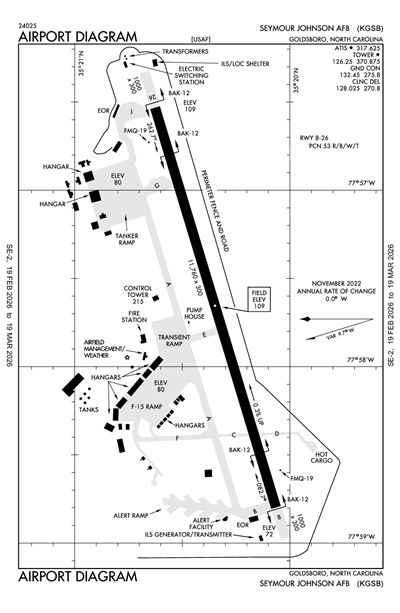

SEYMOUR JOHNSON AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGSB
ICAO KGSBIATA GSBLocal GSB
SEYMOUR JOHNSON AFB
PrivatePVT

3 miles SE of GOLDSBORO, NC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 20' 22"N 77° 57' 38"W
Elevation
109' MSL
Pattern Alt
1300' MSL
Mag Variation
10°W
Declination
8°W
Fuel
JET A (FSII)
FSS
RALEIGH (RDU)
Sectional
CHARLOTTE
ARTCC
WASHINGTON (ZDC)
Data Effective
2/19/26-3/19/26
KGSB VFR
5:55 PM EST
Clear
10sm
74°F
55°F
30.17"Hg
230° 3kts
AO2 SLP220 T02320128 $
METAR KGSB 042255Z AUTO 23003KT 10SM CLR 23/13 A3017 RMK AO2 SLP220 T02320128 $
+ Add Your Business

KGSB FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Clearance

Clearance Delivery 128.025

Ground

SEYMOUR JOHNSON GROUND 132.45
1200-0400Z++

Tower

SEYMOUR JOHNSON TOWER 126.25
1200-0400Z++

Approach

SEYMOUR JOHNSON APPROACH 119.7
Initial Contact - 111-257
SEYMOUR JOHNSON APPROACH 123.7
258-110
SEYMOUR JOHNSON APPROACH 127.3
Secondary

Departure

SEYMOUR JOHNSON DEPARTURE 119.7
S
SEYMOUR JOHNSON DEPARTURE 123.7
N

Center

SEYMOUR JOHNSON CENTER 123.85
LOW, APCH/DEP SVC PRVDD BY WASHINGTON ARTCC (ZDC) ON 123.85/279.65 (NEW BERN RCAG) WHEN APCH CTL CLSD.

Emergency

Emergency 121.5

Terminal Area Forecast

KGSB
Wed, 3/4 11:05 AM EST
Wed, 3/4 11:00 AM EST - Thu, 3/5 5:00 PM EST
VFR
11:00 AM EST - 12:00 AM EST
Scattered 23,000'
Few 21,000'
Few 6,000'
6sm
30.21"Hg
240° 9kts
IFR
Becoming 12:00 AM EST - 7:00 AM EST
Mist
Broken 22,000'
Scattered 2,000'
Scattered 700'
2.98sm
30.21"Hg
220° 6kts
IFR
Temporary 3:00 AM EST - 7:00 AM EST
Mist
Broken 1,400'
1.99sm
190° 3kts
VFR
Becoming 7:00 AM EST - 5:00 PM EST
Scattered 21,000'
Scattered 3,500'
6sm
30.18"Hg
230° 9kts
TAF KGSB 041605Z 0416/0522 24009KT 9999 FEW060 FEW210 SCT230 QNH3021INS
   BECMG 0505/0506 22006KT 4800 BR SCT007 SCT020 BKN220 QNH3020INS
   TEMPO 0508/0512 19003KT 3200 BR BKN014
   BECMG 0512/0513 23009KT 9999 NSW SCT035 SCT210 QNH3018INS TX23/0421Z TN11/0510Z
KGSB
EffectiveExpiresCategoryNOTAM
Military
1/5/26
1200Z
3/5/26
1800Z
PERSONNEL AND EQUIPMENT WORKING APPROXIMATELY 478FT SOUTH OF THE RUNWAY CENTERLINE, EAST OF TWY D MON - FRI, 1200Z - 2200Z DAILY
Yes
1200-0400Z++
OPR 1200-1400Z++ OR AS PUBLD BY NOTAM. WKEND AND HOL HR MAY CHG BASED ON FLYING OPS. CTC AFLD MGMT 919-722-4097 OR DSN 722-4097 PRIOR MSN PLANNING TO CFM AD HRS. SEE FLIP AP/1 SUPPLRY ARPT RMK.
USAF AIRFIELD OPS
1105 RAPCON PL BLDG 4750
SEYMOUR JOHNSON AFB, NC 27531
Phone: 919-722-2102
AIRFIELD MANAGER
4OSS/OSAA 1980 JABARA AVE
SEYMOUR JOHNSON AFB, NC 27531
Phone: 919-722-4097
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
GSB
--
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
High & Low Pressure
None

Runway 08/26

11760 ft. x 300 ft.

CONC
GRVD
HIGH
53/R/B/W/T
--
--
--
--
  Runway 08 Runway 26
True Heading 73°253°
Traffic Pattern Right Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 35° 20' 05"N 35° 20' 39"N
Longitude 77° 58' 46"W 77° 56' 30"W
Elevation 72' 109'
Threshold Crossing Height 55 ft. AGL 56 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 ALSF1
Centerline Lights No No
Runway End Identifier Lights No No
A110-10CAUTION: EXP HVY BLACKBIRD ACT DUR SUMMER AND FALL.
A110-12CSTMS/AG/IMG: LTD CSTMS AVBL, PRIOR COORD RQR. FAC FOR HANDLING CONTAMINATED AG WASTE LTD.
A110-15MISC: ALL INBD ACFT WITH VIP CTC CONSOLIDATED COMD POST WHEN 60 NM OUT.
A110-16MISC: HVY ACFT LAND LONG OVER BAK-12S, IFUN CTC AMOPS 30 MIN PRIOR.
A110-18CAUTION: TREES 3000 FT E OF AER 26.
A110-19RSTD: PPR REQUIRED FOR ALL ACFT TO INCLUDE DV, HAZ CARGO AND AIR EVAC REGARDLESS OF AFFILIATION FOR NOTIFICATION AND COORDINATION PURPOSES.
A110-2LGT: RWY 08-26 70 FT GATED THR LGT.
A110-20MISC: NON-STD MARKINGS EXIST ON THE HOT CARGO PAD FOR MOTORCYCLE SAFETY COURSE. DIMENSION OF MARKINGS ARE CONTAINED IN A 120 FT X 220 FT BOX LOCATED SOUTH OF THE TAXI LINE USING A YELLOW AND WHITE PAINT MARKING SCHEME.
A110-21MISC: RCR/RSC NOT REPORTED BY SEYMOUR-JOHNSON BASE WX.
A110-26PMSV METRO: WX DSN 722-4089/4089 C919-722-4087 FORECASTER AVBL 0300-0400Z++MON-FRI W/DEVIATIONS DETERMINED BY 916 ARW & 4 FW OPR HRS. OPR HRS MAY VARY WITH LCL FLYING SKED. REMOTE BRIEFING SVC AVBL FR 26 OWS, BARKSDALE AFB, DSN 331-2635/2636/2651, C318-529-2635/2636/2651, FAX EXT 2609, WEBSITE: HTTPS://26OWS.US.AF.MIL. WX OBSN AVBL 24 HRS VIA AN/FMQ-19 AUTOMATED OBSN SYS AUGMENTED BY HUMAN OBSN DUR HR.
A110-3A-GEAR: BAK-12B(B) ALWAYS IN PLACE. THE POTENTIAL FOR TAIL HOOK SLIP EXIST, DUE CONC INLAY MEETING ASPHALT PAVEMENT AT THE RWY 26 UNDERRUN/RWY 08 OVRN BAK 12 BARRIER.
A110-32CAUTION: C5 ACFT SHOULD EXP REDUCED LEVEL OF SVC.
A110-33RSTD: ISSUED PPR VALID 30 MINS PRIOR OR AFTER ETA, EARLY/LATE ARR/DEP MUST BE RECOORDINATED.
A110-34NOISE ABATEMENT - QUIET HRS 0330-1100Z++ FOR FURTHER INFO CALL BASE OPS AT C919-722-4097.
A110-35TWY F NO ACFT LARGER THAN C-130.
A110-36MISC: UHF EQUIPPED ACFT WILL USE UHF AS PRIM ATC FREQ WHEN ARR/DEP SEYMOUR JOHNSON.
A110-37MISC: COMSEC STORAGE AT COMD POST.
A110-38CAUTION: POTENTIAL FOR SMALL UAS ACT OUTSIDE OF AFLD OPR HR.
A110-39MISC: APRON FLOOD LIGHTS LOCATED 1402 FT FM RWY CNTRLN AT THE SOUTHERN CORNERS OF THE TANKER RAMP. ONE IS LOCATED AT THE SW CORNER AT THE HEIGHT OF 102 FT AMSL AND THE OTHER ONE IS LOCATED AT THE SE CORNER AT THE HEIGHT OF 101 FT AMSL.
A110-4JASU: 8(M32A-60A/B) 5(M32A-86) 1(MC-11) 1(MC-1A).
A110-6FLUID: SP PRESAIR LPOX LOX - 24 HR PPR.
A110-7OIL: O-148 SOAP.
A110-8TRAN ALERT: AVBL 1200-0400Z++ MON-FRI, 1530-2300Z++ SAT-SUN STANDBY ALL OTHER TIMES. EXP 1-2 HR SVC/REFUEL DELAYS WKEND, HOL, PEAK PERIODS AND LTD MAINT. LTD FLEET SVC AVBL FOR MIL ACFT ONLY. 50 GAL LAVATORY CART WILL BE SUPPLIED TO AIRCREW TO SVC ACFT.
A110-9RSTD: TRAN ACFT EXP FULL STOP LDG DUR LCL FLYING PERIOD. CTC AMOPS 7 DAYS PRIOR FOR PPR, PN DSN 722-4097, C919-722-4097. TWY A CLOSED TO C5 ACFT EAST OF TWY G. TWY F AVBL FOR ACFT WITH WINGSPANS OF 44 FT OR LESS. COORD WITH AIRFIELD MGR FOR LARGER ACFT.
A17-M1OPR 1200-1400Z++ OR AS PUBLD BY NOTAM. WKEND AND HOL HR MAY CHG BASED ON FLYING OPS. CTC AFLD MGMT 919-722-4097 OR DSN 722-4097 PRIOR MSN PLANNING TO CFM AD HRS. SEE FLIP AP/1 SUPPLRY ARPT RMK.
A23-26LARGE AIRCRAFT.
A33-08/26_SURFMISC RWY 08/26, FROM AER 26 FIRST 1000X300 FT CONC. 1000 FT TO 3100 FT IS 150 FT WIDE CONC WITH 75 FT ASPH EACH SIDE; 3100 FT TO 10760 FT IS 75 FT WIDE CONC AND 112.5 FT ASPH EACH SIDE; FR 10760 FT TO 11760 FT ARE 300 FT WIDE CONC. NO SHOULDERS ON RWY. RWY LGTS ALONG USBL PAV.
A86FSS-RALEIGH RDU-NOTAM RDU.
E147TPA: RECTANGULAR 1191 FT AGL/1300 FT MSL. OVHD PAT 1691 FT AGL/1800 FT MSL. LT ACFT 891 FT AGL/1000 FT MSL.
E60-08_BAK-12HOOK BAK-12A(B) (36 FT OVRN) HOOK BAK-12B(B) (1490 FT).
E60-26_BAK-12HOOK BAK-12B(B) (1490 FT) HOOK BAK-12A(B) (52 FT OVRN).
SEYMOUR JOHNSON AFB (ICAO: KGSB, IATA: GSB) is a private airport located in GOLDSBORO, NC, US.
