KGRK
ROBERT GRAY AAF
PublicPUB

6 miles SW of FORT CAVAZOS (KILLEEN), TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
31° 04' 02"N 97° 49' 44"W
1015' MSL
2015' MSL
04E
JET A
SAN ANGELO (SJT)
SAN ANTONIO
HOUSTON (ZHU)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

KGRK FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 120.75

ATIS

ATIS
 124.9

Approach/Departure

APCH/P DEP/P
 120.075

Clearance Delivery

CD/P
 126.2

Emergency

EMERG
 121.5

Ground

GND/P
 121.8

Tower

LCL/P
 120.75

Other

FLT FLW
 141.175
PMSV METRO
 41.2
PTD
 125.05
RANGE CTL
 30.45
RANGE CTL
FM
 38.3

FAA A/FD Pages

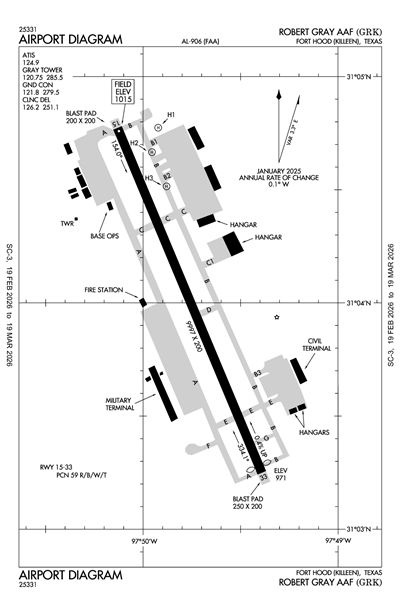

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
KGRK
Domestic
1/15/251700Z !GRK 01/015 GRK AD AIRSPACE UAS WI AN AREA DEFINED AS 1NM RADIUS OF 310825N0974631W (5.2NM NE GRK) SFC-100FT AGL 2501151700-2501152000
1/14/251529Z !GRK 01/016 GRK APRON CIV RAMP S 300FT WIP MAINT JOINT SEALING TRAINING 2501141529-2501172300
1/13/251300Z !GRK 01/011 GRK AIRSPACE UAS WI AN AREA DEFINED AS 5NM RADIUS OF
GRK SFC-2500FT AGL DLY 1300-2300 2501131300-2501162300
1/9/251335Z !GRK 01/008 GRK OBST TOWER LGT (ASR 1234998) 310826.80N0974732.10W (4.8NM NNE GRK) 1143.0FT (193.9FT AGL) U/S 2501091335-2504090500
1/6/251802Z !GRK 01/003 GRK OBST TOWER LGT (ASR 1001687) 305315.60N0975606.40W (12.1NM SSW GRK) 1439.6FT (319.9FT AGL) U/S 2501061802-2505061802
12/6/241727Z !GRK 12/016 GRK APRON SOUTH RAMP S 545FT CLSD EQUIPMENT. NO BARRICADES 2412061727-2505092359
12/3/241812Z !GRK 12/009 GRK OBST TOWER LGT (ASR 1052283) 310613.00N0974742.00W (2.8NM NE GRK) 1185.0FT (200.1FT AGL) U/S 2412031812-2501171811
11/12/241432Z !GRK 11/013 GRK APRON SOUTH RAMP CLSD TO OVERNIGHT PRKG 2411121432-2502092359
9/23/241100Z !GRK 09/023 GRK TWY G CLSD 2409231100-2506272359
9/23/241100Z !GRK 09/022 GRK TWY B BTN TWY E AND APCH END RWY 33 CLSD 2409231100-2506272359
9/23/241100Z !GRK 09/021 GRK TWY E BTN TWY B AND CIV RAMP CLSD 2409231100-2506272359
FDC
1/15/251330Z !FDC 5/3409 GRK SID ROBERT GRAY AAF, FORT CAVAZOS (KILLEEN), TX.
LAMPS EIGHT DEPARTURE...
WACO TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
ACT VORTAC OUT OF SERVICE. 2501151330-2501221805EST
12/1/231630Z !FDC 3/9664 GRK IAP ROBERT GRAY AAF, FORT CAVAZOS (KILLEEN), TX.
ILS OR LOC RWY 15, AMDT 7B...
RNAV (GPS) RWY 15, AMDT 2B...
VOR RWY 15, AMDT 3D...
DISREGARD DEPICTION OF HOOD MOA..
2312011630-2512011630EST
11/30/231416Z !FDC 3/8575 GRK IAP ROBERT GRAY AAF, FORT CAVAZOS (KILLEEN), TX.
ILS OR LOC RWY 33, AMDT 1E...
AUTOPILOT COUPLED APPROACH NA BELOW 1200 MSL.
2311301416-2511301415EST
Military
11/12/241428Z AERODROME NO RON OR EXTENDED STAY ON SOUTH RAMP
Yes
ALL
US ARMY AERONAUTICAL SVCS AGENCY

FT BELVOIR, VA 22060
MICHAEL WILSON
8101 S CLEAR CREEK RD, BOX C
KILLEEN, TX 76549
Phone: 254-501-8701
SAN ANGELO FSS (SJT)
Toll Free: 1-800-WX-BRIEF
GRK
Sunset to Sunrise
--
N/A
Yes
No
No
None
NoNOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 15/33

9997 ft. x 200 ft.
ASPH CONC
Excellent
NONE
HIGH
59 /R/B/W/T
--
--
--
--
  Runway 15 Runway 33
True Heading 157°337°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 31° 04' 48"N 31° 03' 16"N
Longitude 97° 50' 06"W 97° 49' 22"W
Elevation 1,015' 971'
Threshold Crossing Height 53 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR MALSR
Centerline Lights
Runway End Identifier Lights

Runway H1

100 ft. x 100 ft.
CONC
Good
NONE


--
--
--
--
  Runway H1 Runway
True Heading 86°266°
Traffic Pattern
Markings BSC
Markings Condition FAIR
Latitude 31° 04' 47"N N/A
Longitude 97° 49' 48"W N/A
Elevation 1,004' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H2

75 ft. x 75 ft.
ASPH
Good
NONE


--
--
--
--
  Runway H2 Runway
True Heading 86°266°
Traffic Pattern
Markings BSC
Markings Condition FAIR
Latitude 31° 04' 44"N N/A
Longitude 97° 49' 55"W N/A
Elevation 1,018' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H3

75 ft. x 75 ft.
ASPH
Good
NONE


--
--
--
--
  Runway H3 Runway
True Heading 86°266°
Traffic Pattern
Markings BSC
Markings Condition FAIR
Latitude 31° 04' 30"N N/A
Longitude 97° 49' 48"W N/A
Elevation 1,009' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10TFC PAT: TFC PAT ALT LEFT AND RGT. ROTARY WING 1500 FT, UAS 2000 FT WEST TFC ONLY, FIXED WING 2500 FT, PURE JET/OVERHEAD 3000 FT.
A110-11MISC: CLSD CIRCUIT TV OPR.
A110-12MIL-MISC: ALL INBD PPR ACFT CTC PTD 20 MIN PRIOR TO LDG. BASE OPS FAX DSN 738-1930, C254-288-1930.
A110-14CIV: PPR ALL CIVIL ACFT CTC AMGR.
A110-15MIL-RSTD: PPR MIL RAMP DSN 738-9200/9209, C254-288-9200/9209, CIV RAMP (KFHRA) C254-501-8750.
A110-17RSTD: TWY B FR TWY C TO E RSTD TO ACFT WITH WINGSPAN 200' OR LESS.
A110-18MIL-MISC: PAR NOT AVBL (EXC EMERGENCY) FROM 0500-1300Z++.
A110-19MIL-MISC: BASE OPS APVL FOR RAMP ACCESS.
A110-2CAUTION: EXTV COPTER OPR VCNTY FORT CAVAZOS, SOME WO CONSPICUOUS MRK AND BLEND WITH TERRAIN.
A110-20MIL-CSTMS/AG/IMG: CSTMS AVBL 72 HR PN RQR. DUR NML DUTY HR CTC PMO CSTMS DSN 737-3535/3508, C254-287-3535/3508, OT CTC BASE OPS DSN 738-9200, C254-288-9200.
A110-21CAUTION: EXTV COPTER SOD OPS.
A110-22MIL-CSTMS/AG/IMG: USDA AG INSPECTION NOT AVBL.
A110-23MIL-RSTD: TWY B FROM TWY C TO AER 15 RSTD TO ACFT WITH AN ACN OF 24 OR LESS.
A110-24MIL-MISC: 24 HR NOTICE RQR FOR LAV AND WATER SVC.
A110-25MIL: BASE OPS FX DSN 738-1930, COM 254-288-1930.
A110-26CIV: ARPT UNICOM FREQ 122.825 (KILLEEN RADIO).
A110-27MIL-MISC: SPACE A PAX OPS PROHIBITED, INBOUND AND OUTBOUND.
A110-28MIL-MISC: NO OFF AFLD TRANSIENT AIRCREW TRANSPORTATION AVBL.
A110-29MIL-MISC: 50 FT FUEL SERVICE SAFETY ZONE ENFORCED DURING ALL REFUEL OPS.
A110-3MIL-MISC: LTD PRK.
A110-30RSTD: TWY D AND TWY B FR C TO APCH END RWY 33 NOT AUTH FOR DOD ACFT RQR CLASS B RWY.
A110-31CAUTION: EXTV UAS ACFT WITHIN CLASS D AIRSPACE AND BTN CLASS D AIRSPACE AND R6302.
A110-32TFC PAT: UAS 2000' (WEST TFC ONLY).
A110-33MISC - 50' FUEL SVC SAFETY ZONE ENFORCED DURING ALL REFUEL OPS. SPACE A PAX OPS PROH, INBD AND OUTBD. NO OFF AFLD TRAN AIRCREW TRANSPORTATION AVBL. WIDE BODY ACFT 180 DEG TURNS PROH ON RWY 15/33. WIDE BODY ACFT MOVEMENT ON THE SOUTH RAMP AUTH ONLY UNDER CONTROL OF FOLLOW-ME AND GROUND MARSHAL PERS.
A110-34WIDE BODY ACFT 180 DEG TURNS ALLOWED ONLY ON CONC AREAS AT EACH EOR 15/33. WIDE BODY AIRCRAFT MOVEMENT ON THE SOUTH RAMP AUTHORIZED ONLY UNDER CONTROL OF FOLLOW-ME AND GROUND MARSHAL PERSONNEL.
A110-35WATER TOWER 1182 FT E SIDE OF AIRFIELD.
A110-36MIL-MISC: NO DE-ICE CAPABILITY.
A110-5MISC: WX VIS OBST RSTD S THRU NW.
A110-7BEARING STRENGTH RWY 15/33: ST175 SBTT593 TRT840 TRT585.
A110-8MIL-JASU: 1(AM32-95) LASS 1(TUG TMD-250) 1(ESSEX B809).
A110-9MIL-FUEL: A++ PPR ONLY.
ROBERT GRAY AAF (ICAO: KGRK, IATA: GRK) is a public airport located in FORT CAVAZOS (KILLEEN), TX.
