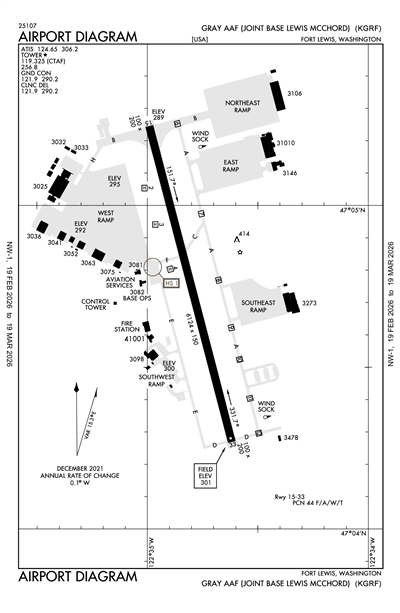

GRAY AAF (JOINT BASE LEWIS-MCCHORD) - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGRF
ICAO KGRFIATA GRFLocal GRF
GRAY AAF (JOINT BASE LEWIS-MCCHORD)
PrivatePVT

1 miles E of FORT LEWIS/TACOMA, WA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
47° 04' 45"N 122° 34' 51"W
Elevation
301' MSL
Pattern Alt
1301' MSL
Mag Variation
15°E
Declination
16°E
Fuel
JET A+, CILI
FSS
SEATTLE (SEA)
Sectional
SEATTLE
ARTCC
SEATTLE (ZSE)
Data Effective
2/19/26-3/19/26
KGRF VFR
8:55 PM PST
Overcast 12,000'
Broken 9,000'
Scattered 5,000'
Few 2,000'
10sm
51°F
48°F
29.94"Hg
110° 6kts
AO2 SLP143 T01030091 $
METAR KGRF 040455Z AUTO 11006KT 10SM FEW020 SCT050 BKN090 OVC120 10/09 A2994 RMK AO2 SLP143 T01030091 $
+ Add Your Business

KGRF FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 124.65

Common

CTAF 119.325
MISC: SVFR DAY F/W 700-1, R/W 300- 1/2. NGT F/W NA, R/W 500-1. TACTICAL OPS ON JBLM MIL RSVN - CTC OPS PRIOR. CTC GRAY TFC ON CTAF WHEN TWR CLSD. CLASS D ASP WHEN ATCT OPEN; OTR TIMES CLASS E. TSNT HNGR NA. BASE OPS, TWR & WX MON-FRI H24; CLSD WKEND; CLSD HOL.

Clearance

Clearance Delivery 121.9

Ground

GRAY GROUND 121.9
OPR H24 MON-FRI, CLSD WKENDS & HOLS.

Tower

GRAY TOWER 41.5
OPR H24 MON-FRI, CLSD WKENDS & HOLS.
GRAY TOWER 119.325
OPR H24 MON-FRI, CLSD WKENDS & HOLS.

Approach

SEATTLE APPROACH 120.1

Departure

SEATTLE DEPARTURE 120.1

Operations

Operations 30.5
Operations 41.5
Operations 138.6

Emergency

Emergency 121.5

Military

ARNG OPS 32.6
NG OPS 123.075
PMSV METRO 38.45
PMSV METRO 134.1

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Instrument Approach

Hotspot

Terminal Area Forecast

KGRF
Tue, 3/3 1:00 PM PST
Tue, 3/3 1:00 PM PST - Wed, 3/4 7:00 PM PST
MVFR
1:00 PM PST - 6:00 PM PST
Light Showers and Rain
Overcast 3,000'
Broken 2,000'
Few 1,200'
5.59sm
30.03"Hg
150° 10kts
Gusts 15kts
MVFR
Becoming 6:00 PM PST - 11:00 PM PST
Light Rain
Overcast 3,000'
Broken 1,500'
Scattered 1,000'
4.97sm
30.00"Hg
180° 12kts
Gusts 20kts
Moderate, Clear Air, Occasional: 500 - 3,500'
MVFR
Becoming 11:00 PM PST - 2:00 AM PST
Light Rain and Mist
Overcast 3,500'
Broken 2,000'
Few 1,200'
4.97sm
29.91"Hg
180° 12kts
Gusts 22kts
Moderate, Clear Air, Occasional: 500 - 3,500'
MVFR
Becoming 2:00 AM PST - 10:00 AM PST
Light Rain and Mist
Overcast 1,500'
Scattered 800'
3.73sm
29.82"Hg
150° 10kts
Gusts 18kts
Light Turbulence: 1,000 - 3,000'
MVFR
Becoming 10:00 AM PST - 7:00 PM PST
Light Showers and Rain
Overcast 4,500'
Broken 2,000'
5.59sm
190° 10kts
Gusts 15kts
TAF KGRF 032100Z 0321/0503 15010G15KT 9000 -SHRA FEW012 BKN020 OVC030 610556 QNH3003INS
   BECMG 0402/0403 18012G20KT 8000 -RA SCT010 BKN015 OVC030 620555 520053 QNH2999INS
   BECMG 0407/0408 18012G22KT 8000 -RA BR FEW012 BKN020 OVC035 620604 520053 QNH2991INS
   BECMG 0410/0411 15010G18KT 6000 -RA BR SCT008 OVC015 640604 510102 QNH2983INS
   BECMG 0418/0419 19010G15KT 9000 -SHRA BKN020 OVC045 620458 QHN2990INS TX14/0322Z TN06/0410Z
KGRF
EffectiveExpiresCategoryNOTAM
Military
3/3/26
1600Z
3/6/26
0400Z
AIRSPACE SUAS ROZ 23 ACT. CTC BULLSEYE RDO FOR REAL TIME ROZ STATUS.
3/3/26
1300Z
3/4/26
1500Z
AD GND VEHICLES RESTRICTED FROM CONTROLLED MOVEMENT AREAS.
2/26/26
1830Z
2/27/26
0030Z
AIRSPACE PARACHUTE JUMPING EXERCISE WI AN AREA DEFINED AS 2NM RADIUS OF ROGERS DZ (OLM/064/19NM) ACTIVATED SFC-10,000FT MSL. DURING DZ ACTIVATION, GREEN ROUTE CLSD E OF ACP BURLINGTON AND YANKEE SOUTH AVIATION TRG AREA. CLSD TO NONPARTICIPATING ACFT. CTC BULLSEYE RDO FOR REAL TIME DZ STATUS.
2/25/26
1800Z
2/25/26
1900Z
AERODROME-WEST RAMP CLSD FOR ACFT OPS. NO BLADES TURNING, NO AGPU OR GROUND RUN-UPS. NO HOVER WORK IN NW HOVER AREA. TWY B, H, FLD DECK LDG PRACTICE, CLEAR WATER TACTICAL RINSE CLSD. NO W TFC. HELIPADS 1, 2, 3 CLSD. NO PRACTICE APCHS. ROTARY WING ACFT LAND S OF TWY F AND RWY 15/33.
2/25/26
1800Z
2/25/26
2300Z
AIRSPACE PARACHUTE JUMPING EXERCISE WI AN AREA DEFINED AS 1NM RADIUS OF ROGERS DZ (OLM/064/19NM) ACTIVATED SFC-8,000FT MSL. CTC BULLSEYE RDO FOR REAL TIME DZ STATUS.
2/25/26
1600Z
2/27/26
0330Z
AIRSPACE SUAS ROZ CHAMPION DEFINED AS BDRY OF ET31240337 RADIUS 653M. ALT: SFC-400FT ACTIVATED. CTC BULLSEYE RDO FOR REAL TIME ROZ STATUS
2/25/26
1300Z
2/25/26
1500Z
AD GND VEHICLES RESTRICTED FROM CONTROLLED MOVEMENT AREAS.
2/25/26
0037Z
2/28/26
0037Z
L0109/26 NOTAMC L0098/26
2/25/26
0035Z
2/28/26
0035Z
L0106/26 NOTAMC L0096/26
2/24/26
2359Z
2/28/26
0200Z
AIRSPACE SUAS ROZ K1000 WI AN AREA DEFINED BY BDRY OF ET270127, ET308095, ET281069, ET247115, WITHIN R6703 A/B/C/F ACTIVATED SFC-8000FT MSL. CTC BULLSEYE RDO FOR REAL TIME ROZ STATUS.
2/24/26
2357Z
2/27/26
2357Z
L0104/26 NOTAMC L0100/26
2/24/26
2201Z
2/27/26
2201Z
L0103/26 NOTAMC L0102/26
2/24/26
1952Z
2/27/26
1952Z
L0101/26 NOTAMC L0091/26
2/24/26
0515Z
2/27/26
0515Z
L0097/26 NOTAMC L0095/26
2/23/26
2045Z
2/28/26
0759Z
AIRSPACE DEMO ROZ ANNIHILATE WI AN AREA DEFINED BY BDRY OF ES 204 991, ES 218 991, ES 218 972, ES 199 972, ES 199 975, ACTIVATED SFC-1,000FT MSL. AREA CLSD TO NON-PARTICIPATING ACFT. CTC BULLSEYE RDO FOR REAL TIME ROZ STATUS.
2/23/26
1846Z
2/26/26
1846Z
L0093/26 NOTAMC L0090/26
2/23/26
1803Z
2/26/26
1803Z
M0061/26 NOTAMC M0058/26
2/23/26
1802Z
2/27/26
0001Z
BULLSEYE RDO FREQ 34.5, 141.5, 379.1 OTS. CTC ON FREQ 128.2
2/23/26
1700Z
2/28/26
0759Z
AIRSPACE SUAS ROZ CANOPY WI AN AREA DEFINED BY BDRY OF ET2847 0389, ET3085 0394, ET3080 0270, ET2806 0246 ACTIVATED SFC-1,500FT MSL WITHIN TA-18 COA AND R6703-D/J EXCLUDING 300FT FROM BLUE RTE. CTC BULLSEYE RDO FOR REAL TIME ROZ STATUS.
2/13/26
0449Z
2/28/26
0449Z
Obstruction!KGRF M0040/26 GRF OBST TOWER 465539N1224436W (10NM SW GRF) UNKNOWN MSL
(150FT AGL) NOT LGTD IN VICINITY OF EL GUETTAR DZ/HLZ 2602130449-2602280449
2/1/26
0800Z
3/8/26
0759Z
PACIFIC STANDARD TIME CHANGE-GAAF BASE OPS, WX, TWR, BULLSEYE RDO, AFLD SVCS, NEW HOURS OF OPN IN EFFECT AS OF 2 NOV 25. NEW HOURS OF OPN ARE 24/5 MONDAY 0000L (0800Z) TO FRIDAY 2359L (0759Z++). GAAF BASE OPS, TWR, BULLSEYE RDO, AFLD SVC WILL BE CLSD WEEKENDS/HOLIDAYS. NO GAAF BASE OPS SVC, TWR, BULLSEYE RDO, AFLD SVC DURING CLOSURE. WX SVC STILL AVLB DURING CLOSURE HOURS VIA STANDBY CTC AT 253-732-3029. TRANSIENT ACFT MUST BE SCHEDULED 72 HOURS IN ADVANCE. TRANSIENT ACFT MUST BE SCHEDULED BETWEEN 0700L (1500Z) AND 1500L (2300Z). NO TRANSIENT ACFT ARR MONDAY-FRIDAY BETWEEN 1501L (2301Z) TO 0659L (1459Z). NO TRANSIENT ACFT DURING CLOSURE. TENANT ACFT SHOULD USE SELF-ANNOUNCE PROCS ON CTAF (119.325) DURING OPS CLOSURE. FUEL SVC NOT AFFECTED AND WILL REMAIN AVBL AT GAAF DURING CLOSURE HOURS. FUEL CSLD HOLIDAYS. ACFT REQG FUEL DURING WEEKEND MUST COORDINATE 72HRS IN ADVANCE AT 253-966-0058. FOR CLEARANCE DELIVERY WHEN ATC IS CLSD CTC SEATTLE APCH AT 206-214-4723. NEW HOURS WILL BE IN EFFECT UNTIL FURTHER NOTICE.
Yes
ALL
US ARMY AERONAUTICAL SVCS AGENCY

FT BELVOIR, VA 22060
Phone: 703 806 4864
NATHAN QUICK


Phone: 253 967 6628
SEATTLE FSS (SEA)
Toll Free: 1-800-WX-BRIEF
GRF
--
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 15/33

6124 ft. x 150 ft.

ASPH
NONE
HIGH
44/F/A/W/T
--
--
--
--
  Runway 15 Runway 33
True Heading 167°347°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 47° 05' 15"N 47° 04' 16"N
Longitude 122° 35' 01"W 122° 34' 41"W
Elevation 289' 300'
Threshold Crossing Height 58 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights SSALR SSALR
Centerline Lights
Runway End Identifier Lights No No

Runway H2

100 ft. x 100 ft.
ASPH
CONC
NONE


--
--
--
--
  Runway H2 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 47° 05' 04"N N/A
Longitude 122° 35' 02"W N/A
Elevation 292' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H3

100 ft. x 100 ft.
ASPH
CONC
NONE


--
--
--
--
  Runway H3 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 47° 04' 57"N N/A
Longitude 122° 35' 00"W N/A
Elevation 294' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H4

100 ft. x 100 ft.
ASPH
CONC
NONE


--
--
--
--
  Runway H4 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings
Markings Condition
Latitude 47° 04' 47"N N/A
Longitude 122° 34' 56"W N/A
Elevation 296' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
A110-11RSTD: 72 HR PPR TRAN ACFT. NO TRAN ACFT WKEND & HOL.
A110-12PJE INVOF ARPT.
A110-13MISC: SVFR DAY F/W 700-1, R/W 300- 1/2. NGT F/W NA, R/W 500-1. TACTICAL OPS ON JBLM MIL RSVN - CTC OPS PRIOR. CTC GRAY TFC ON CTAF WHEN TWR CLSD. CLASS D ASP WHEN ATCT OPEN; OTR TIMES CLASS E. TSNT HNGR NA. BASE OPS, TWR & WX MON-FRI H24; CLSD WKEND; CLSD HOL.
A110-14AR - CTC USAR OPS - D357-6628/C253-967-6628.
A110-15ARNG: OPR 1430-0100Z++ TUE-FRI EXC HOL. TRAN ALERT SVC NA.
A110-18CTN: NON RDO PAEW ON GND CTL XNG TWY G & H.
A110-19BULLSEYE RDO OPR MON-FRI H24; CLSD WKND CLSD HOL. R/W CTC BULLSEYE RDO PRIOR TO ENTRY R6703A-J - 34.6 141.5 379.1. RANGE STATUS - 384.525 & 142.7.
A110-22MISC: ADD RCR RPTD MON-FR 0700-1500 VIA NOTAM & ATIS DURG INCLEMENT WINTER WX.
A110-23NGT VISION TRNG ON ARPT; LGT MAY BE DIM OR OFF; R/W CTC GRAY ATCT ON INITIAL CTC IF UNAIDED.
A110-24MISC: BASE OPS, ATCT, & WX MON-FRI H24. CLSD WKEND; CLSD HOL. NO SPACE A PAX PPR WITHOUT PRIOR COORDINATION WITH AF MANAGER.
A110-25NO DE-ICE
A110-26FOR CD WHEN ATCT IS CLSD CTC SEATTLE APCH AT 206-214-4723. 120.1/290.9.
A110-4SMALL ARMS RANGE 0.8 NM E.
A16OTR CTC: 253-967-6676.
A43-15PAPI RWY 15 UNUSBL BYD 8 DEGS RIGHT OF CNTRLN.
A70-A++MIL; LTD SUPPLY; NATO F24 AVBL; TRANS ALERT 1400-2200++.
E147E/W TFC, F/W 1800 FT, R/W 800 FT.
GRAY AAF (JOINT BASE LEWIS-MCCHORD) (ICAO: KGRF, IATA: GRF) is a private airport located in FORT LEWIS/TACOMA, WA, US.
