iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGRB
GREEN BAY/AUSTIN STRAUBEL INTL
PublicPUB

7 miles SW of GREEN BAY, WI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
44° 29' 05"N 88° 07' 47"W
695' MSL
1695' MSL
02W
JET A, 100LL
GREEN BAY (GRB)
GREEN BAY
MINNEAPOLIS (ZMP)
10/31/24-11/28/24
KGRB VFR
5:53 AM CST
Clear
10sm
34°F
32°F
30.32"Hg
Calm
AO2 SLP275 I1000 I6000 T00110000 10050 20006 55009
KGRB 091153Z 00000KT 10SM CLR 01/00 A3032 RMK AO2 SLP275 I1000 I6000 T00110000 10050 20006 55009
Add Your Business

KGRB FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 118.7

ATIS

ATIS
 124.1

Approach

APCH/P
 119.4

Departure

DEP/P
 126.55

Clearance Delivery

CD/P
 121.75

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 118.7

Other

CLASS C
 119.4

FAA A/FD Pages

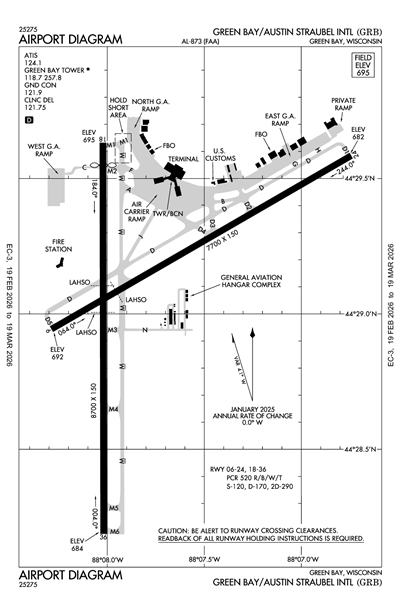

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KGRB
Sat, 11/9 5:32 AM CST
Sat, 11/9 6:00 AM CST - Sun, 11/10 6:00 AM CST
VFR
6:00 AM CST - 9:00 AM CST
Broken 25,000'
6sm
100° 4kts
VFR
9:00 AM CST - 9:00 PM CST
Broken 20,000'
6sm
150° 8kts
VFR
9:00 PM CST - 1:00 AM CST
Overcast 6,000'
6sm
130° 7kts
VFR
9:00 PM CST - 1:00 AM CST
Light Showers and Rain
Overcast 3,500'
N/A
Calm
MVFR
1:00 AM CST - 4:00 AM CST
Light Showers and Rain
Overcast 2,500'
6sm
130° 5kts
MVFR
4:00 AM CST - 6:00 AM CST
Light Showers and Rain and Mist
Overcast 1,500'
5sm
130° 7kts
KGRB 091132Z 0912/1012 10004KT P6SM BKN250
   FM091500 15008KT P6SM BKN200
   FM100300 13007KT P6SM OVC060
   PROB30 1003/1007 -SHRA OVC035
   FM100700 13005KT P6SM -SHRA OVC025
   FM101000 13007KT 5SM -SHRA BR OVC015
KGRB
Domestic
11/7/241800Z !GRB 11/045 GRB COM REMOTE COM OUTLET 121.5 NOT AVBL 2411071800-2411071900
11/6/240940Z !GRB 11/059 GRB RWY 36 FICON 5/5/5 30 PCT WET OBS AT 2411060939. 2411060940-2411070940
11/6/240431Z !GRB 11/056 GRB OBST TOWER LGT (ASR 1223057) 442600.10N0875103.10W (12.3NM ESE GRB) 1124.0FT (315.0FT AGL) U/S 2411060431-2503060431
11/4/240801Z !GRB 11/035 GRB OBST TOWER LGT (ASR 1228036) 441856.10N0880618.90W (10.2NM S GRB) 955.4FT (269.7FT AGL) U/S 2411040801-2501042359
10/31/241803Z !GRB 10/405 GRB TWY D BTN TWY H AND TWY D1 CLSD 2410311803-2411152359
10/31/241801Z !GRB 10/404 GRB TWY D BTN RWY 18/36 AND TWY D5 CLSD 2410311801-2411152359
10/31/241619Z !GRB 10/400 GRB TWY D1, D5 CLSD 2410311619-2411152359
10/31/240006Z !GRB 10/387 GRB RWY 06/24 WIP CONST 2410310006-2411152359
10/31/240006Z !GRB 10/385 GRB RWY 06/24 CLSD EXC XNG 2410310006-2411152359
10/31/240005Z !GRB 10/384 GRB TWY D2 BTN RWY 06/24 AND TWY D, TWY D3 BTN RWY 06/24 AND TWY D, TWY D4 BTN RWY 06/24 AND TWY D CLSD 2410310005-2411152359
10/30/241404Z !GRB 10/375 GRB RWY 06 ALS U/S 2410301404-2411152359
10/30/241402Z !GRB 10/374 GRB RWY 24 PAPI U/S 2410301402-2411152359
10/30/241358Z !GRB 10/373 GRB NAV ILS RWY 06 U/S 2410301358-2411152359
10/30/241030Z !GRB 10/371 GRB TWY D1 NOW TWY D2 2410301030-2411152359
10/30/241030Z !GRB 10/370 GRB TWY D2 NOW TWY D3 2410301030-2411152359
10/30/241030Z !GRB 10/369 GRB TWY D3 NOW TWY D4 2410301030-2411152359
10/30/241030Z !GRB 10/368 GRB TWY D AT APCH END RWY 06 NOW TWY D5 2410301030-2411152359
10/30/241030Z !GRB 10/367 GRB TWY M AT APCH END RWY 36 NOW TWY M6 2410301030-2411152359
10/30/241030Z !GRB 10/366 GRB TWY D AT APCH END RWY 24 NOW TWY D1 2410301030-2411152359
10/18/241151Z !GRB 10/236 GRB OBST TOWER LGT (ASR 1263517) 442605.40N0874404.00W (17.2NM E GRB) 1188.6FT (259.8FT AGL) U/S 2410181151-2501182359
Yes
0500-2200
BROWN COUNTY
2077 AIRPORT DRIVE, STE #18
GREEN BAY, WI 54313-5596
Phone: 920-498-4800
MARTY PIETTE
2077 AIRPORT DRIVE
GREEN BAY, WI 54313-5596
Phone: 920-498-4800
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
GRB
--
ACTVT MALSR RWY 06 & 36; REIL RWY 18; HIRL RWY 06/24 & 18/36 - CTAF. PAPI RWY 06, 18, 24 & 36 OPR CONS. WHEN ATCT CLSD PREFERRED RWY PRESET ON LOW OR MED INTST; INCR INTST - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High Pressure
High Pressure
None

Runway 06/24

7700 ft. x 150 ft.
CONC
Good
GRVD
HIGH
58 /R/D/W/T
90,000lbs
160,000lbs
260,000lbs
--
  Runway 06 Runway 24
True Heading 60°240°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 44° 28' 57"N 44° 29' 35"N
Longitude 88° 08' 17"W 88° 06' 45"W
Elevation 692' 682'
Threshold Crossing Height 40 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights No No

Runway 18/36

8700 ft. x 150 ft.
CONC
Good
GRVD
HIGH
57 /R/D/W/T
95,000lbs
165,000lbs
275,000lbs
--
  Runway 18 Runway 36
True Heading 180°360°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 44° 29' 38"N 44° 28' 12"N
Longitude 88° 08' 01"W 88° 08' 01"W
Elevation 695' 684'
Threshold Crossing Height 54 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes No
A110-10BIRDS ON & INVOF ARPT.
A110-11TWY D BTN TWY H AND APCH END RWY 24 CLSD TO ACFT WINGSPAN MORE THAN 118 FT.
A110-2REQUEST VOLUNTARY COMPLIANCE IN AVOIDING NOISE SENSITIVE AREAS NORTH & EAST OF ARPT BETWEEN MIDNIGHT & 6 A.M.
A110-3TWY C NOT AVBL FOR ACR WITH MORE THAN 30 PAX SEATS.
A110-5TWY D WBND NO TURN ONTO TWY J.
A110-6TWY J SWB NO TURN ONTO NBND TWY M.
A110-7TWY M SBND NO TURN ONTO TWY J.
A110-8TWY J SWB NO TURN ONTO EB TWY D.
A110-9WHEN ATC CLSD FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.
GREEN BAY/AUSTIN STRAUBEL INTL (ICAO: KGRB, IATA: GRB) is a public airport located in GREEN BAY, WI.
