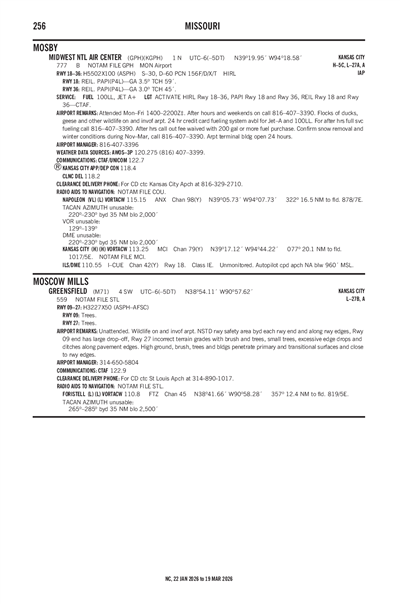

MIDWEST NTL AIR CENTER - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGPH
ICAO KGPHLocal GPH
MIDWEST NTL AIR CENTER
PublicPUB

1 miles N of MOSBY, MO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 19' 57"N 94° 18' 35"W
Elevation
777' MSL
Pattern Alt
1777' MSL
Mag Variation
1°E
Declination
3°E
Fuel
JET A (FSII), 100LL
FSS
COLUMBIA (COU)
Sectional
KANSAS CITY
ARTCC
KANSAS CITY (ZKC)
Data Effective
2/19/26-3/19/26
KGPH IFR
2:35 AM CST
Mist
Overcast 600'
5sm
43°F
41°F
30.12"Hg
360° 5kts
AO2
METAR KGPH 040835Z AUTO 36005KT 5SM BR OVC006 06/05 A3012 RMK AO2
+ Add Your Business

KGPH FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3P 120.275
(816) 407-3399

Common

CTAF 122.7
ACTVT HIRL RY 18/36; PAPI RYS 18 & 36; REIL RYS 18 & 36 - CTAF.
UNICOM 122.7
PRVDD CLEAR APCH TO EACH RY FOR A 20:1 GLIDE SLOPE; CLEAR TRANSITIONAL SFC FOR A 7:1 SLOPE; USE STD L TFC RY 18; R TFC RY 36 & USE SAME UNICOM FREQ AS OTR ARPTS IN AREA.

Clearance

Clearance Delivery 118.2

Arrival

BRAYMER STAR 120.95
JHAWK STAR 120.95
TYGER STAR 120.95

Approach

KANSAS CITY APPROACH 118.4

Departure

KANSAS CITY DEPARTURE 118.4

Terminal Area Forecast

KMKC (18nm)
Tue, 3/3 11:34 PM CST
Wed, 3/4 12:00 AM CST - Thu, 3/5 12:00 AM CST
IFR
Temporary 12:00 AM CST - 3:00 AM CST
Light Rain and Mist
Overcast 500'
5sm
050° 12kts
IFR
12:00 AM CST - 10:00 AM CST
Light Drizzle and Mist
Overcast 600'
6sm
040° 7kts
MVFR
10:00 AM CST - 9:00 PM CST
Overcast 1,000'
6sm
050° 5kts
IFR
11:00 AM CST - 1:00 PM CST
Light Rain
Overcast 700'
4sm
Calm
IFR
9:00 PM CST - 12:00 AM CST
Mist
Overcast 500'
5sm
360° 5kts
TAF KMKC 040534Z 0406/0506 04007KT 6SM -DZ BR OVC006
   TEMPO 0406/0409 05012KT 5SM -RA BR OVC005
   FM041600 05005KT P6SM OVC010
   PROB30 0417/0419 4SM -RA OVC007
   FM050300 36005KT 5SM BR OVC005
KGPH
EffectiveExpiresCategoryNOTAM
Domestic
3/5/26
0600Z
3/5/26
1200Z
!GPH 03/001 GPH COM REMOTE TRANS/REC 118.2 U/S 2603050600-2603051200
2/21/26
0546Z
5/22/26
2359Z
!GPH 02/007 GPH OBST TOWER LGT (ASN 2021-ACE-9636-OE) 392738N0941920W (7.7NM N GPH) 1162FT (189FT AGL) U/S 2602210546-2605222359
FDC
2/25/26
1718Z
3/25/26
1718Z
!FDC 6/0069 GPH SID MIDWEST NTL AIR CENTER, MOSBY, MO.
CHIEF NINE DEPARTURE...
ST JOSEPH TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
CATTS TRANSITION: DME REQUIRED EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
STJ VOR OUT OF SERVICE. 2602251718-2603251718EST
2/25/26
1718Z
3/25/26
1718Z
!FDC 6/0063 GPH SID MIDWEST NTL AIR CENTER, MOSBY, MO.
WILDCAT SIX DEPARTURE...
DME REQUIRED EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
STJ VOR OUT OF SERVICE. 2602251718-2603251718EST
3/29/24
2000Z
3/19/26
0900Z
!FDC 4/4224 GPH STAR MIDWEST NTL AIR CENTER, MOSBY, MO BRAYMER
EIGHT ARRIVAL..PROCEDURE AMEND SPINNER TRANSITION, MOCA 2700 SPI
VORTAC TO BQS VOR/DME. ALL OTHER DATA REMAINS AS PUBLISHED.

2403292000-2603190900
No
MON-FRI 0800-1600
AFTER HOURS AND WEEKENDS ON CALL 816-407-3390
CLAY COUNTY COMMISSION
1 COURTHOUSE SQUARE
LIBERTY, MO 64068
Phone: 816-407-3390
DONNA KOONTZ
13106 RHODUS RD
EXCELSIOR SPRINGS, MO 64024
Phone: 816-407-3396
COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF
GPH
--
ACTVT HIRL RY 18/36; PAPI RYS 18 & 36; REIL RYS 18 & 36 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
None
None
None
None
None

Runway 18/36

5502 ft. x 100 ft.
ASPH
Good
NONE
HIGH
156/F/D/X/T
30,000lbs
60,000lbs
--
--
  Runway 18 Runway 36
True Heading 187°7°
Traffic Pattern Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 39° 20' 24"N 39° 19' 30"N
Longitude 94° 18' 30"W 94° 18' 39"W
Elevation 777' 775'
Threshold Crossing Height 59 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3.5° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1ARPT TERMINAL BLDG OPEN 24 HRS.
A110-2CONFIRM SNOW REMOVAL AND WINTER CONDITIONS DURING NOV-MAR, CALL 816-407-3390.
A110-3FLOCKS OF DUCKS; GEESE & OTHER WILDLIFE ON AND INVOF ARPT.
A110-4FOR CD CTC KANSAS CITY APCH AT 816-329-2710.
A17-H1AFTER HOURS AND WEEKENDS ON CALL 816-407-3390
A39-18/36156 IS PCR.
A70-A+24 HR CREDIT CARD FUELING SYSTEM AVBL FOR JET-A & 100LL. FOR AFTER HRS FULL SVC FUELING CALL 816-407-3390. AFTER HRS CALL OUT FEE WAIVED WITH 200 GAL OR MORE FUEL PURCHASE.
A81-APTACTVT HIRL RY 18/36; PAPI RYS 18 & 36; REIL RYS 18 & 36 - CTAF.
E111PRVDD CLEAR APCH TO EACH RY FOR A 20:1 GLIDE SLOPE; CLEAR TRANSITIONAL SFC FOR A 7:1 SLOPE; USE STD L TFC RY 18; R TFC RY 36 & USE SAME UNICOM FREQ AS OTR ARPTS IN AREA.
MIDWEST NTL AIR CENTER (ICAO: KGPH, IATA: GPH) is a public airport located in MOSBY, MO, US.
