iFlightPlanner



...

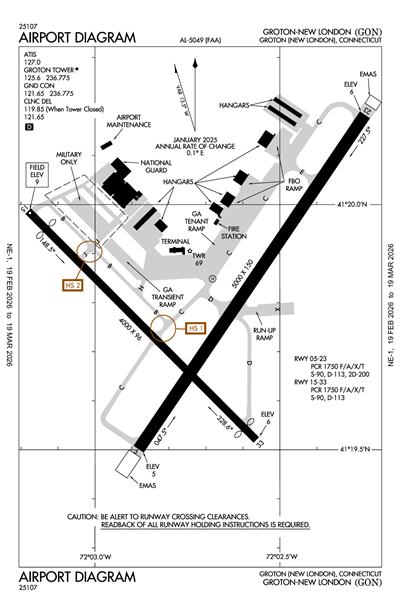

GROTON-NEW LONDON - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGON
ICAO KGONIATA GONLocal GON
GROTON-NEW LONDON
PublicPUB

3 miles SE of GROTON (NEW LONDON), CT, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 19' 48"N 72° 02' 42"W
Elevation
9' MSL
Pattern Alt
1009' MSL
Mag Variation
14°W
Declination
14°W
Fuel
JET A, 100LL
FSS
BRIDGEPORT (BDR)
Sectional
NEW YORK
ARTCC
BOSTON (ZBW)
Data Effective
2/19/26-3/19/26
KGON IFR
12:56 AM EST
Light Rain and Mist
Overcast 500'
4sm
33°F
32°F
30.16"Hg
310° 3kts
AO2 SLP212 P0003 60018 T00060000 10006 20006 56017
METAR KGON 040556Z AUTO 31003KT 4SM -RA BR OVC005 01/00 A3016 RMK AO2 SLP212 P0003 60018 T00060000 10006 20006 56017
+ Add Your Business

KGON FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 127.0
ASOS 127.0
(860) 449-8921

Common

CTAF 125.6
WHEN ATCT CLSD, ACTVT MALSR RWY 05; HIRL RWYS 05/23 & 15/33 - CTAF.

Clearance

Clearance Delivery 119.85
WHEN TWR CLSD 2200-0000, 0600-0700
Clearance Delivery 121.65

Ground

GROTON GROUND 121.65
0700-2200

Tower

GROTON TOWER 125.6
0700-2200

Approach

PROVIDENCE APPROACH 125.75

Departure

PROVIDENCE DEPARTURE 125.75

Center

PROVIDENCE CENTER 124.85
LOW, APCH/DEP SVC PRVDD BY BOSTON ARTCC ON FREQS 124.85/307.9 (WOODSTOCK RCAG) WHEN PROVIDENCE APCH CTL CLSD.

Emergency

Emergency 121.5

Military

NG OPS 126.2

Terminal Area Forecast

KGON
Wed, 3/4 12:20 AM EST
Wed, 3/4 1:00 AM EST - Thu, 3/5 1:00 AM EST
LIFR
Temporary 1:00 AM EST - 3:00 AM EST
Light Rain and Fog
Overcast 300'
0.25sm
Calm
IFR
1:00 AM EST - 3:00 AM EST
Light Rain
Overcast 600'
2sm
VRB° 3kts
LIFR
3:00 AM EST - 6:00 AM EST
Light Drizzle and Fog
Overcast 200'
0.5sm
VRB° 2kts
IFR
6:00 AM EST - 9:00 AM EST
Mist
Overcast 600'
2sm
VRB° 3kts
MVFR
9:00 AM EST - 11:00 AM EST
Mist
Broken 2,000'
4sm
300° 2kts
VFR
11:00 AM EST - 2:00 PM EST
Scattered 25,000'
Few 2,000'
6sm
330° 4kts
VFR
2:00 PM EST - 11:00 PM EST
Broken 25,000'
Scattered 10,000'
6sm
VRB° 4kts
VFR
11:00 PM EST - 1:00 AM EST
Mist
Broken 25,000'
Broken 10,000'
Few 600'
6sm
VRB° 2kts
TAF KGON 040520Z 0406/0506 VRB03KT 2SM -RA OVC006
   TEMPO 0406/0408 1/4SM -RA FG OVC003
   FM040800 VRB02KT 1/2SM -DZ FG OVC002
   FM041100 VRB03KT 2SM BR OVC006
   FM041400 30002KT 4SM BR BKN020
   FM041600 33004KT P6SM FEW020 SCT250
   FM041900 VRB04KT P6SM SCT100 BKN250
   FM050400 VRB02KT 6SM BR FEW006 BKN100 BKN250
KGON
EffectiveExpiresCategoryNOTAM
Domestic
3/4/26
1530Z
3/4/26
1630Z
Runway!GON 03/007 GON RWY 15/33 CLSD 2603041530-2603041630
3/3/26
2253Z
Runway!GON 03/012 GON RWY 15 PAPI U/S 2603032253-2603272359EST
3/3/26
2118Z
3/4/26
1200Z
!GON 03/011 GON TWY ALL FICON WET OBS AT 2603032118. COND NOT MNT 2603032200-2603041200. 2603032118-2603041200
3/3/26
2117Z
3/4/26
1200Z
Runway!GON 03/010 GON RWY 15 FICON 5/5/5 100 PCT WET OBS AT 2603032117. COND NOT MNT 2603032200-2603041200. 2603032117-2603041200
3/3/26
2116Z
3/4/26
1200Z
Runway!GON 03/009 GON RWY 05 FICON 5/5/5 100 PCT WET OBS AT 2603032116. COND NOT MNT 2603032200-2603041200. 2603032116-2603041200
3/1/26
2218Z
3/16/26
2218Z
!GON 03/006 GON OBST POWER LINE LGT (ASN 2016-ANE-4702-OE) 412624N0720521W (6.9NM NNW GON) 264FT (254FT AGL) U/S 2603012218-2603162218
3/1/26
2205Z
3/16/26
2205Z
!GON 03/005 GON OBST POWER LINE LGT (ASN 2011-ANE-1875-OE) 412611N0720517W (6.7NM NNW GON) 282FT (172FT AGL) U/S 2603012205-2603162205
3/1/26
2204Z
3/16/26
2204Z
!GON 03/004 GON OBST POWER LINE LGT (ASN 2016-ANE-4703-OE) 412611N0720516W (6.7NM NNW GON) 335FT (211FT AGL) U/S 2603012204-2603162204
2/27/26
1641Z
8/1/26
2100Z
!GON 02/149 GON TWY ALL SFC MARKINGS FADED 2602271641-2608012100
2/27/26
1639Z
8/1/26
1200Z
Runway!GON 02/148 GON RWY 15/33 SFC MARKINGS FADED 2602271639-2608011200
2/27/26
1638Z
8/1/26
2100Z
Runway!GON 02/147 GON RWY 05/23 SFC MARKINGS FADED 2602271638-2608012100
2/25/26
2126Z
3/26/26
2300Z
!GON 02/137 GON OBST TOWER LGT (ASR 1046318) 412113.90N0720552.30W (2.7NM WNW GON) 253.0FT (223.1FT AGL) U/S 2602252126-2603262300
2/25/26
0027Z
3/31/26
2359Z
!GON 02/123 GON COM REMOTE COM OUTLET 121.5 U/S 2602250027-2603312359
2/24/26
1704Z
3/6/26
2100Z
!GON 02/121 GON TWY ALL FICON 24IN BERMS OBS AT 2602241704. 2602241704-2603062100
2/24/26
1703Z
3/12/26
2100Z
!GON 02/120 GON APRON ALL FICON 10FT SN PILES OBS AT 2602241703. 2602241703-2603122100
2/18/26
0806Z
3/5/26
0806Z
!GON 02/092 GON OBST POWER LINE LGT (ASN 2012-ANE-224-OE) 412623N0720522W (6.9NM NNW GON) 237FT (222FT AGL) U/S 2602180806-2603050806
1/28/26
0017Z
Runway!GON 01/107 GON RWY 05 RAI LGT U/S 2601280017-2607012359EST
FDC
3/4/26
1300Z
!FDC 6/3040 GON IAP GROTON-NEW LONDON, GROTON (NEW LONDON), CT.
ILS OR LOC RWY 5, AMDT 11F...
VOR RWY 23, AMDT 10D...
VOR RWY 5, AMDT 8D...
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MAD VOR OUT OF SERVICE. 2603041300-2603112211EST
2/26/26
1752Z
!FDC 6/0817 GON ODP GROTON-NEW LONDON, GROTON (NEW LONDON), CT.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 8A...
TAKE-OFF MINIMUMS: RWY 33, 500-3 SM OR STD WITH MINIMUM CLIMB TERMINATION ALTITUDE 700 MSL.
NOTE: EXCEPT WHEN ADVISED BY ATCT THAT THIS CRANE IS DOWN.
ALL OTHER DATA REMAINS AS PUBLISHED. 2602261752-2603131752EST
1/13/26
2039Z
!FDC 6/2985 GON IAP GROTON-NEW LONDON, GROTON (NEW LONDON), CT.
VOR RWY 5, AMDT 8D...
S-5 MDA 600/HAT 592 ALL CATS. VISIBILITY CAT C/D 1 1/4. CIRCLING MDA 600/HAA 591 CAT A. VDP AT GON 1.99 DME; DISTANCE VDP TO THLD 1.73NM. FOR INOPERATIVE ALS INCREASE S-5 CAT C/D VISIBLITY TO 1 3/4. TEMPORARY BARGE CRANE 285FT MSL 5.20NM SOUTHWEST OF RWY 5 (2025-WTE-2734-OE).
2601132039-2608252355EST
1/13/26
2035Z
!FDC 6/2983 GON IAP GROTON-NEW LONDON, GROTON (NEW LONDON), CT.
RNAV (GPS) RWY 5, ORIG-H...
LNAV MDA 660/HAT 652 ALL CATS. VISIBILITY CAT A/B RVR 4000, CAT C/D 1 1/8. CIRCLING MDA 660/HAA 651 CAT A, 700/HAA 691 CAT B, 860/HAA 851 CAT C/D. VISIBILITY CAT C 2 1/2. VDP 1.61NM TO RW 5. EXCEPT WHEN ADVISED BY ATCT THAT THIS CRANE IS DOWN. TEMPORARY BARGE CRANE 345FT MSL 2.70NM SOUTHWEST OF RWY 23 (2024-WTE-5712-OE). TEMPORARY BARGE CRANE 345FT MSL 1.57NM WEST OF GON AIRPORT (2024-WTE-5717-OE). TEMPORARY BARGE CRANE 496FT MSL 2.64NM NORTHWEST OF GON AIRPORT (2025-WTE-5298-OE).
2601132035-2608252355EST
1/13/26
2014Z
!FDC 6/2975 GON IAP GROTON-NEW LONDON, GROTON (NEW LONDON), CT.
VOR RWY 5, AMDT 8D...
S-5 MDA 660/HAT 652 ALL CATS. VISIBILITY CAT C/D 1 3/8. CIRCLING MDA 660/HAA 651 CAT A, 700/HAA 691 CAT B, 860/HAA 851 CAT C/D. VISIBILITY CAT C 2 1/2. VDP AT GON 2.18 DME; DISTANCE VDP TO THLD 1.92NM. EXCEPT WHEN ADVISED BY ATCT THAT THIS CRANE IS DOWN. TEMPORARY BARGE CRANE 345FT MSL 2.70NM SOUTHWEST OF RWY 23 (2024-WTE-5712-OE). TEMPORARY BARGE CRANE 345FT MSL 1.57NM WEST OF GON AIRPORT (2024-WTE-5717-OE). TEMPORARY BARGE CRANE 496FT MSL 2.64NM NORTHWEST OF GON AIRPORT (2025-WTE-5298-OE).
2601132014-2608252355EST
1/13/26
2010Z
!FDC 6/2972 GON ODP GROTON-NEW LONDON, GROTON (NEW LONDON), CT.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 8A...
TAKE-OFF MINIMUMS: RWY 23, STANDARD WITH MINIMUM CLIMB OF 220 FT PER NM TO 460. RWY 33, 500-2 3/4 OR STANDARD WITH MINIMUM CLIMB OF 410 FT PER NM TO 650. EXCEPT WHEN ADVISED BY ATCT THAT THIS CRANE IS DOWN. RWY 23, TEMPORARY BARGE CRANE 2.14NM FROM DER, 345FT AGL/345FT MSL (2024-WTE-5714-OE). RWY 33, TEMPORARY BARGE CRANE 2.25NM FROM DER, 944FT LEFT OF CENTERLINE, 496FT AGL/496FT MSL (2025-WTE-5298-OE).
ALL OTHER DATA REMAINS AS PUBLISHED. 2601132010-2608252355EST
1/13/26
1746Z
!FDC 6/2820 GON IAP GROTON-NEW LONDON, GROTON (NEW LONDON), CT.
ILS OR LOC RWY 5, AMDT 11F...
S-LOC 5 MDA 660/HAT 652 ALL CATS. VISIBILITY CAT C/D 1 3/8. CIRCLING MDA 660/HAA 651 CAT A, 700/HAA 691 CAT B, 860/HAA 851 CAT C/D. VISIBILITY CAT C 2 1/2. VDP AT I-GON 2.85 DME; DISTANCE VDP TO THLD 1.92NM. EXCEPT WHEN ADVISED BY ATCT THAT THIS CRANE IS DOWN. TEMPORARY BARGE CRANE 345FT MSL 2.70NM SOUTHWEST OF RWY 23 (2024-WTE-5712-OE). TEMPORARY BARGE CRANE 345FT MSL 1.57NM WEST OF GON AIRPORT (2024-WTE-5717-OE). TEMPORARY BARGE CRANE 496FT MSL 2.64NM NORTHWEST OF GON AIRPORT (2025-WTE-5298-OE).
2601131746-2608252355EST
1/13/26
1618Z
!FDC 6/2770 GON IAP GROTON-NEW LONDON, GROTON (NEW LONDON), CT.
RNAV (GPS) RWY 23, ORIG-E...
VOR RWY 23, AMDT 10D...
CIRCLING MDA 660/HAA 651 CAT A, 700/HAA 691 CAT B, 860/HAA 851 CAT C/D. VISIBILITY CAT C 2 1/2. EXCEPT WHEN ADVISED BY ATCT THAT THIS CRANE IS DOWN. TEMPORARY CRANE 345FT MSL 1.57 NM WEST OF GON AIRPORT (2024-WTE-5717-OE). TEMPORARY BARGE CRANE 496FT MSL 2.64NM NORTHWEST OF GON AIRPORT (2025-WTE-5298-OE).
2601131618-2608252355EST
Yes
0600- 2100
CONNECTICUT AIRPORT AUTHORITY
BRADLEY INTERNATIONAL AIRPORT ADMIN OFFICES TERMINAL A 3RD FLOOR
WINDSOR LOCKS, CT 06096
Phone: 860-292-2083
DAVID LUCAS
155 TOWER AVE
GROTON, CT 06340
Phone: 860-841-9664
BRIDGEPORT FSS (BDR)
Toll Free: 1-800-WX-BRIEF
GON
--
WHEN ATCT CLSD, ACTVT MALSR RWY 05; HIRL RWYS 05/23 & 15/33 - CTAF.
N/A
Yes - Lighted
Yes
Yes
Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Annual Surveying

Runway 05/23

5000 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

90,000lbs
113,000lbs
200,000lbs
--
  Runway 05 Runway 23
True Heading 34°214°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 41° 19' 30"N 41° 20' 11"N
Longitude 72° 02' 53"W 72° 02' 16"W
Elevation 5' 6'
Threshold Crossing Height 40 ft. AGL 49 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L V4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes

Runway 15/33

4000 ft. x 96 ft.
ASPH
Good
GRVD
HIGH

90,000lbs
113,000lbs
--
--
  Runway 15 Runway 33
True Heading 135°315°
Traffic Pattern Left Left
Markings BSC NPI
Markings Condition GOOD GOOD
Latitude 41° 19' 59"N 41° 19' 31"N
Longitude 72° 03' 11"W 72° 02' 34"W
Elevation 9' 6'
Threshold Crossing Height 45 ft. AGL 34 ft. AGL
Visual Glide Path Angle 4° 3.75°
Visual Slope Indicator P4R P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No Yes

Runway H1

45 ft. x 45 ft.

ASPH
NONE


--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings NONE
Markings Condition
Latitude 41° 19' 51"N N/A
Longitude 72° 02' 41"W N/A
Elevation 9' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-10NOISE ABATEMENT PROCS IN EFCT ARE AS FLWS: RWY 05: TURN LEFT HDG 020 TIL RCHG 1000 FT, THEN ON CRS; RWY 23: TURN LEFT HDG 210 TIL RCHG 1000 FT, THEN ON CRS; RWY 33: FLY RWY HDG TIL RCHG 1000 FT, THEN ON CRS.
A110-12NO TGL OPNS PMTD BTN 2200-0600.
A110-14TRML AERODROME FCST SVC AVBL.
A110-17FOR FUEL AFT HRS CALL BFR 2100 LCL DAY OF ARR 860-715-8800.
A110-18TSNT PILOTS AT GA RAMP EXIT & RE-ENTER ARPT VIA PILOT PEDESTRIAN GATE ADJ TO MAIN TERM WITH POSTED GATE LOCK COMBINATION. THIS GATE IS LGTD WITH ELECTRONIC SURVEILLANCE 24 HRS DLY.
A110-19ARNG: PPR FOR PARKING AT THE ARNG FACILITY, 860-441-2918, DSN 636-0918 0630-1600L WEEKDAYS. ACFT INBD TO ARNG RAMP CTC BLACKJACK OPS (304.6) 10 MIN PRIOR TO LANDING FOR STATUS OF PARKING.
A110-20ARNG: GENERAL SUPPORT FAC OPR 1130-2100Z++ MON-FRI EXC HOL.
A110-21CONDS NOT MNT FM 1800 LCL TO 0600 LCL, MON-FRI AND FM 1500 LCL TO 0700 LCL, SAT-SUN.
A110-22FOR CD WHEN APCH CLSD CTC BOSTON ARTCC AT 603-879-6859.
A110-3DEER, BIRDS & WATERFOWL ON & INVOF ARPT.
A110-5PRACTICE APCHS/FULL-STOP/TGLS PROHIBITED BY PURE JET ACFT & ACFT WEIGHING 12500 LBS & OVR EXC BY WRITTEN APVL FM THE CONNECTICUT ARPT AUTH.
A24LDG FEE FOR BUS/CORPORATE & REVENUE PRODUCING ACFT.
A26CLSD TO UNSKED ACR OPNS WITH MORE THAN 30 PSGR SEATS EXC 48 HR PPR, CALL 860-250-4701.
A39-05/23PCR VALUE: 1750/F/A/X/T
A39-15/33PCR VALUE: 1750/F/A/X/T
A42-23_MARKRWY NR NOT STD.
A51-33TREES 34:1 TO DTHR.
A52-15RAILROAD.
A57-15APCH RATIO 25:1 TO DTHR.
A81-APTWHEN ATCT CLSD, ACTVT MALSR RWY 05; HIRL RWYS 05/23 & 15/33 - CTAF.
E111EXISTED PRIOR TO 1959.
E1471000 FT LGT ACFT; 1500 FT ALL TURBINE PWRD ACFT.
E60-05_EMASENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) 130 FT LENGTH BY 162 FT WIDTH LCTD AT DER 05.
E60-23_EMASENGINEERED MATERIALS ARRESTING SYSTEM (EMAS) 340 FT LENGTH BY 162 FT WIDTH LCTD AT DER 23.
E80U.S. CUST SVC AVBL WITH 6 HR PPR CALL MON-FRI 0800-1600 ON 203-773-2040 (OR TOLL FREE IN THE U.S. 1-800-973-2867) & FM CANADA 407- 975-1740. CALL BFR 1500 ON FRIDAY FOR WKEND OR HOL SVC REQS.
GROTON-NEW LONDON (ICAO: KGON, IATA: GON) is a public airport located in GROTON (NEW LONDON), CT, US.
