KGNV
GAINESVILLE RGNL
PublicPUB

3 miles NE of GAINESVILLE, FL
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
29° 41' 24"N 82° 16' 18"W
151' MSL
1151' MSL
04W
JET A, 100
GAINESVILLE (GNV)
JACKSONVILLE
JACKSONVILLE (ZJX)
10/31/24-11/28/24
KGNV MVFR
6:53 AM EST
Mist
Scattered 4,800'
3sm
68°F
68°F
30.07"Hg
Calm
AO2 SLP181 T02000200 10206 20194 53011
KGNV 091153Z 00000KT 3SM BR SCT048 20/20 A3007 RMK AO2 SLP181 T02000200 10206 20194 53011
Add Your Business

KGNV FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 119.55

ATIS

ATIS
 127.15

ASOS

ASOS
352-335-8672
 127.15

Ground

GND/P
 121.7

Tower

LCL/P
 119.55

FAA A/FD Pages

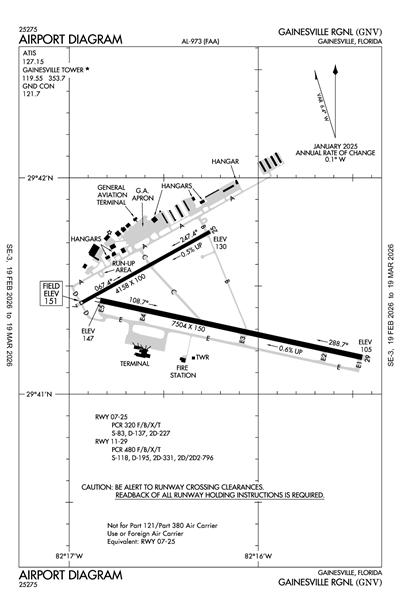

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KGNV
Sat, 11/9 6:20 AM EST
Sat, 11/9 7:00 AM EST - Sun, 11/10 7:00 AM EST
LIFR
7:00 AM EST - 9:00 AM EST
Mist
Broken 400'
2sm
VRB° 2kts
MVFR
9:00 AM EST - 12:00 PM EST
Broken 7,000'
Broken 2,500'
Scattered 1,000'
6sm
070° 5kts
VFR
12:00 PM EST - 7:00 PM EST
Showers in vicinity
Broken 7,000'
Broken 3,500'
Scattered 2,000'
6sm
080° 10kts
VFR
7:00 PM EST - 7:00 AM EST
Broken 6,000'
Scattered 2,000'
Few 1,000'
6sm
070° 5kts
KGNV 091120Z 0912/1012 VRB02KT 2SM BR BKN004
   FM091400 07005KT P6SM SCT010 BKN025 BKN070
   FM091700 08010KT P6SM VCSH SCT020 BKN035 BKN070
   FM100000 07005KT P6SM FEW010 SCT020 BKN060
KGNV
Domestic
11/12/241200Z !GNV 11/054 GNV OBST CRANE (ASN 2023-ASO-9099-NRA) 294108N0821632W (0.3NM SW GNV) 302FT (167FT AGL) FLAGGED AND LGTD 2411121200-2412312359
11/7/241300Z !GNV 11/050 GNV SVC TAR U/S 2411071300-2411071930
11/5/240245Z !GNV 11/043 GNV RWY 29 RAI LGT U/S 2411050245-2501102000EST
11/3/241600Z !GNV 11/029 GNV OBST TOWER LGT (ASR 1013914) 294333.10N0821600.60W (2.2NM NE GNV) 382.9FT (212.9FT AGL) U/S 2411031600-2502010500
11/2/241505Z !GNV 11/019 GNV OBST TOWER LGT (ASR 1317003) 304658.3N0855745.6W (10.4NM ENE 54J) 356FT (255FT AGL) U/S 2411021505-2412022300
11/1/241953Z !GNV 11/010 GNV TWY D BTN APCH END RWY 07 AND TWY A CLSD TO ACFT MORE THAN 60000LB 2411011953-2412312359
11/1/241952Z !GNV 11/009 GNV TWY A BTN TWY C AND TWY D CLSD TO ACFT MORE THAN 60000LB 2411011952-2412312359
11/1/241951Z !GNV 11/008 GNV RWY 11/29 SAFETY AREA NOT STD NE SIDE PONDING 2411011951-2412312359
10/31/240810Z !GNV 10/455 GNV OBST TOWER LGT (ASR 1217192) 293533.50N0821124.20W (7.1NM SE GNV) 518.7FT (404.9FT AGL) U/S 2410310810-2412150809
10/30/241023Z !GNV 10/448 GNV COM REMOTE COM OUTLET 122.2 U/S 2410301023-2508292000EST
10/22/241232Z !GNV 10/348 GNV APRON NORTH APN NORTHEAST ACCESS CLSD 2410221232-2411082359
10/22/241231Z !GNV 10/347 GNV TWY A BTN NORTH APN CENTRAL ACCESS AND NORTH APN NORTHEAST ACCESS CLSD 2410221231-2411082359
10/21/241938Z !GNV 10/342 GNV OBST TOWER LGT (ASN 2023-ASO-20629-OE) 294934N0821608W (8.1NM NE GNV) 415FT (265FT AGL) U/S 2410211938-2412051930
10/2/240236Z !GNV 10/022 GNV OBST TOWER LGT (ASR 1230391) 293635.40N0820157.10W (13.3NM ESE GNV) 488.2FT (310.0FT AGL) U/S 2410020236-2412302359
9/27/240256Z !GNV 09/480 GNV OBST TOWER LGT (ASN 2016-ASO-31502-OE) 293837N0821908W (3.8NM SW GNV) 510FT (380FT AGL) U/S 2409270256-2411110256
9/27/240248Z !GNV 09/467 GNV OBST TOWER LGT (ASR 1222794) 293600.70N0820623.10W (10.1NM ESE GNV) 431.8FT (285.8FT AGL) U/S 2409270248-2501250248
9/22/241351Z !GNV 09/320 GNV OBST TOWER LGT (ASR 1029137) 294423.00N0822308.00W (6.6NM WNW GNV) 645.0FT (475.1FT AGL) U/S 2409221351-2411222359
9/19/242330Z !GNV 09/285 GNV OBST TOWER LGT (ASR 1030170) 294317.90N0822134.60W (4.9NM WNW GNV) 386.2FT (195.2FT AGL) U/S 2409192330-2412180400
6/4/241929Z !GNV 06/046 GNV OBST TOWER LGT (ASR 1029807) 294234.90N0822339.40W (6.5NM W GNV) 1024.0FT (843.8FT AGL) U/S 2406041929-2412312359
3/21/241227Z !GNV 03/214 GNV NAV ILS RWY 29 WYNDS LOM NOT MNT 2403211227-2706012000EST
1/5/241030Z !GNV 01/021 GNV RWY 11/29 SFC MARKINGS W SIDE NOT STD 2401051030-PERM
Yes
ALL
GAINESVILLE-ALACHUA CO AUTH
3880 NE 39TH AVE
GAINESVILLE, FL 32609
Phone: 352-373-0249
ALLAN PENKSA
3880 NE 39 AVE STE A
GAINESVILLE, FL 32609
Phone: 352-373-0249
GAINESVILLE FSS (GNV)
Toll Free: 1-800-WX-BRIEF
GNV
--
WHEN ATCT CLSD ACTVT MALSR RWY 29; MIRL RWY 07/25; HIRL RWY 11/29 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
High Pressure
High Pressure
Cargo Handling
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 07/25

4158 ft. x 100 ft.
ASPH
Fair
GRVD
MED
43 /F/B/X/T
107,000lbs
172,000lbs
--
--
  Runway 07 Runway 25
True Heading 61°241°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 29° 41' 25"N 29° 41' 45"N
Longitude 82° 16' 57"W 82° 16' 15"W
Elevation 151' 130'
Threshold Crossing Height 44 ft. AGL 42 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights No

Runway 11/29

7504 ft. x 150 ft.
ASPH
Good
GRVD
HIGH
56 /F/B/W/T
120,000lbs
218,000lbs
372,000lbs
870,000lbs
  Runway 11 Runway 29
True Heading 102°282°
Traffic Pattern
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 29° 41' 26"N 29° 41' 10"N
Longitude 82° 16' 50"W 82° 15' 27"W
Elevation 147' 105'
Threshold Crossing Height 54 ft. AGL 55 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-1WHEN ATCT CLSD ACFT MORE THAN 12500 LBS CTC FBO FOR PRKG INSTR PRIOR TO EXITING TWY A DUE TO IREG PAVEMENT STRENGTHS - 352-335-4681.
A110-10GA RAMP LMTD TO ACFT 90000 LB MAX GROSS TKOF WT, DUAL WHEEL OR BLW; OTHERS PPR.
A110-11BANNER TOWING NA EXC 72 HR PPR - AMGR.
A110-12ARPT SFC COND NOT MNTD BTW 2330 - 0400 DLY.
A110-13FOR CD IF UNA TO CTC ON FSS FREQ, CTC JACKSONVILLE APCH AT 904-741-0284.
A110-14RWY 29 HLDG PSN SIGN AT 07/25 RIGHT SIDE MISG.
A110-15RWY 11-29 MRKGS ON W END ARE NOT STD DUE TO MRKGS NOT FULLY REMOVED/GHOSTING.
A110-6PORTIONS OF RWY 07/25 & NE 1000 FT OF TWY A NOT VSB FM ATCT; BLOCKED BY VORTAC BLDG.
A110-9WILDLIFE ON & INVOF ARPT.
GAINESVILLE RGNL (ICAO: KGNV, IATA: GNV) is a public airport located in GAINESVILLE, FL.
