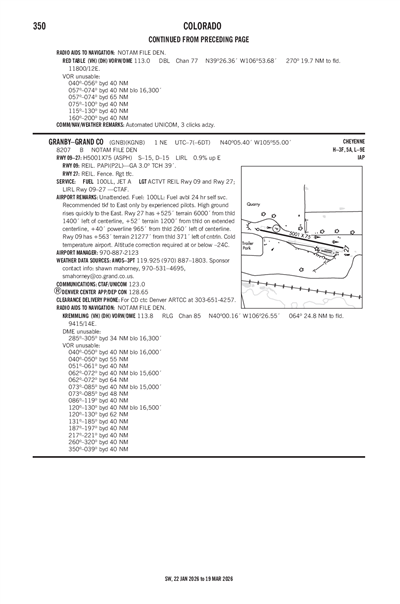

GRANBY-GRAND COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGNB
ICAO KGNBLocal GNB
GRANBY-GRAND COUNTY
PublicPUB

1 miles NE of GRANBY, CO, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
40° 05' 24"N 105° 54' 60"W
Elevation
8207' MSL
Pattern Alt
9207' MSL
Mag Variation
8°E
Declination
8°E
Fuel
JET A, 100LL
FSS
DENVER (DEN)
Sectional
CHEYENNE
ARTCC
DENVER (ZDV)
Data Effective
2/19/26-3/19/26
KGNB VFR
12:35 AM MST
Overcast 6,000'
Scattered 4,400'
10sm
28°F
24°F
30.27"Hg
Calm
AO2 T10231045
METAR KGNB 040735Z AUTO 00000KT 10SM SCT044 OVC060 M02/M04 A3027 RMK AO2 T10231045
+ Add Your Business

KGNB FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3PT 119.925
(970) 887-1803, SPONSOR CONTACT INFO: SHAWN MAHORNEY, 970-531-4695, SMAHORNEY@CO.GRAND.CO.US.

Common

CTAF 123.0
ACTVT REIL RWY 09 & 27; LIRL RWY 09/27 - CTAF.
UNICOM 123.0

Center

DENVER CENTER 128.65
LOW, APCH/DEP CTL SVC PRVDD BY DENVER ARTCC (ZDV) ON FREQS 128.65/282.2 (KREMMLING RCAG).

FAA A/FD Pages

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KBJC (39nm)
Tue, 3/3 10:38 PM MST
Tue, 3/3 11:00 PM MST - Wed, 3/4 11:00 PM MST
VFR
11:00 PM MST - 1:00 AM MST
Broken 10,000'
Scattered 2,000'
Few 100'
6sm
270° 6kts
VFR
1:00 AM MST - 6:00 AM MST
Scattered 2,000'
Few 100'
6sm
240° 6kts
VFR
6:00 AM MST - 11:00 AM MST
Few 15,000'
6sm
180° 6kts
VFR
11:00 AM MST - 9:00 PM MST
Few 15,000'
6sm
100° 6kts
VFR
9:00 PM MST - 11:00 PM MST
Sky Clear
6sm
240° 7kts
TAF KBJC 040538Z 0406/0506 27006KT P6SM FEW001 SCT020 BKN100
   FM040800 24006KT P6SM FEW001 SCT020
   FM041300 18006KT P6SM FEW150
   FM041800 10006KT P6SM FEW150
   FM050400 24007KT P6SM SKC
KGNB
EffectiveExpiresCategoryNOTAM
Domestic
12/4/25
1922Z
Runway!DEN 12/248 GNB RWY 09 PAPI UNUSABLE 2512041922-2604212111EST
No
UNATNDD
GRAND COUNTY
P.O. BOX 264 P.O. BOX 264
HOT SULPHUR SPRINGS, CO 80451
Phone: 970-725-3347
SHAWN MAHORNEY
P O BOX 264
HOT SULPHUR SPRINGS, CO 80451
Phone: 970-887-2123
DENVER FSS (DEN)
Toll Free: 1-800-WX-BRIEF
DEN
--
ACTVT REIL RWY 09 & 27; LIRL RWY 09/27 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Pilot Instruction

Runway 09/27

5001 ft. x 75 ft.
ASPH
Fair
NONE
LOW

15,000lbs
15,000lbs
--
--
  Runway 09 Runway 27
True Heading 102°282°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 40° 05' 29"N 40° 05' 19"N
Longitude 105° 55' 31"W 105° 54' 29"W
Elevation 8,160' 8,207'
Threshold Crossing Height 39 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P2L --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-2RCMD TKOF TO EAST ONLY BY EXPERIENCED PILOTS; HIGH GROUND RISES QUICKLY TO THE EAST.
A110-4RWY 27 HAS +525 FT TERRAIN 6000 FT FM THLD 1400 LEFT OF CNTRLN, +52 FT TERRAIN 1200 FT FM THLD ON EXTNDD CNTRLN, +40 FT POWERLINE 965 FT FM THLD 260 LEFT OF CNTRLN.
A110-6FOR CD CTC DENVER ARTCC AT 303-651-4257.
A110-7RWY 09 HAS +563 FT TERRAIN 21277 FT FM THLD 371 FT LEFT OF CNTRLN.
A110-8COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -24C.
A16ARPT CONTACT; JOSHUA SCHROEDER - JSCHROEDER@CO.GRAND.CO.US, 970-887-2123.
A70-100LLFUEL AVBL 24 HR SELF SVC.
A81-APTACTVT REIL RWY 09 & 27; LIRL RWY 09/27 - CTAF.
E111ESTABLISHED PRIOR TO 1959.
GRANBY-GRAND COUNTY (ICAO: KGNB, IATA: GNB) is a public airport located in GRANBY, CO, US.
