iFlightPlanner



...

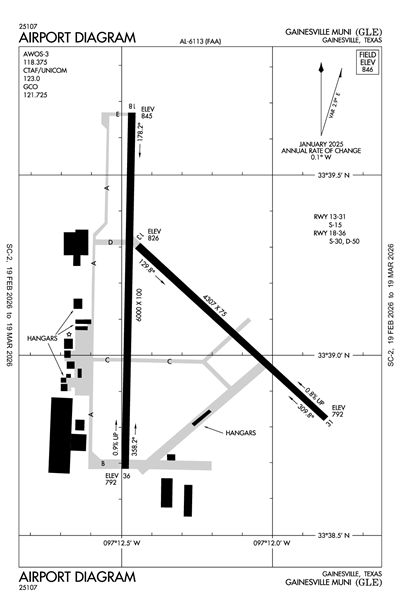

GAINESVILLE MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGLE
ICAO KGLEIATA GLELocal GLE
GAINESVILLE MUNI
PublicPUB

3 miles W of GAINESVILLE, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
33° 39' 08"N 97° 11' 50"W
Elevation
846' MSL
Pattern Alt
1846' MSL
Mag Variation
3°E
Declination
3°E
Fuel
JET A (FSII), 100LL
FSS
FORT WORTH (FTW)
Sectional
DALLAS-FT WORTH
ARTCC
FORT WORTH (ZFW)
Data Effective
2/19/26-3/19/26
KGLE VFR
5:35 PM CST
Overcast 7,000'
Broken 6,000'
10sm
72°F
62°F
29.95"Hg
320° 3kts
AO2 RAB2259E2309 P0000 T02230165
METAR KGLE 042335Z AUTO 32003KT 10SM BKN060 OVC070 22/17 A2995 RMK AO2 RAB2259E2309 P0000 T02230165
+ Add Your Business

KGLE FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 118.375
(940) 612-3549

Common

CTAF 123.0
DUSK-DAWN. MIRL RWY 18/36 PRESET LOW INTST; TO INCR INTST ACTVT - CTAF. PAPI RWYS 18 & 36 OPR CONSLY.
UNICOM 123.0

Center

FORT WORTH CENTER 124.75
LOW, APCH/DEP CTL SVC PRVDD BY FORT WORTH ARTCC (ZFW) ON FREQS 124.75/323.0 (GAINESVILLE RCAG).

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Instrument Approach

Terminal Area Forecast

KAFW (40nm)
Wed, 3/4 5:25 PM CST
Wed, 3/4 6:00 PM CST - Thu, 3/5 6:00 PM CST
VFR
6:00 PM CST - 10:00 PM CST
Thunderstorm in vicinity
Broken 5,000'
6sm
220° 12kts
MVFR
Temporary 7:00 PM CST - 10:00 PM CST
Thunderstorm and Rain
No Clouds
3sm
300° 11kts
VFR
10:00 PM CST - 12:00 AM CST
Light Showers and Rain and Thunderstorm in vicinity
Broken 5,000'
6sm
300° 9kts
MVFR
12:00 AM CST - 12:00 PM CST
Broken 1,800'
6sm
180° 9kts
VFR
12:00 PM CST - 6:00 PM CST
Broken 5,000'
6sm
170° 14kts
TAF KAFW 042325Z 0500/0524 22012KT P6SM VCTS BKN050CB
   TEMPO 0501/0504 30011KT 3SM TSRA
   FM050400 30009KT 6SM -SHRA VCTS BKN050CB
   FM050600 18009KT P6SM BKN018
   FM051800 17014KT P6SM BKN050
KGLE
EffectiveExpiresCategoryNOTAM
Domestic
11/29/25
1938Z
!GLE 11/007 GLE SVC AUTOMATED WX BCST SYSTEM PRESENT WX UNREL 2511291938-2603272359EST
No
0800-1700
CITY OF GAINESVILLE
200 S. RUSK
GAINESVILLE, TX 76240
Phone: 940-668-4500
BRENTON PORTER
2300 AIRPORT DR
GAINESVILLE, TX 76240
Phone: 940-668-4565
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
GLE
--
DUSK-DAWN. MIRL RWY 18/36 PRESET LOW INTST; TO INCR INTST ACTVT - CTAF. PAPI RWYS 18 & 36 OPR CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Crop Dusting
Pilot Instruction
Aircraft Rental

Runway 13/31

4307 ft. x 75 ft.
ASPH
Poor
NONE


15,000lbs
--
--
--
  Runway 13 Runway 31
True Heading 133°313°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition POOR POOR
Latitude 33° 39' 18"N 33° 38' 49"N
Longitude 97° 11' 57"W 97° 11' 19"W
Elevation 826' 792'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights No No

Runway 18/36

6000 ft. x 100 ft.
ASPH
Excellent
NONE
MED

30,000lbs
50,000lbs
--
--
  Runway 18 Runway 36
True Heading 181°1°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 33° 39' 40"N 33° 38' 41"N
Longitude 97° 11' 58"W 97° 11' 60"W
Elevation 845' 792'
Threshold Crossing Height 45 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2R P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
A110-2HEL SKID LDG PROHIBITED ON ALL PAVED SFCS.
A33-13/31_CONDEXTSV CRACKING.
A42-13_CONDMRKGS FADED.
A42-13_MARKRWY HAS AIM POINTS.
A42-31_CONDMRKGS FADED.
A42-31_MARKRWY HAS AIM POINTS.
A52-18ALSO 32 FT PLINE, 1290 FT DSTC, 445 L/R. APCH SLOPE 34:1.
A70-100LL100LL SELF-SERVE & FULL SERVE.
A81-APTDUSK-DAWN. MIRL RWY 18/36 PRESET LOW INTST; TO INCR INTST ACTVT - CTAF. PAPI RWYS 18 & 36 OPR CONSLY.
E111PRE-DATES ACT.
GAINESVILLE MUNI (ICAO: KGLE, IATA: GLE) is a public airport located in GAINESVILLE, TX, US.
