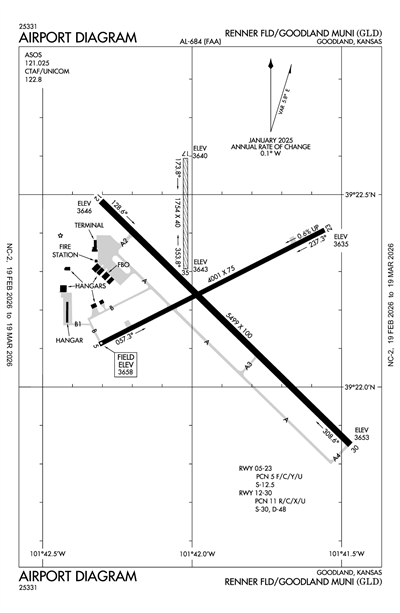

RENNER FLD/GOODLAND MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGLD
ICAO KGLDIATA GLDLocal GLD
RENNER FLD/GOODLAND MUNI
PublicPUB

2 miles N of GOODLAND, KS, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 22' 15"N 101° 41' 55"W
Elevation
3658' MSL
Pattern Alt
4658' MSL
Mag Variation
6°E
Declination
9°E
Fuel
JET A (FSII), 100LL
FSS
WICHITA (ICT)
Sectional
WICHITA
ARTCC
DENVER (ZDV)
Data Effective
2/19/26-3/19/26
KGLD VFR
3:53 AM MST
Clear
10sm
31°F
30°F
30.09"Hg
300° 8kts
AO2 SLP184 T10061011
METAR KGLD 041053Z AUTO 30008KT 10SM CLR M01/M01 A3009 RMK AO2 SLP184 T10061011
+ Add Your Business

KGLD FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 121.025
(785) 576-2383

Common

CTAF 122.8
ACTVT MALSR RWY 30; REIL RWY 12; PAPI RWY 05 & 23; MIRL RWY 05/23 & 12/30 - CTAF.
UNICOM 122.8

Center

DENVER CENTER 132.7
LOW/HIGH, APCH/DEP CTL SVC PRVDD BY DENVER ARTCC (ZDV) ON FREQS 132.7/226.675 (GOODLAND RCAG).

Flight Service

Flight Service 122.4
(ICT)

Terminal Area Forecast

KGLD
Tue, 3/3 10:20 PM MST
Tue, 3/3 11:00 PM MST - Wed, 3/4 11:00 PM MST
VFR
11:00 PM MST - 1:00 PM MST
Scattered 18,000'
6sm
VRB° 6kts
IFR
Temporary 4:00 AM MST - 5:00 AM MST
Mist
Broken 700'
2sm
Calm
VFR
1:00 PM MST - 5:00 PM MST
Few 13,000'
6sm
210° 8kts
VFR
5:00 PM MST - 11:00 PM MST
Few 20,000'
6sm
170° 10kts
TAF KGLD 040520Z 0406/0506 VRB06KT P6SM SCT180
   TEMPO 0411/0412 2SM BR BKN007
   FM042000 21008KT P6SM FEW130
   FM050000 17010KT P6SM FEW200
KGLD
EffectiveExpiresCategoryNOTAM
FDC
9/8/25
1623Z
!FDC 5/9603 GLD IAP RENNER FLD/GOODLAND MUNI, GOODLAND, KS.
VOR RWY 30, AMDT 9C...
PROCEDURE NA.
2509081623-2709081622EST
No
DALGT
FOR SVC CALL 785-890-7531 (DAY) OR 785-443-1328 (NIGHT).
CITY OF GOODLAND
P. O. BOX 59
GOODLAND, KS 67735
Phone: 785-890-4500
KENT BROWN
204 W. 11TH ST.
GOODLAND, KS 67735
Phone: 785-890-4501
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
GLD
--
ACTVT MALSR RWY 30; REIL RWY 12; PAPI RWY 05 & 23; MIRL RWY 05/23 & 12/30 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
Low Pressure
Crop Dusting
Pilot Instruction
Aircraft Rental

Runway 05/23

4001 ft. x 75 ft.
CONC
Excellent
NONE
MED
5/F/C/Y/U
12,000lbs
--
--
--
  Runway 05 Runway 23
True Heading 63°243°
Traffic Pattern Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 39° 22' 07"N 39° 22' 25"N
Longitude 101° 42' 19"W 101° 41' 33"W
Elevation 3,658' 3,635'
Threshold Crossing Height 36 ft. AGL 42 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12/30

5499 ft. x 100 ft.
CONC
Good
NONE
MED
11/R/C/X/U
30,000lbs
48,000lbs
--
--
  Runway 12 Runway 30
True Heading 134°314°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 22' 29"N 39° 21' 51"N
Longitude 101° 42' 18"W 101° 41' 28"W
Elevation 3,646' 3,653'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 17/35

1754 ft. x 40 ft.
TURF
Good
NONE


--
--
--
--
  Runway 17 Runway 35
True Heading 180°360°
Traffic Pattern Left Left
Markings
Markings Condition FAIR FAIR
Latitude 39° 22' 36"N 39° 22' 18"N
Longitude 101° 42' 01"W 101° 42' 01"W
Elevation 3,640' 3,643'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1TWY A2 ONLY AVBL FOR ACFT OVER 12500 LBS.
A110-2FOR CD CTC DENVER ARTCC ON FREQ. IF UNA, CTC FSS ON FREQ VIA RCO. IF UNA, CTC DENVER ARTCC AT 303-651-4257.
A14CITY/ARPT MGR.
A17-M1FOR SVC CALL 785-890-7531 (DAY) OR 785-443-1328 (NIGHT).
A30A-23TURN-AROUND DOES NOT HAVE CLNC FOR HLDG.
A30A-30CALM WIND RWY.
A42-17_MARK3 FT DIA YELLOW CONES MARK THLD.
A42-35_MARK3 FT DIA YELLOW CONES MARK THLD.
A43-05PAPI UNUSBL BYD 8 DEGS L OF CNTRLN.
A52-17UNMKD 30 FT PLINE, 1300 FT DSTC, ACRS APCH, 43:1.
A81-APTACTVT MALSR RWY 30; REIL RWY 12; PAPI RWY 05 & 23; MIRL RWY 05/23 & 12/30 - CTAF.
RENNER FLD/GOODLAND MUNI (ICAO: KGLD, IATA: GLD) is a public airport located in GOODLAND, KS, US.
