iFlightPlanner



...

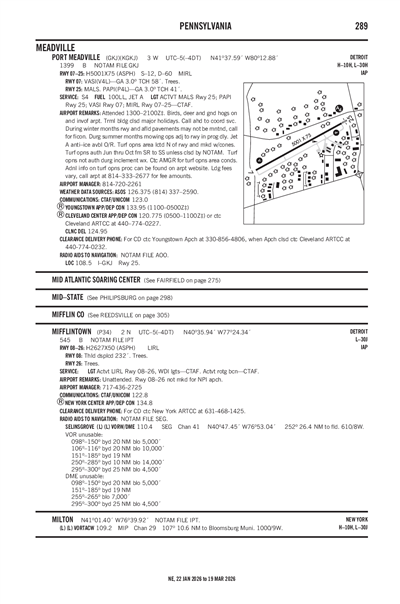

PORT MEADVILLE - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGKJ
ICAO KGKJIATA MEJLocal GKJ
PORT MEADVILLE
PublicPUB

3 miles W of MEADVILLE, PA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 37' 35"N 80° 12' 53"W
Elevation
1399' MSL
Pattern Alt
2399' MSL
Mag Variation
9°W
Declination
8°W
Fuel
JET A, 100LL
FSS
ALTOONA (AOO)
Sectional
DETROIT
ARTCC
CLEVELAND (ZOB)
Data Effective
2/19/26-3/19/26
KGKJ LIFR
8:53 PM EST
Mist
Obscured 200'
0.75sm
41°F
41°F
30.12"Hg
260° 6kts
AO2 SLP209 T00500050
METAR KGKJ 040153Z AUTO 26006KT 3/4SM BR VV002 05/05 A3012 RMK AO2 SLP209 T00500050
+ Add Your Business

KGKJ FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 126.375
(814) 337-2590

Common

CTAF 123.0
ACTVT MALS RWY 25; PAPI RWY 25; VASI RWY 07; MIRL RWY 07/25 - CTAF.
UNICOM 123.0

Clearance

Clearance Delivery 124.95

Approach

YOUNGSTOWN APPROACH 133.95

Departure

YOUNGSTOWN DEPARTURE 133.95

Center

YOUNGSTOWN CENTER 120.775
LOW, APCH/DEP SVC PRVDD BY CLEVELAND ARTCC (ZOB) ON FREQS 120.775/298.95 (CHARDON RCAG) WHEN YOUNGSTOWN APCH CTL CLSD.

Terminal Area Forecast

KFKL (22nm)
Tue, 3/3 6:33 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
LIFR
7:00 PM EST - 10:00 PM EST
Light Rain and Mist
Overcast 200'
2sm
200° 4kts
LIFR
10:00 PM EST - 12:00 PM EST
Mist
Overcast 200'
1sm
VRB° 3kts
IFR
12:00 PM EST - 7:00 PM EST
Broken 800'
6sm
110° 4kts
TAF KFKL 032333Z 0400/0424 20004KT 2SM -RA BR OVC002
   FM040300 VRB03KT 1SM BR OVC002
   FM041700 11004KT P6SM BKN008
KGKJ
EffectiveExpiresCategoryNOTAM
Domestic
2/24/26
1248Z
2/25/26
1248Z
Runway!GKJ 02/010 GKJ RWY 25 FICON 3/3/3 100 PCT 4IN DRY SN OBS AT 2602241248. 2602241248-2602251248
2/20/26
0935Z
5/21/26
0500Z
!GKJ 02/009 GKJ OBST TOWER LGT (ASR 1233948) 412753.90N0800934.20W (10.0NM SSE GKJ) 1625.0FT (260.2FT AGL) U/S 2602200935-2605210500
2/19/26
1551Z
5/19/26
2359Z
!GKJ 02/007 GKJ OBST TOWER LGT (ASR 1027115) 414210.00N0800953.00W (5.1NM NNE GKJ) 1811.7FT (402.9FT AGL) U/S 2602191551-2605192359
2/18/26
0211Z
!GKJ 02/006 GKJ NAV ILS RWY 25 LOC NOT MNT 2602180211-2602272000EST
1/16/26
1930Z
!GKJ 01/016 GKJ NAV LOC RWY 25 OM U/S 2601161930-2607312111EST
12/29/25
1540Z
3/29/26
0500Z
!GKJ 12/027 GKJ OBST TOWER LGT (ASR 1212118) 414000.80N0801144.90W (2.6NM NNE GKJ) 1669.0FT (265.1FT AGL) U/S 2512291540-2603290500
No
0800-1600
CCRAA
16306 CORPORATE DR
MEADVILLE, PA 16335
Phone: 814-333-2677
MICHAEL GOSS
16306 CORPORATE DR
MEADVILLE, PA 16335
Phone: 814-720-2261
ALTOONA FSS (AOO)
Toll Free: 1-800-WX-BRIEF
GKJ
--
ACTVT MALS RWY 25; PAPI RWY 25; VASI RWY 07; MIRL RWY 07/25 - CTAF.
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Ambulance
Pilot Instruction

Runway 07/25

5001 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
60,000lbs
--
--
  Runway 07 Runway 25
True Heading 61°241°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 41° 37' 24"N 41° 37' 47"N
Longitude 80° 13' 22"W 80° 12' 24"W
Elevation 1,392' 1,397'
Threshold Crossing Height 58 ft. AGL 41 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L P4L
Approach Lights MALS
Centerline Lights
Runway End Identifier Lights
A11CRAWFORD COUNTY REGIONAL AIRPORT AUTHORITY.
A110-1BIRDS, DEER & GND HOGS ON & INVOF ARPT.
A110-3TRML BLDG CLSD MAJOR HOL. CALL AHD TO COORD SVC.
A110-4FOR CD CTC YOUNGSTOWN APCH AT 330-856-4806, WHEN APCH CLSD CTC CLEVELAND ARTCC AT 440-774-0232.
A110-5DURING WINTER MONTHS RWY & AFLD PAVEMENTS MAY NOT BE MNTND, CALL FOR FICON.
A110-6DURG SUMMER MONTHS MOWING OPS ADJ TO RWY IN PROG DLY.
A110-7TURF OPNS AREA LCTD N OF RWY & MKD W/CONES. TURF OPNS AUTH JUN THRU OCT FM SR TO SS UNLESS CLSD BY NOTAM. TURF OPNS NOT AUTH DURG INCLEMENT WX. CTC AMGR FOR TURF OPNS AREA CONDS.
A110-8ADNL INFO ON TURF OPNS PROC CAN BE FOUND ON ARPT WEBSITE.
A24LANDING FEES VARY, CALL AIRPORT AT 814-333-2677 FOR FEE AMOUNTS.
A70-AJET A ANTI-ICE AVBL O/R.
A75-HTIE DOWN ROPES ARE NOT SUPPLIED.
A81-APTACTVT MALS RWY 25; PAPI RWY 25; VASI RWY 07; MIRL RWY 07/25 - CTAF.
E111IN OPERN PRIOR TO 1959.
PORT MEADVILLE (ICAO: KGKJ, IATA: GKJ) is a public airport located in MEADVILLE, PA, US.
