KGFK
GRAND FORKS INTL
Public
PUB
5 miles NW of GRAND FORKS, ND
View on
Map
Status
Operational
Coordinates
47° 56' 52"N
97° 10' 32"W
Elevation
845' MSL
Pattern Alt
1645' MSL
Mag Variation
06E
Fuel
JET A, 100LL
FSS
GRAND FORKS (GFK)
Sectional
TWIN CITIES
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
12/26/24-1/23/25
No METAR is available for this location.
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
KGFK FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.95
CTAF
118.4
ATIS
ATIS
119.4
Clearance Delivery
CD/P
135.725
Ground
GND/P
124.575
Tower
LCL/P
118.4
LCL/S
120.55
FAA A/FD Pages
FAA A/FD Page
Airport Diagrams

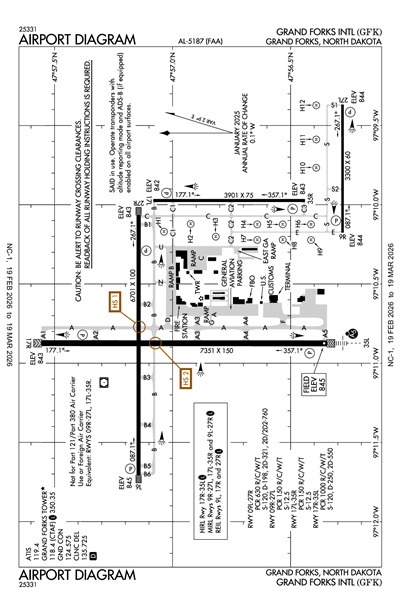

AIRPORT DIAGRAM
Airport Minimums
ALTERNATE MINIMUMS
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
HOT SPOT
Standard Term. Arrival
No Documents
Instrument Approach
ILS OR LOC RWY 35L
LOC BC RWY 17R
RNAV (GPS) RWY 09L
RNAV (GPS) RWY 17R
RNAV (GPS) RWY 27R
RNAV (GPS) RWY 35L
VOR RWY 17R
VOR RWY 35L
Terminal Area Forecast
No TAF is available for this location.
KGFK
Domestic
1/15/25
0624Z
!GFK 01/186 GFK APRON ALL FICON PATCHY ICE AND PATCHY COMPACTED SN OBS AT 2501150624. 2501150624-2501160624
1/15/25
0623Z
!GFK 01/185 GFK TWY ALL FICON PATCHY COMPACTED SN OBS AT 2501150623. 2501150623-2501160623
1/6/25
0558Z
!GFK 01/024 GFK OBST TOWER LGT (ASR 1230313) 475350.70N0965721.50W (9.3NM ESE GFK) 1154.9FT (319.9FT AGL) U/S 2501060558-2501210458
1/2/25
1925Z
!GFK 01/017 GFK TWY A HLDG PSN MARKINGS BTN RWY 09L/27R AND TWY B NOT STD 2501021925-2506302300
12/31/24
2207Z
!GFK 12/753 GFK RWY 27R RWY END ID LGT U/S 2412312207-2512312359
12/30/24
2035Z
!GFK 12/739 GFK RWY 17R/35L BTN TWY A3 AND TWY A4 IRREGULAR SFC 2412302035-2512312359
12/30/24
2033Z
!GFK 12/738 GFK OBST CRANE (2024-AGL-1367-OE) 475705.62N0970837.32W (1.24NM E GFK) 1015FT (170FT AGL) FLAGGED AND LGTD 2412302033-2512312359
12/28/24
0338Z
!GFK 12/660 GFK OBST TOWER LGT (ASR 1055770) 474113.60N0970354.80W (16.3NM SSE GFK) 1134.8FT (254.9FT AGL) U/S 2412280338-2502110337
11/4/24
2128Z
!GFK 11/040 GFK RWY 09L/27R OPN TO AIR CARRIER OPS 2411042128-PERM
FDC
12/26/24
0901Z
!FDC 4/8901 GFK IAP GRAND FORKS INTL, GRAND FORKS, ND.
ILS OR LOC RWY 35L, AMDT 12D...
S-LOC RWY 35L MDA 1200/HAT 355 ALL CATS. VIS CAT C/D RVR 3000.
2412260901-2512260901EST
10/31/24
1301Z
!FDC 4/6940 GFK ODP GRAND FORKS INTL, GRAND FORKS, ND.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3...
TEXTUAL DEPARTURE PROCEDURE RWY 9R/27L DEPARTURES NA - ENVIRONMENTAL.
2410311301-2610311300EST
ATC Tower
Yes
Attendance
ALL
Owner
GRAND FORKS REG ARPT AUTH
2301 AIRPORT DRIVE
GRAND FORKS, ND 58203
Phone: 701-795-6981
Manager
RYAN RIESINGER
2301 AIRPORT DR
GRAND FORKS, ND 58203
Phone: 701-795-6981
FSS
GRAND FORKS FSS (GFK)
Toll Free: 1-800-WX-BRIEF
NOTAM
GFK
Light Schedule
--
Lights
ACTVT REIL RWY 27R & RWY 17R - CTAF. WHEN TWR CLSD ACTVT HIRL RWY 17R/35L & MALSR RWY 35L; MIRL RWY 09L/27R - CTAF. PAPI RWY 27R, PAPI RWY 9 L/R, 17L/R, 27L AND 35L/R OPR CONSLY.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
No
Landing Fee
No
Parking
Tie-Down
Int'l Operations
NOT a Landing Rights Airport
Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
Major
Pwrplant Repair
Major
Bottled Oxygen
High Pressure
Bulk Oxygen
None
Other Services
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying
Runway 09L/27R
Dimensions
6701 ft. x 100 ft.
Surface Type
CONC
Surface Cond
Good
Treatment
GRVD
Rwy Edge Lgts
MED
Pavement Class
24 /R/B/W/T
Single Wheel
43,000lbs
Double Wheel
55,000lbs
Double Tandem
115,000lbs
Dual Dbl Tand
--
Runway 09L
Runway 27R
True Heading
90°
270°
Traffic Pattern
Right
Markings
NPI
NPI
Markings Condition
GOOD
GOOD
Latitude
47° 57' 09"N
47° 57' 09"N
Longitude
97° 11' 42"W
97° 10' 04"W
Elevation
845'
843'
Threshold Crossing Height
39 ft. AGL
48 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P4L
P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
Yes
Runway 09R/27L
Dimensions
3300 ft. x 60 ft.
Surface Type
CONC
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
10 /R/C/W/T
Single Wheel
12,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 09R
Runway 27L
True Heading
90°
270°
Traffic Pattern
Right
Markings
BSC
BSC
Markings Condition
GOOD
GOOD
Latitude
47° 56' 17"N
47° 56' 17"N
Longitude
97° 10' 11"W
97° 09' 22"W
Elevation
844'
844'
Threshold Crossing Height
21 ft. AGL
21 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P2L
P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
Runway 17L/35R
Dimensions
3901 ft. x 75 ft.
Surface Type
CONC
Surface Cond
Fair
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
12,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 17L
Runway 35R
True Heading
180°
0°
Traffic Pattern
Right
Markings
NPI
NPI
Markings Condition
GOOD
GOOD
Latitude
47° 57' 05"N
47° 56' 26"N
Longitude
97° 09' 58"W
97° 09' 58"W
Elevation
842'
843'
Threshold Crossing Height
21 ft. AGL
21 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P4L
P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
Runway 17R/35L
Dimensions
7351 ft. x 150 ft.
Surface Type
ASPH
Surface Cond
Fair
Treatment
GRVD
Rwy Edge Lgts
HIGH
Pavement Class
Single Wheel
101,000lbs
Double Wheel
160,000lbs
Double Tandem
270,000lbs
Dual Dbl Tand
--
Runway 17R
Runway 35L
True Heading
180°
0°
Traffic Pattern
Right
Markings
PIR
PIR
Markings Condition
GOOD
GOOD
Latitude
47° 57' 33"N
47° 56' 21"N
Longitude
97° 10' 52"W
97° 10' 52"W
Elevation
843'
845'
Threshold Crossing Height
53 ft. AGL
61 ft. AGL
Visual Glide Path Angle
3°
2.76°
Visual Slope Indicator
P4L
P4L
Approach Lights
MALSR
Centerline Lights
Runway End Identifier Lights
Yes
Runway H1
Dimensions
60 ft. x 60 ft.
Surface Type
Surface Cond
TURF
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway H1
Runway
True Heading
85°
265°
Traffic Pattern
Markings
Markings Condition
Latitude
47° 57' 02"N
N/A
Longitude
97° 10' 10"W
N/A
Elevation
841'
--
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
Runway H10
Dimensions
60 ft. x 60 ft.
Surface Type
Surface Cond
TURF
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway H10
Runway
True Heading
85°
265°
Traffic Pattern
Markings
Markings Condition
Latitude
47° 56' 23"N
N/A
Longitude
97° 09' 46"W
N/A
Elevation
841'
--
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
Runway H11
Dimensions
60 ft. x 60 ft.
Surface Type
Surface Cond
TURF
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway H11
Runway
True Heading
85°
265°
Traffic Pattern
Markings
Markings Condition
Latitude
47° 56' 23"N
N/A
Longitude
97° 09' 35"W
N/A
Elevation
840'
--
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
Runway H12
Dimensions
60 ft. x 60 ft.
Surface Type
Surface Cond
TURF
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway H12
Runway
True Heading
85°
265°
Traffic Pattern
Markings
Markings Condition
Latitude
47° 56' 23"N
N/A
Longitude
97° 09' 22"W
N/A
Elevation
841'
--
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
Runway H2
Dimensions
60 ft. x 60 ft.
Surface Type
Surface Cond
TURF
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway H2
Runway
True Heading
85°
265°
Traffic Pattern
Markings
Markings Condition
Latitude
47° 56' 55"N
N/A
Longitude
97° 10' 07"W
N/A
Elevation
839'
--
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
Runway H3
Dimensions
60 ft. x 60 ft.
Surface Type
Surface Cond
TURF
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway H3
Runway
True Heading
85°
265°
Traffic Pattern
Markings
Markings Condition
Latitude
47° 56' 49"N
N/A
Longitude
97° 10' 12"W
N/A
Elevation
839'
--
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
Runway H4
Dimensions
60 ft. x 60 ft.
Surface Type
Surface Cond
TURF
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway H4
Runway
True Heading
85°
265°
Traffic Pattern
Markings
Markings Condition
Latitude
47° 56' 38"N
N/A
Longitude
97° 10' 07"W
N/A
Elevation
840'
--
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
Runway H5
Dimensions
60 ft. x 60 ft.
Surface Type
Surface Cond
TURF
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway H5
Runway
True Heading
85°
265°
Traffic Pattern
Markings
Markings Condition
Latitude
47° 56' 32"N
N/A
Longitude
97° 10' 07"W
N/A
Elevation
841'
--
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
Runway H6
Dimensions
60 ft. x 60 ft.
Surface Type
Surface Cond
TURF
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway H6
Runway
True Heading
85°
265°
Traffic Pattern
Markings
Markings Condition
Latitude
47° 56' 25"N
N/A
Longitude
97° 10' 07"W
N/A
Elevation
841'
--
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
Runway H7
Dimensions
60 ft. x 60 ft.
Surface Type
Surface Cond
TURF
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway H7
Runway
True Heading
85°
265°
Traffic Pattern
Markings
Markings Condition
Latitude
47° 56' 38"N
N/A
Longitude
97° 10' 13"W
N/A
Elevation
840'
--
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
Runway H8
Dimensions
60 ft. x 60 ft.
Surface Type
Surface Cond
TURF
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway H8
Runway
True Heading
85°
265°
Traffic Pattern
Markings
Markings Condition
Latitude
47° 56' 32"N
N/A
Longitude
97° 10' 13"W
N/A
Elevation
840'
--
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
Runway H9
Dimensions
60 ft. x 60 ft.
Surface Type
Surface Cond
TURF
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway H9
Runway
True Heading
85°
265°
Traffic Pattern
Markings
Markings Condition
Latitude
47° 56' 25"N
N/A
Longitude
97° 10' 13"W
N/A
Elevation
841'
--
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1
HVY STUDENT TRNG ACTVTY WI 15 MI OF ARPT.
A110-11
TWY G & TWY U CLSD TO FIXED WING ACFT 12,500 LBS & OVER.
A110-12
WESTERN MOST 100 FT OF TWY C1 IS AN EXTENSION OF THE BRAVO APRON & NOT VSBL FR THE TWR.
A110-15
RWY 09R, 27L, 17L, & 35R NOT AVBL FOR UNSKED ACR WITH MORE THAN 30+ PAX SEATS.
A110-16
RWY 09R, 27L, 17L AND 35R CLSD WHEN TWR CLSD.
A110-17
TWY C, TWY E, TWY S NOT AVBL FOR SKED ACR OPNS WITH MORE THAN 9 PSGR SEATS OR UNSKED ACR OPS WITH AT LEAST 31 PSGR SEATS.
A110-18
ALPHA APRON BTN TWY A3 & TWY A4 RSTRD TO ACFT MAX. WT 60,000 LBS. OR MAX. ACN 24.
A110-19
FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.
A110-2
BIRDS ON & INVOF ARPT.
A110-20
RWY 17R SEGMENTED CIRCLE U/S.
A110-21
(CONTACT NAME) ARPT OPS & FAC MGR.
A110-4
LGTD ENTRANCE RD 1600' EAST OF RY 17R/35L.
A110-5
CUSTOMS AVBL 24/7/365. YOU MUST SPEAK WITH AN OFFICER BEFORE ARRIVAL (USE PHONE OPTIONS) 701-772-3301 OR 701-772-6433.
A110-8
PAEW 2330-0600 LOCAL
A110-9
HVY STUDENT HELICOPTER TRAINING AT ARPT BTN PARALLEL TWYS.-
GRAND FORKS INTL (ICAO: KGFK, IATA: GFK) is a public airport located in GRAND FORKS, ND.
© iFlightPlanner | Web, iPad, & iPhone Flight Planning
|
Site Map
|
Privacy Policy
