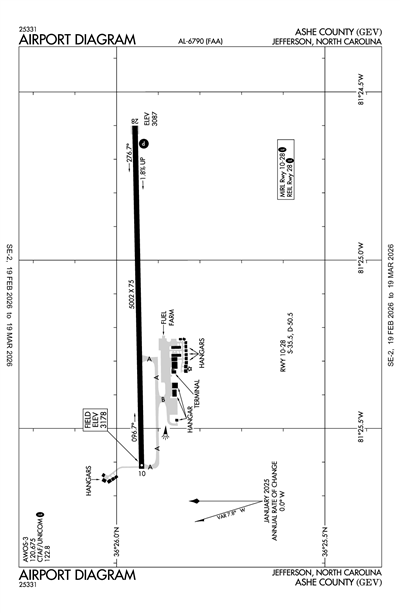

ASHE COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGEV
ICAO KGEVLocal GEV
ASHE COUNTY
PublicPUB

3 miles E of JEFFERSON, NC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 25' 57"N 81° 25' 07"W
Elevation
3178' MSL
Pattern Alt
4178' MSL
Mag Variation
8°W
Declination
7°W
Fuel
JET A-1+, 100LL
FSS
RALEIGH (RDU)
Sectional
CINCINNATI
ARTCC
ATLANTA (ZTL)
Data Effective
2/19/26-3/19/26
KGEV VFR
8:55 AM EST
Clear
10sm
57°F
49°F
30.30"Hg
270° 16kts
Gusts 25kts
AO2 T01370097
METAR KGEV 041355Z AUTO 27016G25KT 10SM CLR 14/10 A3030 RMK AO2 T01370097
+ Add Your Business

KGEV FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

AWOS-3 120.675
(336) 982-5555

Common

CTAF 122.8
ACTVT REIL RWY 28; PAPI RWY 28; MIRL RWY 10/28 - CTAF.
UNICOM 122.8

Center

ATLANTA CENTER 125.15
LOW, APCH/DEP SVC PRVDD BY ATLANTA ARTCC ON FREQS 125.15/263.0 (HICKORY RCAG).

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Instrument Approach

Terminal Area Forecast

KHKY (42nm)
Wed, 3/4 6:32 AM EST
Wed, 3/4 7:00 AM EST - Thu, 3/5 7:00 AM EST
IFR
7:00 AM EST - 8:00 AM EST
Mist
Scattered 1,300'
2sm
Calm
LIFR
Temporary 7:00 AM EST - 8:00 AM EST
Mist
Overcast 200'
1sm
Calm
LIFR
8:00 AM EST - 9:00 AM EST
Mist
Broken 300'
3sm
VRB° 2kts
VFR
9:00 AM EST - 1:00 PM EST
Scattered 5,000'
6sm
VRB° 2kts
VFR
1:00 PM EST - 2:00 AM EST
Scattered 15,000'
6sm
200° 6kts
MVFR
2:00 AM EST - 5:00 AM EST
Broken 3,000'
6sm
190° 3kts
MVFR
5:00 AM EST - 7:00 AM EST
Mist
Broken 1,100'
Few 500'
4sm
VRB° 3kts
TAF KHKY 041132Z 0412/0512 00000KT 2SM BR SCT013
   TEMPO 0412/0413 1SM BR OVC002
   FM041300 VRB02KT 3SM BR BKN003
   FM041400 VRB02KT P6SM SCT050
   FM041800 20006KT P6SM SCT150
   FM050700 19003KT P6SM BKN030
   FM051000 VRB03KT 4SM BR FEW005 BKN011
KGEV
EffectiveExpiresCategoryNOTAM
Domestic
2/23/26
1537Z
3/10/26
1537Z
!GEV 02/007 GEV AD AP ABN U/S 2602231537-2603101537
No
0830-1630
UNATNDD THANKSGIVING AND CHRISTMAS.
FOR SVC AFT HRS CALL 336-877-1102.
ASHE COUNTY
150 GOVERNMENT CIRCLE, SUITE 2500
JEFFERSON, NC 28640
Phone: 336-846-5501
ERIC PAYNE
639 AIRPORT ROAD
JEFFERSON, NC 28640
Phone: 336-982-5144
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
GEV
--
ACTVT REIL RWY 28; PAPI RWY 28; MIRL RWY 10/28 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
No
Major
Major
None
None
Crop Dusting
Pilot Instruction
Aircraft Rental

Runway 10/28

5002 ft. x 75 ft.
ASPH
Excellent
NONE
MED

36,000lbs
50,000lbs
--
--
  Runway 10 Runway 28
True Heading 89°269°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 36° 25' 56"N 36° 25' 57"N
Longitude 81° 25' 37"W 81° 24' 36"W
Elevation 3,178' 3,087'
Threshold Crossing Height -- 48 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-1RISING TRRN ALL QUADS.
A110-2DEER INVOF ARPT.
A110-3RWYS 10 & 28 SAFETY AREAS HAVE 100 FT DROP-OFFS 270 FT FM THR.
A110-4RWY 28 HAS AN UPHILL GRADE.
A110-5OCNL CROPS AND FARMING EQPT ADJ TO RWY.
A110-6RWY 28 HAS 100 FT DROP-OFFS 90 FT LEFT AND RIGHT OF CNTRLN.
A110-7FOR CD CTC ATLANTA ARTCC AT 770-210-7692.
A110-8COLD TEMPERATURE AIRPORT. ALTITUDE CORRECTION REQUIRED AT OR BELOW -16C.
A17-D1UNATNDD THANKSGIVING AND CHRISTMAS.
A17-M1FOR SVC AFT HRS CALL 336-877-1102.
A58-10DUE TO 7 FT TREES 173 FT FM THR OFFSET 93 FT LEFT OF CNTRLN.
A58-28DUE TO 3 FT BRUSH 49 FT FM THR OFFSET 111 FT RIGHT OF CNTRLN AND 5 FT BRUSH 86 FT FM THR OFFSET 92 FT LEFT OF CNTRLN.
A70-100LL24 HR JET A FUEL AVBL WITH CREDIT CARD.
A81-APTACTVT REIL RWY 28; PAPI RWY 28; MIRL RWY 10/28 - CTAF.
ASHE COUNTY (ICAO: KGEV, IATA: GEV) is a public airport located in JEFFERSON, NC, US.
