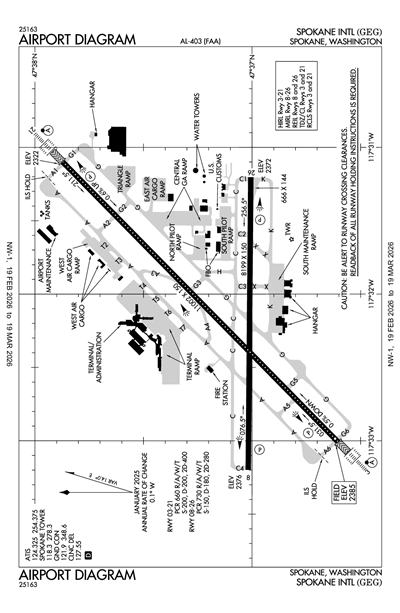

SPOKANE INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGEG
ICAO KGEGIATA GEGLocal GEG
SPOKANE INTL
PublicPUB

5 miles SW of SPOKANE, WA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
47° 37' 08"N 117° 32' 07"W
Elevation
2385' MSL
Pattern Alt
3385' MSL
Mag Variation
14°E
Declination
14°E
Fuel
JET A, 100LL, 100
FSS
SEATTLE (SEA)
Sectional
SEATTLE
ARTCC
SEATTLE (ZSE)
Data Effective
2/19/26-3/19/26
KGEG VFR
8:53 PM PST
Overcast 12,000'
Few 5,000'
10sm
49°F
38°F
29.97"Hg
180° 6kts
AO2 SLP154 T00940033
METAR KGEG 040453Z 18006KT 10SM FEW050 OVC120 09/03 A2997 RMK AO2 SLP154 T00940033
+ Add Your Business

KGEG FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 124.325
(509) 838-0895
ASOS (509) 742-2544

Common

UNICOM 122.95

Clearance

Clearance Delivery 127.55

Ground

SPOKANE GROUND 121.9

Tower

SPOKANE TOWER 118.3

Arrival

HILIE STAR 133.35
ZOOMR STAR 123.75

Approach

SPOKANE APPROACH 123.75
Initial Contact - 205-025
SPOKANE APPROACH 133.35
Initial Contact - 026-204

Departure

SPOKANE DEPARTURE 123.75
Initial Contact - 205-025
SPOKANE DEPARTURE 133.35
Initial Contact - 026-204

Flight Service

Flight Service 122.2
(SEA)

Emergency

Emergency 121.5

Other

CLASS C 123.75
205-025
CLASS C 133.35
026-204

Terminal Area Forecast

KGEG
Tue, 3/3 3:23 PM PST
Tue, 3/3 4:00 PM PST - Wed, 3/4 4:00 PM PST
VFR
4:00 PM PST - 4:00 AM PST
Broken 24,000'
Broken 4,500'
Few 3,500'
6sm
230° 12kts
MVFR
1:00 AM PST - 4:00 AM PST
Light Rain
Overcast 3,000'
6sm
Calm
MVFR
4:00 AM PST - 10:00 AM PST
Light Rain
Overcast 1,000'
5sm
Calm
MVFR
4:00 AM PST - 10:00 AM PST
Overcast 2,000'
6sm
210° 7kts
IFR
10:00 AM PST - 3:00 PM PST
Light Rain
Overcast 900'
3sm
230° 9kts
MVFR
3:00 PM PST - 4:00 PM PST
Light Showers and Rain
Overcast 2,200'
Scattered 1,800'
6sm
240° 9kts
TAF KGEG 032323Z 0400/0424 23012KT P6SM FEW035 BKN045 BKN240
   PROB30 0409/0412 6SM -RA OVC030
   FM041200 21007KT P6SM OVC020
   PROB30 0412/0418 5SM -RA OVC010
   FM041800 23009KT 3SM -RA OVC009
   FM042300 24009KT 6SM -SHRA SCT018 OVC022
KGEG
EffectiveExpiresCategoryNOTAM
Domestic
2/20/26
0349Z
!GEG 02/176 GEG NAV ILS RWY 21 CAT II NA 2602200349-2605202000EST
2/16/26
1620Z
2/27/26
2359Z
!GEG 02/101 GEG OBST CRANE (ASN 2026-ANM-484-OE) 473545N1173300W (1.5NM SSW GEG) 2636FT (200FT AGL) FLAGGED 2602161620-2602272359
1/24/26
2202Z
2/28/26
2359Z
!GEG 01/493 GEG TWY A1 HLDG PSN SIGN FOR ILS FOR APCH END RWY 21 NOT STD 2601242202-2602282359
1/20/26
1946Z
!GEG 01/471 GEG OBST CRANE (ASN 2025-ANM-7197-OE) 473500N1173410W (2.6NM SSW GEG) 2662FT (230FT AGL) FLAGGED AND LGTD 2601201946-2610312359EST
11/20/25
0058Z
4/30/26
2300Z
!GEG 11/067 GEG TWY T4, T5, TWY A BTN TWY A3 AND TWY T5 SFC MARKINGS NOT STD 2511200058-2604302300
FDC
2/13/26
2123Z
!FDC 6/4216 GEG IAP SPOKANE INTL, SPOKANE, WA.
ILS OR LOC RWY 21, AMDT 24A...
ILS RWY 21 (SA CAT I), AMDT 24A... ILS RWY 21 (CAT II AND III), AMDT 24A...
MISSED APPROACH: CLIMB TO 2800 THEN CLIMBING RIGHT TURN TO 6500 HEADING 048.00 TO INTERCEPT COE VOR/DME R-245 TO COE VOR/DME AND HOLD.
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS. GEG VOR 001 CW 090 UNUSABLE.
2602132123-2609252123EST
2/13/26
2123Z
!FDC 6/4215 GEG ODP SPOKANE INTL, SPOKANE, WA.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 7...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
GEG VOR 001 CW 090 UNUSABLE. 2602132123-2609252123EST
2/13/26
2123Z
!FDC 6/4214 GEG SID SPOKANE INTL, SPOKANE, WA.
SPOKANE EIGHT DEPARTURE...
DEPARTURE PROCEDURE LOST COMMUNICATIONS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS. GEG VOR 001 CW 090 UNUSABLE. 2602132123-2609252123EST
1/20/26
1504Z
!FDC 6/4987 GEG IAP SPOKANE INTL, SPOKANE, WA.
RNAV (RNP) Z RWY 8, AMDT 1A...
RNP 0.11 DA 2699/HAT 323 ALL CATS, VIS ALL CATS 1. TEMPORARY CRANE 2570 MSL 2161FT NW OF GEG AIRPORT (2022-ANM-1066-NRA), TEMPORARY CRANE 2575 MSL 1876FT S OF GEG AIRPORT (2024-ANM-653-NRA).
2601201504-2609012355EST
10/1/25
2200Z
!FDC 5/1946 GEG IAP SPOKANE INTL, SPOKANE, WA.
RNAV (RNP) Z RWY 8, AMDT 1A...
RNP 0.11 DA 2695/HAT 319 ALL CATS.
TEMPORARY CRANE 2570 FT MSL, 4207 FT NE OF RWY 08 (2022-ANM-1077-NRA).
2510012200-2610151543EST
9/2/25
1536Z
4/14/26
1536Z
!FDC 5/6369 GEG IAP SPOKANE INTL, SPOKANE, WA.
RNAV (RNP) Z RWY 21, AMDT 1C...
RNP 0.11 NA. TEMPORARY CRANE 2615FT MSL 3760FT S OF RWY 21 (2023-ANM-3703-NRA), TEMPORARY CRANE 2490 MSL 1540FT NW OF RWY 21 (2023-ANM-5476-NRA).
2509021536-2604141536EST
8/20/25
1309Z
!FDC 5/0500 GEG IAP SPOKANE INTL, SPOKANE, WA.
RNAV (GPS) Y RWY 26, AMDT 4B...
LPV DA 2753/HAT 381 ALL CATS. VIS ALL CATS 1 1/8. TEMPORARY CRANE 2615FT MSL 1529FT N OF RWY 26 (2023-ANM-3703-NRA).
2508201309-2604012355EST
8/20/25
1307Z
!FDC 5/0495 GEG IAP SPOKANE INTL, SPOKANE, WA.
RNAV (RNP) Z RWY 21, AMDT 1C...
RNP 0.11 NA. TEMPORARY CRANE 2615FT MSL 3760FT S OF RWY 21 (2023-ANM-3703-NRA), TEMPORARY CRANE 2490 MSL 1540FT NW OF RWY 21 (2023-ANM-5476-NRA).
2508201307-2604012355EST
7/21/25
1929Z
!FDC 5/2154 GEG IAP SPOKANE INTL, SPOKANE, WA.
RNAV (RNP) Z RWY 8, AMDT 1A...
RNP 0.11 DA 2710/HAT 334 ALL CATS; VIS ALL CATS 1. TEMPORARY CRANE 2547 FT MSL, 3534 FT NE OF RWY 8 (2025-ANM-2353-NRA).
2507211929-2603021929EST
7/21/25
1929Z
!FDC 5/2151 GEG IAP SPOKANE INTL, SPOKANE, WA.
RNAV (GPS) Y RWY 8, AMDT 2F...
LNAV MDA 2860/HAT 484 ALL CATS; VIS CATS A/B 1, CATS C/D 1 3/8. TEMPORARY CRANE 2547FT MSL, 3534 FT NE OF RWY 8 (2025-ANM-2353-NRA).
2507211929-2603021928EST
11/20/24
0341Z
!FDC 4/6475 GEG IAP SPOKANE INTL, SPOKANE, WA.
VOR RWY 21, ORIG-A...
PROCEDURE NA.
2411200341-2611200340EST
Yes
ALL
SPOKANE COUNTY-CITY
ARPT BOARD 9000 W AIRPORT DRIVE
SPOKANE, WA 99224
Phone: 509-455-6455
FRANK MILLER
9000 W AIRPORT DR. SUITE 204
SPOKANE, WA 99224
Phone: 509-455-6455
SEATTLE FSS (SEA)
Toll Free: 1-800-WX-BRIEF
GEG
--
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Air Freight
Avionics
Cargo Handling
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 03/21

11002 ft. x 150 ft.
ASPH CONC
Excellent
GRVD
HIGH

200,000lbs
200,000lbs
400,000lbs
--
  Runway 03 Runway 21
True Heading 45°225°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 47° 36' 36"N 47° 37' 52"N
Longitude 117° 33' 00"W 117° 31' 06"W
Elevation 2,385' 2,322'
Threshold Crossing Height 69 ft. AGL 73 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2 ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights

Runway 08/26

8199 ft. x 150 ft.
ASPH
Good
GRVD
MED

150,000lbs
180,000lbs
280,000lbs
--
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 47° 37' 01"N 47° 37' 00"N
Longitude 117° 33' 12"W 117° 31' 12"W
Elevation 2,376' 2,372'
Threshold Crossing Height 45 ft. AGL 48 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-2BE ALERT TO TURBULENCE OVER SMOKE STACKS 1 MILE EAST OF ARPT.
A110-4WATERFOWL & BIRDS ON & INVOF ARPT.
A110-6TWY K UNLGTD ON RAMP SIDE ALONG MAINTENANCE RAMP AND IS UNAVBL BELOW 1200 RVR UNLESS UNDER ESCORT BY "FOLLOW ME".
A110-7PORTIONS OF TWY K NOT VISIBLE FM ATCT.
A39-03/21PCR VALUE: 660/R/A/W/T
A39-08/26PCR VALUE: 730/R/A/W/T
A49-21ALSF 2 MAY BE OPERATED AS SSALR DURING FAVORABLE WX CONDITIONS.
E111ESTABD PRIOR 1959
SPOKANE INTL (ICAO: KGEG, IATA: GEG) is a public airport located in SPOKANE, WA, US.
