KGED
DELAWARE COASTAL
PublicPUB

2 miles SE of GEORGETOWN, DE
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 41' 15"N 75° 21' 33"W
53' MSL
1053' MSL
12W
JET A, 100LL
MILLVILLE (MIV)
WASHINGTON
WASHINGTON (ZDC)
4/17/25-5/15/25
KGED VFR
5:54 PM EST
Clear
10sm
48°F
36°F
30.21"Hg
230° 4kts
AO2 SLPNO T00890022
METAR KGED 042254Z AUTO 23004KT 10SM CLR 09/02 A3021 RMK AO2 SLPNO T00890022
+ Add Your Business

KGED FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

ASOS

ASOS
302-855-1052
 118.375

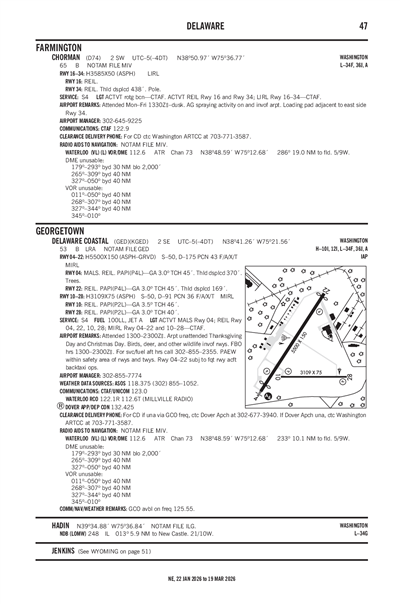

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KSBY (22nm)
Tue, 11/4 12:20 PM EST
Tue, 11/4 1:00 PM EST - Wed, 11/5 1:00 PM EST
VFR
1:00 PM EST - 7:00 PM EST
Scattered 25,000'
6sm
280° 11kts
VFR
7:00 PM EST - 9:00 AM EST
Sky Clear
6sm
VRB° 3kts
VFR
9:00 AM EST - 12:00 PM EST
Sky Clear
6sm
210° 10kts
VFR
12:00 PM EST - 1:00 PM EST
Sky Clear
6sm
210° 15kts
Gusts 26kts
TAF KSBY 041720Z 0418/0518 28011KT P6SM SCT250
   FM050000 VRB03KT P6SM SKC
   FM051400 21010KT P6SM SKC
   FM051700 21015G26KT P6SM SKC
KGED
EffectiveExpiresCategoryNOTAM
Domestic
10/13/25
1900Z
!GED 10/005 GED OBST TOWER LGT (ASR 1257405) 384524.60N0750917.20W (10.5NM ENE GED) 330.4FT (319.9FT AGL) U/S 2510131900-2604302359EST
10/13/25
1900Z
!GED 10/004 GED OBST TOWER LGT (ASR 1060466) 383353.00N0751502.00W (8.9NM SE GED) 521.0FT (500.0FT AGL) U/S 2510131900-2604302359EST
10/13/25
1858Z
!GED 10/003 GED OBST TOWER LGT (ASR 1060468) 384628.00N0752032.00W (5.3NM NE GED) 479.3FT (448.2FT AGL) U/S 2510131858-2604302359EST
9/30/25
1701Z
Runway!GED 09/007 GED RWY 04 PAPI UNUSABLE 2509301701-2603312111EST
9/27/25
1604Z
11/11/25
1603Z
!GED 09/005 GED OBST TOWER LGT (ASR 1034804) 383124.00N0751754.00W (10.3NM SSE GED) 560.0FT (520.0FT AGL) U/S 2509271604-2511111603
FDC
10/30/25
0800Z
11/5/25
1946Z
!FDC 5/7763 GED IAP DELAWARE COASTAL, GEORGETOWN, DE.
VOR RWY 22, AMDT 7C...
VOR RWY 4, ORIG-A...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
ATR VOR/DME UNMONITORED. 2510300800-2511051946EST
4/17/25
1430Z
!FDC 5/8046 GED IAP DELAWARE COASTAL, GEORGETOWN, DE.
VOR RWY 22, AMDT 7C...
DISREGARD NOTE: CIRCLING MINIMUMS NA AT NIGHT.
2504171430-2704171429EST
No
0800-1800
ARPT UNATNDD THANKSGIVING DAY AND CHRISTMAS DAY.
SUSSEX COUNTY COUNCIL
PO BOX 589
GEORGETOWN, DE 19947
Phone: 302-855-7770
ROBERT L. BRYANT
21553 RUDDER LANE
GEORGETOWN, DE 19947
Phone: 302-855-7774
MILLVILLE FSS (MIV)
Toll Free: 1-800-WX-BRIEF
GED
--
ACTVT MALS RWY 4; REIL RWY 04, 22, 10, 28; MIRL RWY 04/22 & 10/28 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Ambulance
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04/22

5500 ft. x 150 ft.
ASPH
Good
GRVD
MED
43 /F/A/X/T
50,000lbs
175,000lbs
--
--
  Runway 04 Runway 22
True Heading 33°213°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 38° 40' 58"N 38° 41' 44"N
Longitude 75° 21' 57"W 75° 21' 19"W
Elevation 49' 48'
Threshold Crossing Height 45 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALS
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 10/28

3109 ft. x 75 ft.
ASPH
Good
NONE
MED
36 /F/A/X/T
50,000lbs
91,000lbs
--
--
  Runway 10 Runway 28
True Heading 90°270°
Traffic Pattern
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 38° 41' 05"N 38° 41' 05"N
Longitude 75° 21' 45"W 75° 21' 06"W
Elevation 49' 53'
Threshold Crossing Height 46 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3.5° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-3PAEW WITHIN SAFETY AREA OF RWYS & TWYS.
A110-4BIRDS, DEER, AND OTHER WILDLIFE INVOF RWYS.
A110-5FOR CD IF UNA VIA GCO FREQ, CTC DOVER APCH AT 302-677-3940. IF DOVER APCH UNA, CTC WASHINGTON ARTCC AT 703-771-3587.
A110-8GCO AVBL ON FREQ 125.55.
A110-9FBO HRS 0800-1800 LST. FOR SVC/FUEL AFT HRS CALL 302-855-2355.
DELAWARE COASTAL (ICAO: KGED, IATA: GED) is a public airport located in GEORGETOWN, DE.
