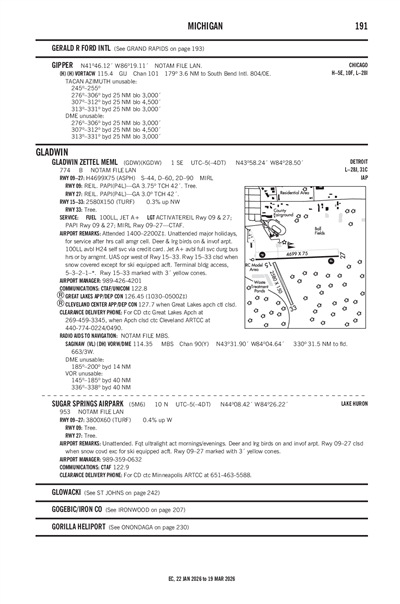

GLADWIN ZETTEL MEML - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGDW
ICAO KGDWIATA GDWLocal GDW
GLADWIN ZETTEL MEML
PublicPUB

1 miles SE of GLADWIN, MI, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
43° 58' 14"N 84° 28' 30"W
Elevation
774' MSL
Pattern Alt
1774' MSL
Mag Variation
7°W
Declination
4°W
Fuel
JET A (FSII), 100LL
FSS
LANSING (LAN)
Sectional
DETROIT
ARTCC
MINNEAPOLIS (ZMP)
Data Effective
2/19/26-3/19/26
KGDW VFR
11:35 PM EST
Clear
10sm
23°F
23°F
30.19"Hg
210° 2kts
AO2
METAR KGDW 040435Z AUTO 21002KT 10SM CLR M05/M05 A3019 RMK AO2
+ Add Your Business

KGDW FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Common

CTAF 122.8
ACTVT REIL RWY 09 & 27; PAPI RWY 09 & 27; MIRL RWY 09/27 - CTAF.
UNICOM 122.8

Approach

GREAT LAKES APPROACH 126.45

Departure

GREAT LAKES DEPARTURE 126.45

Center

GREAT LAKES CENTER 127.7
LOW, APCH/DEP SVC PRVDD BY CLEVELAND ARTCC (ZOB) ON FREQS 127.7/290.425 (FREELAND RCAG) WHEN GREAT LAKES APCH CTL CLSD.

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KMBS (32nm)
Tue, 3/3 6:23 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
VFR
7:00 PM EST - 9:00 PM EST
Scattered 7,000'
Few 4,000'
6sm
VRB° 4kts
VFR
9:00 PM EST - 3:00 AM EST
Scattered 25,000'
6sm
VRB° 3kts
MVFR
3:00 AM EST - 10:00 AM EST
Mist
Scattered 25,000'
Scattered 1,500'
5sm
VRB° 2kts
VFR
10:00 AM EST - 1:00 PM EST
Scattered 2,200'
6sm
130° 5kts
VFR
1:00 PM EST - 7:00 PM EST
Broken 25,000'
6sm
140° 5kts
TAF KMBS 032323Z 0400/0424 VRB04KT P6SM FEW040 SCT070
   FM040200 VRB03KT P6SM SCT250
   FM040800 VRB02KT 5SM BR SCT015 SCT250
   FM041500 13005KT P6SM SCT022
   FM041800 14005KT P6SM BKN250
KGDW
EffectiveExpiresCategoryNOTAM
Domestic
2/12/26
1853Z
!LAN 02/337 GDW SVC AUTOMATED WX BCST SYSTEM COMMISSIONED 118.975 2602121853-PERM
2/3/26
2032Z
3/20/26
2031Z
!LAN 02/105 GDW OBST TOWER LGT (ASR 1326492) 440115.20N0843509.30W (5.6NM WNW GDW) 1152FT (260FT AGL) U/S 2602032032-2603202031
No
0900-1700
UNATNDD MAJOR HOLS. FOR SVC AFT HRS CALL AMGR CELL.
CITY/CO OF GLADWIN
1000 W CEDAR AVE
GLADWIN, MI 48624
Phone: 989-426-9231
MICHAEL HARGRAVE
735 S STATE ST
GLADWIN, MI 48624
Phone: 989-426-4201
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
LAN
--
ACTVT REIL RWY 09 & 27; PAPI RWY 09 & 27; MIRL RWY 09/27 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 09/27

4699 ft. x 75 ft.
ASPH
Good
NONE
MED

44,000lbs
60,000lbs
90,000lbs
--
  Runway 09 Runway 27
True Heading 88°268°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 43° 58' 18"N 43° 58' 20"N
Longitude 84° 28' 58"W 84° 27' 54"W
Elevation 771' 773'
Threshold Crossing Height 42 ft. AGL 42 ft. AGL
Visual Glide Path Angle 3.75° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 15/33

2580 ft. x 150 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 15 Runway 33
True Heading 157°337°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 43° 58' 17"N 43° 57' 53"N
Longitude 84° 28' 44"W 84° 28' 30"W
Elevation 773' 764'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1DEER & LRG BIRDS ON & INVOF ARPT.
A110-2UAS OPR WEST OF RWY 15/33.
A110-3TRML BLDG ACES: 5-3-2-1-*.
A110-4FOR CD CTC GREAT LAKES APCH AT 269-459-3345, WHEN APCH CLSD CTC CLEVELAND ARTCC AT 440-774-0224/0490.
A13CITY HALL.
A16CELL 989-578-2174.
A17-M1UNATNDD MAJOR HOLS. FOR SVC AFT HRS CALL AMGR CELL.
A30-15/33CLSD WHEN SNOW COVD EXC FOR SKI EQUIPPED ACFT.
A42-15_MARK3 FT YELLOW CONES.
A42-33_MARK3 FT YELLOW CONES.
A70-100LL100LL AVBL H24 SELF SVC VIA CREDIT CARD. JET A+ AVBL FULL SVC DURG BUS HRS OR BY ARNGMT.
A81-APTACTVT REIL RWY 09 & 27; PAPI RWY 09 & 27; MIRL RWY 09/27 - CTAF.
GLADWIN ZETTEL MEML (ICAO: KGDW, IATA: GDW) is a public airport located in GLADWIN, MI, US.
