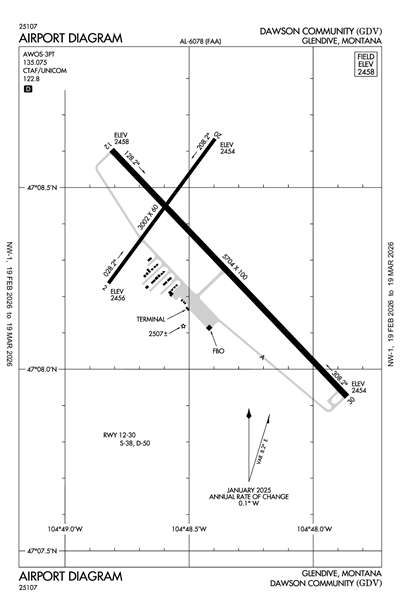

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGDV
DAWSON COMMUNITY
PublicPUB

4 miles NW of GLENDIVE, MT
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
47° 08' 19"N 104° 48' 26"W
2458' MSL
3458' MSL
10E
JET A (FSII), 100LL
GREAT FALLS (GTF)
BILLINGS
SALT LAKE CITY (ZLC)
10/31/24-11/28/24
KGDV VFR
4:56 AM MST
Clear
10sm
37°F
28°F
29.92"Hg
200° 12kts
AO2 SLP145 T00281022 10039 20011 56014 TSNO
KGDV 091156Z AUTO 20012KT 10SM CLR 03/M02 A2992 RMK AO2 SLP145 T00281022 10039 20011 56014 TSNO
Add Your Business

KGDV FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
406-687-3346
 135.075

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KGDV
Sat, 11/9 4:40 AM MST
Sat, 11/9 5:00 AM MST - Sun, 11/10 5:00 AM MST
VFR
5:00 AM MST - 11:00 PM MST
Scattered 17,000'
6sm
200° 7kts
VFR
11:00 PM MST - 12:00 AM MST
Few 14,000'
6sm
VRB° 4kts
VFR
12:00 AM MST - 5:00 AM MST
Few 15,000'
6sm
VRB° 4kts
KGDV 091140Z 0912/1012 20007KT P6SM SCT170
   FM100600 VRB04KT P6SM FEW140
   FM100700 VRB04KT P6SM FEW150
KGDV
Domestic
10/6/240716Z !GDV 10/002 GDV OBST TOWER LGT (ASN 2017-ANM-2364-OE) 471746N1043248W (14.2NM NE GDV) 2485FT (256FT AGL) U/S 2410060716-2411200716
No
0730-1830
DAWSON COUNTY
207 WEST BELL
GLENDIVE, MT 59330
Phone: (406) 377-3058
CRAIG HOSTETLER
207 WEST BELL
GLENDIVE, MT 59330
Phone: 406-989-2054
GREAT FALLS FSS (GTF)
Toll Free: 1-800-WX-BRIEF
GDV
--
ACTIVATE MIRL RWY 02-20 AND RWY 12-30, PAPI RWY 02 AND RWY 20, REIL RWY 12 AND RWY 30 - CTAF. VASI RY 12/30 OPER CONTINUOUSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Minor
Minor
None
None
Crop Dusting

Runway 02/20

3002 ft. x 60 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 02 Runway 20
True Heading 36°216°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 47° 08' 14"N 47° 08' 38"N
Longitude 104° 48' 49"W 104° 48' 24"W
Elevation 2,456' 2,454'
Threshold Crossing Height 26 ft. AGL 24 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12/30

5704 ft. x 100 ft.
ASPH
Good
GRVD
MED

38,000lbs
50,000lbs
--
--
  Runway 12 Runway 30
True Heading 136°316°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 47° 08' 36"N 47° 07' 55"N
Longitude 104° 48' 49"W 104° 47' 52"W
Elevation 2,458' 2,454'
Threshold Crossing Height 37 ft. AGL 37 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1AIRFIELD SURFACE CONDITIONS UNMONITORED 0100-1100 NOV-MAY.
A110-2FOR CD IF UNA TO CTC ON FSS FREQ, CTC SALT LAKE ARTCC AT 801-320-2568.
DAWSON COMMUNITY (ICAO: KGDV, IATA: GDV) is a public airport located in GLENDIVE, MT.
