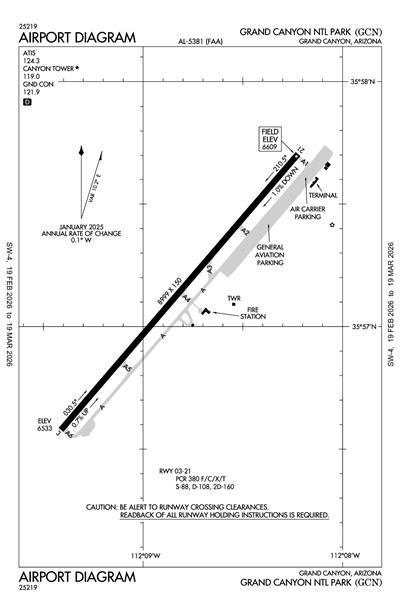

GRAND CANYON NTL PARK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGCN
ICAO KGCNIATA GCNLocal GCN
GRAND CANYON NTL PARK
PublicPUB

6 miles S of GRAND CANYON, AZ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 57' 08"N 112° 08' 49"W
Elevation
6609' MSL
Pattern Alt
7609' MSL
Mag Variation
10°E
Declination
11°E
Fuel
JET A, 100LL
FSS
PRESCOTT (PRC)
Sectional
LAS VEGAS
ARTCC
LOS ANGELES (ZLA)
Data Effective
2/19/26-3/19/26
KGCN VFR
6:54 PM MST
Clear
N/A
41°F
21°F
30.16"Hg
Calm
AO2 SLP208 T00501061 $
METAR KGCN 040154Z 00000KT CLR 05/M06 A3016 RMK AO2 SLP208 T00501061 $
+ Add Your Business

KGCN FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 124.3
ASOS 124.3
(928) 638-0672

Common

CTAF 119.0
WHEN ATCT CLSD ACTVT PAPI RWY 21; MIRL RWY 03/21 - CTAF.
UNICOM 122.95

Ground

CANYON GROUND 121.9
JUN 1 - SEP 30 - 0600-2000, OCT 1 - MAY 31 0700-1900

Tower

CANYON TOWER 119.0
JUN 1 - SEP 30 - 0600-2000, OCT 1 - MAY 31 0700-1900

Center

L.A. CENTER CENTER 124.85
LOW, APCH/DEP CTL SVC PRVDD BY LOS ANGELES ARTCC (ZLA) ON FREQS 124.85/319.2 (SELIGMAN RCAG).

Flight Service

Flight Service 122.3
(PRC), COMMUNICATIONS PRVDD BY PRESCOTT RADIO ON FREQ 122.3 (COTTONWOOD RCO).
Flight Service 122.4
(PRC), COMMUNICATIONS PRVDD BY PRESCOTT RADIO ON FREQ 122.4 (GRAND CANYON RCO) WHEN ATCT IS CLSD.

Emergency

Emergency 121.5

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Instrument Approach

Terminal Area Forecast

KGCN
Tue, 3/3 4:20 PM MST
Tue, 3/3 5:00 PM MST - Wed, 3/4 5:00 PM MST
VFR
5:00 PM MST - 11:00 AM MST
Sky Clear
6sm
VRB° 6kts
VFR
11:00 AM MST - 5:00 PM MST
Sky Clear
6sm
210° 12kts
Gusts 20kts
TAF KGCN 032320Z 0400/0424 VRB06KT P6SM SKC
   FM041800 21012G20KT P6SM SKC
KGCN
EffectiveExpiresCategoryNOTAM
Domestic
3/3/26
0700Z
3/3/26
1300Z
!GCN 02/013 GCN COM REMOTE COM OUTLET 122.4 U/S 2603030700-2603031300
2/25/26
0235Z
2/25/26
1300Z
!GCN 02/015 GCN COM REMOTE COM OUTLET 122.4 U/S 2602250235-2602251300
2/25/26
0230Z
2/25/26
1300Z
!GCN 02/014 GCN COM REMOTE TRANS/REC 119, 121.5, 121.9, 128.7, 132.7 U/S 2602250230-2602251300
1/2/26
1200Z
12/31/26
2300Z
!GCN 01/001 GCN AIRSPACE PJE WI AN AREA DEFINED AS 2NM RADIUS OF GCN SFC-17500FT DLY 1200-2300 2601021200-2612312300
FDC
2/25/26
2030Z
3/3/26
2330Z
!FDC 6/9746 GCN IAP GRAND CANYON NTL PARK, GRAND CANYON, AZ.
ILS OR LOC RWY 3, AMDT 1...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
GCN VOR/DME OUT OF SERVICE. 2602252030-2603032330EST
2/25/26
2030Z
3/3/26
2330Z
!FDC 6/9745 GCN SID GRAND CANYON NTL PARK, GRAND CANYON, AZ.
PARKS FOUR DEPARTURE...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
GCN VOR/DME OUT OF SERVICE. 2602252030-2603032330EST
2/25/26
2030Z
3/3/26
2330Z
!FDC 6/9744 GCN ODP GRAND CANYON NTL PARK, GRAND CANYON, AZ.
GRAND FOUR DEPARTURE ...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
GCN VOR/DME OUT OF SERVICE. 2602252030-2603032330EST
Yes
OCT 1 - MAY 31 0700-1900
JUN 1 - SEP 30 0600-2000
STATE OF ARIZONA
DEPARTMENT OF TRANS-ASD 206 S. 17TH AVE MD178
PHOENIX, AZ 85007
Phone: (602) 712-6255
DAVID REFFNER
PO BOX 3399
GRAND CANYON, AZ 86023
Phone: 623-695-8656
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
GCN
--
WHEN ATCT CLSD ACTVT PAPI RWY 21; MIRL RWY 03/21 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Minor
Major
Low Pressure
Low Pressure
Air Freight
Avionics
Charter Service
Parachute Jump Activity

Runway 03/21

8999 ft. x 150 ft.
ASPH
Fair
GRVD
MED

88,000lbs
108,000lbs
160,000lbs
--
  Runway 03 Runway 21
True Heading 41°221°
Traffic Pattern Right
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 35° 56' 35"N 35° 57' 42"N
Longitude 112° 09' 25"W 112° 08' 13"W
Elevation 6,533' 6,609'
Threshold Crossing Height -- 56 ft. AGL
Visual Glide Path Angle -- 4°
Visual Slope Indicator -- P4R
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No Yes
A110-2CONDORS INVOF ARPT.
A110-3NMRS AIR TAX OPS INVOF GRAND CANYON; SEE SPL NOTICES GRAND CANYON SPL FLT RULES AREA.
A110-5ARFF INDEX B 24 HR PPR - AMGR.
A110-6FOR CD IF UNA TO CTC ON FSS FREQ, CTC LOS ANGELES ARTCC AT 661-575-2079.
A24OVNGT PRKG & COML LNDG FEE.
A30-03/21LGTD DSTC RMNG SIGNS E SIDE.
A39-03/21PCR VALUE: 380/F/C/X/T
A70-100LLAVBL H24 - 928-638-7117.
A81-APTWHEN ATCT CLSD ACTVT PAPI RWY 21; MIRL RWY 03/21 - CTAF.
GRAND CANYON NTL PARK (ICAO: KGCN, IATA: GCN) is a public airport located in GRAND CANYON, AZ, US.
