KGCK
GARDEN CITY RGNL
Public
PUB
8 miles SE of GARDEN CITY, KS
View on
Map
Status
Operational
Coordinates
37° 55' 39"N
100° 43' 28"W
Elevation
2891' MSL
Pattern Alt
3891' MSL
Mag Variation
05E
Fuel
JET A, 100LL
FSS
WICHITA (ICT)
Sectional
WICHITA
ARTCC
KANSAS CITY (ZKC)
Data Effective
12/26/24-1/23/25
No METAR is available for this location.
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
KGCK FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.95
CTAF
118.15
ASOS
ASOS
620-275-0803
121.325
Ground
GND/P
119.0
Tower
LCL/P
118.15
FAA A/FD Pages
FAA A/FD Page
Airport Diagrams

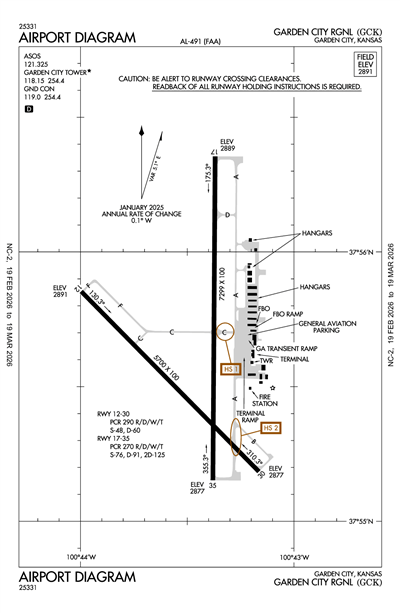

AIRPORT DIAGRAM
Airport Minimums
ALTERNATE MINIMUMS
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
HOT SPOT
Standard Term. Arrival
No Documents
Instrument Approach
ILS OR LOC RWY 35
RNAV (GPS) RWY 12
RNAV (GPS) RWY 17
RNAV (GPS) RWY 30
RNAV (GPS) RWY 35
VOR RWY 17
VOR RWY 35
VOR/DME RWY 12
VOR/DME RWY 17
VOR/DME RWY 30
Terminal Area Forecast
No TAF is available for this location.
KGCK
Domestic
12/15/24
0934Z
!GCK 12/004 GCK OBST TOWER LGT (ASR 1032520) 374836.00N1003909.00W (7.8NM SSE GCK) 3148.0FT (342.8FT AGL) U/S 2412150934-2501290933
FDC
1/4/25
1419Z
!FDC 5/0431 GCK IAP GARDEN CITY RGNL, GARDEN CITY, KS.
ILS OR LOC RWY 35, AMDT 3...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
GCK VOR
OUT OF SERVICE
. 2501041419-2502041419EST
8/11/23
1303Z
!FDC 3/2710 GCK ODP GARDEN CITY RGNL, GARDEN CITY, KS.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES ORIG...
TAKEOFF OBSTACLE NOTES: RWY 12, POLE 112 FT FROM DER, 495 FT LEFT OF CENTERLINE, 33 FT AGL/2907 FT MSL. TREE 578 FT FROM DER, 442 FT LEFT OF CENTERLINE, 45 FT AGL/2917 FT MSL..
ALL OTHER DATA REMAINS AS PUBLISHED. 2308111303-2508111303EST
ATC Tower
Yes
Attendance
0700-2100
FOR SVC AFTER HRS CALL 620-275-5055.
Owner
CITY OF GARDEN CITY
CITY HALL, BOX 499
GARDEN CITY, KS 67846
Phone: 620-276-1190
Manager
MS. RACHELLE POWELL
2225 S. AIR SERVICE RD. 112
GARDEN CITY, KS 67846
Phone: 620-276-1190
FSS
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
NOTAM
GCK
Light Schedule
--
Lights
ACTVT MIRL RY 12/30 & HIRL RY 17/35; REIL RYS 17; 12; 30 & MALSR RY 35 - CTAF. PAPI RYS 12 & 30 AND VASI RYS 17 & 35 ON 24 HRS.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
N/A
Landing Fee
No
Parking
Hanger, Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
Major
Pwrplant Repair
Major
Bottled Oxygen
None
Bulk Oxygen
Low Pressure
Other Services
Crop Dusting
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Runway 12/30
Dimensions
5700 ft. x 100 ft.
Surface Type
CONC
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
35 /R/C/W/T
Single Wheel
48,000lbs
Double Wheel
60,000lbs
Double Tandem
--
Dual Dbl Tand
--
Runway 12
Runway 30
True Heading
135°
315°
Traffic Pattern
Left
Left
Markings
NPI
NPI
Markings Condition
GOOD
GOOD
Latitude
37° 55' 51"N
37° 55' 11"N
Longitude
100° 43' 60"W
100° 43' 10"W
Elevation
2,891'
2,877'
Threshold Crossing Height
47 ft. AGL
46 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
P2L
P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
Yes
Yes
Runway 17/35
Dimensions
7299 ft. x 100 ft.
Surface Type
CONC
Surface Cond
Good
Treatment
GRVD
Rwy Edge Lgts
HIGH
Pavement Class
38 /R/C/W/T
Single Wheel
76,000lbs
Double Wheel
91,000lbs
Double Tandem
125,000lbs
Dual Dbl Tand
--
Runway 17
Runway 35
True Heading
180°
0°
Traffic Pattern
Left
Left
Markings
NPI
PIR
Markings Condition
GOOD
GOOD
Latitude
37° 56' 21"N
37° 55' 09"N
Longitude
100° 43' 22"W
100° 43' 23"W
Elevation
2,889'
2,877'
Threshold Crossing Height
39 ft. AGL
41 ft. AGL
Visual Glide Path Angle
3°
3°
Visual Slope Indicator
V4L
V4L
Approach Lights
MALSR
Centerline Lights
Runway End Identifier Lights
Yes
A110-1
RY 35 DESIGNATED THE CALM WIND RY.
A110-2
AIR CARRIER OPS ARE NOT AUTHORIZED IN EXCESS OF 15 MINUTES BEFORE OR AFTER SCHEDULED ARRIVAL/DEPARTURE TIMES WITHOUT PRIOR COORDINATION WITH AMGR AND CONFIRMATION THAT ARFF IS AVBL PRIOR TO LDNG OR TKOF.
A110-3
IN THE EVENT OF AN AIR CARRIER DIVERSION OR OTHER IRREGULAR OPERATIONS EVENTS, AIRCRAFT OPERATORS SHOULD CONTACT AMGR 620-290-3810. FACILITY CONSTRAINTS INCLUDE: LACK OF INTERNATIONAL PASSENGER PROCESSING FACILITIES, LIMITED NUMBER OF PARKING POSITIONS AND LIMITED TERMINAL SPACE FOR PASSENGERS.
A110-4
ATCT BLIND SPOT ON THE NORTH TWY A HOLD BAY.
A110-5
FOR CD IF UNA TO CTC ON FSS FREQ, CTC KANSAS CITY ARTCC AT 913-254-8508.
GARDEN CITY RGNL (ICAO: KGCK, IATA: GCK) is a public airport located in GARDEN CITY, KS.
