KGCD
GRANT COUNTY RGNL/OGILVIE FLD
Public
PUB
1 miles SW of JOHN DAY, OR
View on
Map
Status
Operational
Coordinates
44° 24' 11"N
118° 58' 04"W
Elevation
3702' MSL
Pattern Alt
4702' MSL
Mag Variation
17E
Fuel
JET A, 100LL
FSS
MC MINNVILLE (MMV)
Sectional
KLAMATH FALLS
ARTCC
SEATTLE (ZSE)
Data Effective
12/26/24-1/23/25
No METAR is available for this location.
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
KGCD FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
122.8
CTAF
122.8
AWOS-3
AWOS-3
541-575-1122
118.375
FAA A/FD Pages
FAA A/FD Page

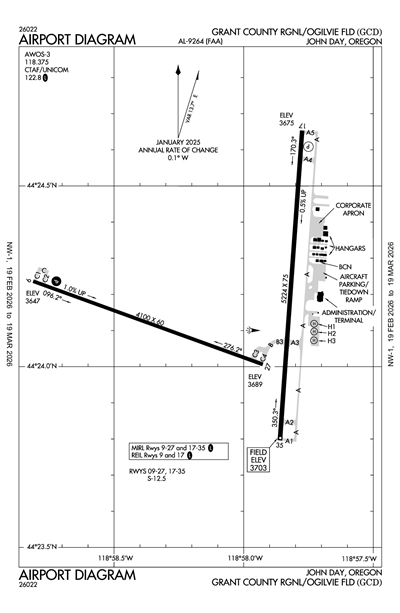

Airport Diagrams
No Documents
Airport Minimums
ALTERNATE MINIMUMS
TAKEOFF MINIMUMS
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
RNAV (GPS) Y RWY 09
RNAV (GPS) Z RWY 09
Terminal Area Forecast
No TAF is available for this location.
KGCD
Domestic
1/13/25
1201Z
!GCD 01/005 GCD OBST TOWER LGT (ASR 1320341) 442237.87N1192703.18W (20.6NM W GCD) 7185FT (204FT AGL) U/S 2501131201-2502142300
12/13/24
1734Z
!GCD 12/007 GCD RWY 17 PAPI U/S 2412131734-2502282359
12/13/24
1734Z
!GCD 12/006 GCD RWY 17 RWY END ID LGT U/S 2412131734-2502282359
11/22/24
1835Z
!GCD 11/011 GCD OBST TOWER LGT (ASR 1034258) 442604.00N1185733.00W (1.9NM NE GCD) 4016.1FT (128.9FT AGL) U/S 2411221835-2502222359
ATC Tower
No
Attendance
OCT-MAY MON-SAT 0800-1600
JUN-SEP 0700-1900
Owner
GRANT COUNTY REGIONAL AIRPORT
, 201 S. HUMBOLT, STE. 280
CANYON CITY, OR 97820
Phone: 541-575-1151
Manager
HALEY WALKER
72000 AIRPORT ROAD
JOHN DAY, OR 97845
Phone: 541-575-1151
FSS
MC MINNVILLE FSS (MMV)
Toll Free: 1-800-WX-BRIEF
NOTAM
GCD
Light Schedule
--
Lights
ACTVT MIRL RY 09/27; MIRL RY 17/35; REIL RY 17 & REIL RY 09 & PAPI RY 9 & RY 17 - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Tie-Down
Int'l Operations
No
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 09/27
Dimensions
4100 ft. x 60 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
12,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 09
Runway 27
True Heading
110°
290°
Traffic Pattern
Left
Right
Markings
NPI
BSC
Markings Condition
GOOD
GOOD
Latitude
44° 24' 14"N
44° 24' 00"N
Longitude
118° 58' 49"W
118° 57' 56"W
Elevation
3,647'
3,689'
Threshold Crossing Height
45 ft. AGL
--
Visual Glide Path Angle
3°
--
Visual Slope Indicator
P4L
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
Yes
Runway 17/35
Dimensions
5224 ft. x 60 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
Single Wheel
12,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 17
Runway 35
True Heading
184°
4°
Traffic Pattern
Left
Left
Markings
BSC
BSC
Markings Condition
FAIR
FAIR
Latitude
44° 24' 39"N
44° 23' 48"N
Longitude
118° 57' 47"W
118° 57' 52"W
Elevation
3,675'
3,702'
Threshold Crossing Height
52 ft. AGL
--
Visual Glide Path Angle
4°
--
Visual Slope Indicator
P4L
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
Yes
Runway H1
Dimensions
30 ft. x 30 ft.
Surface Type
Surface Cond
CONC
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway H1
Runway
True Heading
69°
249°
Traffic Pattern
Markings
Markings Condition
Latitude
44° 24' 07"N
N/A
Longitude
118° 57' 44"W
N/A
Elevation
3,690'
--
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
Runway H2
Dimensions
20 ft. x 20 ft.
Surface Type
Surface Cond
CONC
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway H2
Runway
True Heading
69°
249°
Traffic Pattern
Markings
Markings Condition
Latitude
44° 24' 06"N
N/A
Longitude
118° 57' 44"W
N/A
Elevation
3,689'
--
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
Runway H3
Dimensions
20 ft. x 20 ft.
Surface Type
Surface Cond
CONC
Treatment
NONE
Rwy Edge Lgts
Pavement Class
Single Wheel
--
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway H3
Runway
True Heading
69°
249°
Traffic Pattern
Markings
Markings Condition
Latitude
44° 24' 04"N
N/A
Longitude
118° 57' 44"W
N/A
Elevation
3,631'
--
Threshold Crossing Height
--
--
Visual Glide Path Angle
--
--
Visual Slope Indicator
--
--
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1
TWY MKD WITH REFLECTORS.
A110-2
8 FT GAME FENCE AROUND ARPT.
A110-3
EXTENSIVE HELICOPTER ACTIVITY DURING FIRE SEASON (JUL-OCT).
A110-4
BE AWARE OF SOFT EDGES ALONG RYS & TWYS.
A110-6
FOR CD CTC SEATTLE ARTCC AT 253-351-3694.
GRANT COUNTY RGNL/OGILVIE FLD (ICAO: KGCD, IATA: GCD) is a public airport located in JOHN DAY, OR.
