iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGAI
MONTGOMERY COUNTY AIRPARK
PublicPUB

3 miles NE of GAITHERSBURG, MD
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
39° 10' 06"N 77° 09' 58"W
539' MSL
1539' MSL
09W
JET A, 100LL
LEESBURG (DCA)
WASHINGTON
WASHINGTON (ZDC)
7/11/24-8/8/24
KCGS (16nm) VFR
6:45 AM EDT
Overcast 9,500'
Broken 6,500'
10sm
68°F
63°F
29.95"Hg
Calm
AO2 T02010172
KCGS 191045Z AUTO 00000KT 10SM BKN065 OVC095 20/17 A2995 RMK AO2 T02010172
Add Your Business

KGAI FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.075 123.075

AWOS-3PT

AWOS-3PT
301-977-2971
 128.275

FAA A/FD Pages

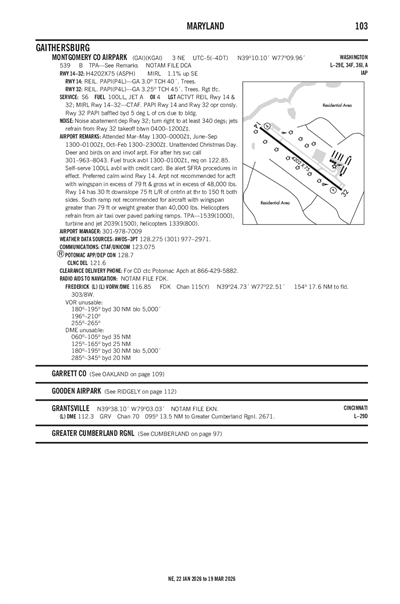

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KIAD (19nm)
Thu, 9/19 4:58 AM EDT
Thu, 9/19 5:00 AM EDT - Fri, 9/20 8:00 AM EDT
VFR
5:00 AM EDT - 8:00 AM EDT
Broken 9,000'
Scattered 5,000'
6sm
360° 5kts
VFR
8:00 AM EDT - 8:00 PM EDT
Broken 25,000'
Broken 6,000'
6sm
350° 6kts
VFR
8:00 PM EDT - 8:00 AM EDT
Broken 25,000'
Scattered 10,000'
6sm
360° 4kts
KIAD 190858Z 1909/2012 36005KT P6SM SCT050 BKN090
   FM191200 35006KT P6SM BKN060 BKN250
   FM200000 36004KT P6SM SCT100 BKN250
KGAI
Domestic
9/20/240000Z !DCA 09/387 GAI AD AP ALL SFC WIP CONST ADJ TXYWY A 2409200000-2409201100
9/19/240000Z !DCA 09/386 GAI AD AP ALL SFC WIP CONST ADJ TXYWY A 2409190000-2409191100
9/18/240000Z !DCA 09/385 GAI AD AP ALL SFC WIP CONST ADJ TXYWY A 2409180000-2409181100
9/4/241848Z !DCA 09/123 GAI AIRSPACE SEE FDC 4/1783, 4/1789, 4/9433 ZDC SECURITY INSTRUCTIONS 2409041848-PERM
9/4/241830Z !DCA 09/108 GAI AIRSPACE SEE FDC 4/2565 ZDC SECURITY INSTRUCTIONS 2409041830-PERM
8/31/241731Z !DCA 08/875 GAI OBST TOWER LGT (ASR 1059004) 390807.00N0771808.00W (6.6NM WSW GAI) 802.5FT (403.5FT AGL) U/S 2408311731-2410151731
7/25/241458Z !DCA 07/737 GAI OBST TOWER LGT (ASR 1035812) 391158.70N0772053.10W (8.6NM WNW GAI) 986.2FT (496.1FT AGL) U/S 2407251458-2410230400
6/7/241711Z !DCA 06/148 GAI RWY 14 RWY END ID LGT U/S 2406071711-2412312000EST
FDC
8/9/241631Z !FDC 4/5967 GAI SID MONTGOMERY COUNTY AIRPARK, GAITHERSBURG, MD.
TERPZ EIGHT DEPARTURE (RNAV)...
DO NOT FILE CLTCH TRANSITION, ATC ASSIGNED ONLY.
2408091631-2608091631EST
10/6/230000Z !FDC 3/1248 GAI ROUTE TRSTN THREE ARRIVAL NOT AUTHORIZED
2310060000-PERM
No
MARCH-MAY 0800-1900
JUNE-SEPTEMBER 0800-2000
OCTOBER-FEBRUARY 0800-1800
UNATNDD CHRISTMAS DAY. FOR AFT HRS SVC CALL 301-963-8043.
MONTGOMERY COUNTY REV AUTH
101 MONROE ST 4TH FLOOR, SUITE 410
ROCKVILLE, MD 20850
Phone: 301-762-9080
JUSTIN BOLLUM, C.M.
7940 AIRPARK ROAD, SUITE 410
GAITHERSBURG, MD 20879
Phone: 301-978-7009
LEESBURG FSS (DCA)
Toll Free: 1-800-WX-BRIEF
DCA
--
ACTVT REIL RWY 14 & 32; MIRL RWY 14/32 - CTAF
N/A
No
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
128
14
7
2
0
0
Minor
Major
Low Pressure
None
Air Freight
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 14/32

4202 ft. x 75 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 14 Runway 32
True Heading 127°307°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 39° 10' 19"N 39° 09' 53"N
Longitude 77° 10' 19"W 77° 09' 36"W
Elevation 493' 539'
Threshold Crossing Height 53 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3.25°
Visual Slope Indicator V4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1NOISE ABATEMENT DEP RWY 32; TURN RIGHT TO AT LEAST 340 DEGS; JETS REFRAIN FROM RWY 32 TAKEOFF BTWN 2300-0700.
A110-11FOR CD CTC POTOMAC APCH AT 866-429-5882.
A110-12RWY 32 PAPI BAFFLED BYD 5 DEG L OF CRS DUE TO BLDG.
A110-2DEER & BIRDS ON & INVOF ARPT.
A110-4HELICOPTERS REFRAIN FM AIR TAXI OVER PAVED PARKING RAMPS.
A110-5RWY 14 HAS 30 FT DOWNSLOPE 75 FT L/R OF CNTRLN AT THR TO 150 FT BOTH SIDES.
A110-6ARPT NOT RECOMMENDED FOR ACFT WITH WINGSPAN IN EXCESS OF 79 FT & GROSS WT IN EXCESS OF 48000 POUNDS.
A110-7SOUTH RAMP NOT RECOMMENDED FOR AIRCRAFT WITH WINGSPAN GREATER THAN 79 FT OR WEIGHT GREATER THAN 40000 LBS.
A110-8BE ALERT SFRA PROCEDURES IN EFFECT.
A110-9PREFERRED CALM WIND RWY 14.
MONTGOMERY COUNTY AIRPARK (ICAO: KGAI, IATA: GAI) is a public airport located in GAITHERSBURG, MD.
