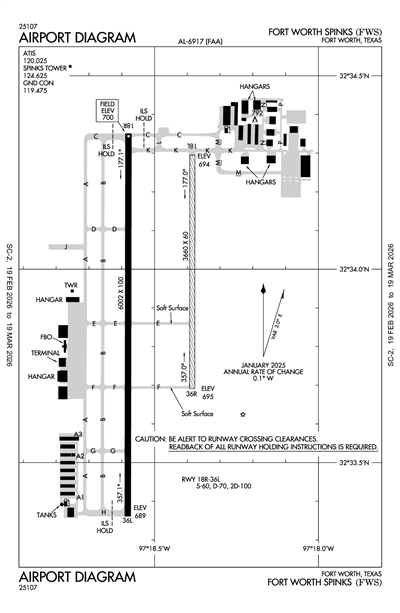

FORT WORTH SPINKS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFWS
ICAO KFWSIATA FWSLocal FWS
FORT WORTH SPINKS
PublicPUB

14 miles S of FORT WORTH, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 33' 54"N 97° 18' 30"W
Elevation
700' MSL
Pattern Alt
1700' MSL
Mag Variation
3°E
Declination
3°E
Fuel
JET A, 100LL
FSS
FORT WORTH (FTW)
Sectional
DALLAS-FT WORTH
ARTCC
FORT WORTH (ZFW)
Data Effective
2/19/26-3/19/26
KFWS VFR
12:55 AM CST
Scattered 16,000'
10sm
71°F
64°F
30.00"Hg
170° 11kts
AO2 T02140180 $
METAR KFWS 040655Z AUTO 17011KT 10SM SCT160 21/18 A3000 RMK AO2 T02140180 $
+ Add Your Business

KFWS FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 120.025
AWOS-3PT 120.025
(817) 426-4172

Common

CTAF 124.625
ACTVT MALSR RWY 36L - CTAF. WHEN ATCT CLSD MIRL RWY 18R/36L PRESET ON MED INTST.
UNICOM 122.7

Ground

SPINKS GROUND 119.475
0700-2000

Tower

SPINKS TOWER 124.625
0700-2000

Arrival

DODJE STAR 125.2
DODJE STAR 125.9
LIKES STAR 125.8
SOUTH
LIKES STAR 135.975
NORTH
MOTZA STAR 118.1
SOUTH
MOTZA STAR 125.8
NORTH
REEKO STAR 125.2
SASIE STAR 124.3
SWVAY STAR 135.975
TRUUK RNAV STAR 124.3
WESAT STAR 118.1
SOUTH
WESAT STAR 125.8
NORTH

Approach

LONE STAR APPROACH 135.975

Departure

BOTCH DP 135.975
DALLAS AREA DP 135.975
GARLAND DP 135.975
JOE POOL DP 135.975
LONE STAR DEPARTURE 135.975
NANDR RNAV DP 135.975

Terminal Area Forecast

KGKY (12nm)
Tue, 3/3 11:22 PM CST
Wed, 3/4 12:00 AM CST - Thu, 3/5 12:00 AM CST
VFR
12:00 AM CST - 2:00 AM CST
Scattered 25,000'
6sm
160° 11kts
MVFR
2:00 AM CST - 1:00 PM CST
Broken 1,800'
6sm
180° 15kts
VFR
1:00 PM CST - 5:00 PM CST
Showers in vicinity
Broken 25,000'
Scattered 2,500'
6sm
180° 14kts
VFR
5:00 PM CST - 10:00 PM CST
Thunderstorm in vicinity
Broken 5,000'
Scattered 2,500'
6sm
190° 13kts
VFR
10:00 PM CST - 12:00 AM CST
Broken 5,000'
6sm
200° 11kts
TAF KGKY 040522Z 0406/0506 16011KT P6SM SCT250
   FM040800 18015KT P6SM BKN018
   FM041900 18014KT P6SM VCSH SCT025 BKN250
   FM042300 19013KT P6SM VCTS SCT025 BKN050CB
   FM050400 20011KT P6SM BKN050
KFWS
EffectiveExpiresCategoryNOTAM
Domestic
2/28/26
0203Z
4/28/26
2359Z
!FWS 02/007 FWS OBST TOWER LGT (ASR 1252833) 323622.10N0971538.10W (3.5NM NE FWS) 892.1FT (284.1FT AGL) U/S 2602280203-2604282359
2/27/26
1945Z
4/30/26
0559Z
Runway!FWS 02/006 FWS RWY 18R PAPI U/S 2602271945-2604300559
2/27/26
1517Z
!FWS 02/005 FWS NAV ILS RWY 36L OM U/S 2602271517-2704192111EST
2/25/26
1302Z
10/31/26
2340Z
!FWS 02/004 FWS AIRSPACE SEE FUZ 02/674 UAS DLY SR-SS
2602251302-2610312340
11/21/25
1200Z
5/22/26
0800Z
!FWS 11/004 FWS AIRSPACE UAS WI AN AREA DEFINED AS 2NM RADIUS OF
323140N0972016.20W (2.7NM SSW FWS) SFC-400FT AGL DLY 1200-0800
2511211200-2605220800
FDC
3/4/26
0221Z
4/1/26
0321Z
!FDC 6/3253 FWS SID FORT WORTH SPINKS, FORT WORTH, TX.
WORTH ONE DEPARTURE...
CORONA TRANSITION,LUBBOCK TRANSITION,TEXICO TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
LBB VOR OUT OF SERVICE. 2603040221-2604010321EST
12/5/25
1903Z
!FDC 5/5330 FWS SID FORT WORTH SPINKS, FORT WORTH, TX.
KINGDOM FIVE DEPARTURE...
ABILENE TRANSITION, CORONA TRANSITION, LUBBOCK TRANSITION, TEXICO TRANSITION: NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MQP VORTAC OUT OF SERVICE. 2512051903-2607171903EST
12/5/25
1903Z
!FDC 5/5308 FWS SID FORT WORTH SPINKS, FORT WORTH, TX.
WORTH ONE DEPARTURE...
ABILENE TRANSITION, CORONA TRANSITION, LUBBOCK TRANSITION, TEXICO TRANSITION: NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MQP VORTAC OUT OF SERVICE. 2512051903-2607171903EST
12/5/25
1903Z
7/17/26
1903Z
!FDC 5/5288 FWS IAP FORT WORTH SPINKS, FORT WORTH, TX.
ILS OR LOC RWY 36L, AMDT 2D...
MISSED APPROACH: CLIMB TO 1800 THEN CLIMBING RIGHT TURN TO 3000 ON HEADING 144 AND ACT VORTAC R-357 TO NELYN/ACT 37.53 DME AND HOLD (DME REQUIRED) EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MQP VORTAC OUT OF SERVICE. 2512051903-2607171903EST
8/11/25
1824Z
!FDC 5/5497 FWS SID FORT WORTH SPINKS, FORT WORTH, TX.
BOTCH ONE DEPARTURE (RNAV)...
BRHMA TRANSITION: RUFFS TO KATZZ, MOCA 3500. ALIAN TRANSITION: FUMED TO ALIAN, MOCA 3200. CIKAN TRANSITION, DOSXX TRANSITION, WSTEX TRANSITION: LYNDE TO WSTEX, MOCA 3300.
ALL OTHER DATA REMAINS AS PUBLISHED. 2508111824-2603231824EST
3/13/25
1300Z
6/7/26
1218Z
!FDC 5/2682 FWS SID FORT WORTH SPINKS, FORT WORTH, TX.
WORTH ONE DEPARTURE...
CORONA TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CNX VORTAC OUT OF SERVICE. 2503131300-2606071218EST
7/29/24
1459Z
!FDC 4/9293 FWS IAP FORT WORTH SPINKS, FORT WORTH, TX.
RNAV (GPS) RWY 36L, AMDT 1C...
VGSI AND RNAV GLIDEPATH ARE NOT COINCIDENT.
2407291459-2607291459EST
Yes
0700-2200
CITY OF FORT WORTH
201 AMERICAN CONCOURSE SUITE 330
FORT WORTH, TX 76106
Phone: 817-392-5400
JOE HAMMOND
450 ALSBURY CT.
FORT WORTH, TX 76028
Phone: 817-392-5430
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
FWS
--
ACTVT MALSR RWY 36L - CTAF. WHEN ATCT CLSD MIRL RWY 18R/36L PRESET ON MED INTST.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
Major
Major
None
None
Avionics
Pilot Instruction
Aircraft Rental

Runway 18L/36R

3660 ft. x 60 ft.
TURF
Good
NONE


--
--
--
--
  Runway 18L Runway 36R
True Heading 180°0°
Traffic Pattern Right
Markings NONE NONE
Markings Condition FAIR FAIR
Latitude 32° 34' 18"N 32° 33' 41"N
Longitude 97° 18' 23"W 97° 18' 23"W
Elevation 694' 695'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18R/36L

6002 ft. x 100 ft.
ASPH
Good
NONE
MED

60,000lbs
70,000lbs
100,000lbs
--
  Runway 18R Runway 36L
True Heading 180°360°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 32° 34' 21"N 32° 33' 22"N
Longitude 97° 18' 35"W 97° 18' 35"W
Elevation 700' 689'
Threshold Crossing Height 40 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights
A110-1NOISE ABATEMENT PROCEDURE: AVOID NOISE SENSITIVE AREAS ALL QUADRANT OF ARPT; MAINTAIN ALTITUDES AT OR ABOVE 1000 FT AGL OVER THESE AREAS.
A110-10HEL SKIDDING OPNS PROHIBITED.
A110-11TWY A UNLIGHTED.
A110-2BIRDS & WILDLIFE INVOF ARPT.
A110-7ROTORCRAFT OPNS PROHIBITED IN SELF SVC FUEL AREAS.
A110-8FOR CD WHEN ATCT IS CLSD CTC REGIONAL APCH AT 972-615-2799.
A110-9ROTORCRAFT OPNS PROHIBITED ON TWY A BTN TWY H AND TWY A2.
A30-18L/36RAVBL ONLY DURG DALGT/VFR AND DRY WEATHER SFC CONDS.
A70-100LL100LL FULL AND SELF-SERVE.
A81-APTACTVT MALSR RWY 36L - CTAF. WHEN ATCT CLSD MIRL RWY 18R/36L PRESET ON MED INTST.
FORT WORTH SPINKS (ICAO: KFWS, IATA: FWS) is a public airport located in FORT WORTH, TX, US.
