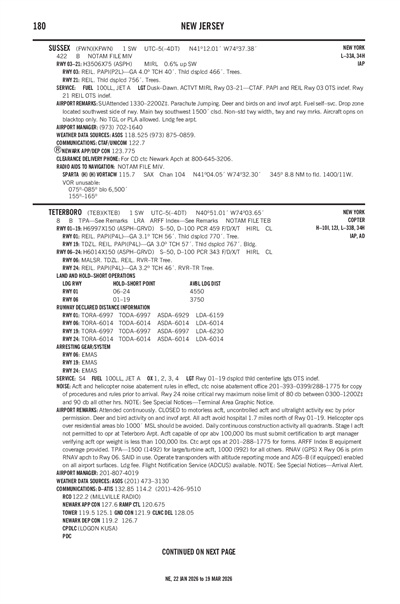

SUSSEX - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFWN
ICAO KFWNLocal FWN
SUSSEX
PublicPUB

1 miles SW of SUSSEX, NJ, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
41° 12' 01"N 74° 37' 23"W
Elevation
422' MSL
Pattern Alt
1422' MSL
Mag Variation
12°W
Declination
13°W
Fuel
JET A, 100LL
FSS
MILLVILLE (MIV)
Sectional
NEW YORK
ARTCC
NEW YORK (ZNY)
Data Effective
2/19/26-3/19/26
KFWN IFR
10:53 PM EST
Mist and Unknown Precipitation
Overcast 500'
2sm
33°F
29°F
30.18"Hg
Calm
AO2 RAB36E47 SLP225 P0002 T00061017
METAR KFWN 040353Z AUTO 00000KT 2SM UP BR OVC005 01/M02 A3018 RMK AO2 RAB36E47 SLP225 P0002 T00061017
+ Add Your Business

KFWN FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ASOS 118.525
(973) 875-0859

Common

CTAF 122.7
DUSK-DAWN. ACTVT MIRL RWY 03/21 - CTAF.
UNICOM 122.7

Approach

NEWARK APPROACH 123.775
SFC TO 7000 FT

Departure

NEWARK DEPARTURE 123.775
SFC TO 7000 FT

FAA A/FD Pages

Airport Minimums

Instrument Approach

Terminal Area Forecast

KSWF (30nm)
Tue, 3/3 9:39 PM EST
Tue, 3/3 10:00 PM EST - Thu, 3/5 1:00 AM EST
IFR
10:00 PM EST - 11:00 PM EST
Light Freezing Rain and Mist
Overcast 700'
2sm
VRB° 2kts
LIFR
11:00 PM EST - 1:00 AM EST
Light Rain and Mist
Overcast 300'
1sm
VRB° 3kts
IFR
1:00 AM EST - 3:00 AM EST
Light Drizzle and Mist
Overcast 500'
2sm
Calm
IFR
3:00 AM EST - 7:00 AM EST
Mist
Overcast 700'
4sm
VRB° 1kts
MVFR
7:00 AM EST - 9:00 AM EST
Mist
Overcast 1,500'
Scattered 700'
5sm
260° 2kts
VFR
9:00 AM EST - 4:00 PM EST
Scattered 25,000'
Few 1,500'
Few 700'
6sm
290° 2kts
VFR
4:00 PM EST - 1:00 AM EST
Broken 25,000'
Scattered 10,000'
6sm
VRB° 4kts
TAF KSWF 040239Z 0403/0506 VRB02KT 2SM -FZRA BR OVC007
   FM040400 VRB03KT 1SM -RA BR OVC003
   FM040600 00000KT 2SM -DZ BR OVC005
   FM040800 VRB01KT 4SM BR OVC007
   FM041200 26002KT 5SM BR SCT007 OVC015
   FM041400 29002KT P6SM FEW007 FEW015 SCT250
   FM042100 VRB04KT P6SM SCT100 BKN250 AMD NOT SKED
KFWN
EffectiveExpiresCategoryNOTAM
Domestic
2/22/26
2210Z
2/25/26
1700Z
Runway!MIV 02/282 FWN RWY 03/21 CLSD 2602222210-2602251700
1/29/26
2317Z
!MIV 01/356 FWN SVC AUTOMATED WX BCST SYSTEM CHANGED TO 973-970-3780 2601292317-PERM
FDC
2/17/26
1423Z
!FDC 6/4756 FWN ODP SUSSEX, SUSSEX, NJ.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 3...
DEPARTURE PROCEDURE: RWY 3, NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS, SAX VORTAC OUT OF SERVICE. 2602171423-2609291423EST
No
0830-1700
SUSSEX AVIATION LLC
PO BOX 311
SUSSEX, NJ 07461
Phone: (973) 702-1640
JOHN MASSARI
PO BOX 311
SUSSEX, NJ 07461
Phone: (973) 702-1640
MILLVILLE FSS (MIV)
Toll Free: 1-800-WX-BRIEF
MIV
--
DUSK-DAWN. ACTVT MIRL RWY 03/21 - CTAF.
N/A
Yes - Lighted
No
Yes
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
Air Ambulance
Avionics
Pilot Instruction
Parachute Jump Activity

Runway 03/21

3506 ft. x 75 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 03 Runway 21
True Heading 16°196°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 41° 11' 44"N 41° 12' 17"N
Longitude 74° 37' 29"W 74° 37' 17"W
Elevation 421' 401'
Threshold Crossing Height 40 ft. AGL --
Visual Glide Path Angle 4° --
Visual Slope Indicator P2L --
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1PAJA, DROP ZONE LCTD SW SIDE OF RWY.
A110-10NO TGL OR PLA ALLOWED.
A110-3NON-STD TWY WIDTH, TWY AND RWY MRKGS. AIRCRAFT OPNS ON BLACKTOP ONLY.
A110-6MAIN TWY SW 1500 FT CLSD.
A110-8FOR CD CTC NEWARK APCH AT 800-645-3206.
A110-9DEER AND BIRDS ON AND INVOF ARPT.
A43-03RWY 03 PAPI OTS INDEFLY.
A48-03RWY 03 REIL OTS INDEFLY.
A48-21RWY 21 REIL OTS INDEFLY.
A57-03RWY 03 APCH RATIO 14:1 TO DSPLCD THR.
A57-21RWY 21 APCH RATIO 16:1 TO DSPLCD THR.
A58-0315 FT TREE, 38 FT FM RWY END, 176 FT RIGHT.
A58-2110 FT SIGN, 41 FT FM RWY END, 44 FT RIGHT.
A70-ASELF-SVC.
A81-APTDUSK-DAWN. ACTVT MIRL RWY 03/21 - CTAF.
E111BUILT PRIOR TO 1959.
SUSSEX (ICAO: KFWN, IATA: FWN) is a public airport located in SUSSEX, NJ, US.
