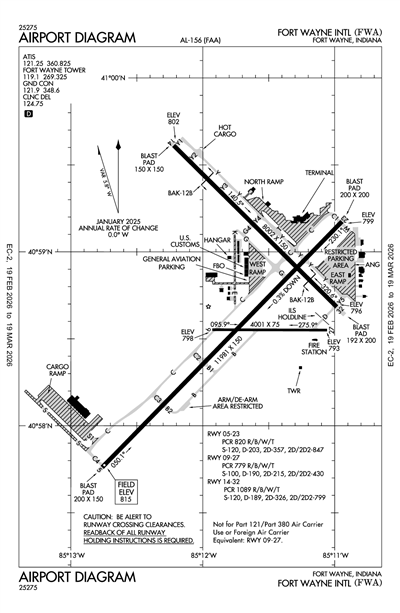

FORT WAYNE INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFWA
FORT WAYNE INTL
PublicPUB

7 miles SW of FORT WAYNE, IN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 58' 43"N 85° 11' 43"W
814' MSL
1814' MSL
JET A, JET A (FSII), 100LL
TERRE HAUTE (HUF)
CHICAGO
CHICAGO (ZAU)
4/17/25-5/15/25
KFWA MVFR
10:54 AM EST
Overcast 1,900'
10sm
45°F
39°F
29.82"Hg
260° 29kts
Gusts 43kts
AO2 PK WND 26043/1551 SLP098 T00720039
METAR KFWA 091554Z 26029G43KT 10SM OVC019 07/04 A2982 RMK AO2 PK WND 26043/1551 SLP098 T00720039
+ Add Your Business

KFWA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 121.25

Clearance

CD/P 124.75

Ground

GND/P 121.9

Tower

LCL/P 119.1

Emergency

EMERG 121.5

Other

CLASS C 127.2
SW/NW OF ACTIVE RWY
CLASS C 132.15
SE/NE OF ACTIVE RWY
COMD POST 138.625

Terminal Area Forecast

KFWA
Fri, 1/9 6:20 AM EST
Fri, 1/9 7:00 AM EST - Sat, 1/10 7:00 AM EST
VFR
7:00 AM EST - 9:00 AM EST
Broken 10,000'
Scattered 3,000'
6sm
210° 15kts
Gusts 25kts
MVFR
9:00 AM EST - 1:00 PM EST
Overcast 1,500'
6sm
250° 25kts
Gusts 38kts
MVFR
1:00 PM EST - 6:00 PM EST
Overcast 1,500'
6sm
300° 13kts
Gusts 24kts
MVFR
6:00 PM EST - 7:00 AM EST
Broken 2,500'
6sm
VRB° 4kts
TAF KFWA 091120Z 0912/1012 21015G25KT P6SM SCT030 BKN100
   FM091400 25025G38KT P6SM OVC015
   FM091800 30013G24KT P6SM OVC015
   FM092300 VRB04KT P6SM BKN025
KFWA
EffectiveExpiresCategoryNOTAM
Domestic
1/8/26
1830Z
1/8/26
2230Z
!FWA 01/305 FWA AIRSPACE FLTCK ACFT OPS WI AN AREA DEFINED AS 405354N0850953W (5NM SSE FWA) TO 404613N0850659W (13NM SSE FWA) TO 404410N0851629W (15NM SSW FWA) TO 405433N0853045W (15NM W FWA) TO 410149N0852824W (13NM WNW FWA) TO 405954N0851807W (5NM WNW FWA) TO 405811N0851817W (5NM W FWA) TO 405631N0851738W (5NM WSW FWA) TO 405506N0851617W (5NM WSW FWA) TO 405408N0851423W (5NM SW FWA) TO 405343N0851210W (5NM SSW FWA) TO POINT OF ORIGIN 1000FT-2000FT AGL INCLUDING FWA RWY 05 FINAL AND 60DEG EITHER SIDE, ACFT CS FLC81 2601081830-2601082230
1/8/26
1200Z
1/8/26
2359Z
!FWA 01/306 FWA NAV ILS RWY 05 U/S 2601081200-2601082359
1/7/26
1400Z
1/7/26
2200Z
!FWA 01/297 FWA NAV ILS RWY 05 CAT II NA 2601071400-2601072200
1/7/26
1400Z
1/7/26
2200Z
!FWA 01/296 FWA AD AP RVR ALL U/S 2601071400-2601072200
1/7/26
0303Z
2/21/26
0303Z
!FWA 01/307 FWA OBST TOWER LGT (ASR 1030882) 405851.00N0851648.00W (3.8NM W FWA) 1141.7FT (321.5FT AGL) U/S 2601070303-2602210303
12/31/25
1322Z
1/15/26
1222Z
!FWA 12/115 FWA OBST TOWER LGT (ASR 1027103) 405214.60N0851018.80W (6.6NM S FWA) 1149.6FT (319.9FT AGL) U/S 2512311322-2601151222
12/22/25
2135Z
2/27/26
2100Z
!FWA 12/919 FWA APRON MAINT REPAIR OVERHAUL RAMP CLSD 2512222135-2602272100
12/22/25
2134Z
2/27/26
2100Z
!FWA 12/918 FWA TWY F WEST 70FT CLSD 2512222134-2602272100
10/29/25
1349Z
5/31/26
2000Z
!FWA 10/130 FWA OBST CRANE (ASN 2023-AGL-5517-NRA) 405911N0851112W (0.6NM NE FWA) 928FT (130FT AGL) FLAGGED AND LGTD 2510291349-2605312000
10/29/25
1349Z
5/31/26
2000Z
!FWA 10/129 FWA OBST CRANE (ASN 2023-AGL-5518-NRA) 405910N0851113W (0.6NM NE FWA) 928FT (130FT AGL) FLAGGED AND LGTD 2510291349-2605312000
10/29/25
1349Z
5/31/26
2000Z
!FWA 10/128 FWA OBST CRANE (ASN 2023-AGL-5519-NRA) 405911N0851113W (0.6NM NE FWA) 928FT (130FT AGL) FLAGGED AND LGTD 2510291349-2605312000
10/29/25
1349Z
5/31/26
2000Z
!FWA 10/127 FWA OBST CRANE (ASN 2023-AGL-5521-NRA) 405916N0851101W (0.8NM NE FWA) 928FT (130FT AGL) FLAGGED AND LGTD 2510291349-2605312000
10/29/25
1348Z
5/31/26
2000Z
!FWA 10/126 FWA OBST CRANE (ASN 2023-AGL-5520-NRA) 405914N0851112W (0.7NM NE FWA) 928FT (130FT AGL) FLAGGED AND LGTD 2510291348-2605312000
10/29/25
1348Z
5/31/26
2000Z
!FWA 10/125 FWA OBST CRANE (ASN 2023-AGL-5516-NRA) 405911N0851113W (0.6NM NE FWA) 928FT (130FT AGL) FLAGGED AND LGTD 2510291348-2605312000
10/29/25
1347Z
5/31/26
2000Z
!FWA 10/124 FWA OBST CRANE (ASN 2023-AGL-5515-NRA) 405911N0851113W (0.6NM NE FWA) 928FT (130FT AGL) FLAGGED AND LGTD 2510291347-2605312000
10/29/25
1347Z
5/31/26
2000Z
!FWA 10/123 FWA OBST CRANE (ASN 2023-AGL-5514-NRA) 405909N0851115W (0.6NM NE FWA) 928FT (130FT AGL) FLAGGED AND LGTD 2510291347-2605312000
10/29/25
1347Z
5/31/26
2000Z
!FWA 10/122 FWA OBST CRANE (ASN 2023-AGL-5513-NRA) 405909N0851114W (0.6NM NE FWA) 928FT (130FT AGL) FLAGGED AND LGTD 2510291347-2605312000
10/29/25
1345Z
5/31/26
2000Z
!FWA 10/121 FWA OBST CRANE (ASN 2023-AGL-5512-NRA) 405911N0851112W (0.6NM NE FWA) 928FT (130FT AGL) FLAGGED AND LGTD 2510291345-2605312000
10/29/25
1345Z
5/31/26
2000Z
!FWA 10/120 FWA OBST CRANE (ASN 2023-AGL-5523-NRA) 405918N0851105W (0.8NM NE FWA) 928FT (130FT AGL) FLAGGED AND LGTD 2510291345-2605312000
10/29/25
1345Z
5/31/26
2000Z
!FWA 10/119 FWA OBST CRANE (ASN 2023-AGL-5522-NRA) 405918N0851101W (0.8NM NE FWA) 928FT (130FT AGL) FLAGGED AND LGTD 2510291345-2605312000
10/29/25
1344Z
5/31/26
2000Z
!FWA 10/118 FWA OBST CRANE (ASN 2023-AGL-5511-NRA) 405911N0851113W (0.6NM NE FWA) 928FT (130FT AGL) FLAGGED AND LGTD 2510291344-2605312000
10/29/25
1344Z
5/31/26
2000Z
!FWA 10/117 FWA OBST CRANE (ASN 2023-AGL-5510-NRA) 405910N0851114W (0.6NM NE FWA) 928FT (130FT AGL) FLAGGED AND LGTD 2510291344-2605312000
10/29/25
1344Z
5/31/26
2000Z
!FWA 10/116 FWA OBST CRANE (ASN 2023-AGL-5509-NRA) 405910N0851115W (0.6NM NE FWA) 928FT (130FT AGL) FLAGGED AND LGTD 2510291344-2605312000
10/29/25
1343Z
5/31/26
2000Z
!FWA 10/115 FWA OBST CRANE (ASN 2023-AGL-5508-NRA) 405910N0851117W (0.6NM NE FWA) 928FT (130FT AGL) FLAGGED AND LGTD 2510291343-2605312000
10/29/25
1343Z
5/31/26
2000Z
!FWA 10/114 FWA OBST CRANE (ASN 2023-AGL-5507-NRA) 405910N0851116W (0.6NM NE FWA) 928FT (130FT AGL) FLAGGED AND LGTD 2510291343-2605312000
10/29/25
1343Z
5/31/26
2000Z
!FWA 10/113 FWA OBST CRANE (ASN 2023-AGL-5506-NRA) 405910N0851116W (0.6NM NE FWA) 929FT (130FT AGL) FLAGGED AND LGTD 2510291343-2605312000
10/29/25
1342Z
5/31/26
2000Z
!FWA 10/112 FWA OBST CRANE (ASN 2023-AGL-5505-NRA) 405910N0851117W (0.6NM NE FWA) 929FT (130FT AGL) FLAGGED AND LGTD 2510291342-2605312000
10/29/25
1342Z
5/31/26
2000Z
!FWA 10/111 FWA OBST CRANE (ASN 2023-AGL-5504-NRA) 405910N0851117W (0.6NM NE FWA) 929FT (130FT AGL) FLAGGED AND LGTD 2510291342-2605312000
10/29/25
1342Z
5/31/26
2000Z
!FWA 10/110 FWA OBST CRANE (ASN 2023-AGL-5503-NRA) 405910N0851116W (0.6NM NE FWA) 929FT (130FT AGL) FLAGGED AND LGTD 2510291342-2605312000
10/29/25
1341Z
5/31/26
2000Z
!FWA 10/109 FWA OBST CRANE (ASN 2023-AGL-5502-NRA) 405911N0851116W (0.6NM NE FWA) 929FT (130FT AGL) FLAGGED AND LGTD 2510291341-2605312000
10/29/25
1341Z
5/31/26
2000Z
!FWA 10/108 FWA OBST CRANE (ASN 2023-AGL-5501-NRA) 405911N0851117W (0.6NM NE FWA) 929FT (130FT AGL) FLAGGED AND LGTD 2510291341-2605312000
FDC
1/7/26
1400Z
1/14/26
2224Z
!FDC 6/1076 FWA IAP FORT WAYNE INTL, FORT WAYNE, IN.
ILS OR LOC RWY 5 , AMDT 15C...
VOR OR TACAN RWY 14, AMDT 17B...
VOR OR TACAN RWY 23, AMDT 14...
VOR OR TACAN RWY 5, AMDT 20B...
ILS RWY 5 (CAT II), AMDT 15C...
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MIE VOR/DME OUT OF SERVICE. 2601071400-2601142224EST
12/8/25
0014Z
!FDC 5/5808 FWA IAP FORT WAYNE INTL, FORT WAYNE, IN.
RNAV (GPS) RWY 32, AMDT 1B...
LPV DA **1108/HAT 308 ALL CATS. DISREGARD NOTE **RVR 1800 AUTHORIZED WITH USE OF FD OR AP OR HUD TO DA. TEMPORARY CRANE 962 MSL 1108FT NE OF RWY 32 (2024-AGL-10483 TO 10488-NRA).
2512080014-2607202355EST
12/7/25
2350Z
!FDC 5/5806 FWA IAP FORT WAYNE INTL, FORT WAYNE, IN.
ILS OR LOC RWY 32, AMDT 31B...
S-ILS 32 DA *1107/HAT 307 ALL CATS. DISREGARD NOTE #RVR 1800 AUTHORIZED WITH USE OF FD OR AP OR HUD TO DA. FOR INOP ALS, INCREASE S-ILS ALL CATS VISIBILITY TO RVR 4500, S-LOC 32 CAT E VISIBILITY TO RVR 6000. TEMPORARY CRANE 962 MSL 1108FT NE OF RWY 32 (2024-AGL-10483 TO 10488-NRA).
2512072350-2607192355EST
6/12/25
1313Z
!FDC 5/3195 FWA IAP FORT WAYNE INTL, FORT WAYNE, IN.
ILS OR LOC RWY 32, AMDT 31B...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
FWA VORTAC R-285 RESTRICTED BELOW 12500.
2506121313-2605101313EST
Military
12/10/25
1843Z
12/30/27
2359Z
Apron!KFWA M0006/25 FWA APRON AIR NTL GUARD RAMP CLSD THROUGH TAXILANE LOCATED BETWEEN ANG WEST ROW AND YANKEE ARM DEARM PERMANENLY CLOSED 2512101843-2712302359
12/9/25
1821Z
12/31/26
2359Z
Apron!KFWA M0003/25 FWA APRON AIR NTL GUARD RAMP CLSD ENGINE RUN-UP PAD LOCATED ON THE GUARD RAMP IS PERMANENTLY CLSD 2512091821-2612312359
Yes
0500-2300
AFT HR SVC - 260-747-2624.
FT WAYNE/ALLEN CO ARPT AUTH
3801 WEST FERGUSON ROAD, SUITE 209
FORT WAYNE, IN 46809
Phone: 260-747-4146
SCOTT D. HINDERMAN
3801 WEST FERGUSON ROAD, SUITE 209
FORT WAYNE, IN 46809
Phone: 260-747-4146
TERRE HAUTE FSS (HUF)
Toll Free: 1-800-WX-BRIEF
FWA
--
ATC-CTL
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High Pressure
None
Air Freight
Air Ambulance
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 05/23

11981 ft. x 150 ft.
ASPH CONC
Good
GRVD
HIGH

120,000lbs
203,000lbs
357,000lbs
847,000lbs
  Runway 05 Runway 23
True Heading 44°224°
Traffic Pattern Left Left
Markings PIR NPI
Markings Condition GOOD GOOD
Latitude 40° 57' 46"N 40° 59' 10"N
Longitude 85° 12' 46"W 85° 10' 57"W
Elevation 814' 798'
Threshold Crossing Height -- 76 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights Yes

Runway 09/27

4001 ft. x 75 ft.
ASPH CONC
Fair
NONE


100,000lbs
190,000lbs
215,000lbs
430,000lbs
  Runway 09 Runway 27
True Heading 90°270°
Traffic Pattern
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 40° 58' 33"N 40° 58' 33"N
Longitude 85° 11' 56"W 85° 11' 03"W
Elevation 798' 793'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 14/32

8002 ft. x 150 ft.
ASPH CONC
Good
GRVD
HIGH

120,000lbs
189,000lbs
326,000lbs
799,000lbs
  Runway 14 Runway 32
True Heading 135°315°
Traffic Pattern Left Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 40° 59' 37"N 40° 58' 41"N
Longitude 85° 12' 13"W 85° 10' 59"W
Elevation 802' 796'
Threshold Crossing Height 53 ft. AGL 76 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes
A110-1BIRDS ON & INVOF ARPT.
A110-10ANG: PRK RAMP NSTD MRK INCL SOLID WHITE WINGTIP CLNC LINES BOTH SIDES OF TXL LCTD BTN E & W PRK ROWS, E & W OF BLDG 800 & MULT WHITE BOXES FOR ACFT GRD EQPT & MUNITIONS STORAGE AREA.
A110-11ANG: UNUSE PAVEMENT FOR TAX LCTD CNTR OF APN WEST OF RSTD AREA - OPS FOR INFO.
A110-12A-GEAR FOR LCL 122FW ONLY, PPR DSN 778-3202/3203 C800-842-3104 EXTN 202/203.
A110-2TWY M & EAST RAMP MIL USE ONLY; OTR BY REQUEST - ANG 260-478-3202.
A110-5TWY B ARM/DEARM AREA RSTRD TO MIL ACFT.
A110-9TWY B/B, 1/B, 2/E & K CLSD TO WINGSPAN 79 FT OR GTR & WITH DUAL WHEEL TYPE LNDG GEAR IN EXCESS OF 50000 LB.
A17AFT HR SVC - 260-747-2624.
A26ARFF INDEX C AVBL UPON REQ - 260-747-2624.
A30-09/27RWY 09/27 NOT AVBL FOR SKED ACR OPNS WITH MORE THAN 9 PSGR SEATS OR UNSKED ACR OPNS WITH AT LEAST 31 PSGR SEATS, TAX ONLY.
A39-05/23PCR VALUE: 820/R/B/W/T
A39-09/27PCR VALUE: 779/R/B/W/T
A39-14/32PCR VALUE: 1089/R/B/W/T
A70-FUEL-100LL NC-100LL, A - CALLOUT FEE 0400-1000Z++.
A81-BCNATC-CTL
E60-14HOOK BAK-12B(B) (1650 FT).
E60-32BAK-12(B) (1332 FT).
E80US CUSTOMS USER FEE ARPT.
FORT WAYNE INTL (ICAO: KFWA, IATA: FWA) is a public airport located in FORT WAYNE, IN.
