iFlightPlanner



...

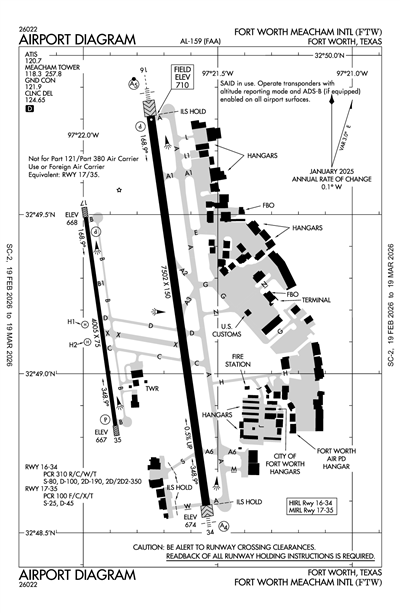

FORT WORTH MEACHAM INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFTW
ICAO KFTWIATA FTWLocal FTW
FORT WORTH MEACHAM INTL
PublicPUB

5 miles N of FORT WORTH, TX, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
32° 49' 11"N 97° 21' 45"W
Elevation
710' MSL
Pattern Alt
1710' MSL
Mag Variation
3°E
Declination
8°E
Fuel
JET A, JET A-1+, 100LL
FSS
FORT WORTH (FTW)
Sectional
DALLAS-FT WORTH
ARTCC
FORT WORTH (ZFW)
Data Effective
2/19/26-3/19/26
KFTW VFR
12:53 AM CST
Clear
10sm
72°F
61°F
29.98"Hg
170° 14kts
AO2 SLP142 T02220161
METAR KFTW 040653Z 17014KT 10SM CLR 22/16 A2998 RMK AO2 SLP142 T02220161
+ Add Your Business

KFTW FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 120.7
ASOS (817) 740-3346

Clearance

Clearance Delivery 124.65

Ground

MEACHAM GROUND 121.9

Tower

MEACHAM TOWER 118.3

Arrival

DODJE STAR 125.2
DODJE STAR 125.9
LIKES STAR 125.8
SOUTH
LIKES STAR 135.975
NORTH
MOTZA STAR 118.1
SOUTH
MOTZA STAR 125.8
NORTH
REEKO STAR 125.2
SASIE STAR 124.3
TRUUK RNAV STAR 124.3
WESAT STAR 118.1
SOUTH
WESAT STAR 125.8
NORTH

Approach

LONE STAR APPROACH 118.1
NORTH
LONE STAR APPROACH 135.975
SOUTH

Departure

BOTCH DP 118.1
NORTH
BOTCH DP 118.1
BOTCH DP 135.975
SOUTH
DALLAS AREA DP 118.1
NORTH
DALLAS AREA DP 135.975
SOUTH
GARLAND DP 118.1
NORTH
GARLAND DP 135.975
SOUTH
JOE POOL DP 135.975
LONE STAR DEPARTURE 118.1
NORTH
LONE STAR DEPARTURE 135.975
SOUTH
NANDR RNAV DP 118.1
RWY 34, 35
NANDR RNAV DP 135.975
RWY 16, 17

Flight Service

Flight Service 122.6

Emergency

Emergency 121.5

Terminal Area Forecast

KFTW
Tue, 3/3 11:22 PM CST
Wed, 3/4 12:00 AM CST - Thu, 3/5 12:00 AM CST
VFR
12:00 AM CST - 2:00 AM CST
Scattered 25,000'
6sm
160° 11kts
MVFR
2:00 AM CST - 1:00 PM CST
Broken 1,800'
6sm
180° 15kts
VFR
1:00 PM CST - 5:00 PM CST
Showers in vicinity
Broken 25,000'
Scattered 2,500'
6sm
180° 14kts
VFR
5:00 PM CST - 10:00 PM CST
Thunderstorm in vicinity
Broken 5,000'
Scattered 2,500'
6sm
190° 13kts
VFR
10:00 PM CST - 12:00 AM CST
Broken 5,000'
6sm
200° 11kts
TAF KFTW 040522Z 0406/0506 16011KT P6SM SCT250
   FM040800 18015KT P6SM BKN018
   FM041900 18014KT P6SM VCSH SCT025 BKN250
   FM042300 19013KT P6SM VCTS SCT025 BKN050CB
   FM050400 20011KT P6SM BKN050
KFTW
EffectiveExpiresCategoryNOTAM
Domestic
3/9/26
1400Z
3/9/26
2000Z
!FTW 03/037 FTW AIRSPACE UAS WI AN AREA DEFINED AS .25NM RADIUS OF 325002N0972128W (1NM NE FTW) SFC-150FT AGL 2603091400-2603092000
3/4/26
1300Z
3/4/26
1800Z
!FTW 03/065 FTW TWY H CLSD TO ACFT MORE THAN 10 KNOTS 2603041300-2603041800
2/27/26
2100Z
9/30/26
2200Z
!FTW 02/793 FTW OBST RIG (ASN 2024-ASW-11654-OE) 325010N0972037W (1.4NM NE FTW) 800FT (112FT AGL) FLAGGED AND LGTD 2602272100-2609302200
2/18/26
1539Z
3/18/26
2359Z
!FTW 02/507 FTW OBST TOWER LGT (ASR 1046939) 324551.00N0971313.00W (7.9NM ESE FTW) 934.7FT (273.0FT AGL) U/S 2602181539-2603182359
2/16/26
2249Z
3/7/26
0559Z
!FTW 02/430 FTW TWY N CLSD TO ACFT WINGSPAN MORE THAN 49FT 2602162249-2603070559
2/16/26
2246Z
3/7/26
0559Z
!FTW 02/429 FTW APRON TXL N BTN TWY N AND TXL G CLSD TO ACFT WINGSPAN MORE THAN 49FT 2602162246-2603070559
2/16/26
2243Z
3/7/26
0559Z
!FTW 02/428 FTW TWY G CLSD TO ACFT WINGSPAN MORE THAN 118FT 2602162243-2603070559
2/16/26
2243Z
3/7/26
0559Z
!FTW 02/427 FTW APRON TXL G BTN BRAVO RAMP AND TXL N CLSD 2602162243-2603070559
2/4/26
1648Z
3/21/26
1648Z
!FTW 02/098 FTW OBST TOWER LGT (ASR 1042972) 324332.00N0972306.00W (5.7NM S FTW) 924.9FT (315.0FT AGL) U/S 2602041648-2603211648
1/8/26
2222Z
Runway!FTW 01/182 FTW RWY 34 DECLARED DIST: TORA 7502FT TODA 7502FT ASDA 7306FT LDA 7306FT. 2601082222-PERM
12/3/25
2131Z
3/31/26
2359Z
!FTW 12/092 FTW OBST CRANE (ASN 2025-ASW-12280-OE) 324946N0972030W (1.3NM NE FTW) 890FT (210FT AGL) FLAGGED AND LGTD 2512032131-2603312359
11/1/25
1247Z
3/10/26
0032Z
!FTW 11/024 FTW AIRSPACE SEE FUZ 11/023 UAS DLY SR-SS
2511011247-2603100032
11/1/25
1247Z
3/10/26
0032Z
!FTW 11/020 FTW AIRSPACE SEE FUZ 11/019 UAS DLY SR-SS
2511011247-2603100032
11/1/25
1247Z
3/10/26
0032Z
!FTW 11/018 FTW AIRSPACE SEE FUZ 11/017 UAS DLY SR-SS
2511011247-2603100032
FDC
3/4/26
0221Z
4/1/26
0321Z
!FDC 6/3248 FTW SID FORT WORTH MEACHAM INTL, FORT WORTH, TX.
WORTH ONE DEPARTURE...
CORONA TRANSITION,LUBBOCK TRANSITION,TEXICO TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
LBB VOR OUT OF SERVICE. 2603040221-2604010321EST
1/7/26
1943Z
!FDC 6/1356 FTW SID FORT WORTH MEACHAM INTL, FORT WORTH, TX.
BOTCH ONE DEPARTURE (RNAV)...
NANDR THREE DEPARTURE (RNAV)...
TAKEOFF MINIMUMS RWY 16: STANDARD WITH MINIMUM CLIMB OF 204 FEET PER NM TO 1400, OR ALTERNATIVELY, WITH STANDARD TAKEOFF MINIMUMS AND A NORMAL 200 FEET PER NM CLIMB GRADIENT, TAKEOFF MUST OCCUR NO LATER THAN 1400 FEET PRIOR TO DER.
TAKEOFF MINIMUMS RWY 35: 300-1 1/4 OR STANDARD WITH MINIMUM CLIMB OF 210 FEET PER NM TO 900, OR ALTERNATIVELY, WITH STANDARD TAKEOFF MINIMUMS AND A NORMAL 200 FEET PER NM CLIMB GRADIENT, TAKEOFF MUST OCCUR NO LATER THAN 1300 FEET PRIOR TO DER.
ALL OTHER DATA REMAINS AS PUBLISHED.
2601071943-2608191943EST
1/7/26
1320Z
!FDC 6/1182 FTW SID FORT WORTH MEACHAM INTL, FORT WORTH, TX.
BOTCH ONE DEPARTURE (RNAV)...
NANDR THREE DEPARTURE (RNAV)...
TAKEOFF MINIMUMS RWY 16: STANDARD WITH MINIMUM CLIMB OF 204 FEET PER NM TO 1400, OR ALTERNATIVELY, WITH STANDARD TAKEOFF MINIMUMS AND A NORMAL 200 FEET PER NM CLIMB GRADIENT, TAKEOFF MUST OCCUR NO LATER THAN 1400 FEET PRIOR TO DER.
TAKEOFF MINIMUMS RWY 35: 300-1 1/4 OR STANDARD WITH MINIMUM CLIMB OF 210 FEET PER NM TO 900, OR ALTERNATIVELY, WITH STANDARD TAKEOFF MINIMUMS AND A NORMAL 200 FEET PER NM CLIMB GRADIENT, TAKEOFF MUST OCCUR NO LATER THAN 1300 FEET PRIOR TO DER.
ALL OTHER DATA REMAINS AS PUBLISHED.
2601071320-2608191320EST
12/5/25
1903Z
!FDC 5/5368 FTW SID FORT WORTH MEACHAM INTL, FORT WORTH, TX.
KINGDOM FIVE DEPARTURE...
LUBBOCK TRANSITION, MILLSAP TRANSITION, WICHITA FALLS TRANSITION NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MQP VORTAC OUT OF SERVICE. 2512051903-2607171903EST
12/5/25
1903Z
!FDC 5/5327 FTW SID FORT WORTH MEACHAM INTL, FORT WORTH, TX.
WORTH ONE DEPARTURE...
ABILENE TRANSITION, CORONA TRANSITION, LUBBOCK TRANSITION, TEXICO TRANSITION: NA EXCEPT FOR AIRCRAFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
MQP VORTAC OUT OF SERVICE. 2512051903-2607171903EST
8/11/25
1824Z
!FDC 5/5512 FTW SID FORT WORTH MEACHAM INTL, FORT WORTH, TX.
BOTCH ONE DEPARTURE (RNAV)...
BRHMA TRANSITION: RUFFS TO KATZZ, MOCA 3500. ALIAN TRANSITION: FUMED TO ALIAN, MOCA 3200. CIKAN TRANSITION, DOSXX TRANSITION, WSTEX TRANSITION: LYNDE TO WSTEX, MOCA 3300.
ALL OTHER DATA REMAINS AS PUBLISHED. 2508111824-2603231824EST
4/1/25
1633Z
!FDC 5/0456 FTW IAP FORT WORTH MEACHAM INTL, FORT WORTH, TX.
ILS OR LOC RWY 34, AMDT 2A...
MSA FROM FT LOM 360-090 MINIMUM ALTITUDE 2300.
2504011633-2704012359EST
3/13/25
1300Z
6/7/26
1218Z
!FDC 5/2691 FTW SID FORT WORTH MEACHAM INTL, FORT WORTH, TX.
WORTH ONE DEPARTURE...
CORONA TRANSITION NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
CNX VORTAC OUT OF SERVICE. 2503131300-2606071218EST
4/29/24
1450Z
4/29/26
2359Z
!FDC 4/6146 FTW STAR
LIKES THREE RNAV STAR MOCA BTN BIEST AND HRLIP CHANGED TO 3100
2404291450-2604292359EST
Yes
ALL
CITY OF FORT WORTH
1000 THROCKMORTON ST.
FORT WORTH, TX 76102
Phone: 817-392-5400
AARON BARTH
201 AMERICAN CONCOURSE SUITE 330
FORT WORTH, TX 76106
Phone: 817 392-5400
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
FTW
Sunset to Sunrise
--
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High Pressure
High Pressure
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 16/34

7502 ft. x 150 ft.
CONC
Good
GRVD
HIGH

80,000lbs
100,000lbs
190,000lbs
350,000lbs
  Runway 16 Runway 34
True Heading 172°352°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 32° 49' 49"N 32° 48' 35"N
Longitude 97° 21' 45"W 97° 21' 33"W
Elevation 710' 674'
Threshold Crossing Height 59 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4R --
Approach Lights MALSR MALS
Centerline Lights
Runway End Identifier Lights No No

Runway 17/35

4005 ft. x 75 ft.
ASPH
Excellent
NONE
MED

25,000lbs
45,000lbs
--
--
  Runway 17 Runway 35
True Heading 172°352°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 49' 29"N 32° 48' 50"N
Longitude 97° 21' 59"W 97° 21' 53"W
Elevation 668' 667'
Threshold Crossing Height 56 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3.75° 3.25°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H1

35 ft. x 35 ft.
CONC
Good
NONE


--
--
--
--
  Runway H1 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings NONE
Markings Condition GOOD
Latitude 32° 49' 09"N N/A
Longitude 97° 21' 60"W N/A
Elevation 710' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H2

35 ft. x 35 ft.
CONC
Good
NONE


--
--
--
--
  Runway H2 Runway
True Heading Not ListedNot Listed
Traffic Pattern
Markings NONE
Markings Condition FAIR
Latitude 32° 49' 06"N N/A
Longitude 97° 21' 59"W N/A
Elevation 669' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-34TWYS B, B1, C, AND D WEST OF RWY 16/34, TWYS C & M EAST OF TWY A, TWYS H, J, K SOUTH OF TWY D, TWY G SE OF TWY K CLSD TO ACR ACFT WITH MORE THAN 30 PSGR SEATS.
A110-38RWY 17/35 DESIGNED FOR ACFT WITH WINGSPAN 49 FT OR LESS. TWYS B & B1 DESIGNED FOR ACFT WITH WINGSPAN LESS THAN 79 FT. RWY 16/34 & TWYS A, A1 & M DESIGNED FOR ACFT WITH WINGSPAN LESS THAN 171 FT. ALL OTHER TWYS DESIGNED FOR ACFT WITH WINGSPAN LESS THAN 118 FT.
A110-39H1 & H2 HELIPADS ARE VMC DALGT USE ONLY; NON-MOVEMENT AREA.
A110-43MKD US CUST PRKG SOUTHEAST OF TXL G AND TXL N INTXN.
A110-44HELO SKIDDING OPNS PROHIBITED ON RWY 17/35. IF SKIDDING IS RQRD, COORD WITH ATCT TO USE TWY B.
A110-45PPR FOR ACR OPNS WITH MORE THAN 30 PSGR SEATS - 24 HR NOTICE RQRD - CALL ARPT OPS 817-994-0653.
A110-46ARPT FEES FOR USE OF CUST SVCS WILL BE COLLD IMT UPON LDG BY CITY OF FORT WORTH ARPT OPNS PSNL.
A110-47RWY 17/35 LED LGT CAN APPR BRGTR THAN RWY 16/34; ENSURE COR RWY ALNMT.
A110-48HELS REPOSITIONING BYD IMT PRKG APRON AND UNDER THEIR OWN PWR MUST CTC ATC.
A110-49ARFF INDEX B AVBL ALL USERS WITH PPR.
A110-6BIRDS ON & INVOF ARPT.
A30-17/35RWY 17/35 NOT AVBL FOR PART 121/PART 380 OPS WITH SKED PAX CARRYING OPS MORE THAN 9 PAX SEATS AND NON-SKED PAX CARRYING OPS MORE THAN 30 PAX SEATS.
A39-16/34PCR VALUE: 310/R/C/W/T
A39-17/35PCR VALUE: 100/F/C/X/T
E147TPA - RWY 17/35 R/W 1300(590) AGL, F/W 1500(790) AGL, RWY 16/34 1500(790) AGL, JETS 2000(1290) AGL.
FORT WORTH MEACHAM INTL (ICAO: KFTW, IATA: FTW) is a public airport located in FORT WORTH, TX, US.
