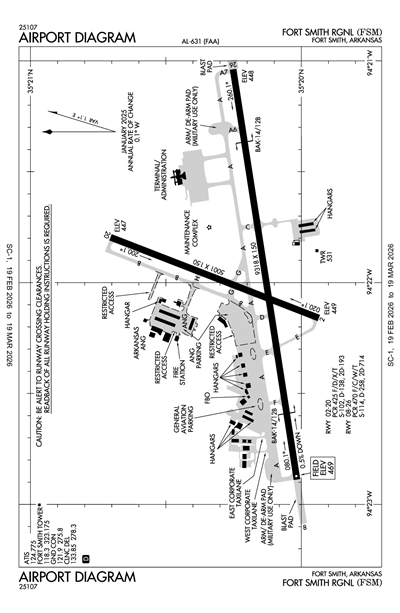

FORT SMITH RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFSM
ICAO KFSMIATA FSMLocal FSM
FORT SMITH RGNL
PublicPUB

3 miles SE of FORT SMITH, AR, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
35° 20' 12"N 94° 21' 58"W
Elevation
469' MSL
Pattern Alt
1469' MSL
Mag Variation
1°E
Declination
1°E
Fuel
JET A, 100LL
FSS
JONESBORO (JBR)
Sectional
MEMPHIS
ARTCC
MEMPHIS (ZME)
Data Effective
2/19/26-3/19/26
KFSM VFR
2:53 AM CST
Clear
9sm
65°F
59°F
30.00"Hg
040° 5kts
AO2 SLP155 T01830150 58003 $
METAR KFSM 040853Z AUTO 04005KT 9SM CLR 18/15 A3000 RMK AO2 SLP155 T01830150 58003 $
+ Add Your Business

KFSM FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 124.775
ASOS (479) 649-2425

Common

CTAF 118.3
WHEN ATCT CLSD ACTVT MALSR RWY 08 & 26; MIRL RWY 02/20; HIRL RWY 08/26 - CTAF.
UNICOM 122.95

Clearance

Clearance Delivery 133.85

Ground

FORT SMITH GROUND 121.9
0530-2300

Tower

FORT SMITH TOWER 118.3
0530-2300

Terminal

TRSA 120.9

Approach

RAZORBACK APPROACH 120.9
RAZORBACK APPROACH 120.175
Secondary
RAZORBACK APPROACH 134.525
Secondary

Departure

RAZORBACK DEPARTURE 120.9

Center

RAZORBACK CENTER 126.1
LOW, APCH/DEP SVC PRVDD BY MEMPHIS ARTCC ON FREQS 126.1/269.0 (FAYETTEVILLE RCAG) WHEN RAZORBACK APCH CTL CLSD.

Flight Service

Flight Service 122.2
(JBR)

Emergency

Emergency 121.5

Terminal Area Forecast

KFSM
Tue, 3/3 11:20 PM CST
Wed, 3/4 12:00 AM CST - Thu, 3/5 12:00 AM CST
VFR
12:00 AM CST - 5:00 AM CST
Broken 12,000'
Scattered 4,000'
6sm
070° 5kts
VFR
5:00 AM CST - 10:00 AM CST
Broken 3,500'
Scattered 2,500'
6sm
VRB° 6kts
MVFR
6:00 AM CST - 10:00 AM CST
Light Rain
Broken 4,000'
Broken 2,500'
N/A
Calm
MVFR
10:00 AM CST - 6:00 PM CST
Light Showers and Rain and Mist and Thunderstorm in vicinity
Broken 1,500'
Scattered 900'
5sm
VRB° 5kts
IFR
11:00 AM CST - 3:00 PM CST
Light Thunderstorm and Rain and Mist
Broken 1,000'
2sm
VRB° 11kts
IFR
6:00 PM CST - 12:00 AM CST
Light Thunderstorm and Rain
Broken 1,200'
Broken 800'
3sm
VRB° 6kts
TAF KFSM 040520Z 0406/0506 07005KT P6SM SCT040 BKN120
   FM041100 VRB06KT P6SM SCT025 BKN035
   PROB30 0412/0416 -RA BKN025 BKN040
   FM041600 VRB05KT 5SM -SHRA BR VCTS SCT009 BKN015CB
   PROB30 0417/0421 VRB11KT 2SM -TSRA BR BKN010CB
   FM050000 VRB06KT 3SM -TSRA BKN008 BKN012CB
KFSM
EffectiveExpiresCategoryNOTAM
Domestic
3/5/26
2101Z
3/5/26
2200Z
!FSM 02/072 FSM NAV ILS RWY 08 U/S 2603052101-2603052200
3/5/26
0600Z
3/5/26
2100Z
!FSM 02/071 FSM NAV ILS RWY 08 NOT MNT 2603050600-2603052100
3/5/26
0500Z
3/5/26
0600Z
!FSM 02/070 FSM NAV ILS RWY 08 U/S 2603050500-2603050600
3/5/26
0500Z
3/5/26
1600Z
!FSM 02/064 FSM COM REMOTE COM OUTLET 122.2 U/S 2603050500-2603051600
3/5/26
0500Z
3/6/26
0500Z
!FSM 02/063 FSM SVC TWR CLSD MNT CTAF 118.3 TERMINAL RADAR SERVICE AREA SER INVOLVING VFR ACFT NOT AVBL CTC MEMPHIS ARTCC FOR TERMINAL RADAR SERVICE AREA ARR COM ON 126.1, 269.0, FOR CLR DELIVERY AT 901-368-8453 2603050500-2603060500
3/5/26
0500Z
3/5/26
2100Z
!FSM 02/062 FSM AD AP RVR ALL U/S 2603050500-2603052100
3/5/26
0500Z
3/5/26
2100Z
!FSM 02/061 FSM SVC MBST/WS DETECTION SYSTEM NOT AVBL 2603050500-2603052100
3/5/26
0500Z
3/5/26
2100Z
!FSM 02/060 FSM SVC TAR/SSR U/S 2603050500-2603052100
3/5/26
0500Z
3/5/26
2100Z
!FSM 02/059 FSM COM REMOTE COM OUTLET 122.2 U/S 2603050500-2603052100
3/5/26
0500Z
3/5/26
2100Z
!FSM 02/058 FSM COM REMOTE TRANS/REC U/S 2603050500-2603052100
3/5/26
0500Z
3/5/26
2100Z
!FSM 02/057 FSM SVC ATIS U/S 2603050500-2603052100
3/5/26
0500Z
3/5/26
2100Z
!FSM 02/056 FSM NAV ILS RWY 26 U/S 2603050500-2603052100
3/3/26
1544Z
12/31/26
1200Z
!FSM 03/004 FSM OBST TOWER LGT (ASN 2014-ASW-2176-OE) 352337N0942621W (4.9NM NW FSM) 688FT (272FT AGL) U/S 2603031544-2612311200
3/1/26
1109Z
5/30/26
0500Z
!FSM 03/001 FSM OBST TOWER LGT (ASR 1217828) 351554.50N0942153.00W (4.3NM S FSM) 890.7FT (278.9FT AGL) U/S 2603011109-2605300500
2/27/26
1613Z
!FSM 02/075 FSM TWY C HLDG PSN SIGN BTN RWY 08/26 AND TWY A LGT U/S 2602271613-2603062300EST
2/27/26
1613Z
!FSM 02/074 FSM TWY C TWY DIRECTION SIGN FOR TWY A LGT U/S 2602271613-2603062300EST
2/27/26
1414Z
3/29/26
2359Z
!FSM 02/073 FSM OBST TOWER LGT (ASR 1295503) 351640.10N0942834.00W (6.5NM WSW FSM) 743.4FT (306.8FT AGL) U/S 2602271414-2603292359
2/2/26
2129Z
12/31/26
1200Z
!FSM 02/009 FSM OBST TOWER LGT (ASN 2014-ASW-2182-OE) 352550N0942231W (5.6NM N FSM) 723FT (293FT AGL) U/S 2602022129-2612311200
2/2/26
2129Z
12/31/26
1200Z
!FSM 02/008 FSM OBST TOWER LGT (ASN 2014-ASW-2181-OE) 352628N0942201W (6.3NM NE FSM) 950FT (233FT AGL) U/S 2602022129-2612311200
1/20/26
1529Z
4/21/26
0500Z
!FSM 01/021 FSM OBST TOWER LGT (ASR 1209674) 351329.90N0941805.00W (7.4NM SSE FSM) 1022.0FT (319.9FT AGL) U/S 2601201529-2604210500
11/3/25
1437Z
5/30/26
2359Z
!FSM 11/001 FSM OBST TOWER LGT (ASR 1043709) 353043.00N0942139.00W (10.5NM NE FSM) 1984.9FT (1172.9FT AGL) U/S 2511031437-2605302359
FDC
2/24/26
1419Z
!FDC 6/9099 FSM IAP FORT SMITH RGNL, FORT SMITH, AR.
ILS OR LOC RWY 8, AMDT 2...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
FSM VOR OUT OF SERVICE. 2602241419-2603241419EST
2/24/26
1419Z
!FDC 6/9098 FSM IAP FORT SMITH RGNL, FORT SMITH, AR.
ILS Z OR LOC Z RWY 26, AMDT 23...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
FSM VOR OUT OF SERVICE. 2602241419-2603241419EST
2/24/26
1419Z
!FDC 6/9097 FSM IAP FORT SMITH RGNL, FORT SMITH, AR.
ILS OR LOC RWY 8, AMDT 2...
TACAN REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
FSM VOR OUT OF SERVICE. 2602241419-2603241419EST
Military
3/7/26
1400Z
3/7/26
2300Z
RunwayRWY 08/26 CAUTION MIL ACFT: RWY 08/26 BAK-14 SYSTEM UNSERVICEABLE FOR MX.
3/5/26
0500Z
3/5/26
2100Z
MIL ACFT CAUTION: RWY 08/26 BAK-14 IS LIMITED DUE TO ATCT CLOSURE & MANUAL OPERATION REQUIRED.
3/3/26
2200Z
3/4/26
1230Z
AerodromeAERODROME MILITARY ACFT CAUTION: EBBING ANGB RAMPS AND AIRFIELD MANAGEMENT ARE CLOSED. FOR ACFT PARKING AND SUPPORT COORDINATE WITH THE FBO AT 479-646-1611.
3/2/26
1819Z
3/5/26
1819Z
M0079/26 NOTAMC M0075/26
3/2/26
1439Z
5/1/26
0559Z
MIL ACFT CAUTION: BASH PHASE II IN EFFECT.
3/2/26
1436Z
3/5/26
1436Z
M0077/26 NOTAMC M0073/26
3/2/26
1335Z
3/9/26
1300Z
MILITARY ACFT CAUTION: USAF AIRCRAFT RESCUE & FIRE FIGHTING (ARFF) CAPABILITIES ARE DOWNGRADED TO CRITICAL LEVEL OF SERVICE (CLS) FOR CAT 1-10 ACFT, WITH 4,000 GALLONS AVAIL, DUE TO PERSONNEL SHORTAGE. SUCCESSFUL OUTCOMES CAN ONLY BE EXPECTED WHEN THE INCIDENT CAN BE QUICKLY MITIGATED. FIREFIGHTERS ARE EXPECTED TO REVERT TO DEFENSIVE OPERATIONS WHEN THE EMERGENCY CANNOT BE QUICKLY CONTAINED. LIMITED RESOURCES EXIST. CAUTION THE PROPERTY INVOLVED IS EXPECTED TO BE DESTROYED. MILITARY AIRCRAFT CONTACT 188TH AIRFIELD MANAGEMENT (479-573-5925) FOR MORE INFORMATION AND/OR GUIDANCE
1/21/26
2027Z
4/20/26
2359Z
TaxiwayTWY G EAST PAVEMENT HEIGHT DEVIATES BY 1 INCH FROM TWY A INTERSECTION AND RWY 2/20
Yes
ALL
FORT SMITH ARPT COMMISSION
6700 MCKENNON BLVD SUITE 200
FORT SMITH, AR 72903
Phone: 479-452-7000
MICHAEL GRIFFIN
6700 MC KENNON BLVD SUITE 200
FORT SMITH, AR 72903
Phone: 479-650-3304
JONESBORO FSS (JBR)
Toll Free: 1-800-WX-BRIEF
FSM
--
WHEN ATCT CLSD ACTVT MALSR RWY 08 & 26; MIRL RWY 02/20; HIRL RWY 08/26 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Freight
Avionics
Charter Service
Pilot Instruction

Runway 02/20

5001 ft. x 150 ft.
ASPH
Good
GRVD
MED

102,000lbs
138,000lbs
193,000lbs
--
  Runway 02 Runway 20
True Heading 21°201°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 35° 19' 56"N 35° 20' 42"N
Longitude 94° 22' 10"W 94° 21' 48"W
Elevation 449' 447'
Threshold Crossing Height 50 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 08/26

9318 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

114,000lbs
175,000lbs
258,000lbs
714,000lbs
  Runway 08 Runway 26
True Heading 81°261°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 35° 20' 01"N 35° 20' 15"N
Longitude 94° 22' 53"W 94° 21' 02"W
Elevation 469' 448'
Threshold Crossing Height 51 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSR MALSR
Centerline Lights
Runway End Identifier Lights
A110-11RWY 02 AIMING POINTS 1390 FT FM THLD.
A110-12FOR CD CTC MEMPHIS ARTCC AT 901-368-8453/8449.
A110-13A-GEAR - RWY 08 AND RWY 26 BAK-14 IN-GN BARRIER HOUSINGS LCTD 275 FT CNTRLN.
A110-14A-GEAR UNAVBL WHEN TWR CLSD.
A110-15A-GEAR - RWY 08 BAK-12 ABV GND 2000 FT FM RWY 08 THLD.
A110-7LNDG FEE FOR ALL FAR 121 & FAR 135 OPNS ABOVE 12,500 LBS.
A110-8PPR FOR ALL ACFT (INCLUDING US GOVT) ABOVE 100,000 LBS. CTC AMGR 0800-1700 MON-FRI 479-452-7000; MINIMUM 24 HRS IN ADVANCE.
A110-9FLOCK OF MIGRATORY BIRDS ON & INVOF ARPT.
A14MICHAEL@FORTSMITHAIRPORT.COM
A2624 HRS PPR FOR UNSKED ACR OPNS WITH MORE THAN 30 PSGR SEATS CALL AMGR 479-452-7000.
A39-02/20PCR VALUE: 425/F/D/X/T
A39-08/26PCR VALUE: 470/F/C/W/T
A43-02PAPI UNUSBL BYD 8 DEGS LEFT OF CNTRLN.
A43-20PAPI UNUSBL BYD 5 DEGS RIGHT OF CNTRLN.
A70-100LL100LL AVBL 24 HRS SELF SERVE. FOR JET A SAT & SUN 2200-0600, CALL 479-646-1611.
A81-APTWHEN ATCT CLSD ACTVT MALSR RWY 08 & 26; MIRL RWY 02/20; HIRL RWY 08/26 - CTAF.
E60-08_BAK-14BAK-14 BAK-12B(B) (1500')
E60-26_BAK-14BAK-14 BAK-12B(B) (1651')
FORT SMITH RGNL (ICAO: KFSM, IATA: FSM) is a public airport located in FORT SMITH, AR, US.
