iFlightPlanner



...

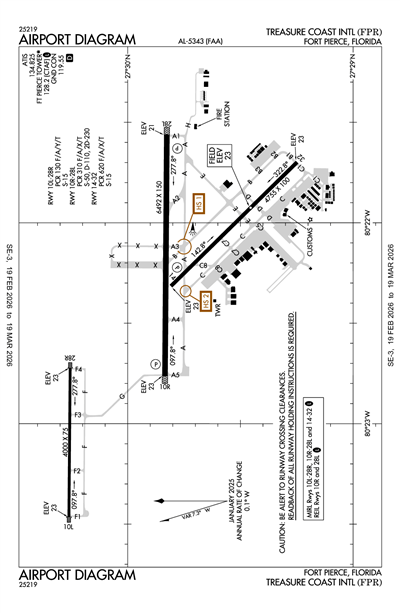

TREASURE COAST INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFPR
ICAO KFPRIATA FPRLocal FPR
TREASURE COAST INTL
PublicPUB

3 miles NW of FORT PIERCE, FL, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
27° 29' 51"N 80° 22' 21"W
Elevation
23' MSL
Pattern Alt
1023' MSL
Mag Variation
7°W
Declination
7°W
Fuel
JET A, 100LL
FSS
MIAMI (MIA)
Sectional
MIAMI
ARTCC
MIAMI (ZMA)
Data Effective
2/19/26-3/19/26
KFPR VFR
8:53 PM EST
Clear
10sm
72°F
67°F
30.22"Hg
090° 7kts
AO2 SLP234 T02220194
METAR KFPR 040153Z 09007KT 10SM CLR 22/19 A3022 RMK AO2 SLP234 T02220194
+ Add Your Business

KFPR FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 134.825
ASOS (772) 489-4281

Common

CTAF 128.2
ACTVT REIL RWY 10R & 28L; MIRL RWY 10L/28R, 10R/28L & 14/32 - CTAF.

Ground

FT PIERCE GROUND 119.55
0700-2100

Tower

FT PIERCE TOWER 128.2
0700-2100

Approach

PALM BEACH APPROACH 132.8
SOUTH

Departure

PALM BEACH DEPARTURE 132.8
SOUTH

Flight Service

Ground Communication Outlet 119.55
GCO AVBL ON FREQ 119.55 PALM BEACH CD.

Terminal Area Forecast

KFPR
Tue, 3/3 6:20 PM EST
Tue, 3/3 7:00 PM EST - Wed, 3/4 7:00 PM EST
VFR
7:00 PM EST - 10:00 AM EST
Showers in vicinity
Scattered 3,000'
6sm
080° 8kts
VFR
10:00 AM EST - 7:00 PM EST
Scattered 3,000'
6sm
100° 12kts
TAF KFPR 032320Z 0400/0424 08008KT P6SM VCSH SCT030
   FM041500 10012KT P6SM SCT030
KFPR
EffectiveExpiresCategoryNOTAM
Domestic
2/22/26
0521Z
3/9/26
0421Z
!FPR 02/015 FPR OBST TOWER LGT (ASR 1240933) 272235.60N0803443.80W (13.4NM WSW FPR) 285.1FT (261.2FT AGL) U/S 2602220521-2603090421
2/20/26
0659Z
3/7/26
0559Z
!FPR 02/014 FPR OBST TOWER LGT (ASR 1046022) 272609.10N0802239.10W (3.7NM S FPR) 479.7FT (464.9FT AGL) U/S 2602200659-2603070559
1/9/26
1646Z
4/9/26
0500Z
!FPR 01/005 FPR OBST TOWER LGT (ASR 1061062) 272253.40N0802948.40W (9.8NM SW FPR) 274.9FT (254.9FT AGL) U/S 2601091646-2604090500
1/8/26
1515Z
3/31/26
2200Z
!FPR 01/004 FPR OBST CRANE (ASN 2025-ASO-8215-NRA) 272907N0802149W (0.9NM SSE FPR) 66FT (45FT AGL) FLAGGED 2601081515-2603312200
12/31/25
1201Z
4/1/26
0500Z
!FPR 12/036 FPR OBST TOWER LGT (ASR 1061704) 272344.10N0802144.80W (6.1NM S FPR) 504.6FT (491.8FT AGL) U/S 2512311201-2604010500
12/21/25
1706Z
3/20/26
0500Z
!FPR 12/028 FPR OBST TOWER LGT (ASR 1058006) 272644.50N0802446.60W (3.8NM SW FPR) 276.6FT (256.9FT AGL) U/S 2512211706-2603200500
12/17/25
1133Z
!FPR 12/019 FPR TWY B BTN RWY 10R/28L AND TWY A CLSD 2512171133-PERM
8/18/25
1200Z
!FPR 08/005 FPR TWY C8 CLSD 2508181200-PERM
5/6/24
1100Z
!FPR 05/006 FPR TWY C4 CLSD 2405061100-PERM
FDC
2/25/26
1400Z
!FDC 6/9311 FPR IAP TREASURE COAST INTL, FORT PIERCE, FL.
ILS OR LOC RWY 10R, AMDT 5A...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
TRV DME OUT OF SERVICE. 2602251400-2603031900EST
8/13/25
0404Z
!FDC 5/6585 FPR IAP TREASURE COAST INTL, FORT PIERCE, FL.
RNAV (GPS) RWY 10R, AMDT 3...
RNAV (GPS) RWY 14, AMDT 2C...
RNAV (GPS) RWY 28L, AMDT 1D...
CIRCLING CAT B MDA 540/HAA 517. TEMPORARY CRANE 189 MSL 1.5NM SE OF RWY 32 (2025-ASO-16408-OE). TEMPORARY CRANE 266 MSL 2.0NM SE OF RWY 32 (2022-ASO-17854-OE).
2508130404-2702190404EST
8/13/25
0404Z
!FDC 5/6584 FPR IAP TREASURE COAST INTL, FORT PIERCE, FL.
RNAV (GPS) RWY 32, AMDT 1D...
LNAV MDA 580/HAT 557 ALL CATS, VIS CATS C/D 1 5/8. CIRCLING CAT A/B MDA 580/HAA 557. JILKO STEPDOWN FIX ALTITUDE 620*. VDP NA. TEMPORARY CRANE 266 MSL 1.9NM SE OF RWY 32 (2025-ASO-16427-OE). TEMPORARY CRANE 189 MSL 1.5NM SE OF RWY 32 (2025-ASO-16408-OE). TEMPORARY CRANE 189 MSL 1.5NM SE OF RWY 32 (2022-ASO-17851-OE). TEMPORARY CRANE 266 MSL 2.0NM SE OF RWY 32 (2022-ASO-17854-OE).
2508130404-2702190404EST
Yes
0700-2100
ST. LUCIE COUNTY
2300 VIRGINIA AVE
FT PIERCE, FL 34982
Phone: 772-462-1732
CAMERON HOWARD
3000 CURTIS KING BOULEVARD
FT PIERCE, FL 34946
Phone: 772-462-1727
MIAMI FSS (MIA)
Toll Free: 1-800-WX-BRIEF
FPR
--
ACTVT REIL RWY 10R & 28L; MIRL RWY 10L/28R, 10R/28L & 14/32 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
High & Low Pressure
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 10L/28R

4000 ft. x 75 ft.
ASPH
Good
NONE
MED

15,000lbs
--
--
--
  Runway 10L Runway 28R
True Heading 90°270°
Traffic Pattern Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 27° 30' 16"N 27° 30' 15"N
Longitude 80° 23' 28"W 80° 22' 43"W
Elevation 23' 23'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 10R/28L

6492 ft. x 150 ft.
ASPH
Fair
NONE
MED

50,000lbs
110,000lbs
230,000lbs
--
  Runway 10R Runway 28L
True Heading 90°270°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 27° 29' 50"N 27° 29' 50"N
Longitude 80° 22' 46"W 80° 21' 34"W
Elevation 23' 21'
Threshold Crossing Height 52 ft. AGL 63 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 14/32

4755 ft. x 100 ft.
ASPH
Excellent
NONE
MED

15,000lbs
--
--
--
  Runway 14 Runway 32
True Heading 135°315°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 27° 29' 48"N 27° 29' 15"N
Longitude 80° 22' 19"W 80° 21' 42"W
Elevation 22' 23'
Threshold Crossing Height 46 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110*GTHIS AIRPORT HAS BEEN SURVEYED BY THE NATIONAL GEODETIC SURVEY.
A110-108 FT FENCE 400 FT FM CNTRLN ON NORTH SIDE OF RWY 10R/28L AND EAST OF RWY 14/32.
A110-11VOLUNTARY NOISE ABATEMENT PROCS IN EFCT, CTC ARPT MGMT AT 772-462-1732.
A110-12LGTD ARFF COM ANT 125 FT AGL (149 FT AMSL) LCTD 793 FT SSE OF RWY 27 THLD.
A110-13RWY 10L/28R VFR TRNG RWY.
A110-14HIGH TENSION PLINES 1/4 SM 'W' AER 10L UNMKD & UNLIGHTED.
A110-15DRAINAGE CHANNEL 80 FT WIDE, 10 FT DEEP, 600 FT FM AER 10L.
A110-16DRAINAGE CHANNEL 80 FT WIDE, 10 FT DEEP 530 FT AER 28R. 2 FT DRAINAGE DITCH 361 FT FR RY 10R THLD 259 FT RIGHT.
A110-172 FT DRAINAGE DITCH 797 FT FM THR RWY 28L 349 FT LEFT.
A110-182 FT DRAINAGE DITCH 367 FT 'W' OF TWY 'A1' BTWN TWY 'A' & RWY 10L/28R.
A110-20FOR CD, IF UNA VIA GCO, CTC PALM BEACH APCH AT 561-684-9047 OR 561-275-1430.
A110-21GCO AVBL ON FREQ 119.55 PALM BEACH CD.
A110-3EXTENSIVE FLIGHT TRAINING ON AND WITHIN 20 MILES OF ARPT BLO 6000 FT. VFR TRAINING ACFT OUTSIDE OF CLASS D AIRSPACE TRANSMIT INTENDED ACTIVITY ON 123.3.
A110-6NUMEROUS FLOCKS OF BIRDS & WILDLIFE ON AND INVOF ARPT.
A110-9TWY C1 RESTRICTED TO ACFT WITH A WING SPAN OF 105 FT OR LESS.
A32-10R/28L25' PAVED SHOULDERS.
A32-14/3250' PAVED SHOULDERS.
A39-10L/28RPCR VALUE: 130/F/A/Y/T
A39-10R/28LPCR VALUE: 310/F/A/X/T
A39-14/32PCR VALUE: 620/F/A/X/T
A57-10RRWY 10R APCH SLP 50:1 TO AER.
A57-28LRWY 28L APCH SLP 34:1 TO AER.
A57-28RRWY 28R APCH SLP 21:1 TO AER.
A70-100LL100LL SELF SERVE
A81-APTACTVT REIL RWY 10R & 28L; MIRL RWY 10L/28R, 10R/28L & 14/32 - CTAF.
TREASURE COAST INTL (ICAO: KFPR, IATA: FPR) is a public airport located in FORT PIERCE, FL, US.
