No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFOK
FRANCIS S GABRESKI
PublicPUB

3 miles N of WESTHAMPTON BEACH, NY
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
40° 50' 37"N 72° 37' 55"W
66' MSL
1066' MSL
13W
JET A, 100LL
NEW YORK (ISP)
NEW YORK
NEW YORK (ZNY)
7/11/24-8/8/24
KFOK VFR
6:53 AM EDT
Broken 4,200'
10sm
68°F
63°F
29.91"Hg
010° 9kts
AO2 SLP127 T02000172
KFOK 191053Z 01009KT 10SM BKN042 20/17 A2991 RMK AO2 SLP127 T02000172
Add Your Business

KFOK FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 125.3

ASOS

ASOS
631-288-0588
 119.925

Emergency

EMERG
 121.5

Ground

GND/P
 121.8

Tower

LCL/P
 125.3

FAA A/FD Pages

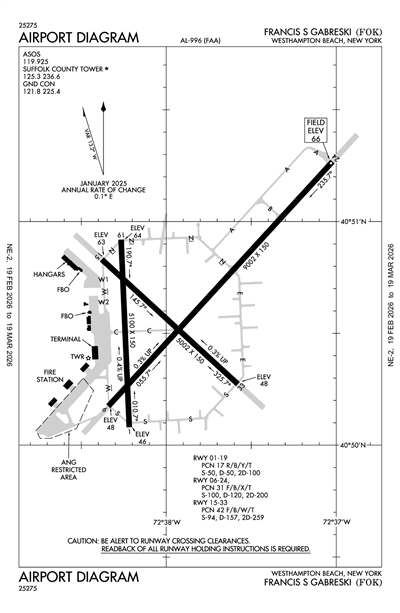

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KISP (22nm)
Thu, 9/19 4:31 AM EDT
Thu, 9/19 5:00 AM EDT - Fri, 9/20 2:00 AM EDT
VFR
5:00 AM EDT - 9:00 AM EDT
Broken 12,000'
Few 3,500'
6sm
010° 8kts
VFR
9:00 AM EDT - 7:00 PM EDT
Broken 7,000'
Broken 5,000'
Few 3,000'
6sm
020° 13kts
Gusts 20kts
VFR
7:00 PM EDT - 2:00 AM EDT
Broken 5,000'
6sm
020° 11kts
KISP 190831Z 1909/2006 01008KT P6SM FEW035 BKN120
   FM191300 02013G20KT P6SM FEW030 BKN050 BKN070
   FM192300 02011KT P6SM BKN050
KFOK
Domestic
9/18/241100Z !FOK 09/033 FOK OBST RIG (ASN 2024-AEA-3696-NRA) 405048N0723828W (0.4NM WNW FOK) 106FT (46FT AGL) FLAGGED 2409181100-2409182000
9/18/241100Z !FOK 09/032 FOK OBST RIG (ASN 2024-AEA-3697-NRA) 405051N0723834W (0.5NM WNW FOK) 107FT (46FT AGL) FLAGGED 2409181100-2409182000
9/18/241100Z !FOK 09/031 FOK OBST RIG (ASN 2024-AEA-3506-NRA) 405049N0723827W (0.4NM WNW FOK) 107FT (46FT AGL) FLAGGED 2409181100-2409182000
9/9/241100Z !FOK 09/010 FOK TWY E CLSD MON-FRI 1100-1900 2409091100-2409201900
9/7/242153Z !FOK 09/012 FOK OBST TOWER LGT (ASR 1003626) 405210.00N0723435.00W (3.0NM ENE FOK) 349.7FT (169.9FT AGL) U/S 2409072153-2410082300
9/6/240138Z !FOK 09/008 FOK AD AP ABN NOT ROTATING 2409060138-2409210138
FDC
8/27/241452Z !FDC 4/6505 FOK IAP FRANCIS S GABRESKI, WESTHAMPTON BEACH, NY.
ILS OR LOC RWY 24, AMDT 11A...
RADAR REQUIRED FOR PROCEDURE ENTRY EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
HTO VOR OUT OF SERVICE. 2408271452-2504081452EST
4/19/231450Z !FDC 3/3830 FOK IAP FRANCIS S GABRESKI, Westhampton Beach, NY.
ILS OR LOC RWY 24, AMDT 11A...
TERMINAL ROUTE FROM HTO VOR/DME (IAF) TO MATTY INT NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
HTO VOR R-308 UNUSABLE.
2304191450-2504201450EST
Military
9/19/242300Z !KFOK M0104/24 FOK PJE WITHIN AREA DEFINED AS 2NM RADIUS OF FOK 2409192300-2409200230
Yes
0700-2300
COUNTY OF SUFFOLK
COUNTY CENTER
RIVERHEAD, NY 11901
Phone: (631) 852-8095
JOSHUA SMITH
GABRESKI AIRPORT, ADMINISTRATION BLDG #1
WESTHAMPTON, NY 11978
Phone: 631-852-8095
NEW YORK FSS (ISP)
Toll Free: 1-800-WX-BRIEF
FOK
--
WHEN ATCT CLSD ACTVT MALSR RWY 24; REIL RWY 06, 15, & 33; PAPI RWY 06, 15 & 24; VASI RWY 33; HIRL RWY 06/24; MIRL RWY 15/33 - CTAF.
N/A
Yes
No
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
57
2
7
8
11
0
Major
Major
High & Low Pressure
None
Avionics
Charter Service
Aircraft Sales

Runway 01/19

5100 ft. x 150 ft.
ASPH CONC
Good
NONE

17 /R/B/Y/T
50,000lbs
50,000lbs
100,000lbs
--
  Runway 01 Runway 19
True Heading 357°177°
Traffic Pattern
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 40° 50' 05"N 40° 50' 55"N
Longitude 72° 38' 13"W 72° 38' 16"W
Elevation 46' 64'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 06/24

9002 ft. x 150 ft.
ASPH CONC
Good
NONE
HIGH
31 /F/B/X/T
100,000lbs
120,000lbs
200,000lbs
--
  Runway 06 Runway 24
True Heading 43°223°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 40° 50' 10"N 40° 51' 16"N
Longitude 72° 38' 20"W 72° 37' 01"W
Elevation 48' 66'
Threshold Crossing Height 66 ft. AGL 77 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 15/33

5002 ft. x 150 ft.
ASPH
Good
NONE
MED
42 /F/B/W/T
94,000lbs
157,000lbs
259,000lbs
--
  Runway 15 Runway 33
True Heading 132°313°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 40° 50' 50"N 40° 50' 16"N
Longitude 72° 38' 23"W 72° 37' 35"W
Elevation 63' 48'
Threshold Crossing Height 62 ft. AGL 57 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-10OIL - O-148-156(MIL) SOAP.
A110-11RSTD - NO 180 DEG TURNS PMTD ON ASPH SECTION OF RWY 06/24.
A110-12CAUTION: BIRDS AND DEER HAZ. PJE VCNTY OF ARPT.
A110-13CSTMS/AG/IMG: US CSTMS CLNC SVC AVBL WITH PN (FRG) 631-753-2691 (MIL FLTS WILL COORD THRU BASE OPNS 631-723-7362/7364). MIN 24 HR PN ON RGLR BUS DAY PRECDNG SVC RQR DATE, MAX PAX 15. US CSTMS HRS BTN 0800 AND 2200 LOCAL.
A110-14CLASS D AIRSPACE EFF 1200-0400Z++; OT CLASS G.
A110-15MILITARY: ANG: PPR OFFL BUS. FOR USE OF ANG RAMP. OFFL BUS ONLY PPR ALL ACFT, 48 HR PN, CTC AFLD OPS DSN 456-7362, C631-723-7362 DRG DUTY HR. TUE-FRI PPR DRG OFF-DUTY HR. 106 OG/CC APVL REQUIRED NML DUTY HR. NML DUTY HR 1200-2130++ MON-FRI. CLSD SAT, SUN, HOL AND EV OTR MON. LTD RAMP SPACE. TRAN ACFT MAY BE DIVERTED TO CIV FBO DRG NON-DUTY HR. NON-STANDARD MARKINGS ON HH-60 APRON; WHITE PAINTED LINES DENOTING A ROADWAY ON THE APRON BY THE PODS INDICATING WHERE A VEHICLE MUST DRIVE IN ORDER TO MAINTAIN ALL NECESSARY WINGTIP CLEARANCES.
A110-17VOLUNTARY NOISE ABATEMENT PROCS IN EFCT; SEE ARPT WEBSITE.
A110-18ANG: ADVSY FOR TRAN AIRCREWS - WING TIP CLNC WAIVER IN EFFECT ON GUARD C-130 RAMP.
A110-19FUEL: A++ (MIL) AVBL.
A110-2BEARING STRENGTH RWY 01-19: S50 T50 ST175 TT100.
A110-20FOR CD WHEN ATCT CLSD CTC NEW YORK APCH AT 516-683-2449.
A110-21RCMDD RSVN WITH FBO PRIOR TO ARR.
A110-22WHEN SAFETY AND OPNS ALLOW, RWY 24 PREF FOR NOISE ABATEMENT.
A110-3BEARING STENGTH RWY 06-24: S54 T110 ST175 SBTT600 TT300 TDT900 DDT850 TRT720.
A110-4BEARING STENGTH RWY 15-33: S54 T120 ST175 SBTT430 TT250 TDT740 DDT540 TRT580.
A110-7JASU: AVBL DUR ANG OPR HR. (A/M32A-86) 2(MA-1A).
A110-8FUEL: AVBL DUR ANG OPR HR. J8(MIL) (NC-100LL, A).
A110-9FLUID - SP DE-ICE LOX.
FRANCIS S GABRESKI (ICAO: KFOK, IATA: FOK) is a public airport located in WESTHAMPTON BEACH, NY.
