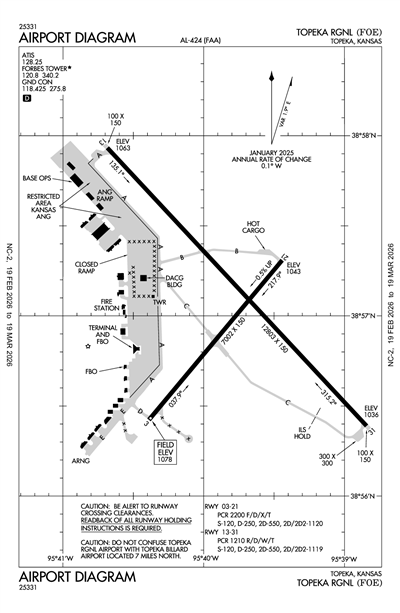

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFOE
TOPEKA RGNL
PublicPUB

6 miles S of TOPEKA, KS
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
38° 57' 03"N 95° 39' 49"W
1078' MSL
2078' MSL
05E
JET A, 100LL
WICHITA (ICT)
KANSAS CITY
KANSAS CITY (ZKC)
10/31/24-11/28/24
KFOE LIFR
5:53 AM CST
Mist
Overcast 400'
3sm
49°F
48°F
29.94"Hg
120° 11kts
AO2 RAB37E43 SLP139 P0000 60019 7//// T00940089 10111 20089 58000 $
KFOE 091153Z 12011KT 3SM BR OVC004 09/09 A2994 RMK AO2 RAB37E43 SLP139 P0000 60019 7//// T00940089 10111 20089 58000 $
Add Your Business

KFOE FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 120.8

ATIS

ATIS
 128.25

Emergency

EMERG
 121.5

Ground

GND/P
 118.425

Tower

LCL/P
 120.8

Other

ARNG OPS
 32.1

Terminal Area Forecast

KFOE
Sat, 11/9 5:40 AM CST
Sat, 11/9 6:00 AM CST - Sun, 11/10 6:00 AM CST
IFR
6:00 AM CST - 9:00 AM CST
Mist
Overcast 800'
4sm
130° 13kts
Gusts 24kts
VFR
9:00 AM CST - 3:00 PM CST
Scattered 2,000'
6sm
170° 14kts
Gusts 24kts
VFR
3:00 PM CST - 5:00 PM CST
Few 3,000'
6sm
180° 13kts
Gusts 24kts
VFR
5:00 PM CST - 6:00 AM CST
Scattered 3,500'
6sm
200° 8kts
KFOE 091140Z 0912/1012 13013G24KT 4SM BR OVC008
   FM091500 17014G24KT P6SM SCT020
   FM092100 18013G24KT P6SM FEW030
   FM092300 20008KT P6SM SCT035
KFOE
Domestic
11/3/240529Z !FOE 11/003 FOE OBST TOWER LGT (ASR 1276612) 385834.00N0954834.00W (7.0NM WNW FOE) 1664.0FT (499.0FT AGL) U/S 2411030529-2412312359
10/7/241726Z !FOE 10/006 FOE TWY A BTN APCH END RWY 03 AND NORTH RAMP CLSD 2410071726-2412312100
8/6/241350Z !FOE 08/029 FOE RWY 03 VASI U/S 2408061350-2412311600
8/6/241332Z !FOE 08/028 FOE RWY 21 RWY END ID LGT U/S 2408061332-2412310200
8/6/241332Z !FOE 08/027 FOE RWY 21 PAPI U/S 2408061332-2412310200
8/6/241331Z !FOE 08/026 FOE RWY 03 RWY END ID LGT U/S 2408061331-2412310200
8/6/241202Z !FOE 08/023 FOE TWY B BTN RWY 13/31 AND APCH END RWY 21 CLSD 2408061202-2412312100
8/6/241201Z !FOE 08/022 FOE TWY E CLSD 2408061201-2412312100
8/6/241200Z !FOE 08/021 FOE TWY D CLSD 2408061200-2412312100
8/6/241159Z !FOE 08/020 FOE RWY 03/21 CLSD 2408061159-2412312100
FDC
4/28/231253Z !FDC 3/8219 FOE IAP TOPEKA RGNL, TOPEKA, KS.
VOR/DME OR TACAN RWY 21, AMDT 7B...
S-21 MDA 1460/HAT 412 ALL CATS.
2304281253-2504281253EST
Military
9/8/241412Z AIR NTL GUARD RAMP PARKING SPOT 3A, 3B RESTRICTED TAXI-ON TOW-OFF. PARKING SPOT 2A RESTRICTED TAXI-OFF TOW-ON. PARKING SPOT 2B RESTRICTED TOW-ON TOW-OFF ONLY.
9/8/241406Z AIR NTL GUARD RAMP PARKING SPOT 5A, 5B, 6A, 6B CLSD
Yes
0545-2200
MILITARY USE: SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
METROPOLITAN TOPEKA ARPT AUTH
6510 SE FORBES AVE #1
TOPEKA, KS 66619
Phone: 785-862-2362
MR ERIC M JOHNSON
6510 SE FORBES AVE #1
TOPEKA, KS 66619
Phone: 785-862-2362
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
FOE
--
WHEN ATCT CLSD, ACTVT MALSF RWY 13; MALSR RWY 31; MIRL RWY 03/21; & HIRL RWY 13/31 - CTAF. VASI RWY 03 AND PAPI RWY 13, 21 & 31 OPR CONSLY.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Air Freight
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 03/21

7002 ft. x 150 ft.
ASPH
Excellent
GRVD
MED
46 /R/C/X/T
75,000lbs
140,000lbs
220,000lbs
620,000lbs
  Runway 03 Runway 21
True Heading 40°220°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 38° 56' 25"N 38° 57' 18"N
Longitude 95° 40' 23"W 95° 39' 27"W
Elevation 1,078' 1,043'
Threshold Crossing Height 47 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 13/31

12803 ft. x 150 ft.
CONC
Excellent
GRVD
HIGH
89 /R/C/X/T
75,000lbs
200,000lbs
280,000lbs
760,000lbs
  Runway 13 Runway 31
True Heading 137°317°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 38° 57' 56"N 38° 56' 23"N
Longitude 95° 40' 41"W 95° 38' 51"W
Elevation 1,063' 1,036'
Threshold Crossing Height 54 ft. AGL 59 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSF MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-10JASU: 14(A/M32A-86D) 11(A/M32A-95)
A110-11FUEL: A+ (MILLION AIRTOPEKA,1200-0400Z++, C785-862-0950; OT 3 HR PN RQR, C785-862-6104/785-224-2899.) A++(MIL)
A110-12FLUID: ADI SP LPOX LOX OIL - O-128-148(MIL) - AVBL ONLY IN QT CANS.
A110-13CAUTION: DO NOT MISTAKE PHILIP BILLARD MUNI, LCTD 7 NM N HDG 010 DEG, FOR TOPEKA RGNL.
A110-14NSABTMT: VFR TFC AVOID OVFT OF HSG AREA 2 NM W RWY 13.
A110-15MISC: RWY 13-31 GROOVED.
A110-17ANG: PPR FOR ANG RAMP AND SVC DSN 720-4655/4663, NO LATER THAN 72 HR. PRIOR. AIRFIELD MGMT, MAINT OPR CTL (MOC), AND POL AVBL 1330-2200Z++ WKD, CLSD WKEND AND FEDERAL HOL. SVC MAY BE AVBL OT, ACFT PRK ON ANG RAMP, CTC WYLIE CON 20 MIN PRIOR LDG, ADVS ON ARR AND DEP 255.5.
A110-19ANG CONT: NO FLEET SVC AVBL. OIL (SOAP) SAMPLING NOT AVBL. NO DRAG CHUTE REPACK AVBL. PRECISION MEASURING EQPT LABORATORY PICKUP AND DEL EXP 1.5 HR DELAY. TRAN SVC AVBL AT FBO. TRAN MAINT AND PARTS SUPPORT (EXC KC-135R ACFT)EXTREMELY LTD. NO QTRS AVBL. DE-ICING FLUID AVBL TO TRAN ACFT AT FBO.
A110-2TFC PTN: 1000 FT AGL FOR LGT (SLOW) ACFT & 1500 FT FOR HEAVY (FAST) ACFT.
A110-20ARNG: OPR 1300-2300Z++TUE-FRI EXC HOL, OCNL SAT, SUN. LTD MAINT UH-60A. TRANS ARMY ACFT CTC OPS DSN 720-8725, C785-274-1725. OPS CALL COML 785-646-3825/3827. ARMY ACFT CTC RNG OPS 32.1. ARNG RAMP & FAC LCTD WEST OF APCH END RWY 03.
A110-21CAUTION: BIRD HAZ PHASE II APR-MAY & AUG-OCT.
A110-22RAPID REFUL AVBL F/W, R/W DUR FBO HR 0600L-2200L. CTC FBO 785-862-0950 24 HR PN & ARINC 129.85 PRIOR TO LNDG. ADZ ATC FOR RAPID REFUL OPS & PROCD TO NORTH RAMP. 5 ACFT SIMULTANEOUS OPS AVBL.
A110-6(E110) OPERS ARPT LGTG ONLY.
A110-8LARGE & SMALL MIGRATORY BIRDS ON & INVOF ARPT.
TOPEKA RGNL (ICAO: KFOE, IATA: FOE) is a public airport located in TOPEKA, KS.
