KFMN
FOUR CORNERS RGNL
PublicPUB

1 miles NW of FARMINGTON, NM
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 44' 29"N 108° 13' 48"W
5507' MSL
6507' MSL
12E
JET A, JET A-1+, 100LL
ALBUQUERQUE (ABQ)
DENVER
DENVER (ZDV)
12/26/24-1/23/25
No METAR is available for this location.
Add Your Business

KFMN FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 118.9

ATIS

ATIS
 127.15

ASOS

ASOS
505-325-9268
 127.15

Emergency

EMERG
 121.5

Ground

GND/P
 121.7

Tower

LCL/P
 118.9

FAA A/FD Pages

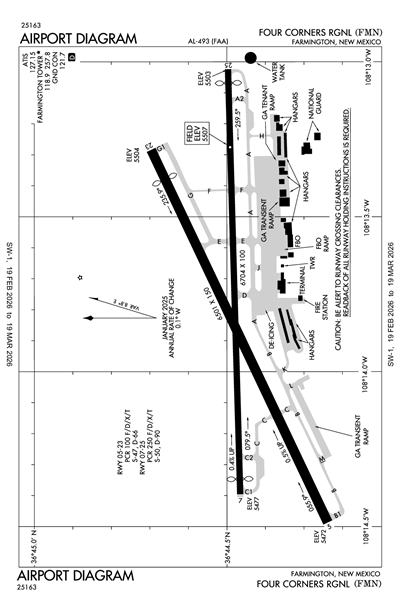

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

No TAF is available for this location.
KFMN
Domestic
1/15/251700Z !FMN 01/006 FMN RWY 25 VASI U/S 2501151700-2501152100
1/15/251700Z !FMN 01/005 FMN RWY 07 VASI U/S 2501151700-2501152100
1/13/251940Z !FMN 01/007 FMN OBST OIL RIG (ASN UNKNOWN) 364322N1081249W (2NM SE FMN) UNKNOWN (115FT AGL) FLAGGED AND LGTD 2501131940-2501202359
1/8/251429Z !FMN 01/004 FMN RWY 25 RWY END ID LGT U/S 2501081429-2501222000EST
1/7/251918Z !FMN 01/003 FMN OBST TOWER LGT (ASR 1002463) 364016.00N1081356.00W (4.2NM S FMN) 6348.1FT (322.8FT AGL) U/S 2501071918-2502072359
Yes
0600-2200
CITY OF FARMINGTON
800 MUNICIPAL DRIVE
FARMINGTON, NM 87401
Phone: 505-599-1100
MICHAEL LEWIS
800 MUNICIPAL DRIVE
FARMINGTON, NM 87401
Phone: 505-599-1394
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
FMN
--
WHEN ATCT CLSD ACTVT REIL RWY 23 & 25; PAPI RWY 05 & 23; VASI RWY 07 & 25; MIRL RWY 05/23 & 07/25 - CTAF. REIL RWY 25 & MIRL RWY 07/25 PRESET LOW INTST.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
Low Pressure
Low Pressure
Air Freight
Air Ambulance
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 05/23

6501 ft. x 150 ft.
ASPH
Excellent
GRVD
MED
29 /F/C/X/T
47,000lbs
66,000lbs
--
--
  Runway 05 Runway 23
True Heading 65°245°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 36° 44' 14"N 36° 44' 42"N
Longitude 108° 14' 29"W 108° 13' 17"W
Elevation 5,472' 5,504'
Threshold Crossing Height 42 ft. AGL 42 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes

Runway 07/25

6704 ft. x 100 ft.
ASPH
Good
PFC
MED
29 /F/C/X/T
50,000lbs
90,000lbs
--
--
  Runway 07 Runway 25
True Heading 88°268°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 36° 44' 28"N 36° 44' 30"N
Longitude 108° 14' 24"W 108° 13' 01"W
Elevation 5,477' 5,503'
Threshold Crossing Height 50 ft. AGL 55 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-1FOR CD CTC FARMINGTON ATCT GROUND CONTROL 121.7, WHEN ATCT CLSD CTC DENVER ARTCC AT 303-651-4257
A110-2ARPT SURFACE CONDITIONS ARE NOT MONITORED OUTSIDE OF ATTENDED HOURS.
FOUR CORNERS RGNL (ICAO: KFMN, IATA: FMN) is a public airport located in FARMINGTON, NM.
