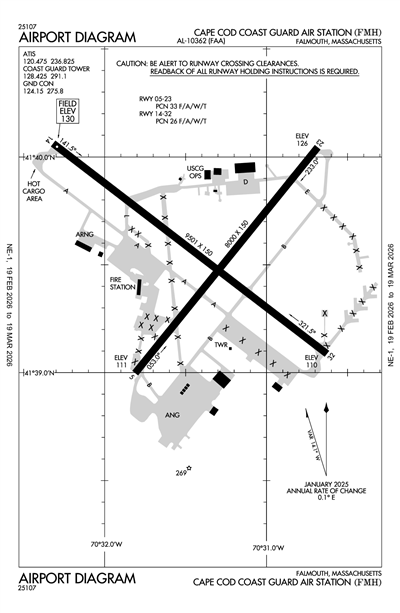

No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFMH
CAPE COD COAST GUARD AIR STATION
PrivatePVT

View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 39' 33"N 70° 31' 22"W
130' MSL
1100' MSL
15W
JP-5
BRIDGEPORT (BDR)
NEW YORK
BOSTON (ZBW)
7/11/24-8/8/24
KFMH LIFR
6:18 AM EDT
Mist
Overcast 500'
0.75sm
63°F
63°F
29.94"Hg
080° 6kts
KFMH 191018Z 08006KT 3/4SM BR OVC005 17/17 A2994
Add Your Business

KFMH FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

ATIS
508-968-6563
 120.475

Emergency

EMERG
 121.5

Ground

GND/P
 124.15

Tower

LCL/P
 128.425

Other

ARMY OPS
 122.85
ARNG OPS
 46.85
ARNG OPS
 138.5

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KFMH
Thu, 9/19 1:20 AM EDT
Thu, 9/19 2:00 AM EDT - Fri, 9/20 2:00 AM EDT
IFR
2:00 AM EDT - 3:00 AM EDT
Showers in vicinity
Broken 800'
6sm
060° 6kts
IFR
3:00 AM EDT - 7:00 AM EDT
Light Showers and Rain and Mist
Overcast 700'
4sm
060° 6kts
LIFR
7:00 AM EDT - 8:00 AM EDT
Showers and Rain and Mist
Overcast 400'
4sm
050° 12kts
Gusts 20kts
IFR
8:00 AM EDT - 2:00 AM EDT
Light Showers and Rain and Mist
Overcast 600'
5sm
050° 12kts
Gusts 21kts
KFMH 190520Z 1906/2006 06006KT P6SM VCSH BKN008
   FM190700 06006KT 4SM -SHRA BR OVC007
   FM191100 05012G20KT 4SM SHRA BR OVC004
   FM191200 05012G21KT 5SM -SHRA BR OVC006 AMD NOT SKED
KFMH
Domestic
9/19/241300Z !FMH 09/004 FMH SVC TAR/SSR U/S 2409191300-2409191900
FDC
6/15/231154Z !FDC 3/1102 FMH IAP CAPE COD COAST GUARD AIR STATION, FALMOUTH, MA.
COPTER ILS Y OR LOC Y RWY 23, AMDT 2A...
COPTER ILS Y OR LOC Y RWY 32, ORIG...
ILS Z OR LOC Z RWY 23, AMDT 2A...
ILS Z OR LOC Z RWY 32, AMDT 2...
MSA FROM MVY VOR/DME 25NM 270 CW 090 MINIMUM ALTITUDE 2100, 090 CW 270 MINIMUM ALTITUDE 1900. (PERM OBST 2020-WTE-6308-OE).
2306151154-2504131154EST
6/12/231611Z !FDC 3/9083 FMH IAP U.S. DOD CAPE COD COAST GUARD AIR STATION, FALMOUTH, MA.
RNAV (GPS) RWY 32, ORIG...
LNAV/VNAV DA 438/HAT 322 ALL CATS.
LNAV MDA 540/HAT 424 ALL CATS.
VDP 1.19NM TO RW32.
(PERM OBST: 2022-ANE-2836-OE).
2306121611-2506121611EST
Military
9/4/241304Z !KFMH M0114/24 FMH SVC AUTOMATED WX BCST SYSTEM NOT AVBL MONITOR ATIS OR CONTACT ATC DIRECTLY FOR MOST CURRENT WEATHER CONDITIONS 2409041304-2409181200
8/9/241159Z !KFMH M0112/24 FMH NAV ILS RWY 23 NOT MNT 2408091159-2411012200
7/9/241318Z !KFMH M0089/24 FMH AD ABN OBSC NE SIDE THROUGH WEST ALL ALTITUDES 2407091318-2410032359
Yes
ALL
US COAST GUARD
3172 HERBERT RD
BUZZARDS BAY, MA 02542
TONY HYLINSKI
3172 HERBERT RD, BUILDING 3172
BUZZARDS BAY, MA 02542
Phone: 508-968-6674
BRIDGEPORT FSS (BDR)
Toll Free: 1-800-WX-BRIEF
FMH
--
DUSK-2300.
N/A
CLEAR SIDE IS SPLIT LIGHT..76... TURNED ON DAYLGT HRS WHEN A/D IS UNDER IFR CONDITIONS.
Yes
No
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
Low Pressure
None

Runway 05/23

8000 ft. x 150 ft.
ASPH
CONC
NONE
HIGH
33 /F/A/W/T
--
--
--
--
  Runway 05 Runway 23
True Heading 39°219°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 39' 00"N 41° 40' 02"N
Longitude 70° 31' 48"W 70° 30' 42"W
Elevation 110' 126'
Threshold Crossing Height 51 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes No

Runway 14/32

9501 ft. x 150 ft.
ASPH
CONC
NONE
HIGH
26 /F/A/W/T
--
--
--
--
  Runway 14 Runway 32
True Heading 127°307°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 41° 40' 03"N 41° 39' 06"N
Longitude 70° 32' 18"W 70° 30' 38"W
Elevation 130' 110'
Threshold Crossing Height 47 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No
Runway End Identifier Lights Yes No
A110-16RSTD: ANG RAMP UNUSBL. NO PPR FOR MIL/LAW ENFORCEMENT/MED FLT. CTC ARPT MGMT C508-968-6674 24 HR PRIOR IF PRKG/RON (EXCLD ACTIVE MEDEVAC). NO CIV LDG WO PPR FM ARPT MGMT. NO TSNT SVC INCL FUEL.
A110-22ARNG: PPR FOR ARNG RAMP, LTD FUEL AVBL: CTC OPS C508-968-5850. OPR 1200-2200Z++ MON-FRI, LTD SVC AVBL SAT-SUN WITH PRIOR COORDN. CTC BOSOX OPS 10 MIN PRIOR TO ARR ON 341.675, 138.5, 46.85. FLT BRIEFING RQRD PRIOR TO OPS IN R-4101. CTC OSA F/W DET C508-968-5291/5292 TO COORD JOSAC PAX ARR/DEP.
A110-23USCG: PPR FOR USCG RAMP, LTD SVC AVBL WITH PRIOR COORDN C508-968-6360/6361, DSN 557-6360/6361 OR C800-673-1056. ARR ACFT CTC USCG OPS (CAPEAIR) 345.0, 122.975 OR 164.55 15 MIN PRIOR TO ARR.
A110-26BRG STRENGTH RWY 05-23 & 14-32: ST175.
A110-27SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK & AP/1A.
A110-32MISC: PPR IF ACN EXCEEDS PUBLD PCN. CTC ARPT MGMT C508-968-6674/6673 FOR APVL.
A110-33ANG APN IS THE ONLY APN CPBL OF ACPTG C5 AT GWT.
A110-34TGL OPS FOR ACFT OVR 200000 LBS PROHIBITED.
A110-7CAUTION: EXTSV BIRD ACT ALL QUADS. CK ATIS FOR UAS ACT IN CLASS D ASP. NON-STD OBST LGTD 368 FT TWRS 4 NM NNE OF ARPT.
A110-8NON-STD OBSTN LGTD 368 FT TWRS NE OF ARPT.
CAPE COD COAST GUARD AIR STATION (ICAO: KFMH, IATA: FMH) is a private airport located in FALMOUTH, MA.
