KFHU
SIERRA VISTA MUNI-LIBBY AAF
PublicPUB

3 miles N of FORT HUACHUCA SIERRA VISTA, AZ
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
31° 35' 19"N 110° 20' 40"W
4719' MSL
5719' MSL
10E
JET A, 100
PRESCOTT (PRC)
PHOENIX
ALBUQUERQUE (ZAB)
4/17/25-5/15/25
KFHU VFR
11:55 PM MST
Clear
10sm
67°F
55°F
30.12"Hg
270° 4kts
AO2 SLP139 T01950125 402730156
KFHU 030655Z AUTO 27004KT 10SM CLR 20/13 A3012 RMK AO2 SLP139 T01950125 402730156
+ Add Your Business

KFHU FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 124.95

ATIS

ATIS
 134.75

Approach/Departure

APCH/P DEP/P
 127.05

Emergency

EMERG
 121.5

Ground

GND/P
 121.7

Tower

LCL/P
 124.95

Other

BASE OPS
 122.95

FAA A/FD Pages

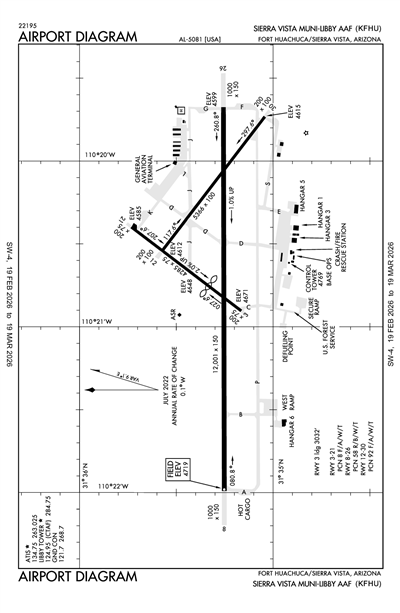

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KFHU
Mon, 6/2 9:00 PM MST
Mon, 6/2 9:00 PM MST - Wed, 6/4 3:00 AM MST
VFR
9:00 PM MST - 4:00 AM MST
Scattered 5,000'
6sm
30.12"Hg
240° 9kts
VFR
Becoming 4:00 AM MST - 10:00 AM MST
Scattered 3,000'
6sm
30.15"Hg
VRB° 6kts
VFR
Becoming 10:00 AM MST - 1:00 PM MST
Scattered 5,000'
6sm
29.97"Hg
260° 12kts
VFR
Becoming 1:00 PM MST - 6:00 PM MST
Broken 5,500'
6sm
30.00"Hg
260° 12kts
Gusts 18kts
Light Turbulence: 4,000 - 5,000'
VFR
Becoming 6:00 PM MST - 3:00 AM MST
Few 5,000'
6sm
30.06"Hg
260° 9kts
TAF KFHU 030400Z 0304/0410 24009KT 9999 SCT050 QNH3013INS
   BECMG 0311/0312 VRB06KT 9999 NSW SCT030 QNH3015INS
   BECMG 0317/0318 26012KT 9999 SCT050 QNH2998INS
   BECMG 0320/0321 26012G18KT 9999 BKN055 510005 QNH2999INS
   BECMG 0401/0402 26009KT 9999 FEW050 QNH3006INS TX29/0322Z TN16/0312Z
KFHU
Domestic
5/25/251800Z !FHU 05/024 FHU AIRSPACE SEE ZAB 05/226 NUMEROUS GLD DLY 1800-0100 2505251800-2506060100
5/5/251417Z !FHU 05/010 FHU TWY G CLSD 2505051417-2507312359
5/4/250101Z !FHU 05/007 FHU RWY 08 DECLARED DIST: TORA 8200FT TODA 8200FT ASDA 8200FT LDA 8200FT. 2505040101-2508012359
5/4/250101Z !FHU 05/005 FHU RWY 26 THR DISPLACED 3800FT MARKING NOT STD. DECLARED DIST: TORA 8200FT TODA 8200FT ASDA 8200FT LDA 8200FT. 2505040101-2508012359
5/3/251300Z !FHU 05/009 FHU TWY F CLSD 2505031300-2507312359
5/3/251300Z !FHU 05/008 FHU TWY J BTN CIV RAMP AND TWY G CLSD 2505031300-2508012359
5/2/250300Z !FHU 05/006 FHU RWY 26 PAPI U/S 2505020300-2508012359
3/31/251518Z !FHU 03/024 FHU TWY K BTN TWY D AND APCH END RWY 21 CLSD 2503311518-2506302359
3/31/251400Z !FHU 03/023 FHU RWY 12/30 CLSD EXC XNG AT TWY D AND TWY J 2503311400-2506302359
3/31/251400Z !FHU 03/020 FHU RWY 12 SIGNS LGT U/S 2503311400-2506302359
3/31/251400Z !FHU 03/019 FHU TWY P BTN TWY E AND RWY 12/30 CLSD 2503311400-2506302359
3/31/251400Z !FHU 03/018 FHU RWY 12/30 REDL U/S 2503311400-2506302359
3/31/251400Z !FHU 03/017 FHU TWY S BTN EAST RAMP AND APCH END RWY 30 CLSD 2503311400-2506302359
3/31/251400Z !FHU 03/016 FHU RWY 21 SIGNS LGT U/S 2503311400-2506302359
3/31/251400Z !FHU 03/015 FHU RWY 03 SIGNS LGT U/S 2503311400-2506302359
3/31/251400Z !FHU 03/014 FHU RWY 03/21 REDL U/S 2503311400-2506302359
3/31/251400Z !FHU 03/013 FHU RWY 03/21 WIP OPEN FOR TAXI SOUTH OF TWY J 2503311400-2506302359
3/31/251400Z !FHU 03/011 FHU RWY 30 PAPI U/S 2503311400-2506302359
3/31/251400Z !FHU 03/010 FHU RWY 12 PAPI U/S 2503311400-2506302359
3/31/251400Z !FHU 03/008 FHU RWY 30 SIGNS LGT U/S 2503311400-2506302359
3/26/250000Z !FHU 03/006 FHU AIRSPACE UAS WI AN AREA DEFINED AS
314723.30N1104620.30W (21.4NM SSE TUS) TO 313757.50N1104416.20W
(14.1NM NNE OLS) TO 314201.20N1103006.70W (10.5NM WNW FHU) TO
315117.80N1103640.30W (15.6NM SW E95) TO POINT OF ORIGIN SFC-400FT
AGL DLY 0000-2359 2503260000-2512312359
12/19/241905Z !FHU 12/013 FHU RWY 08 PAPI U/S EXC HIGH INTST ON CONS 2412191905-2512312359
12/4/240000Z !FHU 12/007 FHU AIRSPACE UAS WI AN AREA DEFINED AS 3.5NM EITHER SIDE
OF A LINE FM 314509N1102056W (9.8NM NNW FHU) TO 315651N1102007W
(3.3NM SSE E95) SFC-400FT AGL DLY 0000-2359 2412040000-2512032359
12/4/240000Z !FHU 12/005 FHU AIRSPACE UAS WI AN AREA DEFINED AS 1.5NM EITHER SIDE
OF A LINE FM 314318N1102344W (8.4NM NNW FHU) TO 314320N1101830W
(8.2NM N FHU) TO 314511N1101141W (10.1NM WNW P29) TO 314651N1100416W
(7.0NM NNW P29) SFC-400FT AGL DLY 0000-2359 2412040000-2512032359
11/30/211539Z !FHU 11/010 FHU RWY 21 CHANGED TO 3032FT X 75FT. DECLARED DIST: TORA 3032FT TODA 3032FT ASDA 3032FT LDA 3032FT. 2111301539-PERM
FDC
5/4/250114Z !FDC 5/5612 FHU IAP SIERRA VISTA MUNI-LIBBY AAF, FORT HUACHUCA SIERRA VISTA, AZ.
TACAN RWY 26, AMDT 1B...
VOR RWY 26, AMDT 5A...
S-26 NA.
2505040114-2512140114EST
5/4/250114Z !FDC 5/5611 FHU IAP SIERRA VISTA MUNI-LIBBY AAF, FORT HUACHUCA SIERRA VISTA, AZ.
RNAV (GPS) RWY 26, ORIG-B...
LNAV MDA NA.
2505040114-2512140114EST
5/4/250114Z !FDC 5/5610 FHU IAP SIERRA VISTA MUNI-LIBBY AAF, FORT HUACHUCA SIERRA VISTA, AZ.
ILS OR LOC RWY 26, AMDT 4C...
S-ILS RWY 26 NA
S-LOC RWY 26 NA.
2505040114-2512140114EST
Military
5/3/250300Z !KFHU M0031/25 FHU NAV ILS RWY 26 GP U/S 2505030300-2507252359
4/7/251400Z BASE OPS HOURS OF OPERATIONS
3/20/251536Z PAR U/S
Yes
MON-FRI 1400-2230Z
US ARMY INTELLIGENCE CTR
FORT HUACHUCA
FORT HUACHUCA, AZ 85613
Phone: 520-538-2860
SHARON FLISSAR
401 GIULIO CESARE AVE
SIERRA VISTA, AZ 85635
Phone: 520-458-5775
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
FHU
--
ACTVT PAPI RWY 08, 26, 12 & 30; HIRL RWY 08/26; MIRL RWY 03/21 & 12/30; PERIMETER LGT H1 - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
None
None
None
None
None

Runway 03/21

4285 ft. x 75 ft.
ASPH CONC
Good
NONE
MED
8 /F/A/W/T
--
--
--
--
  Runway 03 Runway 21
True Heading 37°217°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 31° 35' 10"N 31° 35' 44"N
Longitude 110° 20' 56"W 110° 20' 27"W
Elevation 4,670' 4,585'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 08/26

12001 ft. x 150 ft.
CONC
Excellent
NONE
HIGH
58 /R/B/W/T
75,000lbs
200,000lbs
450,000lbs
700,000lbs
  Runway 08 Runway 26
True Heading 90°270°
Traffic Pattern Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 31° 35' 15"N 31° 35' 15"N
Longitude 110° 22' 01"W 110° 19' 43"W
Elevation 4,719' 4,599'
Threshold Crossing Height 50 ft. AGL 80 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 12/30

5366 ft. x 100 ft.
ASPH CONC
Good
NONE
MED
92 /F/A/W/T
46,000lbs
106,000lbs
137,000lbs
172,000lbs
  Runway 12 Runway 30
True Heading 127°307°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 31° 35' 34"N 31° 35' 03"N
Longitude 110° 20' 36"W 110° 19' 46"W
Elevation 4,612' 4,615'
Threshold Crossing Height 51 ft. AGL 51 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway H1

40 ft. x 40 ft.

ASPH
NONE
PERI

--
--
--
--
  Runway H1 Runway
True Heading 79°259°
Traffic Pattern
Markings
Markings Condition
Latitude 31° 35' 28"N N/A
Longitude 110° 19' 45"W N/A
Elevation 4,573' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-11WHEN CLASS D ASP IN EFCT UNMANNED AERIAL VEHICLES OPR SFC - 7000 FT MSL.
A110-14USAF WX FCST AVBL 0500-2000 FM DAVIS MONTHAN AFB.
A110-16TWY G & J LMTD TO SW ACFT MAX 33000 LB; TWY K LMTD TO SW ACFT MAX 50000 LB; TWY D & ACFT APRON ON NW SIDE LMTD TO DW ACFT MAX 100000 LB.
A110-17CRCG S OF RWY 08 & 30 NA.
A110-18MIL JET OPS WKDAYS; BIRD HAZ INVOF RWYS ON TKOF & APCH; DEER ON & INVOF ARPT SPCLY AT NIGHT.
A110-20MIL POL 1530-2230Z MON-FRI; EXC HOL; OTR TIMES 24 HR PRIOR NOTICE - D879-2860/2862. POL SVC RQR CREW ATND TO SPECIFY FUEL/OIL RQMNTS; FUEL LMTD TO 6000 GAL; JET A AVBL 1400-2230Z DLY; OTR TIMES C520-234-3552; SVC FEE.
A110-21TRAN ALERT: TSNT CTC LIBBY ATC OR BAOPS TO COORD PRKG.
A110-28CSTMS/AG/IMG: AVBL WITH 72 HR PN FOR US MIL OR DOD CONTR ACFT ONLY.
A110-29MISC: TSNT & RON ACFT USING MIL SIDE SIGN IN AT BAOPS PRIOR TO DEPG FLT LINE. ASSAULT STRIP 5 NM NE 72 HR PPR. NONSKED ARR RQRG ASST - EOC 533-2291.
A110-3PRKG MIL TSNT SIGN IN AT BASE OPS PRIOR TO LV FLT LINE.
A110-30MILITARY USE: OPR 0600-0600Z SUN-SAT; EXC HOL. OTR TIME 72 HR PPR - D879-2860/2862/C520-538-2860/2862. SEE FLIP AP/1 SUPPLEMENTARY ARPT RMK.
A110-32MISC: WX OBSN/FCST 0600-0600Z SUN-FRI; EXC HOL. OTR TIMES ASOS. LIBBY WX AVBL - 122.95 D879-3798/2865/C520-538-3798/2865.
A110-33RSTD: 24 HR PPR FOR TSNT MIL; CIV ACFT PPR TO ENTER MIL RAMP.
A110-34CTN: EXP WS ALL RWYS; ARPT SW WIND MAY NOT REP WIND ON FNA.
A110-35MISC: REMOTE BRIEFING SVC AVBL 25 OWS DAVIS-MONTHAN AFB D228-6598/6599/6588/C520-228-6598/6599/6588 OR HTTPS://25OWS.US.AF.MIL.
A110-36MISC: LIBBY BAOPS 0600-0600Z SUN-SAT; EXC HOL. TR TIME 72 HR PPR. D879-2860/2862/C520-538-2860/2862.
A110-38RSTD: TWY G LMTD TO S33; TWY K LMTD TO S50.
A110-39ASP CLASS D SFC AREA LMTD TO DEP & FSL DURG NGT UNMANNED ACFT OPS; EXP DELAYS. MANNED & UNMANNED ACFT NOT AUTH IN SAME TFC PAT. MANNED ARR MAY FLW UNMANNED ACFT ON FNA.
A110-40CIVIL TFC PAT UNAVBL DURG DALGT UNMANNED ACFT TFC PAT OPS; DEP & FSL AUTH.
A110-41TPA: 981 FT AGL FIXED WING UNMANNED ACFT.
A110-42TPA: DO NOT EXCEED 5700 FT UNTIL DER.
A110-43CTN: RWY 08/26 & 12/30 OVRNS UNAVBL; BLW 25 PAVEMENT COND INDEX.
A110-44TWY P & S EDGE LGT N/A.
A110-6TFC PAT: FIXED WING NORTH; ROTARY WING SOUTH; ALT FIXED WING RECIPROCATING 5700 FT; ROTOR WING 5500 FT; FIXED WING TURBOPROP/JET 6200 FT.
SIERRA VISTA MUNI-LIBBY AAF (ICAO: KFHU, IATA: FHU) is a public airport located in FORT HUACHUCA SIERRA VISTA, AZ.
