iFlightPlanner



...
No Certified Airport Diagram Available
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFFZ
FALCON FLD
PublicPUB

5 miles NE of MESA, AZ
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
33° 27' 39"N 111° 43' 42"W
1394' MSL
2702' MSL
12E
JET A, JET A-1+, 100LL
PRESCOTT (PRC)
PHOENIX
ALBUQUERQUE (ZAB)
4/17/25-5/15/25
KIWA (11nm) VFR
12:50 PM MST
Clear
10sm
72°F
46°F
30.08"Hg
Calm
METAR KIWA 271950Z 00000KT 10SM CLR 22/08 A3008
+ Add Your Business

KFFZ FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 124.6

ATIS

ATIS
480-641-9378
 118.25

Ground

GND/P
 121.3

Tower

LCL/P
 124.6

FAA A/FD Pages

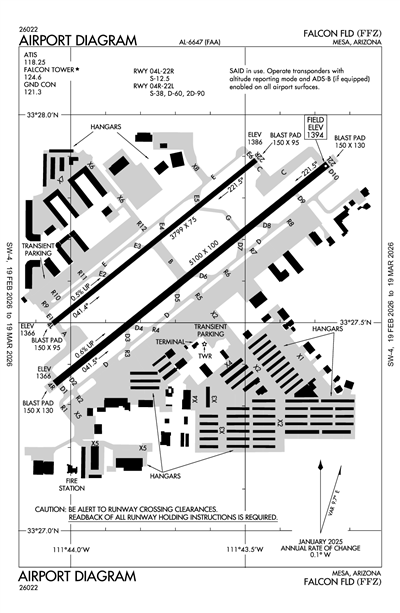

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

Instrument Approach

Terminal Area Forecast

KIWA (11nm)
Thu, 11/27 10:20 AM MST
Thu, 11/27 11:00 AM MST - Fri, 11/28 11:00 AM MST
VFR
11:00 AM MST - 5:00 PM MST
Scattered 25,000'
6sm
140° 5kts
VFR
5:00 PM MST - 8:00 PM MST
Broken 25,000'
Scattered 20,000'
6sm
VRB° 5kts
VFR
8:00 PM MST - 11:00 AM MST
Scattered 25,000'
Few 20,000'
6sm
110° 6kts
TAF KIWA 271720Z 2718/2818 14005KT P6SM SCT250
   FM280000 VRB05KT P6SM SCT200 BKN250
   FM280300 11006KT P6SM FEW200 SCT250
KFFZ
EffectiveExpiresCategoryNOTAM
Domestic
12/1/25
1800Z
12/2/25
0300Z
!FFZ 11/042 FFZ APRON HELIPADS ALL CLSD 2512011800-2512020300
12/1/25
1800Z
12/2/25
0300Z
!FFZ 11/038 FFZ APRON FALCON RAMP 515FT N OF HANGAR RAMP CLSD 2512011800-2512020300
12/1/25
1300Z
12/1/25
2300Z
!FFZ 11/039 FFZ APRON HANGAR RAMP W OF HANGAR MM CLSD 2512011300-2512012300
11/26/25
1300Z
11/26/25
1700Z
!FFZ 11/043 FFZ OBST CRANE (ASN UNKNOWN) 332812N1114400W (.54NM NW FFZ)
UNKNOWN (70FT AGL) FLAGGED 2511261300-2511261700
11/21/25
0648Z
1/5/26
0647Z
!FFZ 11/037 FFZ OBST TOWER LGT (ASN 2018-AWP-12011-OE) 332759N1114327W (0.4NM NNE FFZ) 1431FT (50FT AGL) U/S 2511210648-2601050647
11/9/25
1200Z
12/31/25
0400Z
!FFZ 11/012 FFZ TWY A SHOULDER MARKINGS NOT STD 2511091200-2512310400
11/9/25
1200Z
12/31/25
0401Z
!FFZ 11/011 FFZ TWY C SHOULDER MARKINGS NOT STD 2511091200-2512310401
11/3/25
1200Z
1/5/26
1200Z
!FFZ 10/033 FFZ OBST CRANE (ASN 2024-AWP-7006-NRA) 332719N1114334W (0.3NM SSE FFZ) 1412FT (30FT AGL) FLAGGED 2511031200-2601051200
9/5/25
0000Z
12/31/25
2359Z
!FFZ 09/003 FFZ AIRSPACE SEE PXR 09/040 UAS DLY 0000-2359
2509050000-2512312359
8/21/25
1440Z
12/31/25
2200Z
!FFZ 08/008 FFZ APRON HANGAR RAMP WIP CONST 2508211440-2512312200
8/7/25
1734Z
10/31/26
2200Z
!FFZ 08/004 FFZ APRON HANGAR RAMP BTN HANGAR MM AND HANGAR GG CLSD 2508071734-2610312200
4/29/25
2135Z
12/31/25
1200Z
!FFZ 04/016 FFZ APRON WATER TOWER RAMP CLSD 2504292135-2512311200
FDC
10/27/25
1357Z
!FDC 5/7001 FFZ ODP FALCON FLD, MESA, AZ.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 4...
TAKEOFF OBSTACLE NOTES: RWY 4R, TEMPORARY CRANE, 927FT FROM DER, 57FT RIGHT OF CENTERLINE, 30 AGL/1420 MSL (2024-AWP-10023-OE). ALL OTHER DATA REMAINS AS PUBLISHED. 2510271357-2606081357EST
10/27/25
1354Z
!FDC 5/6993 FFZ IAP FALCON FLD, MESA, AZ.
RNAV (GPS) RWY 4L, AMDT 1D...
LNAV CAT A/B/C MDA 1860/HAT 477, VIS CAT C 1 3/8. TEMPORARY CRANE 1548 MSL 2272FT SE OF RWY 4L (2024-AWP-4973 TO 4974-NRA).
2510271354-2606081354EST
10/27/25
1353Z
!FDC 5/6988 FFZ IAP FALCON FLD, MESA, AZ.
RNAV (GPS) RWY 4R, AMDT 1F...
LNAV CAT A/B/C MDA 1860/HAT 476, VIS CAT C 1 3/8. TEMPORARY CRANE 1548 MSL 1602FT SE OF RWY 4R (2024-AWP-4973 TO 4975-NRA).
2510271353-2606081353EST
9/23/25
1328Z
!FDC 5/8887 FFZ IAP FALCON FLD, MESA, AZ.
RNAV (GPS)-B, AMDT 1...
CIRCLING CAT A MDA 1880/HAA 486, CAT C MDA 2100/HAA 706, VIS CAT C
2. DELETE CIRCLING ICON.
THIS IS RNAV (GPS)-B, AMDT 1A. 2509231328-PERM
Yes
AUG 16 - MAY 14 FRI-SUN 0530-1600
AUG 16 - MAY 14 MON-THUR 0530-1800
MAY 15 - AUG 15 FRI-SUN 0500-1530
MAY 15 - AUG 15 MON-THUR 0500-1800
CITY OF MESA
4800 E FALCON DR
MESA, AZ 85215-2506
Phone: 480-644-2450
CORINNE NYSTROM
4800 E FALCON DR.
MESA, AZ 85215
Phone: 480-644-2450
PRESCOTT FSS (PRC)
Toll Free: 1-800-WX-BRIEF
FFZ
--
ACTVT MIRL RWY 04L/22R; TWY LGTS - CTAF. WHEN ATCT CLSD MIRL RWY 04L/22R NA; MIRL RWY 04R/22L; TWY LGTS PRESET LOW INTST; INCR INTST - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High & Low Pressure
Air Ambulance
Avionics
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04L/22R

3799 ft. x 75 ft.
ASPH
Good
NONE
MED

12,000lbs
--
--
--
  Runway 04L Runway 22R
True Heading 51°231°
Traffic Pattern Right
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 33° 27' 30"N 33° 27' 53"N
Longitude 111° 44' 03"W 111° 43' 28"W
Elevation 1,366' 1,386'
Threshold Crossing Height 42 ft. AGL 42 ft. AGL
Visual Glide Path Angle 4° 4°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 04R/22L

5100 ft. x 100 ft.
ASPH
Good
NONE
MED

38,000lbs
60,000lbs
90,000lbs
--
  Runway 04R Runway 22L
True Heading 51°231°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 33° 27' 21"N 33° 27' 53"N
Longitude 111° 44' 03"W 111° 43' 16"W
Elevation 1,366' 1,394'
Threshold Crossing Height 42 ft. AGL 49 ft. AGL
Visual Glide Path Angle 4° 4°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-10NOISE ABATEMENT PROC IN EFCT; QUIET HR 0500-1230Z; RWY 04L & 04R PREFFERED; TGL 0500-1230Z NA; CLMB AT VY UNTIL 2400 FT MSL; MNTN TFC PAT 3/4 MI FM RWY END.
A110-18WHEN ATCT CLSD, FOR CD CTC PHOENIX APPROACH AT 602-306-2565.
A110-19TRNG OPS RWY 04L/22R WHEN PSBL; TRNG OPS NA 2200-0530.
A110-22786 FT MSL UNLGTD MT 5 MI E. RISING TRRN NE.
A110-20CTN: HELI 1 MI N; DO NOT MISTAKE FOR RWY.
A110-22TWY G CLSD WHEN ATCT CLSD.
A110-4TURB PSBL BLW 500 FT NEAR TEST SITE 1.5 MI N.
A110-8TRML APRON LMTD TO 45000 LB GWT SINGLE WHEEL OR 75000 LB GWT DUAL WHEEL.
A110-9FIXED WING & ROTORCRAFT TRNG, BIRDS & WILDLIFE ON & INVOF ARPT.
FALCON FLD (ICAO: KFFZ, IATA: FFZ) is a public airport located in MESA, AZ.
