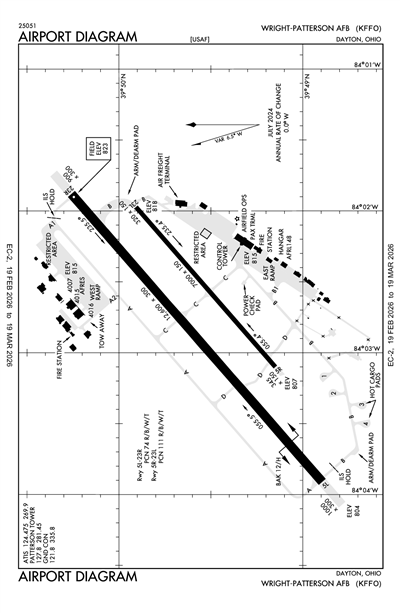

WRIGHT-PATTERSON AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFFO
ICAO KFFOIATA FFOLocal FFO
WRIGHT-PATTERSON AFB
PrivatePVT

8 miles NE of DAYTON, OH, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
39° 49' 33"N 84° 02' 46"W
Elevation
823' MSL
Pattern Alt
1823' MSL
Mag Variation
6°W
Declination
4°W
Fuel
None Listed
FSS
DAYTON (DAY)
Sectional
CINCINNATI
ARTCC
INDIANAPOLIS (ZID)
Data Effective
2/19/26-3/19/26
KFFO LIFR
8:55 PM EST
Rain and Mist
Overcast 1,500'
Broken 300'
1.75sm
50°F
48°F
30.13"Hg
Calm
AO2A SLP210 P0015 T00980090
METAR KFFO 040155Z 00000KT 1 3/4SM RA BR BKN003 OVC015 10/09 A3013 RMK AO2A SLP210 P0015 T00980090
+ Add Your Business

KFFO FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 124.475

Common

Pilot-To-Dispatcher (PTD) 126.2

Ground

PATTERSON GROUND 121.8

Tower

PATTERSON TOWER 127.8
PATTERSON TOWER 115.2
Secondary

Arrival

DANEI STAR 134.45

Emergency

Emergency 121.5

Terminal Area Forecast

KFFO
Tue, 3/3 8:15 PM EST
Tue, 3/3 8:00 PM EST - Wed, 3/4 8:00 PM EST
LIFR
8:00 PM EST - 11:00 PM EST
Light Showers and Rain and Mist
Overcast 1,200'
Broken 200'
1.49sm
30.06"Hg
010° 9kts
Moderate, Clear Air, Occasional: 700 - 3,700'
LIFR
Temporary 8:00 PM EST - 11:00 PM EST
Thunderstorm and Rain
Overcast 600'
Broken 300'
0.75sm
010° 12kts
Gusts 18kts
IFR
Becoming 11:00 PM EST - 4:00 AM EST
Light Showers and Rain and Mist
Overcast 700'
1.99sm
30.12"Hg
020° 9kts
IFR
Becoming 4:00 AM EST - 8:00 AM EST
Light Showers and Rain and Mist
Overcast 500'
1.74sm
30.15"Hg
050° 9kts
IFR
Becoming 8:00 AM EST - 8:00 PM EST
Light Showers and Rain and Mist
Overcast 800'
2.98sm
30.06"Hg
080° 9kts
IFR
Temporary 6:00 PM EST - 8:00 PM EST
Showers and Rain
No Clouds
1.49sm
100° 12kts
Gusts 20kts
TAF AMD KFFO 040115Z 0401/0501 01009KT 2400 -SHRA BR BKN002 OVC012 610909 520073 QNH3007INS
   TEMPO 0401/0404 01012G18KT 1200 TSRA BKN003 OVC006CB
   BECMG 0404/0406 02009KT 3200 -SHRA BR OVC007 QNH3013INS
   BECMG 0409/0411 05009KT 2800 -SHRA BR OVC005 QNH3014INS
   BECMG 0413/0415 08009KT 4800 -SHRA BR OVC008 QNH3006INS
   TEMPO 0423/0501 10012G20KT 2400 SHRA TX13/0419Z TN06/0412Z
KFFO
EffectiveExpiresCategoryNOTAM
Military
2/25/26
0046Z
3/4/26
2359Z
RunwayRWY 05R/23L 4K/3K RDR UNLIT (EAST SIDE)
2/25/26
0045Z
3/4/26
2359Z
RunwayRWY 05R/23L TWY B DIRECTIONAL SIGN UNLIT AT DEPARTURE END OF RWY 05R (WEST SIDE)
2/24/26
2151Z
2/27/26
2151Z
M0221/26 NOTAMC M0217/26
2/24/26
1430Z
3/2/26
2359Z
EAST RAMP FUEL PITS OTS
2/24/26
1145Z
2/27/26
1145Z
M0219/26 NOTAMC M0202/26
2/24/26
0258Z
2/27/26
0258Z
M0218/26 NOTAMC M0201/26
2/23/26
1925Z
2/26/26
1925Z
M0215/26 NOTAMC M0213/26
2/23/26
1925Z
2/26/26
1925Z
M0214/26 NOTAMC M0208/26
2/23/26
1104Z
2/26/26
1104Z
M0211/26 NOTAMC M0210/26
2/23/26
0851Z
2/26/26
0851Z
M0209/26 NOTAMC M0206/26
2/23/26
0458Z
2/26/26
0458Z
M0207/26 NOTAMC M0204/26
2/23/26
0451Z
2/26/26
0451Z
M0205/26 NOTAMC M0200/26
2/23/26
0447Z
2/26/26
0447Z
M0203/26 NOTAMC M0198/26
2/23/26
0101Z
2/26/26
0101Z
M0199/26 NOTAMC M0195/26
2/23/26
0055Z
2/26/26
0055Z
M0197/26 NOTAMC M0196/26
2/18/26
2201Z
2/25/26
2359Z
EAST RAMP FOX ROW SPOTS 5-8 CLSD
2/12/26
1229Z
5/11/26
2359Z
RunwayRWY 05R/23L MIRLS ARE NOW STEP-ABLE STEP-1 10%, STEP 2-30% STEP 3-100% OF FULL INTENSITY
2/10/26
2057Z
3/11/26
2359Z
EAST RAMP INDIA ROW SPOT 2 CLOSED
2/3/26
1344Z
5/1/26
2359Z
ARFF REDUCED LEVEL OF SERVICE (YELLOW). DURING REDUCED LEVEL OF SERVICE, AVAILABLE WATER IS EQUAL TO OR GREATER THAN Q1 + Q2 GALLONAGE FOR THE AIRCRAFT. ARFF RESPONSE OBJECTIVES ARE EXPECTED TO BE ACCOMPLISHED FOR INITIAL CONTROL OF THE POOL FIRE AND FULL EXTINGUISHMENT OF THE POOL FIRE. AIRCREW RESCUE IS EXPECTED TO BE PERFORMED; HOWEVER, INTERIOR FIREFIGHTING MAY BE LIMITED DEPENDING ON THE AMOUNT OF WATER AVAILABLE. OBJECTIVES ARE EXPECTED TO BE PERFORMED BASED ON THE INCIDENT PRIORITIES. MANPOWER RESOURCES ARE AVAILABLE TO PERFORM ALL CRITICAL TASKS TO THE RLS LEVEL IAW AFMD 44F100. FOR C-17, B2-A, B1-B, B-21, B52 AND LIKE AIRCRAFT. CONTACT FES (CHIEF 2) FOR FURTHER ARFF INFO AT DSN 787-6767/COMM: 937-257-6767. CONTACT AMOPS FOR ASSISTANCE DSN 787-4492 OR COMMERCIAL 937-257-4492
1/22/26
1331Z
4/21/26
2359Z
RunwayRWY 05R/23L AIRPORT DIAGRAM FOR RUNWAY 05R UNDERRUN/OVERRUN IS PUBLISHED AS 345 X 150 FT, CORRECT DIMENSIONS ARE 360 X 150 FT
1/12/26
1130Z
4/7/26
2100Z
Obstruction!KFFO M0030/26 FFO OBST CRANE 394733N0840328W (1.6NM SSW FFO) 1027FT MSL
(210FT AGL) FLAGGED AND LGTD MON-FRI 1130-2100 2601121130-2604072100
1/3/26
1824Z
4/2/26
2030Z
Obstruction!KFFO M0015/26 FFO OBST CRANE 394950N0840140W (0.2NM E FFO) 910FT MSL
(80FT AGL) FLAGGED AND NOT LGTD 2601031824-2604022030
12/23/25
1922Z
3/20/26
2359Z
Taxiway!KFFO M1296/25 FFO TWY D CLSD FROM TWY ALPHA TO RWY 23R/05L 2512231922-2603202359
12/22/25
1105Z
12/31/26
2359Z
Aerodrome!KFFO V0107/25 FFO AERODROME IFR TAKE-OFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES CHANGED ADD RWY 5L TAKEOFF MINIMUMS: RWY 5L, STANDARD WITH MINIMUM CLIMB OF 276 FT/NM TO 1100 FT OR 300-1 1/2. CHANGE RWY 5R TAKEOFF MINIMUMS TO: RWY 5R, STANDARD WITH MINIMUM CLIMB OF 293 FT/NM TO 1200 FT OR 300-1 3/4. 2512221105-2612312359
12/19/25
1834Z
12/31/26
2359Z
Aerodrome!KFFO V0106/25 FFO AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED TACAN RWY 23R CHANGE STRAIGHT-IN MINIMA TO THE FOLLOWING: S-23 CAT AB 1360/40 537 (600-3/4); CAT CDE 1360/55 537 (600-1). ADD NOTE: RWY 23R HELICOPTER VISIBILITY REDUCTION BELOW RVR 4000 NOT AUTHORIZED. 2512191834-2612312359
12/19/25
1828Z
12/31/26
2359Z
Aerodrome!KFFO V0105/25 FFO AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED TACAN RWY 23L ADD NOTE: RWY 23L HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED. 2512191828-2612312359
12/19/25
1812Z
12/31/26
2359Z
Aerodrome!KFFO V0104/25 FFO AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV (GPS) RWY 23R CHANGE LNAV MDA TO THE FOLLOWING: CAT AB 1340/40 517 (600-3/4); CAT CD 1340/55 517 (600-1). ADD NOTE: RWY 23R HELICOPTER VISIBILITY REDUCTION BELOW RVR 4000 NOT AUTHORIZED. 2512191812-2612312359
12/19/25
1806Z
12/31/26
2359Z
Aerodrome!KFFO V0103/25 FFO AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED RNAV (GPS) RWY 23L ADD NOTE: RWY 23L HELICOPTER VISIBILITY REDUCTION BELOW 3/4 SM NOT AUTHORIZED. 2512191806-2612312359
12/19/25
1635Z
12/31/26
2359Z
Aerodrome!KFFO V0102/25 FFO AERODROME INSTRUMENT APPROACH PROCEDURE CHANGED ILS OR LOC RWY 23R CHANGE LOC MINIMA TO THE FOLLOWING: S-LOC CAT AB 1320/40 497 (500-3/4); CAT CDE 1320/50 497 (500-1). ADD NOTE: LOC RWY 23R HELICOPTER REDUCTION BELOW RVR 4000 NOT AUTHORIZED. 2512191635-2612312359
Yes
ALL
OPR H24 EXC AD CLSD MAJOR HOLS & OTR TIMES BY NOTAM.
US AIR FORCE
WRIGHT-PATTERSON AFB
DAYTON, OH 45433
Phone: 937-257-2131
BASE COMMANDER
WRIGHT PATTERSON AFB
DAYTON, OH 45433
Phone: 937-257-2131
DAYTON FSS (DAY)
Toll Free: 1-800-WX-BRIEF
FFO
--
--
N/A
Yes
No
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
High & Low Pressure
Cargo Handling

Runway 05L/23R

12600 ft. x 300 ft.

PEM
GRVD
HIGH
74/R/B/W/T
--
--
--
--
  Runway 05L Runway 23R
True Heading 49°229°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 39° 48' 54"N 39° 50' 15"N
Longitude 84° 03' 55"W 84° 01' 53"W
Elevation 804' 822'
Threshold Crossing Height 51 ft. AGL 53 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4R
Approach Lights ALSF1 ALSF1
Centerline Lights No No
Runway End Identifier Lights No No

Runway 05R/23L

7000 ft. x 150 ft.

ASPH
GRVD
MED
111/R/B/W/T
--
--
--
--
  Runway 05R Runway 23L
True Heading 49°229°
Traffic Pattern Left
Markings
Markings Condition
Latitude 39° 49' 09"N 39° 49' 54"N
Longitude 84° 03' 06"W 84° 01' 58"W
Elevation 807' 818'
Threshold Crossing Height 51 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-11CAUTION: UNLGTD OBST SUR AFLD.
A110-13CAUTION: BIRD WATCH CONDITION PHASE I (NOV-JUN) INDICATES LGT BIRD ACT, PHASE II (JUL-OCT) INDICATES HVY BIRD ACT NML ASSOCIATED WITH MIGRATORY SEASON.
A110-16MISC: UNLGTD ABANDONED TWR W SIDE FLD.
A110-18MISC: AMOPS C937-257-4492, DSN 787-4492.
A110-19AFRC: 445 AW OPR 1200--0330Z++. MON-FRI AND TRNG WKEND.
A110-20CUST/AG/IMG: LTD CUST AVBL. US MIL REQ A MNM OF 24 HR PN, FOREIGN STATE ACFT A MNM OF 48 HR PN, AMOPS C937-257-4492, DSN 787-4492.
A110-21JASU: 7(A/M32A-86) 1(MC-1A) 4(AM32-95) 7(A/M32A-60/A).
A110-22FUEL: A++
A110-23FLUID: SP PRESAIR LHOX LOX.
A110-24OIL: O-148-156 SOAP/JOAP AVBL 1230-2130Z++WKD EXC CLSD WKEND AND HOL.
A110-25TRAN ALERT: OPR 1100-0300Z++; AVBL OT WITH 24 HR PN TO AFLD OPS. FLEET SVC IS A CONTRACTED CO AND AVBL WITH 3 HR PN. PRIOR PAYMENT RQR BY AVCARD.
A110-26MISC: STD RSRS APPLIED.
A110-29RSTD: AD PPR. CTC AFLD OPS C937-257-4492, DSN 787-4492.
A110-3CAUTION: PORTIONS OF FLAMEOUT & OVERHEAD TFC PAT NOT VIS FM TWR.
A110-31TRANS ALERT: PAX TRML IS CONTRACTED. ALL AIRCREWS RQRG SUPPORT MUST COORD PRIOR TO ARR/DEP NML DUTY HR M-F 1130-2030Z++ DSN: 787-7741/COMM: 937-257-7741 OR AFTER HR DUTY CELL: 937-815-6995.
A110-32RSTD: INBD ACFT WITH VIP CTC AFLD OPS ON PTD 30 MIN PRIOR TO ARR.
A110-34MISC: LTD COMSEC STORAGE AVBL, PRIOR COORD RQR WITH AMOPS.
A110-36CAUTION: RY 23R CNTRLN MARK OBSC BY RUBBER DEPOSITS.
A110-37NOISE ABATEMENT: QUIET HRS 0500-1000Z++: ONLY INITIAL DEP/FSL PMTD; FM 0300-0500Z++ ALL TRNG FLTS BTN THESE HRS HELD TO ABSOLUTE MNM FOR MISSION RQRMT. ALL REQ COORD THRU AMOPS WITH 88 OSS/CC APVL, C937-257-4492, DSN 787-4492.
A110-38CAUTION: NVD OPS IN PROGRESS TUE-THU SS-0400Z++. CHECK NOTAM AND ATIS FOR CURRENT OPS. WHEN NVD OPR ARE IN EFFECT, NON-PARTICIPATING ACFT CTC TWR 20 MILES OR 15 MINS PRIOR TO ENTERING CLASS D AIRSPACE AND FOR AFLD LGT ADJUSTMENT.
A110-40CTN: SML UAS OPR IN KFFO CLASS D ASP SFC-400 FT AGL SR-SS; CK ATIS/NOTAMS. HIGH DENSITY SML UAS, RECREATIONAL REMOTE CTL OPRG AREA SFC-1400 FT MSL 3.5 NM SW FFO TACAN; OPS GTR THAN 400 FT AGL PUBLD VIA NOTAM.
A110-42ARFF STATUS: KFFO IS A SET/CAT 4 BASE.
A110-43CAUTION: RWYCC NOT RPT.
A110-44SVC: RPRTD PVLG VIS MAY NOT REP ENTR HRZN DUE TO OBST FM OBSTN PT 050-210. TDZ VIS NOT OBSTD. ATC WILL ENHANCE SFC OBS WHEN VIS LESS THAN 4 SM & DIFFERENT FM RPRTD VIS.
A110-45RSTD: ACFT BACKING PROCS NA AT INT OF TWY A & A2 DUE TO INCRD FOD POTENTIAL.
A110-47CTN: GRASS CUTTING OPS ON AFLD WEF 1130-1930Z++ MON-FRI APR-OCT.
A110-48RSTD: RWY 05R/23L MKD WITH WHITE NON-REFLECTIVE LDG ZONE MRKGS 99 FT X 3624 FT; 24 HR PPR FOR ALL NON-445TH ACFT & LTD TO 2 LDG ZONE LDGS PER MISSION.
A110-49TRANS ALERT: NO C-5 OR B-52 TOWBAR AVBL, ACFT MUST ARR WITH OWN TOWBAR.
A110-50ALL ACFT EXCTG A 180 DEG TURNAROUND ARE RQRD TO USE CONC PTN OF RWY 05L/23R.
A110-6MISC: EXP DEP FR RY 23R AT TWY 'B' INT 11,600 FT AVBL; IF FULL LEN RQR, RQ BACK-TAXI FM TWR.
A14AIRFIELD MANAGER - ROMULO ALCANTARA 937-257-6206
A17-M1OPR H24 EXC AD CLSD MAJOR HOLS & OTR TIMES BY NOTAM.
A33-05L/23R_SURFSW 2600 FT CONC, NE 10000 FT ASPH.
E147RECTANGULAR FIGHTER/TACTICAL/TRAINER ACFT 2400' MSL, OTHER TURBOJET/TURBOPROP AND LGT RECIPROCATING ENG ACFT (12,500 LB OR BLW GWT) 1900', OVERHEAD 2400' MSL.
E60-05L_BAK-12BTYPE-H BAK-12B(B) (1676 FT).
WRIGHT-PATTERSON AFB (ICAO: KFFO, IATA: FFO) is a private airport located in DAYTON, OH, US.
