KFDW
FAIRFIELD COUNTY
PublicPUB

3 miles SW of WINNSBORO, SC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 18' 57"N 81° 06' 31"W
578' MSL
1400' MSL
07W
JET A, 100LL
ANDERSON (AND)
CHARLOTTE
JACKSONVILLE (ZJX)
7/11/24-8/8/24
KFDW LIFR
6:55 AM EDT
Mist
Overcast 200'
1.25sm
68°F
68°F
29.91"Hg
Calm
AO1
KFDW 191055Z AUTO 00000KT 1 1/4SM BR OVC002 20/20 A2991 RMK AO1
Add Your Business

KFDW FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.05 123.05

AWOS-3

AWOS-3
803-712-2577
 119.075

FAA A/FD Pages

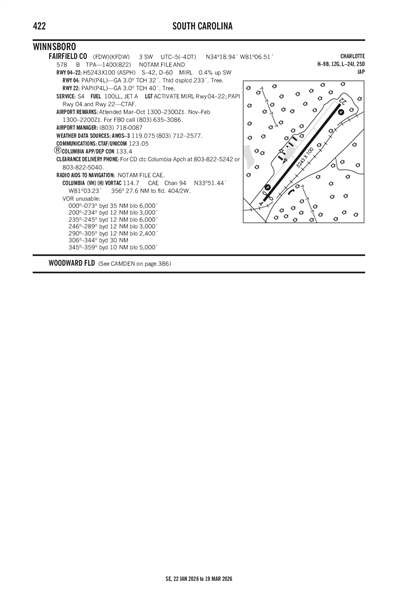

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KCUB (21nm)
Thu, 9/19 5:15 AM EDT
Thu, 9/19 5:00 AM EDT - Fri, 9/20 2:00 AM EDT
IFR
5:00 AM EDT - 11:00 AM EDT
Mist
Broken 2,500'
Broken 700'
4sm
VRB° 3kts
LIFR
Temporary 5:00 AM EDT - 9:00 AM EDT
Fog
Broken 200'
0.5sm
Calm
MVFR
11:00 AM EDT - 2:00 PM EDT
Broken 6,000'
Broken 1,500'
6sm
030° 4kts
VFR
2:00 PM EDT - 8:00 PM EDT
Broken 6,000'
Scattered 3,500'
6sm
020° 5kts
VFR
8:00 PM EDT - 2:00 AM EDT
Broken 10,000'
Scattered 2,500'
6sm
Calm
KCUB 190915Z 1909/2006 VRB03KT 4SM BR BKN007 BKN025
   TEMPO 1909/1913 1/2SM FG BKN002
   FM191500 03004KT P6SM BKN015 BKN060
   FM191800 02005KT P6SM SCT035 BKN060
   FM200000 00000KT P6SM SCT025 BKN100
KFDW
Domestic
9/8/241626Z !AND 09/097 FDW OBST TOWER LGT (ASR 1049570) 342814.80N0810427.80W (9.5NM NE FDW) 743.8FT (233.9FT AGL) U/S 2409081626-2410231625
9/6/241204Z !AND 09/073 FDW OBST TOWER LGT (ASR 1255189) 341633.10N0811935.70W (11.1NM WSW FDW) 636.2FT (202.1FT AGL) U/S 2409061204-2410211204
8/31/240048Z !AND 08/596 FDW OBST TOWER LGT (ASR 1245445) 341759.10N0811911.80W (10.5NM W FDW) 644.0FT (208.0FT AGL) U/S 2408310048-2410150047
No
MAR-OCT 0800-1800
NOV-FEB 0800-1700
FAIRFIELD COUNTY
PO BOX 216
WINNSBORO, SC 29180
Phone: (803) 635-1058
DENISE BRYAN
1291 RUNWAY RD
WINNSBORO, SC 29180
Phone: (803) 718-0087
ANDERSON FSS (AND)
Toll Free: 1-800-WX-BRIEF
AND
--
ACTVT MIRL RY 04/22 & PAPI RYS 04 & 22 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
32
4
0
0
0
0
Major
Major
None
None
Avionics
Pilot Instruction
Aircraft Rental

Runway 04/22

5243 ft. x 100 ft.
ASPH
Excellent
NONE
MED

42,000lbs
60,000lbs
--
--
  Runway 04 Runway 22
True Heading 38°218°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 34° 18' 36"N 34° 19' 17"N
Longitude 81° 06' 50"W 81° 06' 11"W
Elevation 578' 559'
Threshold Crossing Height 32 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2TPA 1400 MSL.
A110-3FOR CD CTC COLUMBIA APCH AT 803-822-5242 OR 803-822-5040.
A110-4(CONTACT TITLE) FOR FBO CALL (803) 635-3086.
FAIRFIELD COUNTY (ICAO: KFDW, IATA: FDW) is a public airport located in WINNSBORO, SC.
