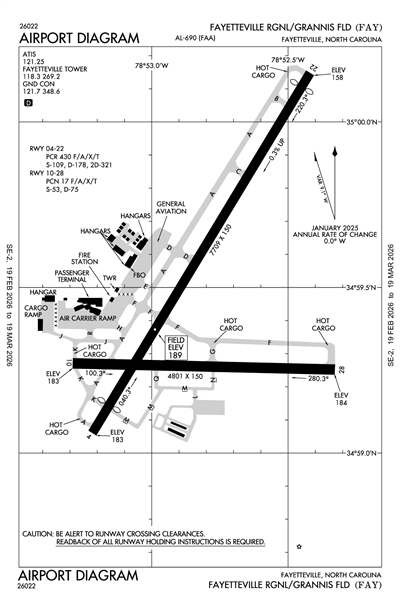

FAYETTEVILLE RGNL/GRANNIS FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFAY
ICAO KFAYIATA FAYLocal FAY
FAYETTEVILLE RGNL/GRANNIS FLD
PublicPUB

3 miles S of FAYETTEVILLE, NC, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
34° 59' 28"N 78° 52' 49"W
Elevation
189' MSL
Pattern Alt
1189' MSL
Mag Variation
9°W
Declination
7°W
Fuel
JET A, 100LL
FSS
RALEIGH (RDU)
Sectional
CHARLOTTE
ARTCC
WASHINGTON (ZDC)
Data Effective
2/19/26-3/19/26
KFAY VFR
8:53 AM EST
Clear
10sm
56°F
51°F
30.34"Hg
170° 3kts
AO2 SLP268 T01330106
METAR KFAY 041353Z 17003KT 10SM CLR 13/11 A3034 RMK AO2 SLP268 T01330106
+ Add Your Business

KFAY FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 121.25
ASOS 121.25
(910) 484-1546

Common

UNICOM 122.95

Ground

FAYETTEVILLE GROUND 121.7

Tower

FAYETTEVILLE TOWER 118.3

Approach

FAYETTEVILLE APPROACH 125.175
321-060
FAYETTEVILLE APPROACH 127.8
231-320
FAYETTEVILLE APPROACH 133.0
Initial Contact - 061-230

Departure

FAYETTEVILLE DEPARTURE 125.175
321-060
FAYETTEVILLE DEPARTURE 127.8
231-320
FAYETTEVILLE DEPARTURE 133.0
Initial Contact - 061-230

Emergency

Emergency 121.5

Other

CLASS C 125.175
321-060
CLASS C 127.8
231-320
CLASS C 133.0
061-230

Terminal Area Forecast

KFAY
Wed, 3/4 6:40 AM EST
Wed, 3/4 7:00 AM EST - Thu, 3/5 7:00 AM EST
MVFR
Temporary 7:00 AM EST - 9:00 AM EST
Broken 2,500'
6sm
Calm
MVFR
7:00 AM EST - 9:00 AM EST
Mist
Broken 25,000'
Scattered 2,500'
5sm
220° 3kts
VFR
9:00 AM EST - 3:00 AM EST
Scattered 25,000'
Few 2,500'
6sm
230° 8kts
MVFR
3:00 AM EST - 6:00 AM EST
Mist
Scattered 25,000'
4sm
200° 4kts
LIFR
6:00 AM EST - 7:00 AM EST
Mist
Broken 300'
1sm
200° 4kts
TAF KFAY 041140Z 0412/0512 22003KT 5SM BR SCT025 BKN250
   TEMPO 0412/0414 P6SM NSW BKN025
   FM041400 23008KT P6SM FEW025 SCT250
   FM050800 20004KT 4SM BR SCT250
   FM051100 20004KT 1SM BR BKN003
KFAY
EffectiveExpiresCategoryNOTAM
Domestic
3/4/26
1300Z
3/4/26
1900Z
Runway!FAY 03/002 FAY RWY 04 ALS U/S 2603041300-2603041900
2/10/26
2327Z
6/10/26
2326Z
!FAY 02/028 FAY OBST TOWER LGT (ASR 1004958) 350606.10N0784200.20W (11.2NM NE FAY) 418.0FT (265.1FT AGL) U/S 2602102327-2606102326
1/24/26
2305Z
3/10/26
2305Z
!FAY 01/034 FAY OBST TOWER LGT (ASR 1059252) 350407.00N0785408.00W (4.8NM NNW FAY) 492.8FT (352.0FT AGL) U/S 2601242305-2603102305
1/18/26
1515Z
4/19/26
0500Z
!FAY 01/025 FAY OBST TOWER LGT (ASR 1010094) 350001.00N0785442.00W (1.6NM WNW FAY) 339.9FT (128.0FT AGL) U/S 2601181515-2604190500
FDC
1/15/26
1441Z
!FDC 6/3861 FAY IAP FAYETTEVILLE RGNL/GRANNIS FLD, FAYETTEVILLE, NC.
ILS OR LOC RWY 4, AMDT 18...
LOC BC RWY 22, AMDT 9...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
FAY VOR OUT OF SERVICE. 2601151441-2608271441EST
8/15/25
1914Z
!FDC 5/8663 FAY IAP FAYETTEVILLE RGNL/GRANNIS FLD, FAYETTEVILLE, NC.
RNAV (GPS) RWY 4, AMDT 3C...
TAA STRAIGHT-IN SECTOR 308/30 CW 128/30 MINIMUM ALTITUDE 3200, SECTOR 128/30 CW 308/30 MINIMUM ALTITUDE 3200. INITIAL HOLDING 3200 TO 6000, IF/IAF 3200..
2508151914-2708151914EST
Yes
0600-0000
CITY OF FAYETTEVILLE
400 AIRPORT RD SUITE 1
FAYETTEVILLE, NC 28306
Phone: 910-433-1160
ANDREW LAGALA
400 AIRPORT RD SUITE 1
FAYETTEVILLE, NC 28306
Phone: 910-433-1625
RALEIGH FSS (RDU)
Toll Free: 1-800-WX-BRIEF
FAY
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
None
None
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04/22

7709 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

109,000lbs
178,000lbs
321,000lbs
--
  Runway 04 Runway 22
True Heading 31°211°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 34° 59' 04"N 35° 00' 09"N
Longitude 78° 53' 13"W 78° 52' 25"W
Elevation 183' 158'
Threshold Crossing Height 47 ft. AGL 48 ft. AGL
Visual Glide Path Angle 3.13° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes

Runway 10/28

4801 ft. x 150 ft.
ASPH
Excellent
NONE
MED
17/F/A/X/T
53,000lbs
75,000lbs
--
--
  Runway 10 Runway 28
True Heading 91°271°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 34° 59' 16"N 34° 59' 15"N
Longitude 78° 53' 17"W 78° 52' 20"W
Elevation 183' 184'
Threshold Crossing Height -- 36 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1CLSD TO ALL MIL ACFT OVER 17000 LBS FOR ACR RAMP OPNS EXCP 24 HR PPR. CALL AMGR 910-433-1160 MON-FRI.
A39-04/22PCR VALUE: 430/F/A/X/T
A72MAJOR POWER PLANT REPAIRS AVBL FOR PISTON ENGINES ONLY.
FAYETTEVILLE RGNL/GRANNIS FLD (ICAO: KFAY, IATA: FAY) is a public airport located in FAYETTEVILLE, NC, US.
