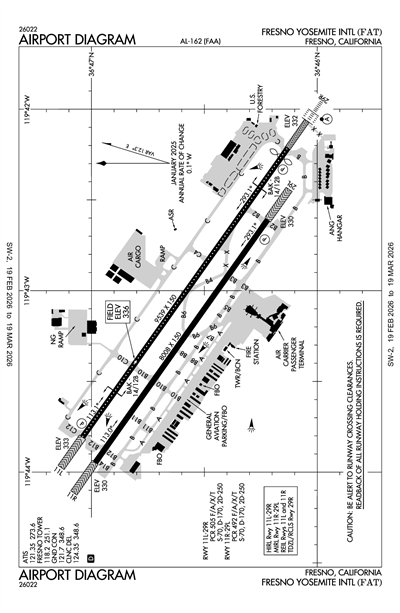

FRESNO YOSEMITE INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFAT
ICAO KFATIATA FATLocal FAT
FRESNO YOSEMITE INTL
PublicPUB

5 miles NE of FRESNO, CA, US
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Status
Operational
Coordinates
36° 46' 36"N 119° 43' 08"W
Elevation
336' MSL
Pattern Alt
1303' MSL
Mag Variation
12°E
Declination
13°E
Fuel
JET A, JET A+, CILI, 100
FSS
RANCHO MURIETA (RIU)
Sectional
SAN FRANCISCO
ARTCC
OAKLAND (ZOA)
Data Effective
2/19/26-3/19/26
KFAT VFR
5:53 PM PST
Scattered 20,000'
Scattered 8,000'
Few 4,000'
10sm
67°F
50°F
30.06"Hg
300° 6kts
AO2 SLP177 T01940100
METAR KFAT 040153Z 30006KT 10SM FEW040 SCT080 SCT200 19/10 A3006 RMK AO2 SLP177 T01940100
+ Add Your Business

KFAT FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing

Weather and Advisory

ATIS 121.35
(559) 484-9845
ASOS (559) 203-3918

Common

UNICOM 122.95

Clearance

Clearance Delivery 124.35

Ground

FRESNO GROUND 121.7

Tower

FRESNO TOWER 118.2

Approach

FRESNO APPROACH 119.6
Initial Contact - 240-090
FRESNO APPROACH 132.35
091-239
FRESNO APPROACH 118.5
Secondary - S/SE VISALIA AREA

Departure

FRESNO DEPARTURE 119.6
Initial Contact - 240-090
FRESNO DEPARTURE 132.35
091-239
FRESNO DEPARTURE 118.5
Secondary - S/SE VISALIA AREA

Emergency

Emergency 121.5

Military

ANG OPS 140.0
NG OPS 40.95
NG OPS 132.0

Other

CLASS C 119.6
240-090
CLASS C 132.35
091-239

Terminal Area Forecast

KFAT
Tue, 3/3 3:54 PM PST
Tue, 3/3 4:00 PM PST - Wed, 3/4 4:00 PM PST
VFR
4:00 PM PST - 4:00 AM PST
Broken 20,000'
6sm
VRB° 3kts
MVFR
4:00 AM PST - 8:00 AM PST
Mist
Sky Clear
5sm
VRB° 3kts
MVFR
Temporary 6:00 AM PST - 8:00 AM PST
Mist
No Clouds
4sm
Calm
VFR
8:00 AM PST - 1:00 PM PST
Broken 25,000'
6sm
VRB° 3kts
VFR
1:00 PM PST - 4:00 PM PST
Broken 25,000'
6sm
310° 10kts
TAF KFAT 032354Z 0400/0424 VRB03KT P6SM BKN200
   FM041200 VRB03KT 5SM BR SKC
   TEMPO 0414/0416 4SM BR
   FM041600 VRB03KT P6SM BKN250
   FM042100 31010KT P6SM BKN250
KFAT
EffectiveExpiresCategoryNOTAM
Domestic
2/27/26
1630Z
2/27/26
2200Z
Runway!FAT 02/087 FAT RWY 11R/29L CLSD 2602271630-2602272200
2/26/26
1630Z
2/26/26
2200Z
Runway!FAT 02/086 FAT RWY 11R/29L CLSD 2602261630-2602262200
2/25/26
1700Z
2/25/26
2355Z
!FAT 02/090 FAT NAV ILS RWY 11L U/S 2602251700-2602252355
2/25/26
1700Z
2/25/26
2355Z
!FAT 02/089 FAT NAV ILS RWY 29R U/S 2602251700-2602252355
2/17/26
0717Z
3/4/26
0617Z
!FAT 02/070 FAT OBST TOWER LGT (ASR 1047401) 370422.00N1192553.00W (22.3NM NE FAT) 4747.0FT (254.9FT AGL) U/S 2602170717-2603040617
2/14/26
1500Z
5/15/26
0100Z
!FAT 02/062 FAT AIRSPACE SEE FRA 02/100 UAS DLY 1500-0100 2602141500-2605150100
2/13/26
1500Z
5/14/26
0100Z
!FAT 02/055 FAT AIRSPACE UAS WI AN AREA DEFINED AS 364800N1194354W (1.5NM NW FAT) TO 364800N1194200W (1.5NM NE FAT) TO
364712N1194200W (1.1NM NE FAT) TO 364712N1194303W (.6NM N FAT) TO 364740N1194354W TO POINT OF ORIGIN SFC-200FT AGL DLY 1500-0100 2602131500-2605140100
12/3/25
1439Z
3/3/26
2300Z
!FAT 12/018 FAT OBST TOWER LGT (ASN 2020-AWP-5583-OE) 370957N1192054W (33.8NM NE FAT) 3653FT (233FT AGL) U/S 2512031439-2603032300
11/26/25
0945Z
!FAT 11/037 FAT TWY B3 BTN RWY 11L/29R AND RWY 11R/29L CLSD 2511260945-PERM
FDC
2/25/26
1700Z
3/3/26
2000Z
!FDC 6/9282 FAT IAP FRESNO YOSEMITE INTL, FRESNO, CA.
ILS Y OR LOC Y RWY 29R, AMDT 39A...
ILS Y RWY 29R (SA CAT I), AMDT 39A...
ILS Y RWY 29R (CAT II - III), AMDT 39A...
DME REQUIRED EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
HYP VOR/DME OUT OF SERVICE. 2602251700-2603032000EST
2/25/26
0800Z
3/3/26
1400Z
!FDC 6/9447 FAT IAP FRESNO YOSEMITE INTL, FRESNO, CA.
LOC Y RWY 11L, AMDT 3A...
ALTERNATE MINIMUMS NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
PXN VORTAC UNMONITORED. 2602250800-2603031400EST
1/5/26
1529Z
!FDC 6/0493 FAT IAP U.S. DOD FRESNO YOSEMITE INTL, FRESNO, CA.
HI - ILS Z OR LOC Z RWY 29R, AMDT 4A...
HI - LOC Z RWY 11L, AMDT 3...
HI - TACAN RWY 11L, AMDT 2A...
HI-TACAN RWY 29R, AMDT 3...
CIRCLING CAT D MDA 960/ HAA 624. TEMPORARY CRANE 594 MSL 4.2NM SE OF FAT AIRPORT (2022-AWP-4584-OE).
2601051529-2603311529EST
1/5/26
1529Z
!FDC 6/0491 FAT IAP FRESNO YOSEMITE INTL, FRESNO, CA.
RNAV (GPS) RWY 29L, AMDT 2B...
RNAV (GPS) RWY 29R, AMDT 1B...
CIRCLING CAT D MDA 960/ HAA 624. TEMPORARY CRANE 594 MSL 4.2NM SE OF FAT AIRPORT (2024-AWP-4584-OE).
2601051529-2603311529EST
1/5/26
1519Z
!FDC 6/0465 FAT IAP FRESNO YOSEMITE INTL, FRESNO, CA.
TACAN RWY 11L, AMDT 3...
TACAN RWY 29R, AMDT 3...
CIRCLING CAT D MDA 960/ HAA 624. TEMPORARY CRANE 594 MSL 4.2NM SE OF FAT AIRPORT (2022-AWP-4584-OE).
2601051519-2603311519EST
1/5/26
1518Z
!FDC 6/0463 FAT IAP FRESNO YOSEMITE INTL, FRESNO, CA.
ILS Y OR LOC Y RWY 29R, AMDT 39A...
CIRCLING CAT D MDA 960/ HAA 624. TEMPORARY CRANE 594 MSL 4.2NM SE OF FAT AIRPORT (2022-AWP-4584-OE).
2601051518-2603311518EST
1/5/26
1517Z
!FDC 6/0461 FAT IAP FRESNO YOSEMITE INTL, FRESNO, CA.
LOC Y RWY 11L, AMDT 3A...
CIRCLING CAT D/E MDA 960/ HAA 624, VIS CAT E 2 1/4. TEMPORARY CRANE 594 MSL 4.2NM SE OF FAT AIRPORT (2024-AWP-4584-OE).
2601051517-2603311517EST
1/5/26
1517Z
!FDC 6/0459 FAT IAP FRESNO YOSEMITE INTL, FRESNO, CA.
RNAV (GPS) RWY 11L, AMDT 2...
RNAV (GPS) RWY 11R, AMDT 3...
CIRCLING CAT D MDA 960/ HAA 624. TEMPORARY CRANE 594 MSL 4.2NM SE OF FAT AIRPORT (2022-AWP-4584-OE).
2601051517-2605311517EST
6/27/25
1313Z
!FDC 5/9749 FAT IAP U.S. DOD FRESNO YOSEMITE INTL, FRESNO, CA.
HI - TACAN RWY 11L, AMDT 2A...
TACAN RWY 11L, AMDT 3...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
CZQ TACAN RESTRICTED.
2506271313-2706271313EST
6/27/25
1313Z
!FDC 5/9748 FAT IAP U.S. DOD FRESNO YOSEMITE INTL, FRESNO, CA.
HI-TACAN RWY 29R, AMDT 3...
TACAN RWY 29R, AMDT 3...
PROCEDURE NA.
CZQ TACAN RESTRICTED.
2506271313-2706271313EST
Military
2/24/26
0120Z
2/27/26
0120Z
M0006/26 NOTAMC M0005/26
Yes
ALL
CITY OF FRESNO
4995 E CLINTON WAY
FRESNO, CA 93727
Phone: 559-621-4500
HENRY L. THOMPSON
4995 E CLINTON WAY
FRESNO, CA 93722
Phone: 559-621-4600
RANCHO MURIETA FSS (RIU)
Toll Free: 1-800-WX-BRIEF
FAT
--
--
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
Major
Major
High & Low Pressure
High Pressure
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 11L/29R

9539 ft. x 150 ft.
ASPH
Fair
GRVD
HIGH

70,000lbs
170,000lbs
250,000lbs
--
  Runway 11L Runway 29R
True Heading 125°305°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 36° 47' 02"N 36° 46' 08"N
Longitude 119° 43' 48"W 119° 42' 13"W
Elevation 333' 332'
Threshold Crossing Height 50 ft. AGL 76 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights Yes No

Runway 11R/29L

8008 ft. x 150 ft.
ASPH
Good
GRVD
MED

70,000lbs
170,000lbs
250,000lbs
--
  Runway 11R Runway 29L
True Heading 125°305°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD POOR
Latitude 36° 46' 59"N 36° 46' 13"N
Longitude 119° 43' 57"W 119° 42' 36"W
Elevation 330' 330'
Threshold Crossing Height -- 50 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes
A110-12NUMEROUS BIRDS INVOF ARPT.
A110-14LGTD RY DISTANCE REMAINING MARKERS ON SOUTH SIDE OF RY 11R/29L; LGTD RY DISTANCE REMAINING MARKERS BOTH SIDES OF RY 11L/29R- 11L DRM ON NORTH SIDE; 29R DRM ON SOUTH SIDE.
A110-17RETRACTABLE BAK-12/14 AVBL ON RY 11L AND RY 29R ARE KEPT IN RECESSED POSITION UNTIL REQ FOR USE; TWR MUST BE NOTIFIED AT LEAST 5 SECONDS PRIOR TO ENGAGEMENT SO THAT THE AG CABLE MAY BE RAISED.
A110-19SERVICE-FUEL: SIGNATURE FLIGHT SUPPORT, C559-981-2490
A110-22SERVICE - FUEL: ROSS AVIATION, C559-251-1555
A110-23MILITARY: ANG: CTC ANG OPS FOR LCL BIRD WATCH COND (BWC).
A110-24MILITARY: SVC: RWY 29R AND 11L A-GEAR CABLE AVBL UPON REQ ONLY; DEFAULT POSN DOWN.
A110-25TWY B3 CLSD BTN RWY 11L/29R AND RWY 11R/29L.
A110-26TWY A LTD TO ACFT DESIGN GROUP II.
A110-27ATCT CLNC RQRD TO PUSH ON MOV AREA.
A110-28PPR FOR ENG START AT ACR TRML GATES & ENG RUN-UP.
A110-4FRESNO YOSEMITE INTL IS NOISE SENSITIVE; NOISE ABATEMENT PROCEDURES IN EFFECT.
A110-7NO MULT APCHS AND LNDGS MON-SAT 2200-0700 AND SUN 1800-1000.
A110-9POSSIBLE WAKE TURBULENCE OR WIND SHEAR ARR TO RY 29L OR DEP FM RY 11R. JET TESTING CONDUCTED AT AIR NATIONAL GUARD RAMP LCTD AT SE CORNER OF ARPT.
A14OPS MGR - SEVAN GHAZARIANS: OFC 559-621-4508; CELL 559-840-7315; 24 HR OPNS 559-978-1835.
A24FEE FOR ACFT OVER 12500 LBS GWT.
A30-11L/29RRY 11L/29R RY 11L 1000 FT BLAST PAD; RY 29R 850 FT BLAST PAD.
A30-11R/29LRY 11R/29L RY 11R 1000 FT BLAST PAD; RY 29L 1000 FT BLAST PAD.
A39-11L/29RPCR VALUE: 505/F/A/X/T
A39-11R/29LPCR VALUE: 492/F/A/X/T
A42-29L_CONDRUBBER BUILD-UP OBSCS THE CNTRLN MRKGS IN TDZ.
E147TPA: 967 FT AGL 1303 FT MSL SINGLE ENGINE ACFT ; 1467 FT AGL 1803 FT MSL MULTI-ENGINE ACFT; 1967 FT AGL 2303 FT MSL TURBOJET; HELICOPTERS 467 FT AGL 803 FT MSL.
E60-11L_BAK-14BAK-14 BAK-12B(B) (1500')
E60-29R_BAK-14BAK-14 BAK-12B(B) (1310')
FRESNO YOSEMITE INTL (ICAO: KFAT, IATA: FAT) is a public airport located in FRESNO, CA, US.
